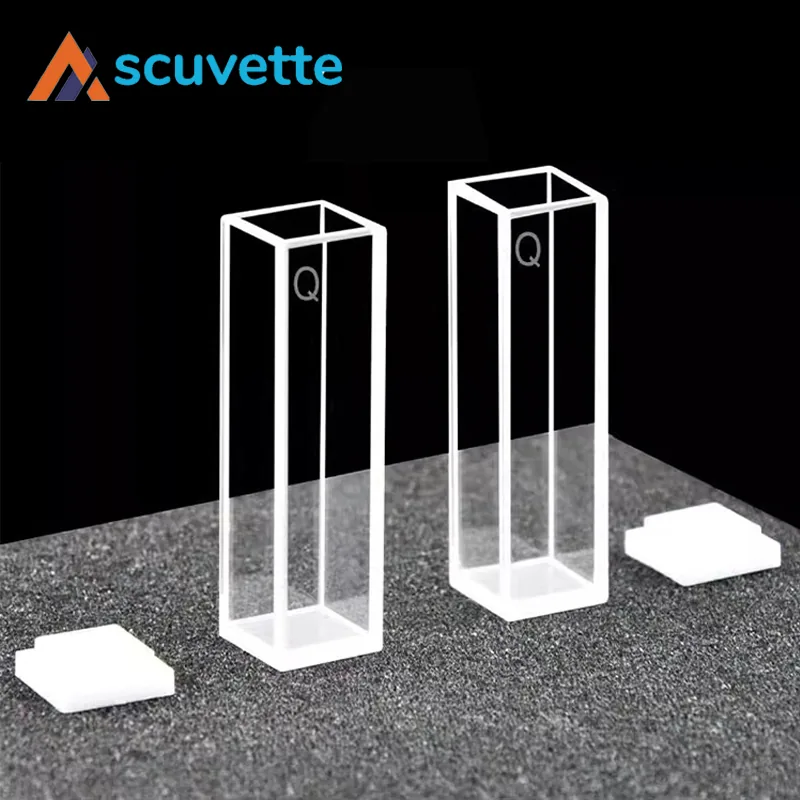

Quartz Cuvette 10mm 4-Window 2 pcs with Lids — JGS1 Fused Silica

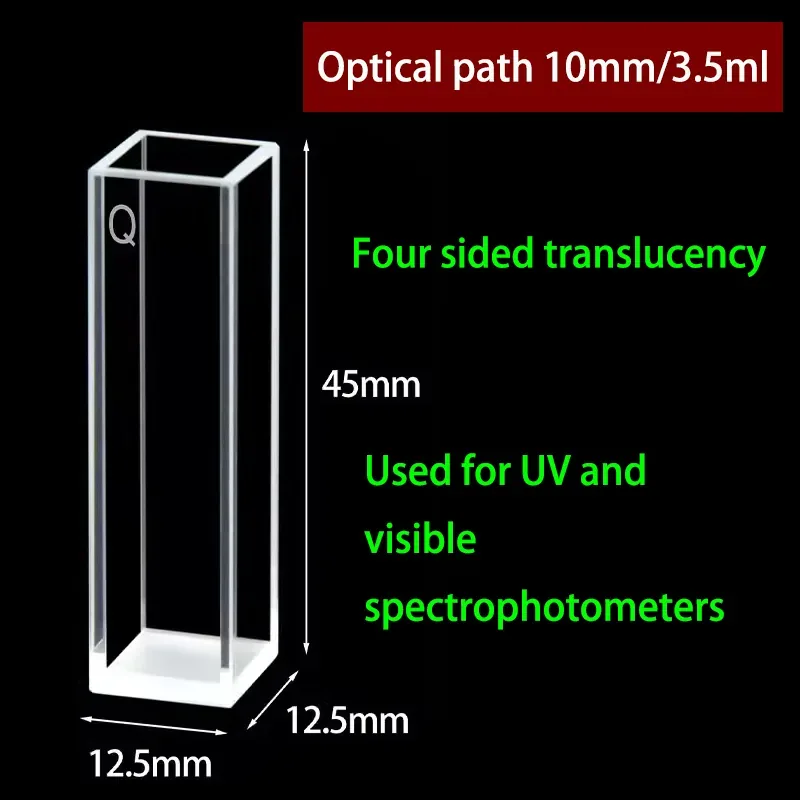

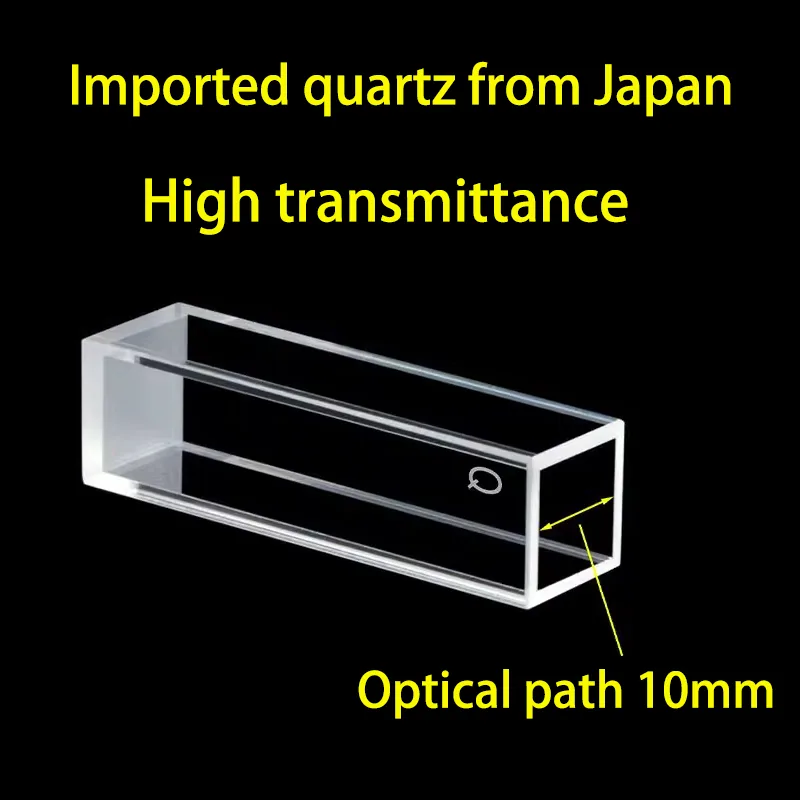

Brand: scuvette. 4-Window quartz cuvette with lid. Path length 10mm, volume 3.5ml. Japanese imported JGS1 fused silica, glue bonding process (for neutral samples only), >80% paired testing transmittance, 200nm-2500nm wavelength, max operating temp <100°C. Outline dimension 12.5x12.5x45mm. Four-sided clear windows for versatile light-path configurations.
Brand: scuvette. 4-Window quartz cuvette with lid. Path length 10mm, volume 3.5ml. Japanese imported JGS1 fused silica, glue bonding process (for neutral samples only), >80% paired testing transmittance, 200nm-2500nm wavelength, max operating temp <100°C. Outline dimension 12.5x12.5x45mm. Four-sided clear windows for versatile light-path configurations.

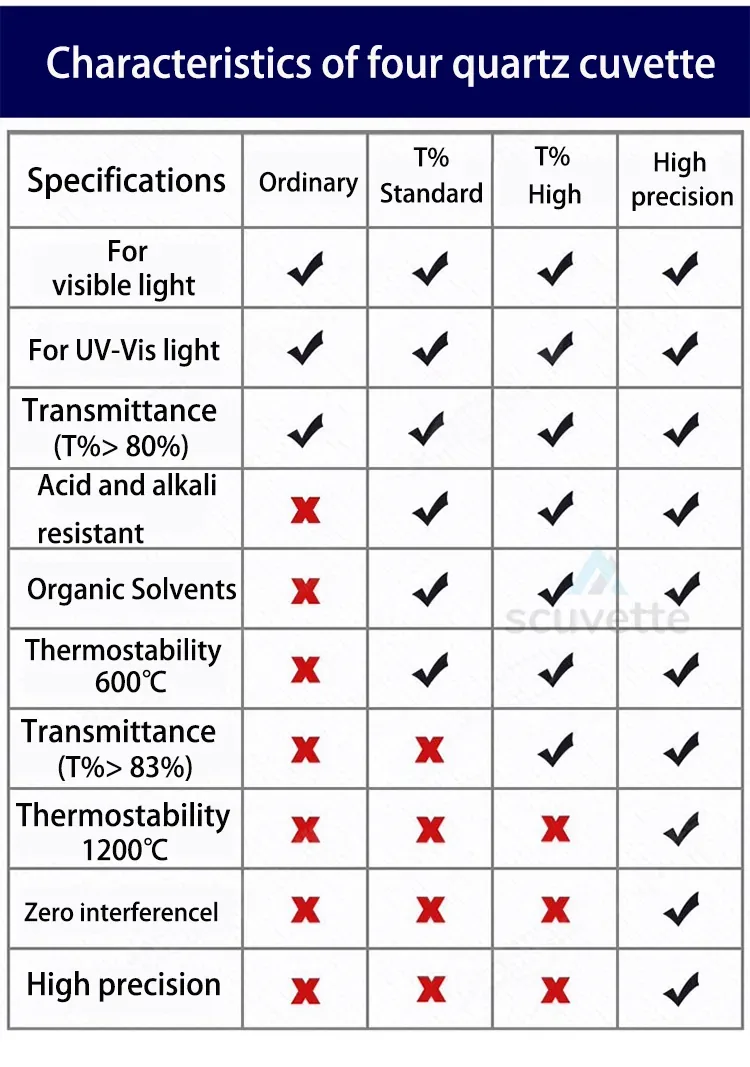

Process Comparison - 5 Grades
| Grade | Process | Max Temp | Chemical Resistance | Transmittance | Wavelength | Key Feature | Price (2 pcs) |
|---|---|---|---|---|---|---|---|

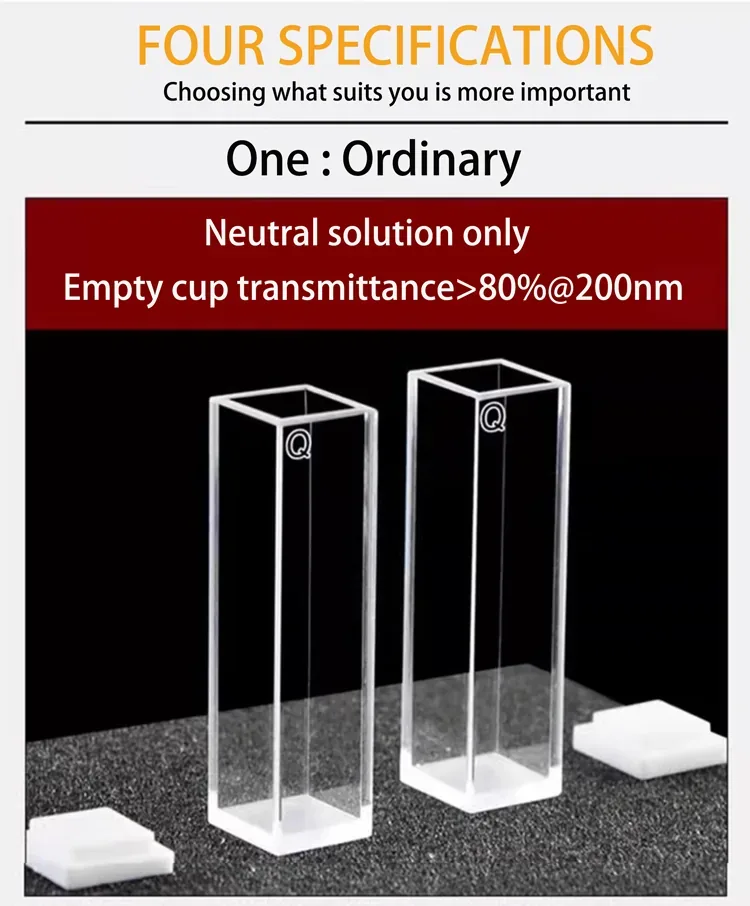

| Ordinary | Glue bonding | <100°C | Neutral samples only | >80% (paired) | 200-2500nm | Basic, cost-effective | $35.00 |

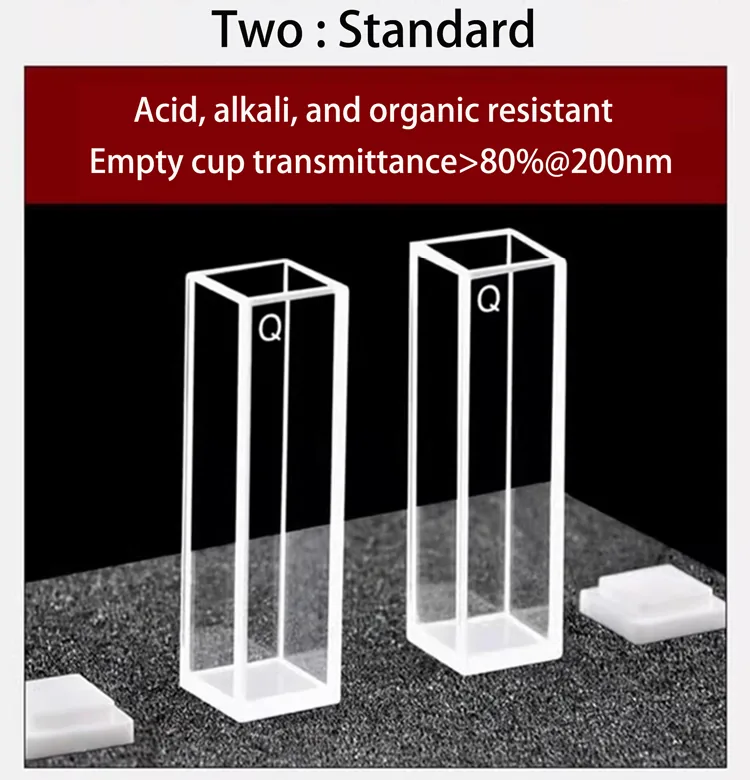

| Standard | Powder fusion | <600°C | Acid/alkali/organic resistant | >80% (paired) | 200-2500nm | Acid/alkali resistant | $45.00 |

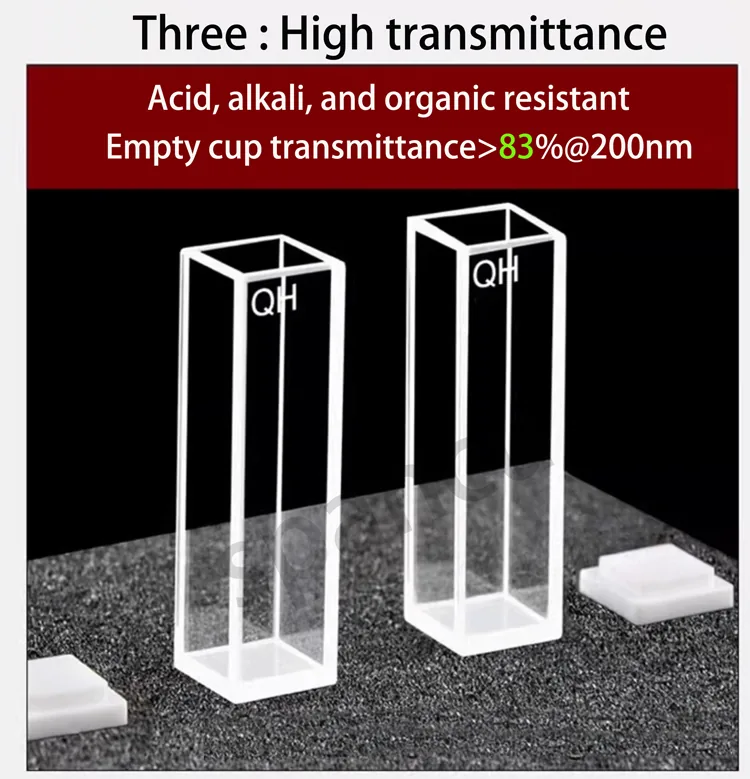

| High Transmittance | Powder fusion | <600°C | Acid/alkali/organic resistant | >83% | 200-2500nm | High optical throughput | $75.00 |

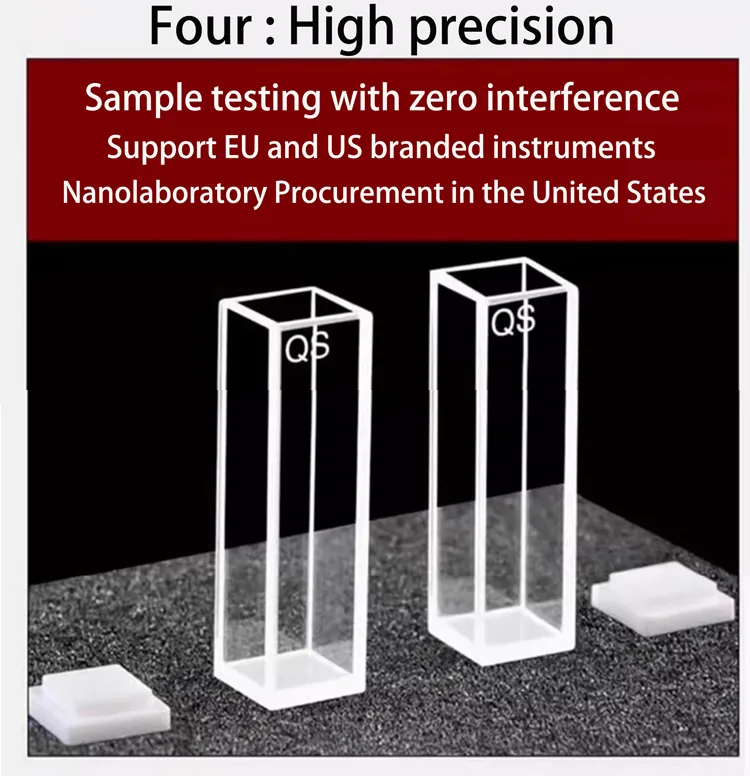

| High Precision | Powder fusion | <600°C | Acid/alkali/organic resistant | >83% | 200-2500nm | Zero interference, high-precision experiments | $115.00 |
| EU Version | Optical contact (light-glue) | ≤1200°C | Acid/alkali/organic resistant | >83% | 200-2500nm | Comparable to German original imports | $251.00 |
CAS Certification

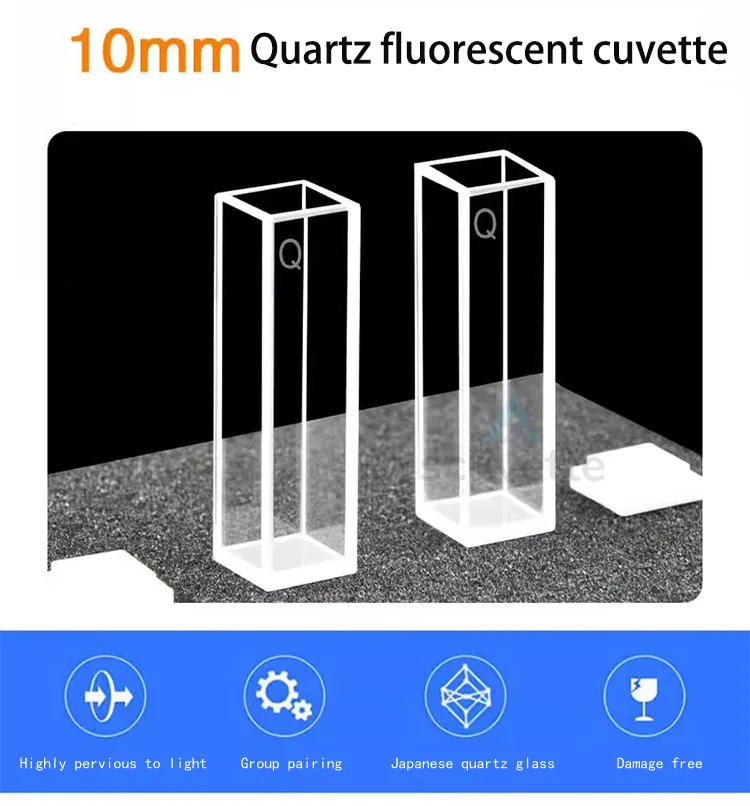

Selection of Cuvettes
Product Image

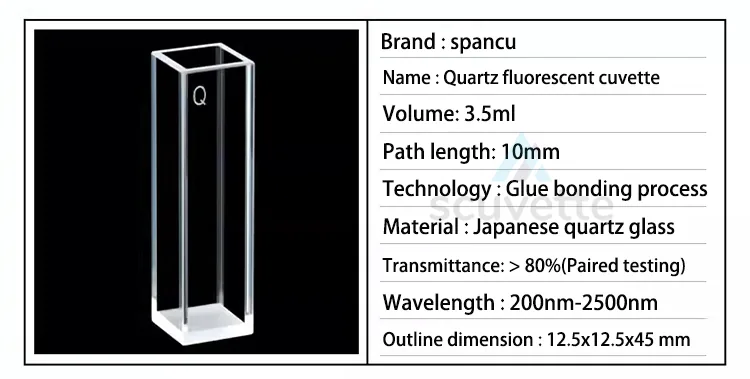

Product Parameters
Light Transmittance Curve
10 mm Quartz Cuvette — Frequently Asked Questions
Is a 10 mm quartz cuvette the same as a 1 cm cuvette?
Yes — 10 mm equals 1 cm, the standard optical path length. Light travels 10 mm through the sample, which is what published extinction coefficients assume. Why 10 mm is standard.
What wavelength range does this quartz cuvette cover?

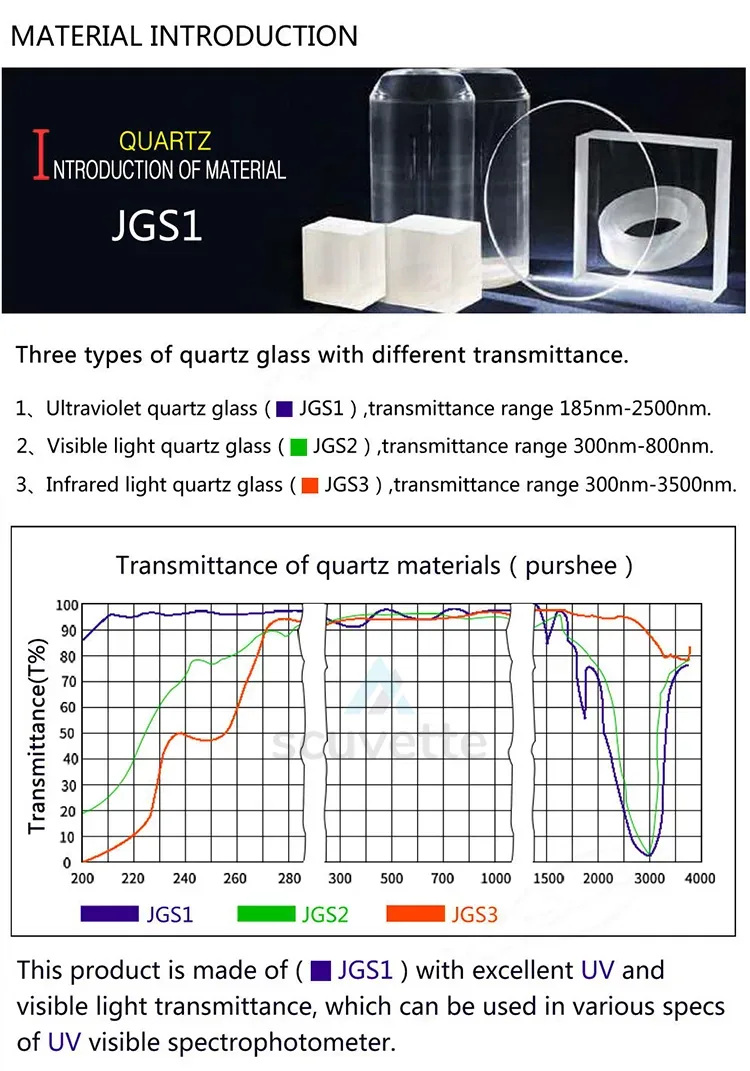

Made from JGS1 fused silica, it transmits 200–2500 nm and suits UV-Vis and near-IR work, with a UV cutoff near 190 nm. About UV cutoff.
Does the 10 mm cuvette come with a screw cap or lid?
Yes — PTFE screw caps and lids are available to prevent evaporation during long scans. See cuvette caps & lids, or the screw cap cuvette range.
Which spectrophotometers accept a 10 mm cuvette?
Any standard benchtop UV-Vis holder that takes the 12.5 × 12.5 × 45 mm external format. Most single-beam and double-beam spectrometers use this size.
