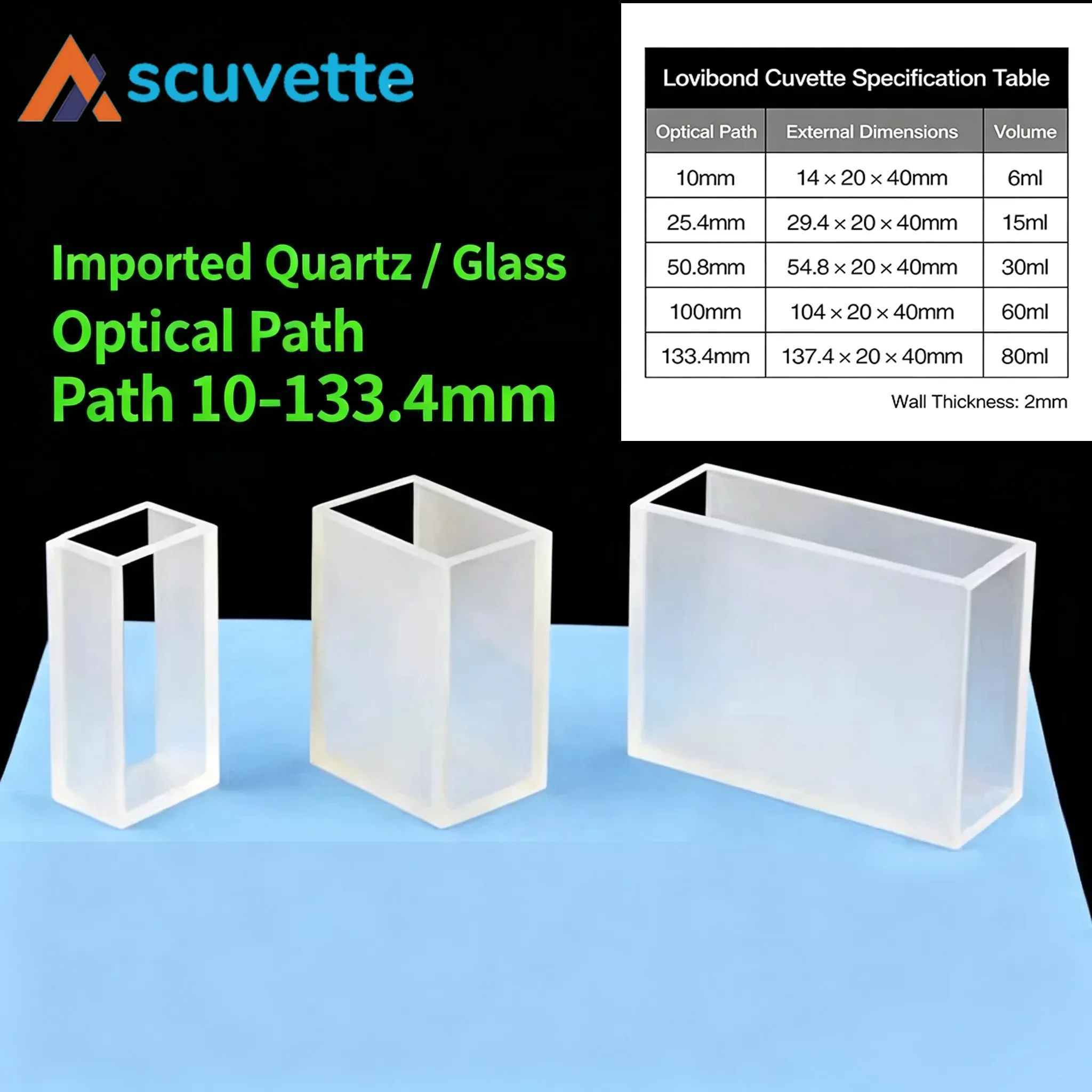

Lovibond-Compatible Quartz Cuvettes, 10–133.4 mm Path Length, JGS1 Fused Quartz, for UV-Vis Spectrophotometer

Name: Lovibond-Compatible Quartz Cuvettes, 10–133.4 mm Path Length, JGS1 Fused Quartz
Brand: scuvette
SKU: qc-lovibond-10mm-ordinary
Price: 38.00 USD
Availability: InStock

SKU: qc-lovibond-10mm-ordinary Brand: scuvette In Stock

128 sold

$49.00 $38.00 / cuvette

Minimum Order Quantity: 1 cuvette

Specification:

Path Length: 10mm

Material: Japanese imported JGS1 fused quartz

Technology: glued

Outline Dimension: 14×20×40mm

Wall Thickness: 2 mm

Volume: 6ml

Max Operating Temp: <100℃

Application: Suitable for neutral solutions only

Window: Two clear windows (two-way cuvette)

Wavelength: 200–2500 nm

Compatibility: Compatible with Lovibond instruments

Packaging: 1 cuvette per pack, with PTFE lid

Inquiry Now

Brand: scuvette. 10mm path-length quartz cuvette, Ordinary grade. Japanese imported JGS1 fused quartz, glued, outline dimension 14×20×40mm, wall thickness 2 mm, volume 6ml, max operating temperature <100℃. Wavelength 200–2500 nm. Two clear windows (two-way cuvette). Compatible with Lovibond instruments (non-Lovibond brand, manufactured in China).

Factory Direct Custom OEM Available Global Shipping

Description Specifications

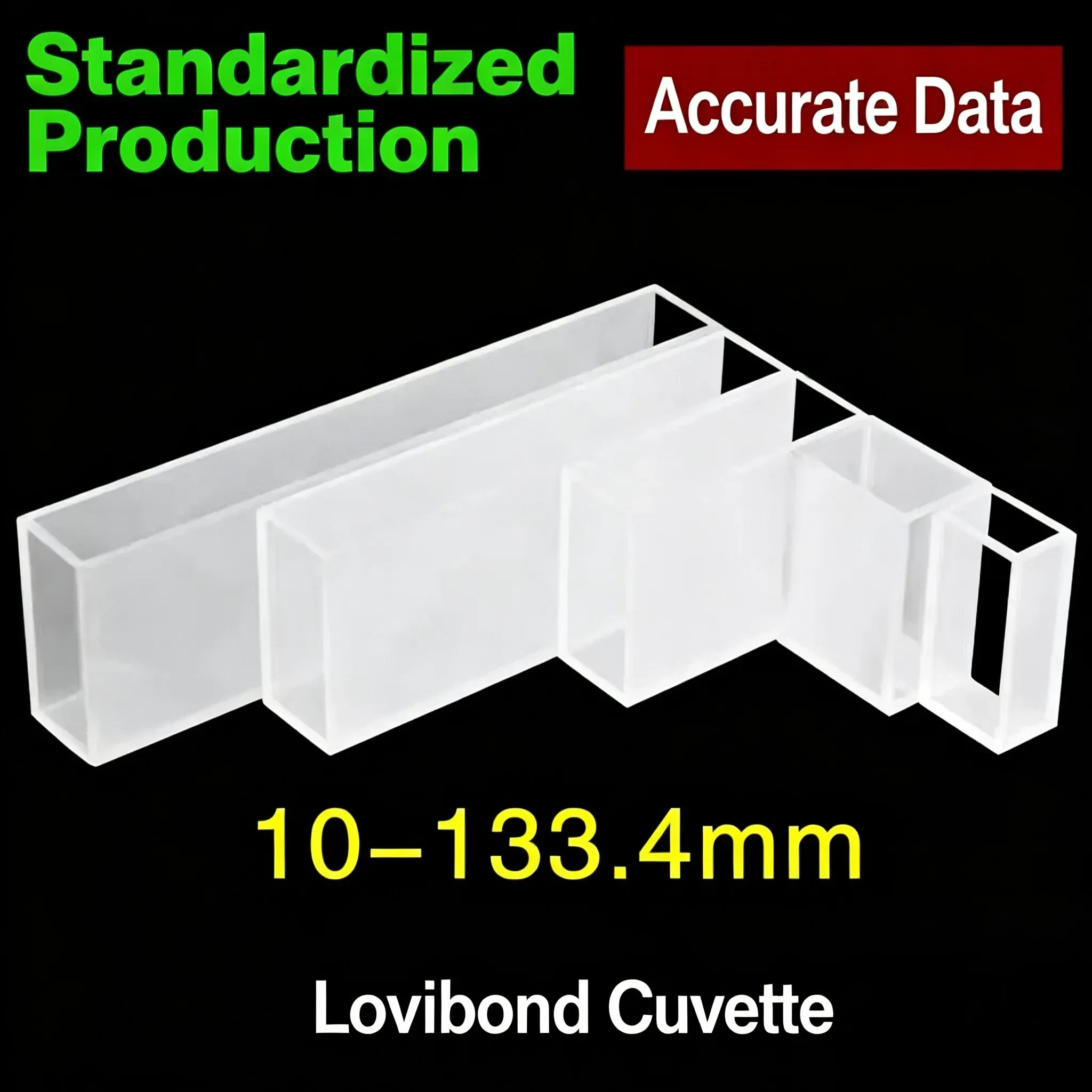

Brand: scuvette. Lovibond-compatible quartz cuvettes with variable path length from 10 mm to 133.4 mm. Two clear opposite windows (two-way cuvette) for UV-Vis spectrophotometry. Manufactured from Japanese imported JGS1 fused quartz. Available in Ordinary grade (glued process, max temp <100℃) and Standard grade (fused one-piece molding, max temp ≤600℃). Wall thickness 2 mm. Wavelength range 200–2,500 nm. Compatible with Lovibond instruments (non-Lovibond brand, manufactured in China). Supplied with PTFE lid. 1 cuvette per pack.

ISO 9001:2015 Quality Management System Certificate

ISO 9001:2015 quality management certificate

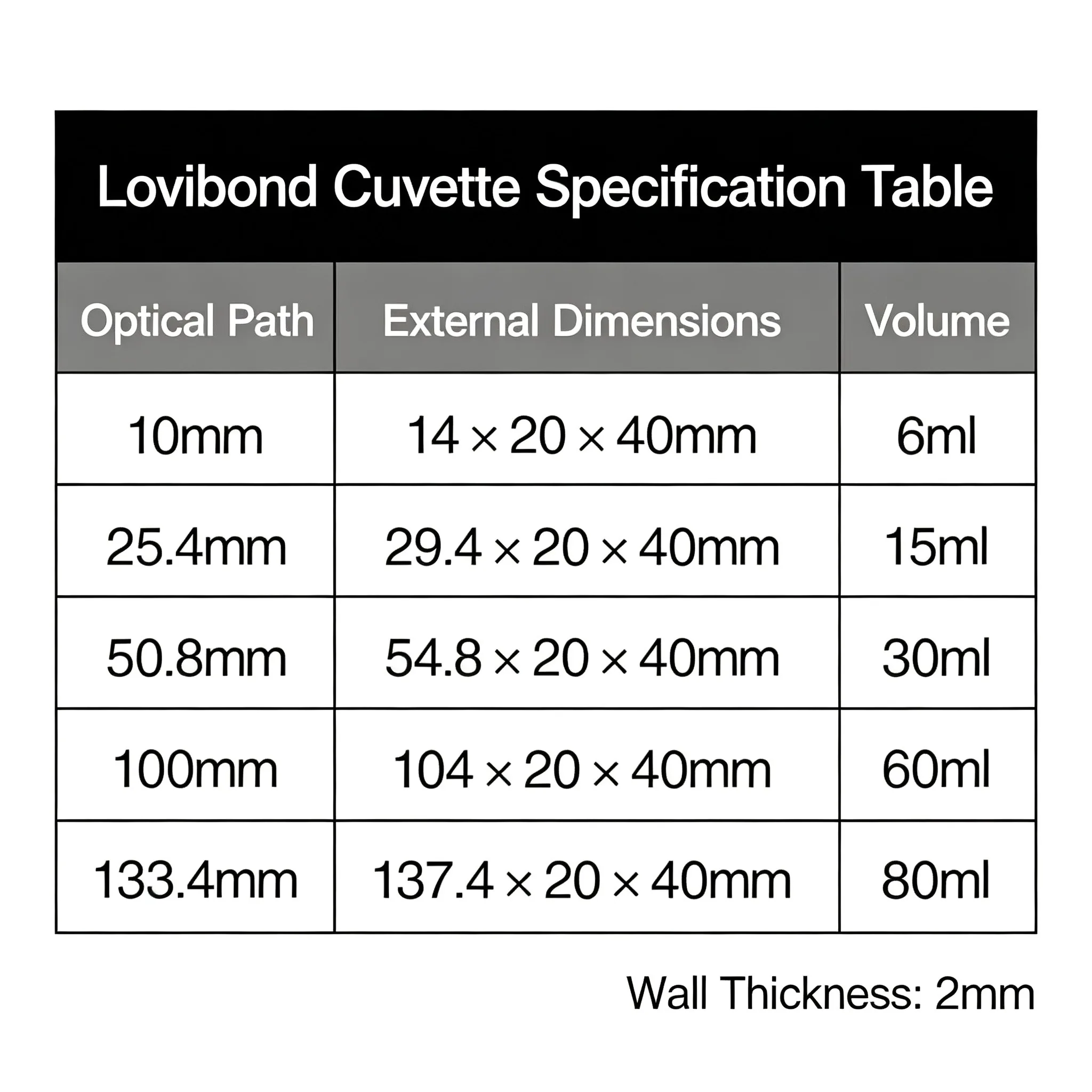

Dimension & Capacity — Outline 14×20×40mm (sample: 10 mm path shown)

Quartz cuvette outline dimension and capacity

Manufacturing Process — Two Grades for Different Sample Types

Ordinary grade (glued) for neutral solutions; Standard grade (fused) resists acids, alkalis and organic solvents

Optical Path — Suitable for UV-Vis Spectrophotometer

Optical path length, vertical orientation, suitable for UV-Vis spectrophotometer

JGS1 Optical Quartz — Full UV-Vis Transmission

JGS1 material introduction and transmittance chart

Brand	scuvette
Name	Lovibond-compatible quartz cuvette, variable path length (two-way)
Path Length	10 mm – 133.4 mm (12 options)
Material	Japanese imported JGS1 fused quartz
Window Configuration	Two opposite sides clear (two-way cuvette)
Wall Thickness	2 mm
Wavelength Range	200 nm – 2,500 nm
Cap / Lid	With PTFE lid included
Packaging	1 cuvette per pack, outer carton
Compatibility	Compatible with Lovibond instruments (non-Lovibond brand, made in China)

Grade Options

Path Length	Grade	SKU	Price	Technology	Max Temp

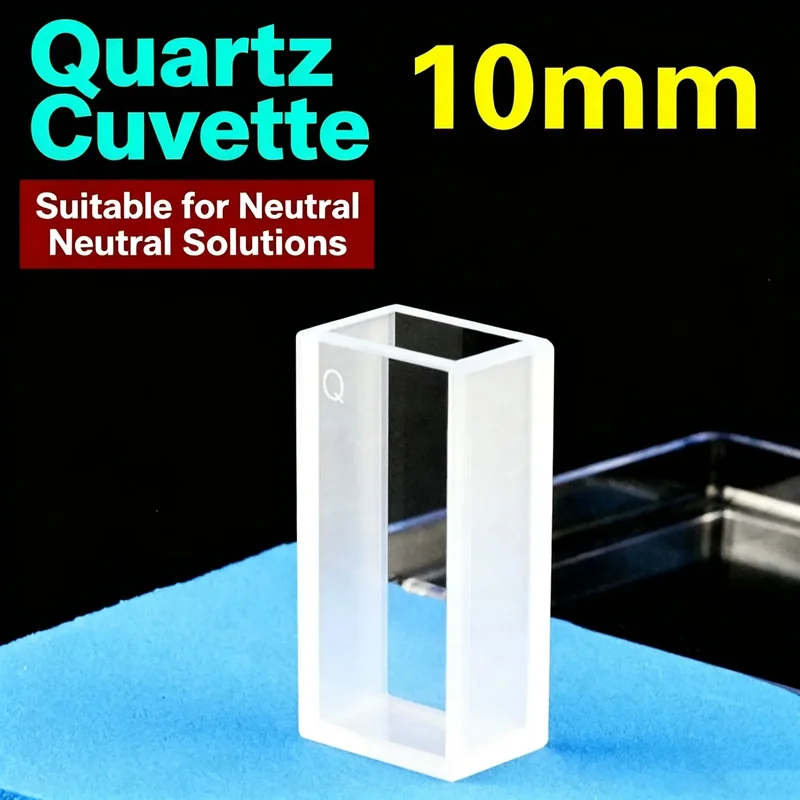

10mm	Ordinary	qc-lovibond-10mm-ordinary	$38.00	glued	<100℃

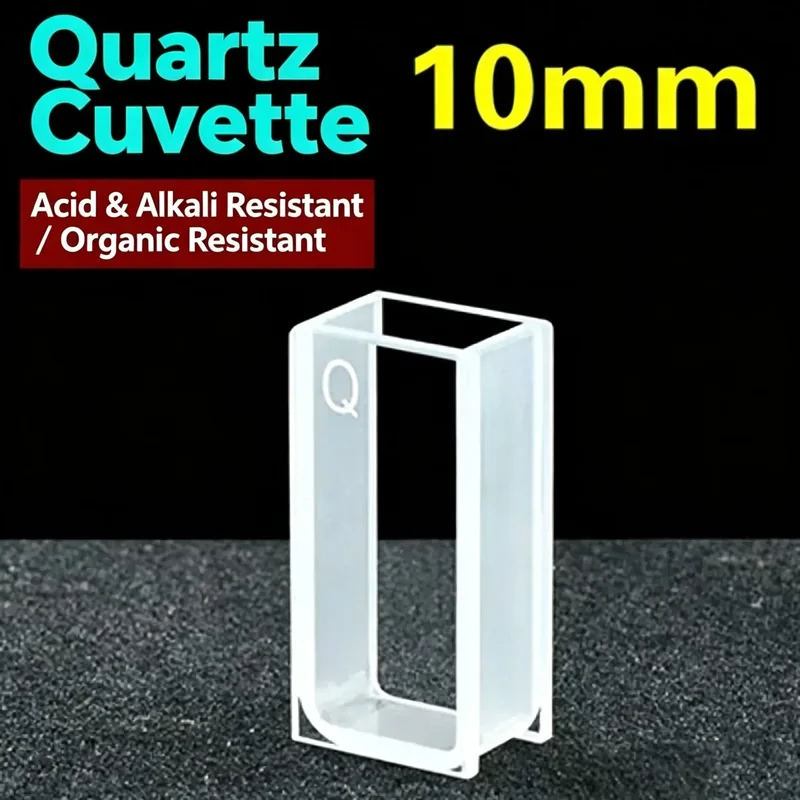

10mm	Standard	qc-lovibond-10mm-standard	$45.00	fused one-piece molding	≤600℃

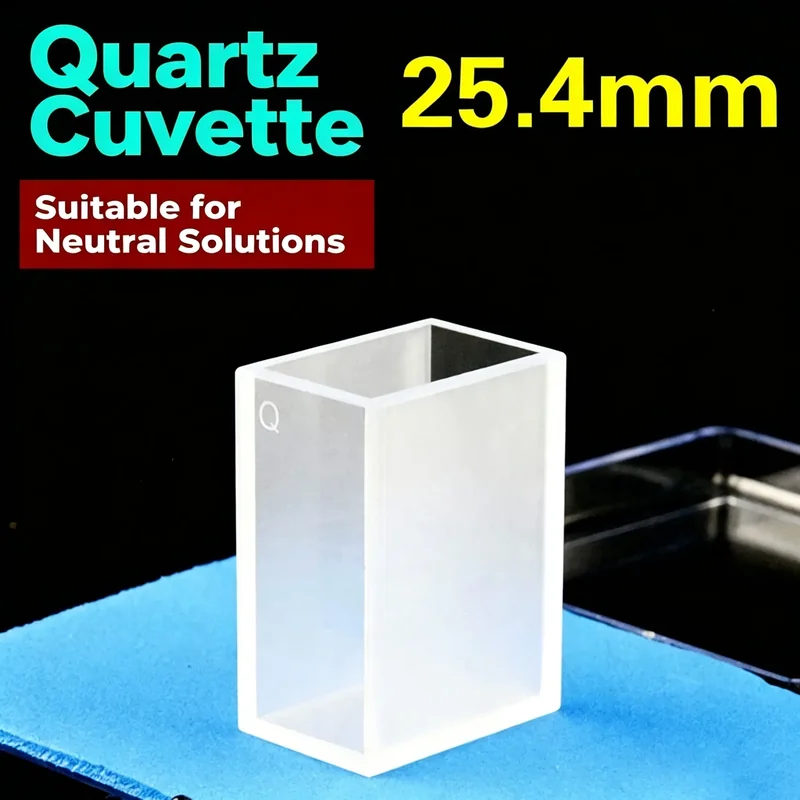

25.4mm	Ordinary	qc-lovibond-25.4mm-ordinary	$50.00	glued	<100℃

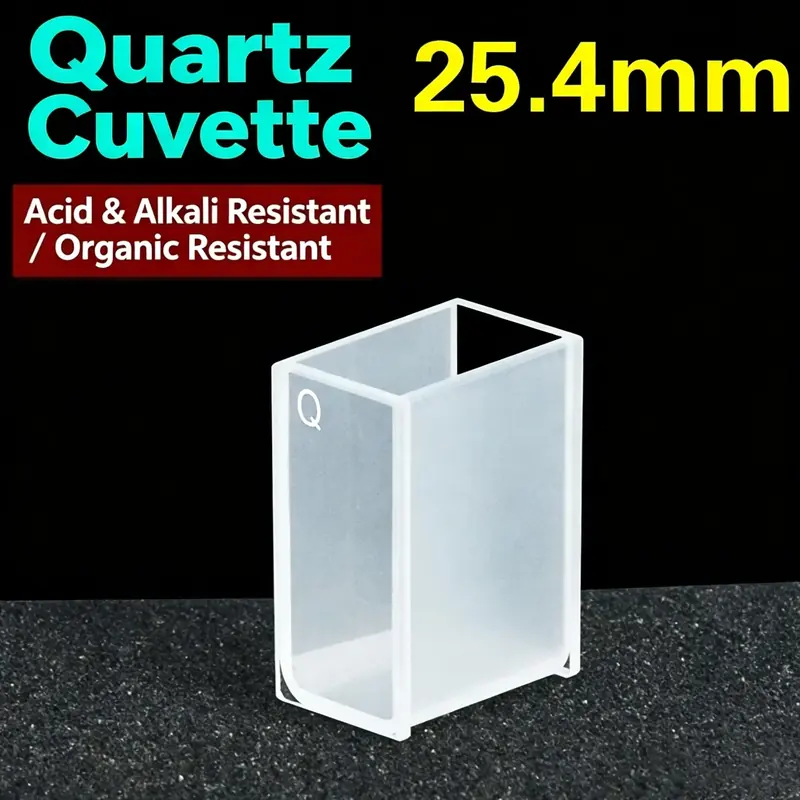

25.4mm	Standard	qc-lovibond-25.4mm-standard	$56.00	fused one-piece molding	≤600℃

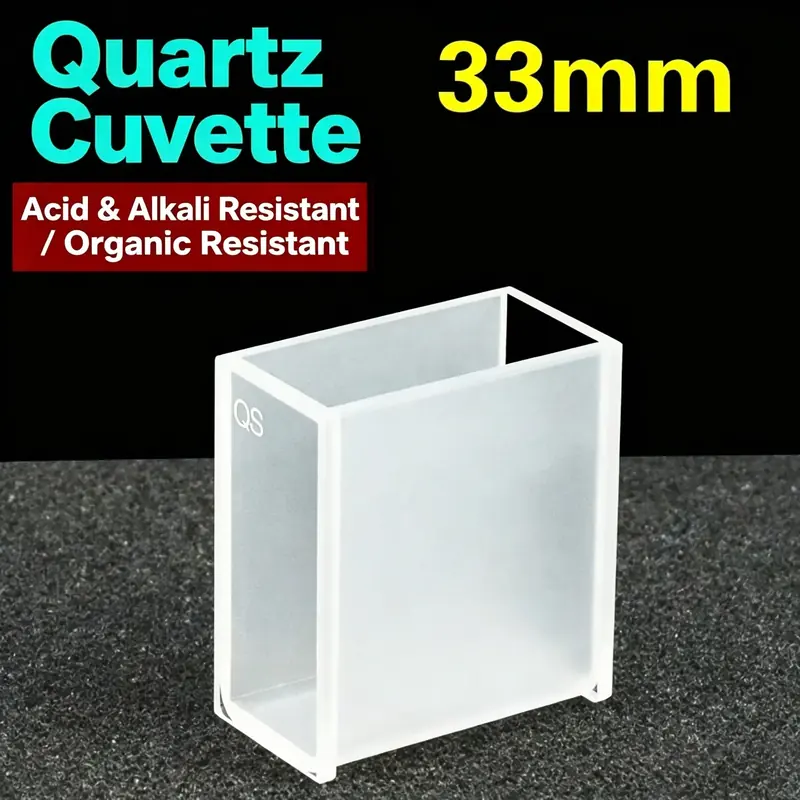

33mm	Standard	qc-lovibond-33mm-standard	$62.00	fused one-piece molding	≤600℃

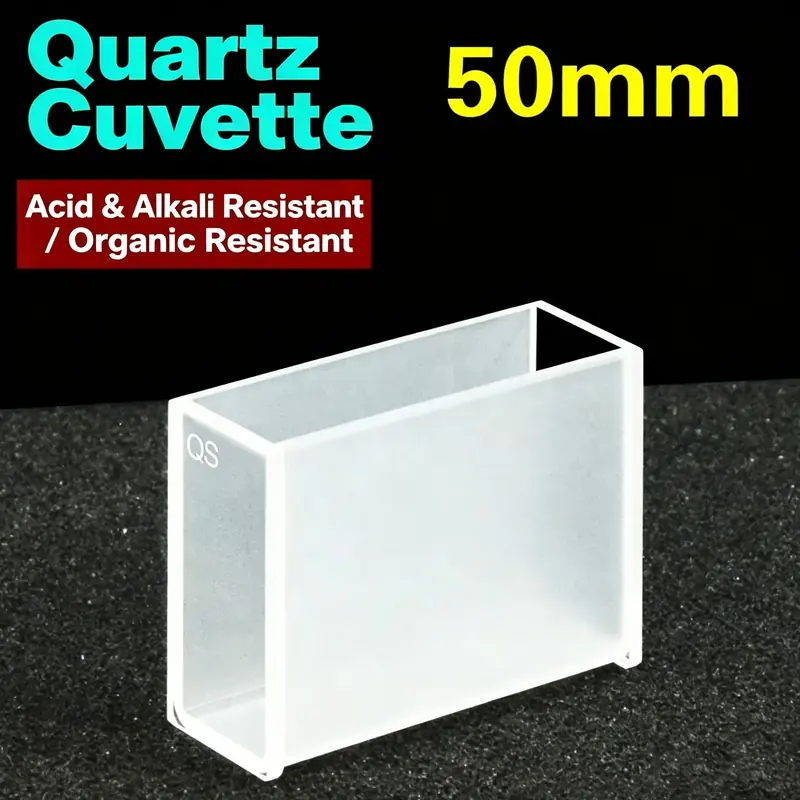

50mm	Standard	qc-lovibond-50mm-standard	$71.00	fused one-piece molding	≤600℃

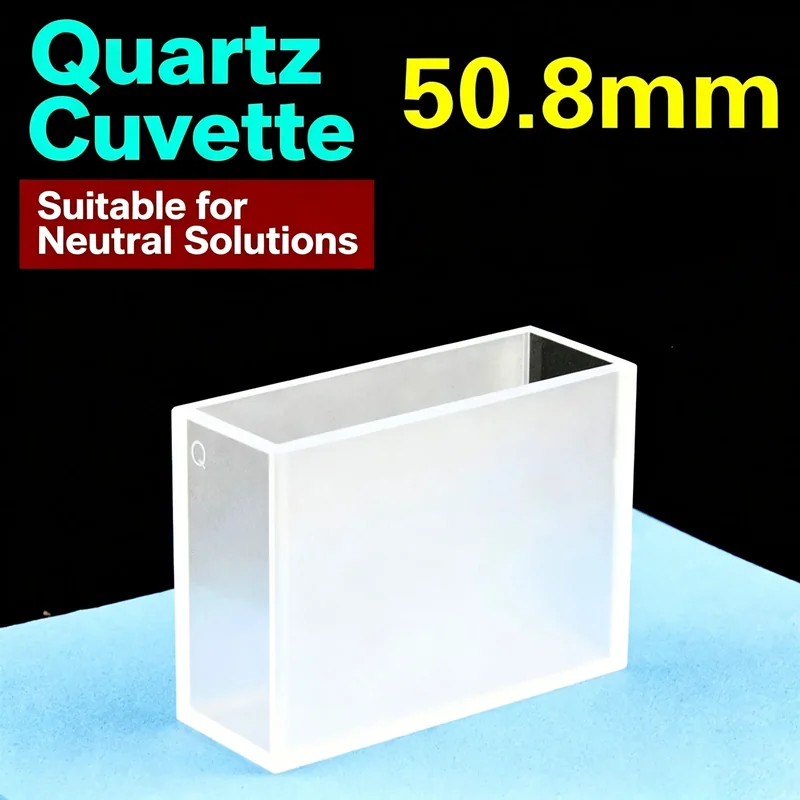

50.8mm	Ordinary	qc-lovibond-50.8mm-ordinary	$65.00	glued	<100℃

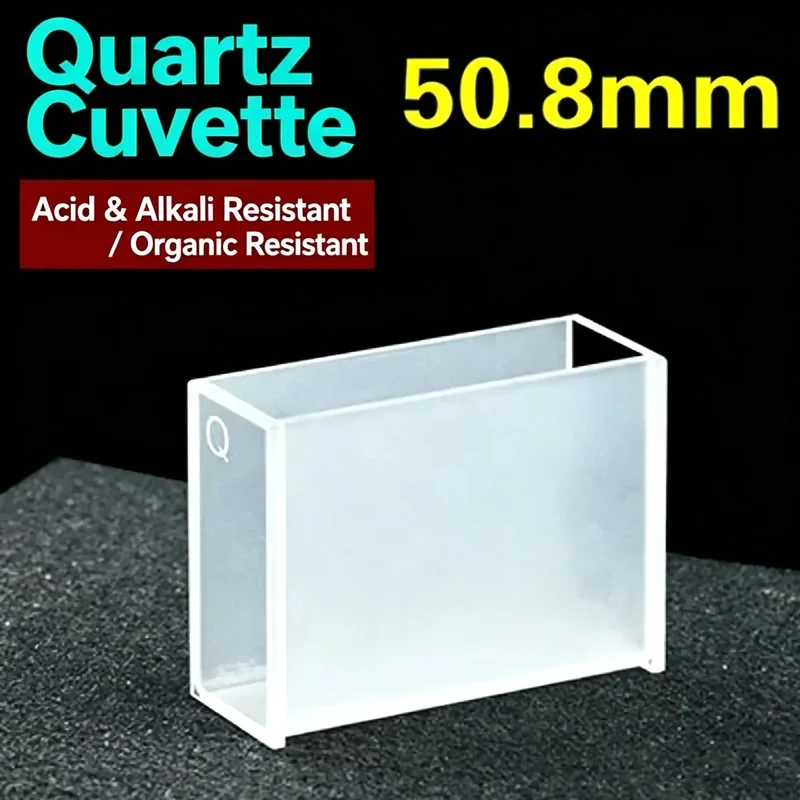

50.8mm	Standard	qc-lovibond-50.8mm-standard	$71.00	fused one-piece molding	≤600℃

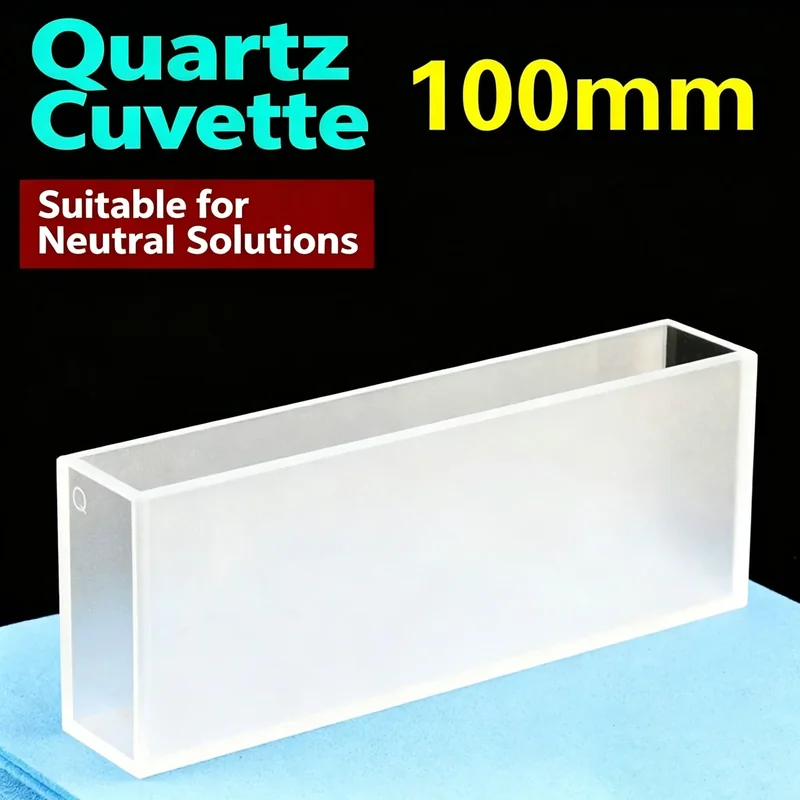

100mm	Ordinary	qc-lovibond-100mm-ordinary	$71.00	glued	<100℃

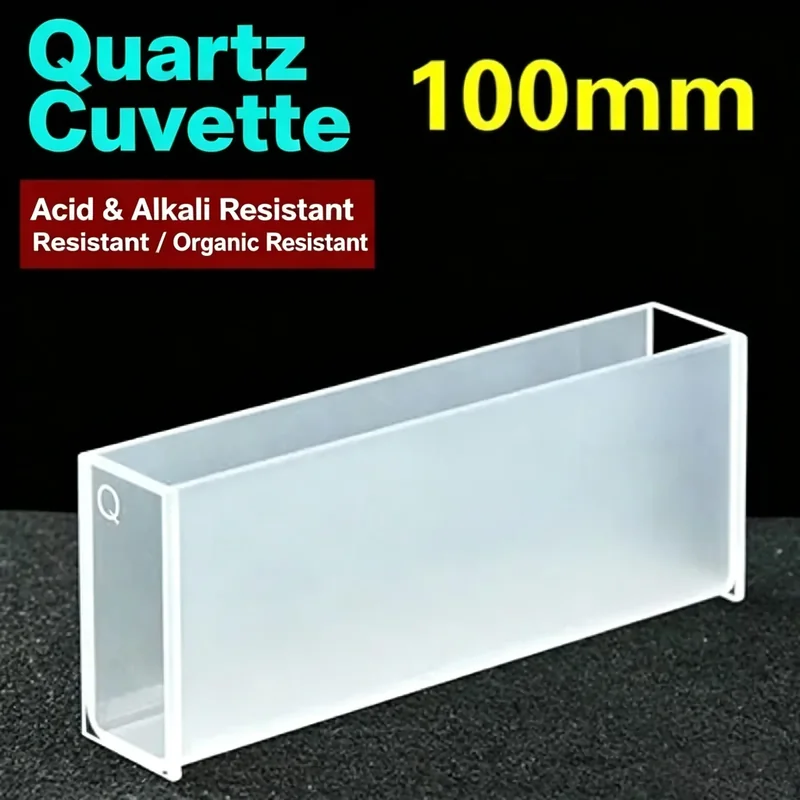

100mm	Standard	qc-lovibond-100mm-standard	$133.00	fused one-piece molding	≤600℃

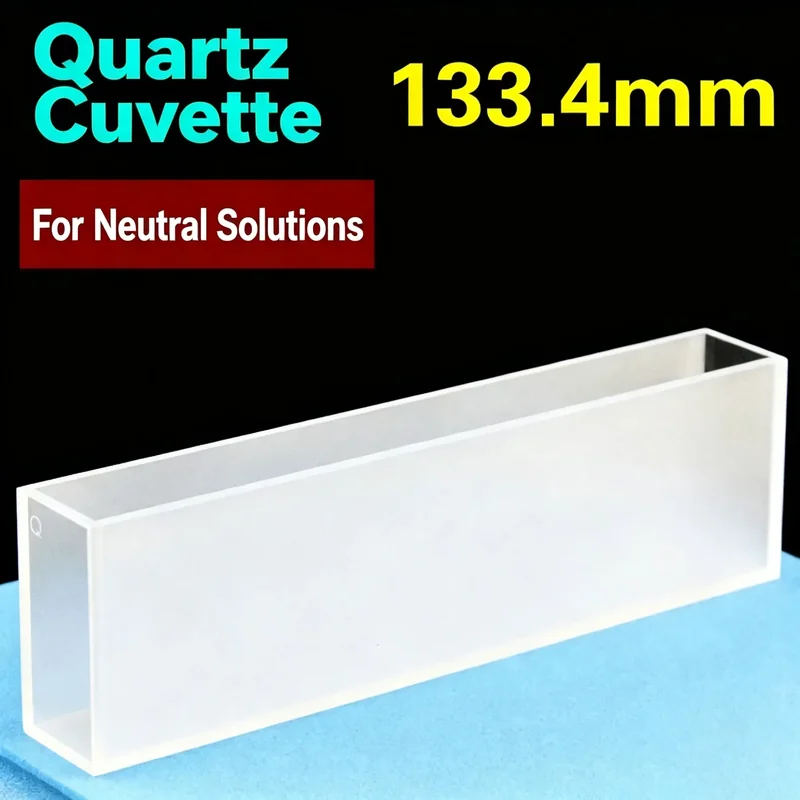

133.4mm	Ordinary	qc-lovibond-133.4mm-ordinary	$61.00	glued	<100℃

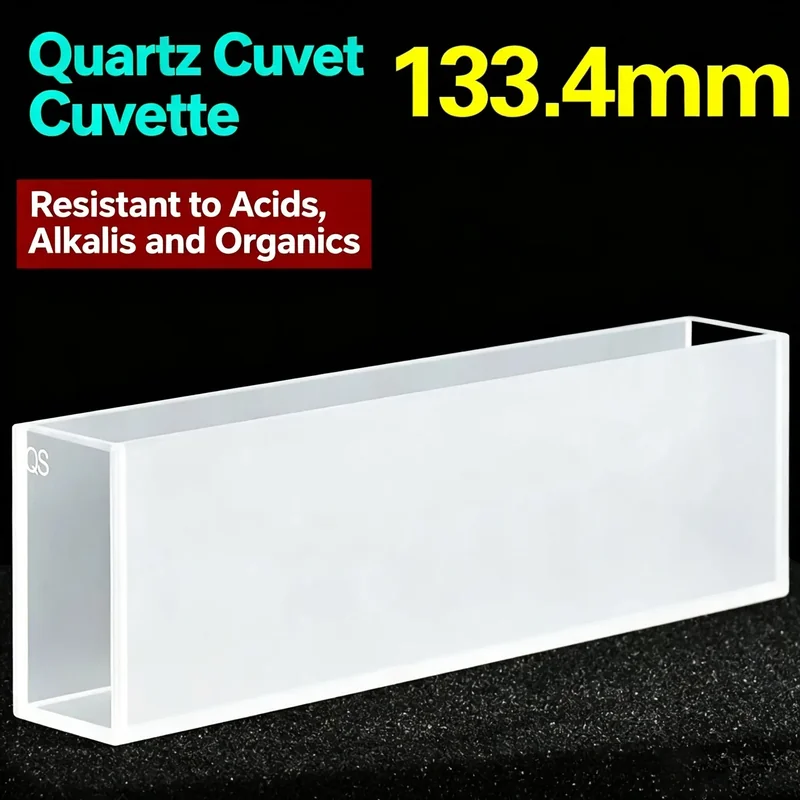

133.4mm	Standard	qc-lovibond-133.4mm-standard	$151.00	fused one-piece molding	≤600℃
