What is a 2-window cuvette used for?

A 2-window (two-sided) cell has two opposite polished faces for light to pass straight through; the other four faces are frosted or opaque. It is the standard choice for absorbance and transmission measurements in the UV-Vis, where only a straight light path is needed.

2-window or 4-window cuvette — which should I choose?

Choose a 2-window cell for routine absorbance. Choose a 4-window (fluorescence) cell when the instrument reads at a right angle — for fluorescence, nephelometry or 90-degree scattering. If you only measure absorbance, the 2-window version is enough and costs less.

Will this 10 mm 2-window cuvette fit my spectrophotometer?

Yes. It uses the standard 10 mm path, 12.5 mm-wide cuvette format accepted by common holders from Agilent, Shimadzu, PerkinElmer, Thermo, Hitachi and Jasco — the same footprint as a 4-window 10 mm cell.

What wavelength range does JGS1 fused silica cover?

JGS1 fused silica transmits from about 200 nm through 2500 nm, covering UV, visible and near-IR. For visible-only work optical glass is cheaper, but quartz is required below roughly 350 nm.

Does the cuvette come with a lid, and does it seal?

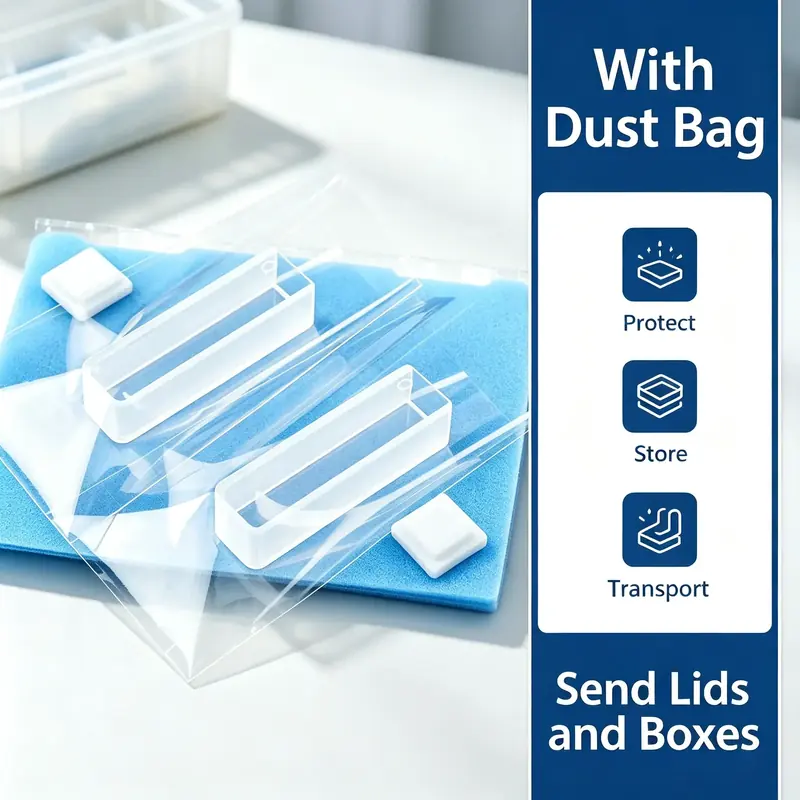

It is supplied as two cells with lids. The lids reduce evaporation during routine measurements; they are not pressure-tight like screw caps, so for volatile or elevated-temperature runs use a screw-cap cell.

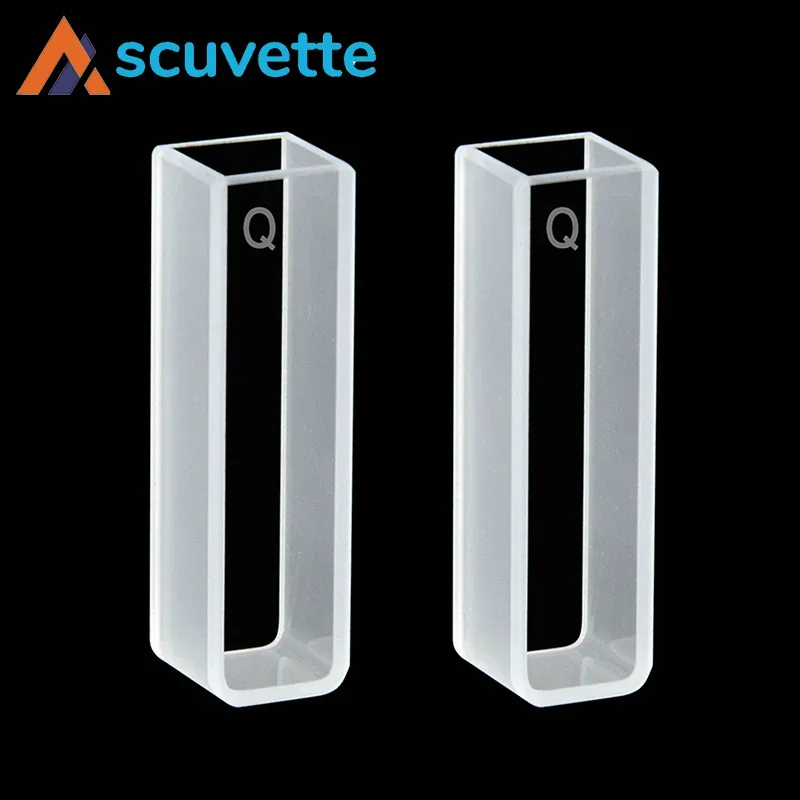

2 Pcs 10mm 2-Window Quartz Cuvette Cells with Lids

2 Pcs 10mm 2-Window Quartz Cuvette Cells with Lids — JGS1 Fused Silica

Name: 2 Pcs 10mm 2-Window Quartz Cuvette Cells with Lids — JGS1 Fused Silica
Brand: scuvette
SKU: qc-10mm-pack-01
Price: 13.00 USD
Availability: InStock

SKU: qc-10mm-ord Brand: scuvette In Stock

820 sold

$16.00 $13.00 / box (2 pcs)

Minimum Order Quantity: 1 box (2 pcs)

Select Specification:

Path Length: 10mm

Volume: 3.5ml

Brand: scuvette

Type: Ordinary

✓ ISO 9001 Certified✓ Factory Direct✓ Worldwide Shipping✓ 30-Day Returns✓ In Stock · Ships in 24h

Inquiry Now

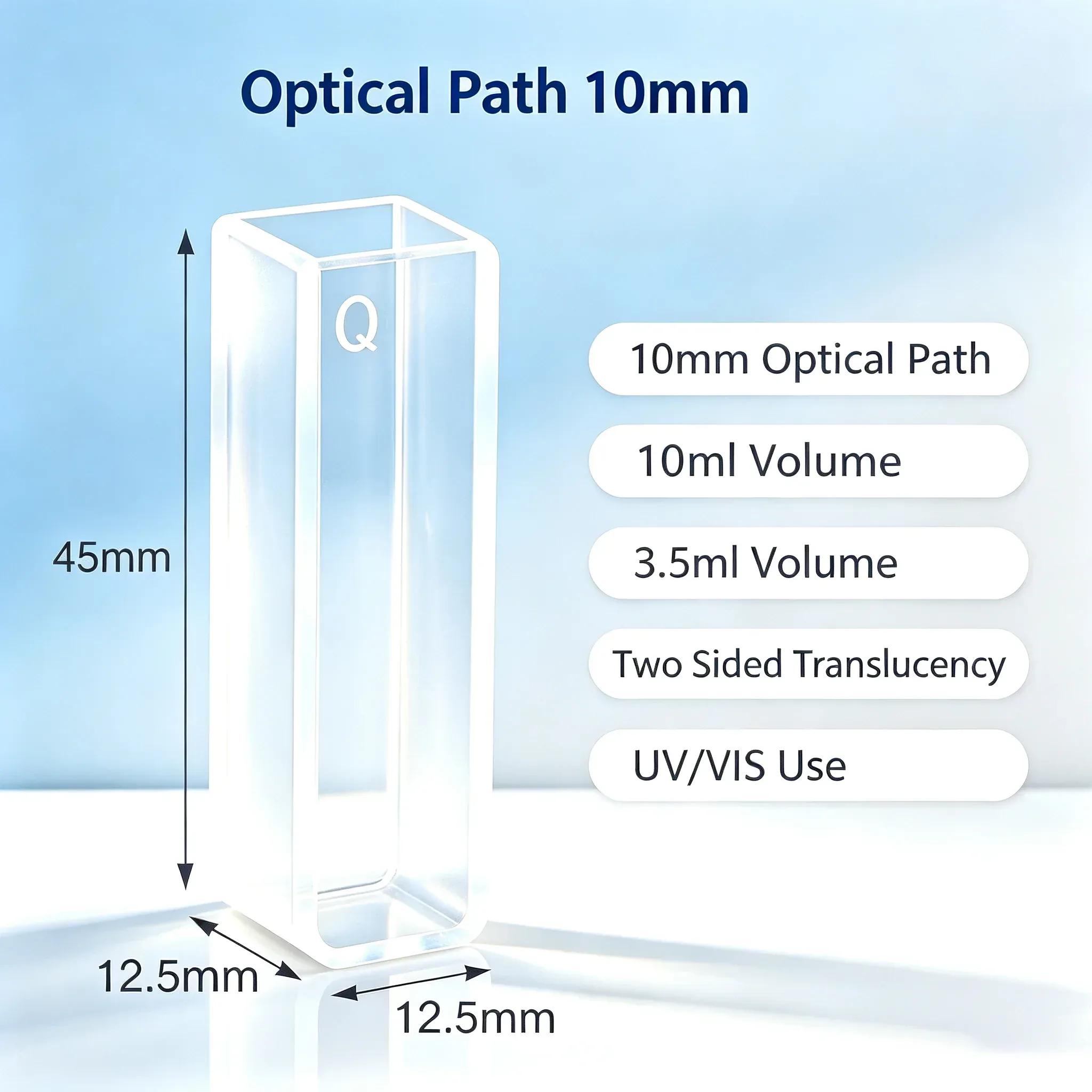

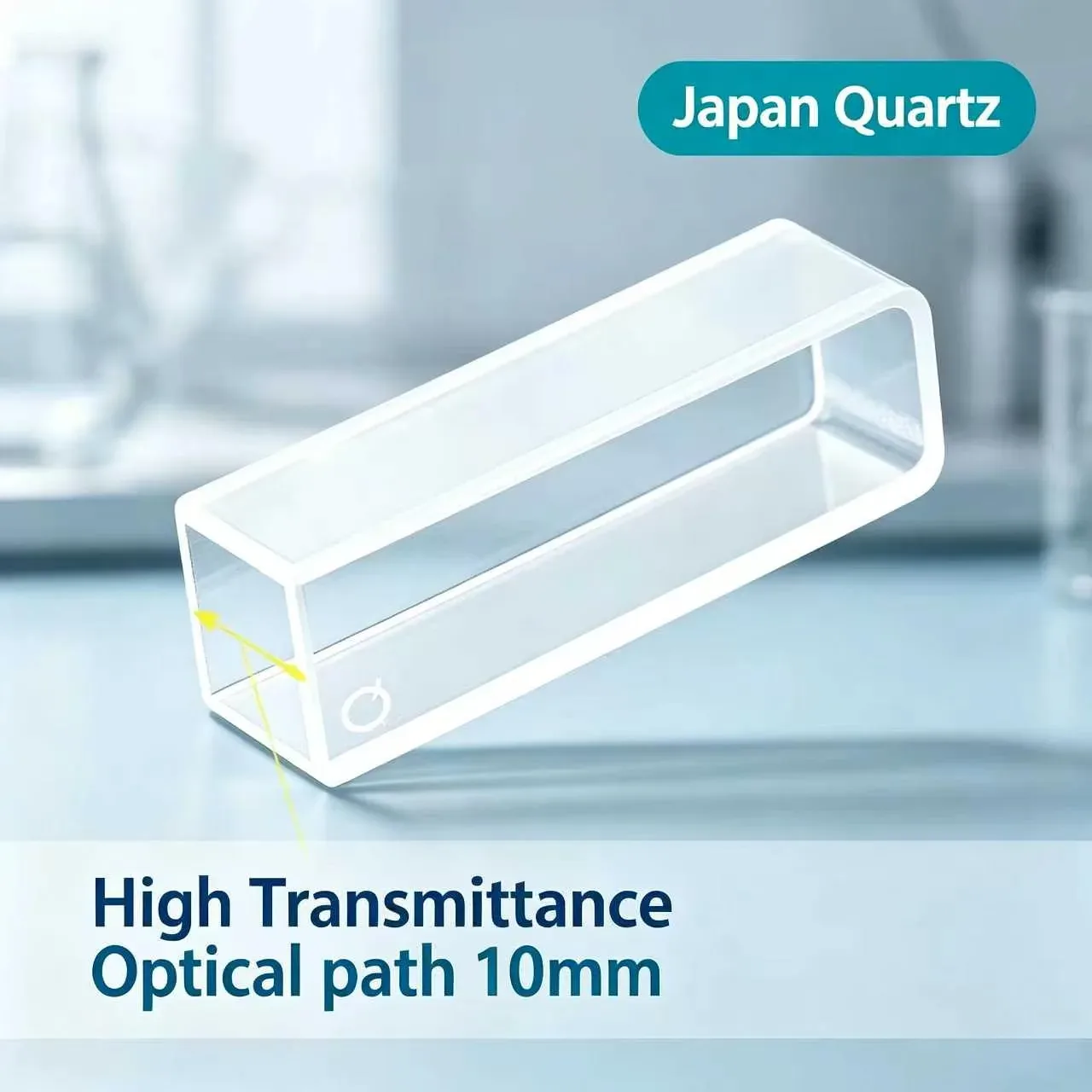

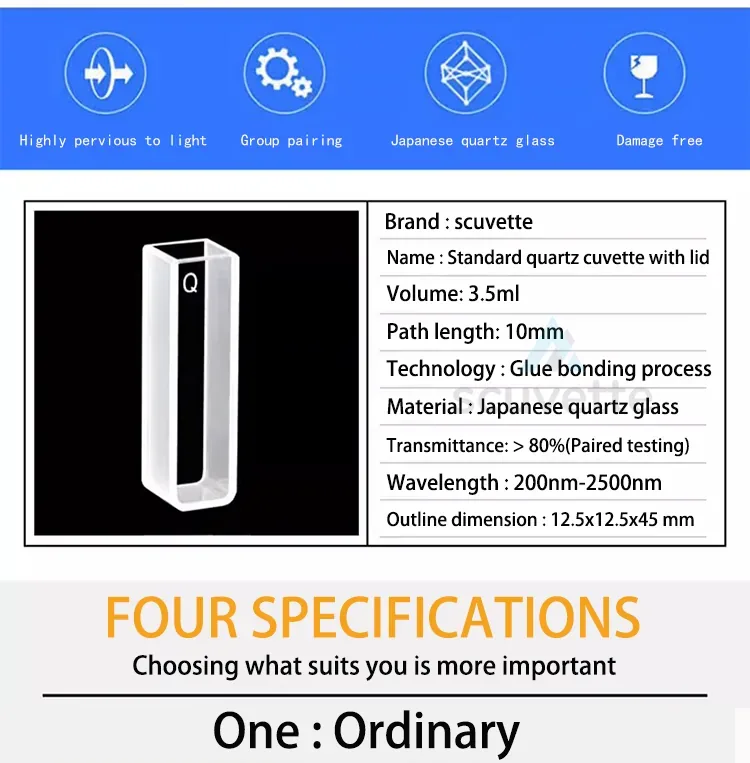

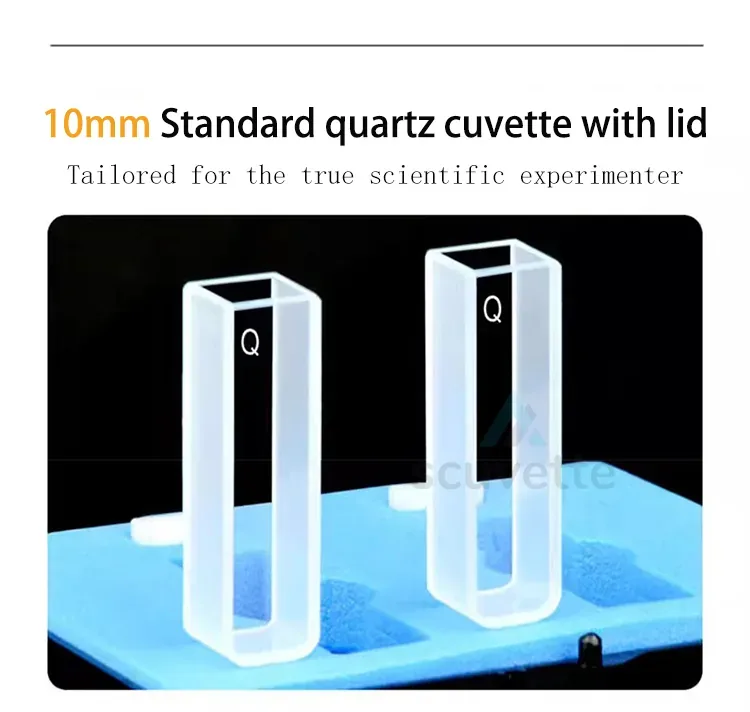

Brand: scuvette. Two-sided quartz cuvette with lid. Path length 10mm, volume 3.5ml. Japanese imported JGS1 fused silica, glue bonding process (for neutral samples only), >80% paired testing transmittance, max operating temp <100°C, 200nm-2500nm wavelength. Outline dimension 12.5x12.5x45mm. Cuvette is generally rectangular, made of frosted glass at the bottom and on two sides (except fluorescence cuvette that light can penetrate four sides) while the other two sides are light.

Factory Direct Custom OEM Available Global Shipping

Description Specifications

★

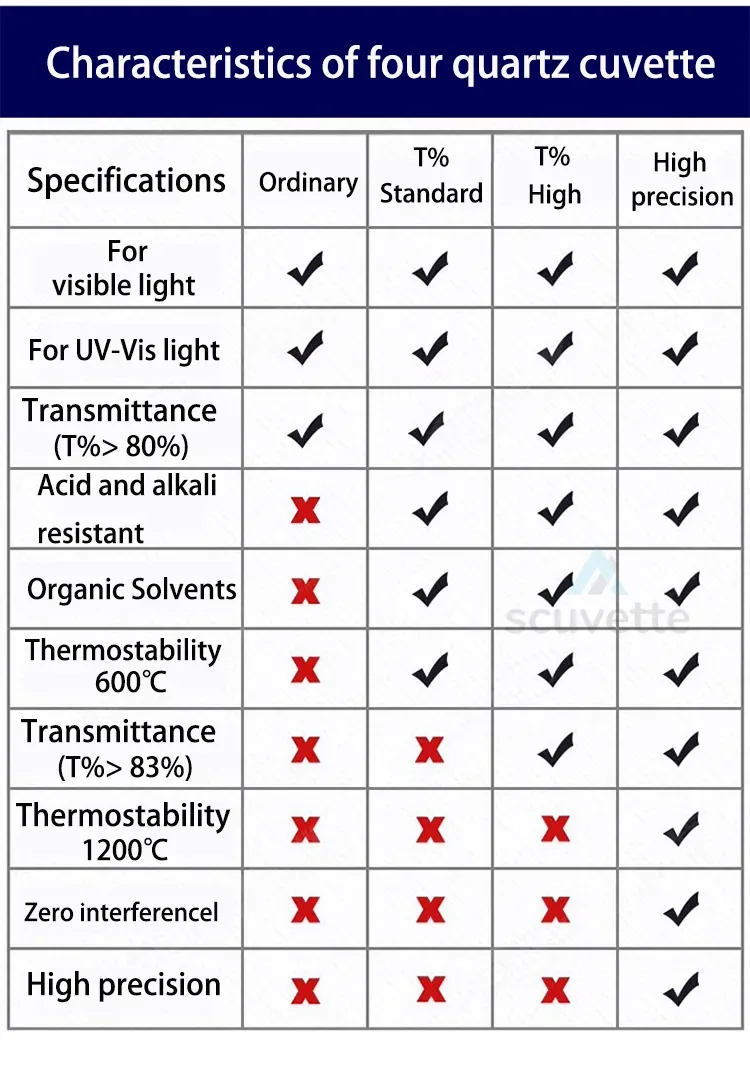

Process Comparison - 5 Grades

Grade	Process	Max Temp	Chemical Resistance	Transmittance	Wavelength	Key Feature	Price (2 pcs)

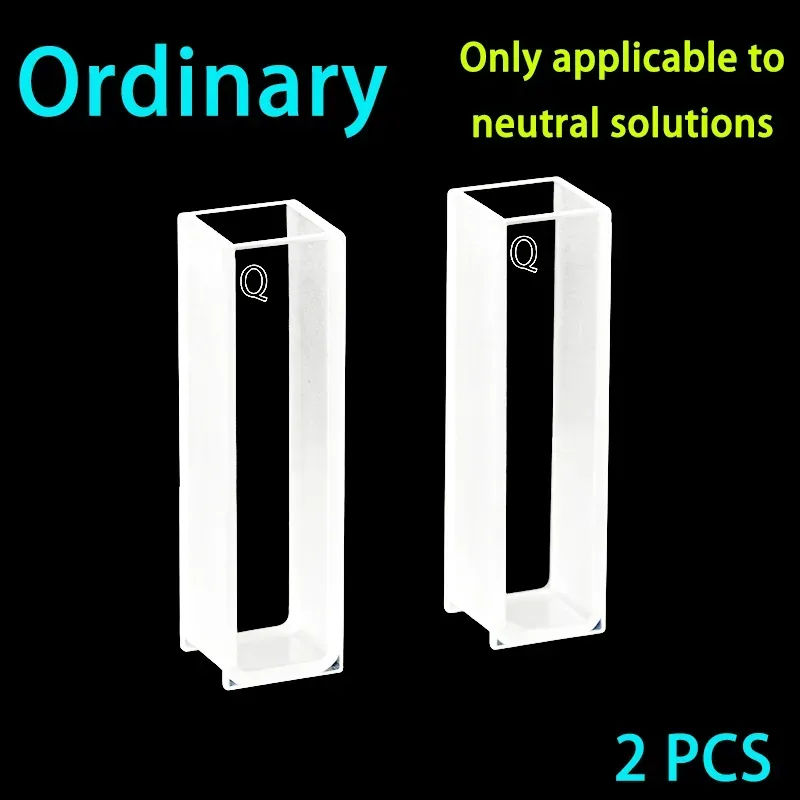

Ordinary	Glue bonding	<100°C	Neutral samples only	>80% (paired)	200-2500nm	Basic, cost-effective	$13.00

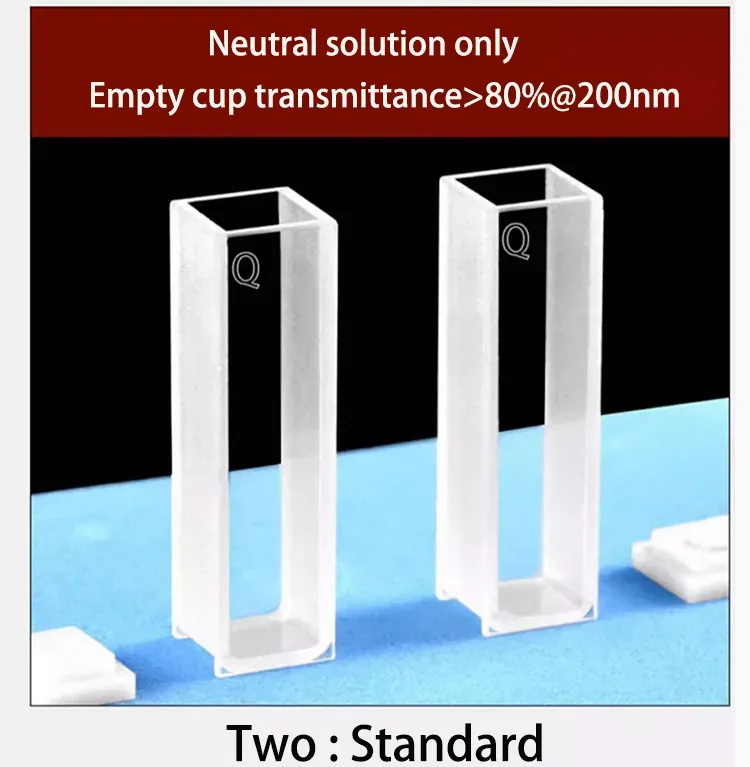

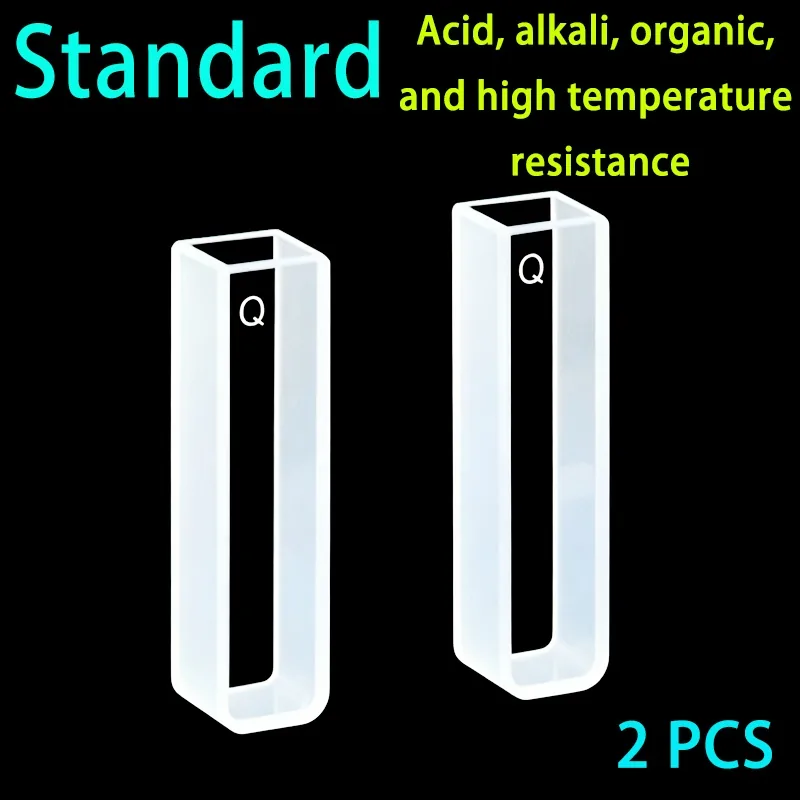

Standard	Powder fusion	<600°C	Acid/alkali/organic resistant	>80% (paired)	200-2500nm	Acid/alkali resistant	$20.00

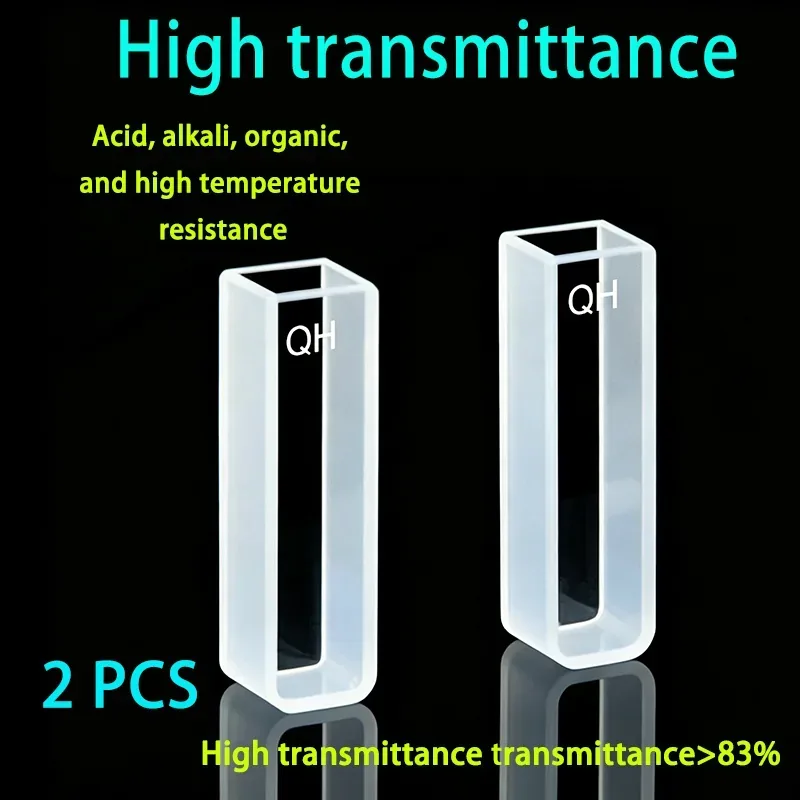

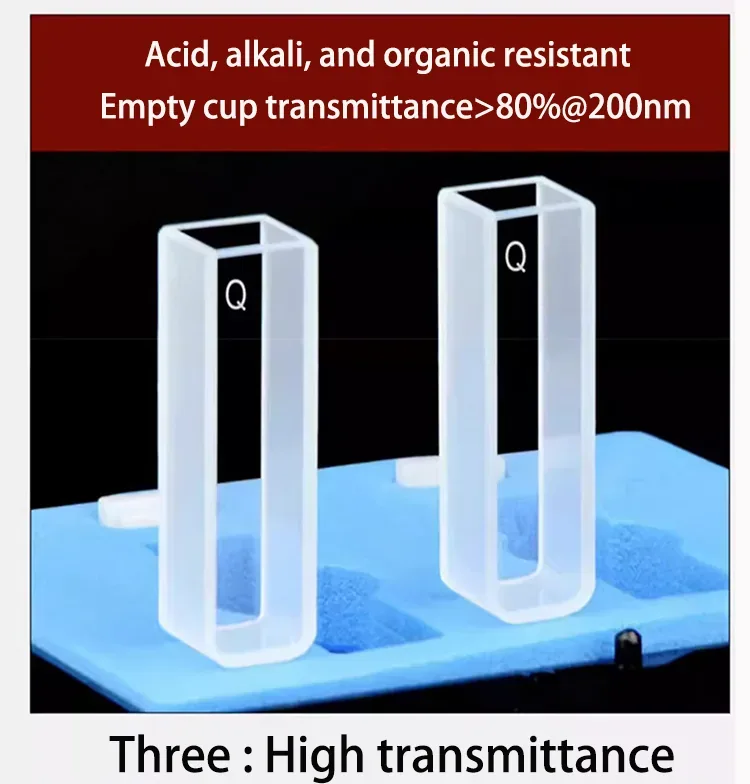

High Transmittance	Powder fusion	<600°C	Acid/alkali/organic resistant	>83%	200-2500nm	High optical throughput	$30.00

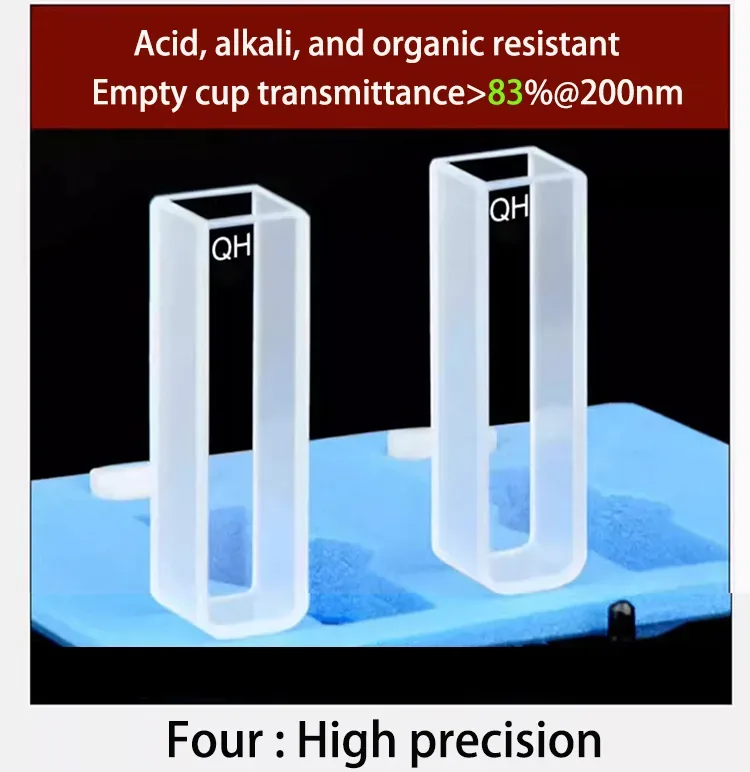

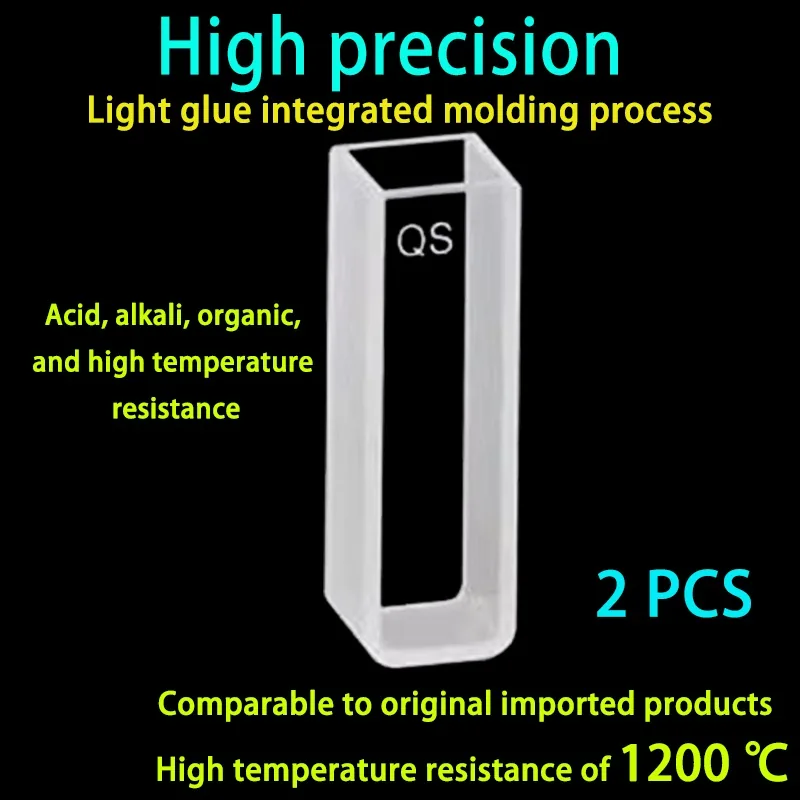

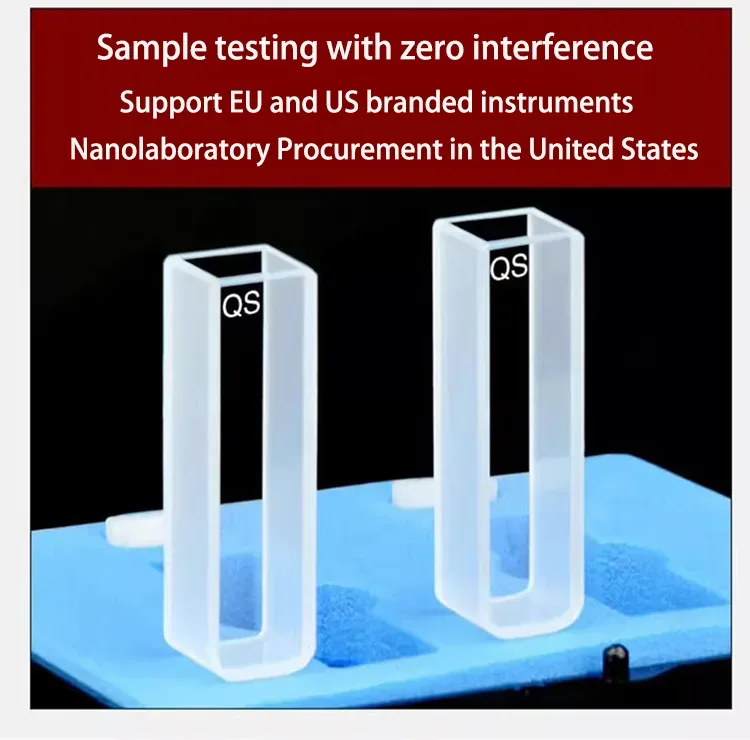

High Precision	Powder fusion	<600°C	Acid/alkali/organic resistant	>83%	200-2500nm	Zero interference, high-precision experiments	$50.00
EU Version	Optical contact (light-glue)	≤1200°C	Acid/alkali/organic resistant	>83%	200-2500nm	Comparable to German original imports	$150.00
