Quartz Tube Cuvette 5 mm 4-Port Light Path 95 mm Length
Gallery 1 Gallery 2 Gallery 3 Gallery 4

Quartz Tube Cuvette 5 mm 4-Port Light Path 95 mm Length

SKU: qc-tube-cuvette-5mm-4w-95mm Brand: scuvette In Stock
58 sold
$210.0 / pc
Minimum Order Quantity: 1
Path Length: 5mm
Total Length: 95 mm
Tube OD: 8.0 mm
Light Path: 4-way
Volume: 1.75 mL
Material: Japanese JGS1 fused silica
Transmittance: ＞83%
Wavelength: 200-2500nm
Cavity Size: 12.5x7.5x45mm
Process: One-piece optical-contact molding
Inquiry Now

5 mm optical path quartz tube cuvette, 4-way light path, 95 mm total length, 8 mm tube OD, 1.75 mL volume. Japanese JGS1 fused silica, ＞83% transmittance, 200-2500nm. For UV-Vis spectrophotometry.

Factory Direct Custom OEM Available Global Shipping
Description Specifications

5 mm optical path quartz tube cuvette, 4-way light path, 95 mm total length, 8 mm tube OD, 1.75 mL volume. Japanese JGS1 fused silica, ＞83% transmittance, 200-2500nm. For UV-Vis spectrophotometry.

02

Quartz Tube Cuvette Variants

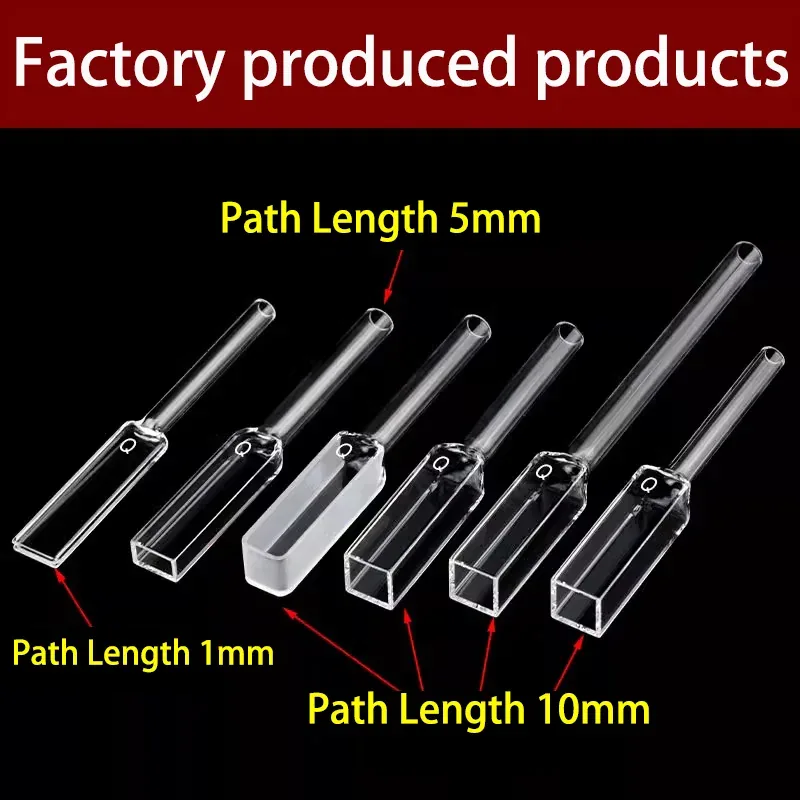

Eleven configurations in the quartz tube cuvette family — path lengths of 1, 5 and 10 mm, two-way or four-way light paths, optional transition tube or screw cap, and total lengths from 95 mm to 135 mm. All share Japanese JGS1 fused silica, >83% transmittance and 200–2500 nm wavelength range.

Variant Price
10 mm path length, 2-way, 95 mm total length $145.0 View →
10 mm path length, 4-way, 95 mm total length $200.0 View →
10 mm path length, 2-way, transition tube, 95 mm total length $175.0 View →
10 mm path length, 4-way, transition tube, 95 mm total length $228.0 View →
10 mm path length, 4-way, 120 mm total length $210.0 View →
10 mm path length, 4-way, transition tube, 125 mm total length $240.0 View →
10 mm path length, 4-way, 135 mm total length $210.0 View →
5 mm path length, 4-way, 95 mm total length $210.0 This page
1 mm path length, 4-way, transition tube, 95 mm total length $260.0 View →
1 mm path length, 2-way, OD 6.5 mm, 95 mm total length $228.0 View →
10 mm path length, 4-way, screw cap, 114 mm total length $210.0 View →
01

Product Overview

Quartz Tube Cuvette 5 mm 4-Port Light Path 95 mm Length
02

Technical Drawing

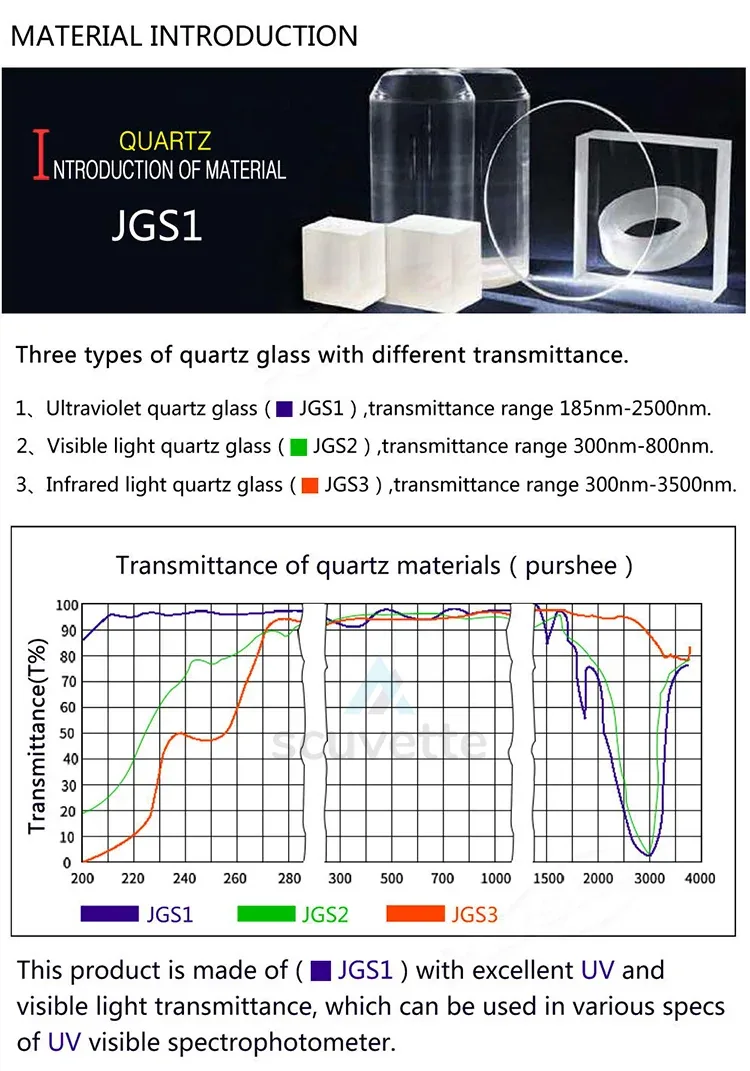

Quartz Tube Cuvette 5 mm 4-Port Light Path 95 mm Length technical drawing
03

Dimensions & Parameters

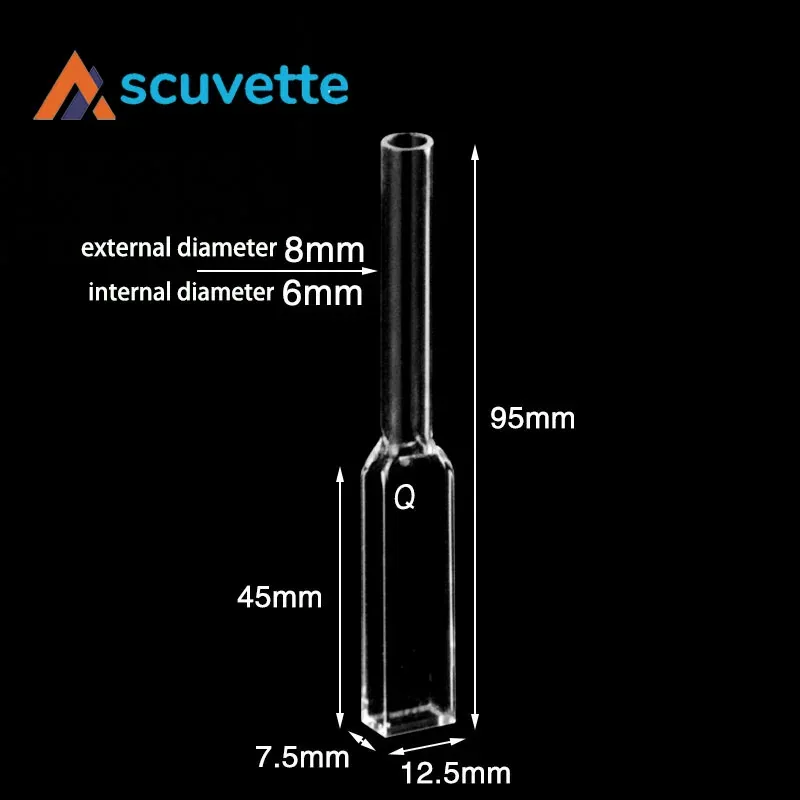

Quartz Tube Cuvette 5 mm 4-Port Light Path 95 mm Length dimensions
SpecificationValue
Path Length5mm
Total Length95 mm
Tube OD8.0 mm
Light Path4-way
Volume1.75 mL
MaterialJapanese JGS1 fused silica
Transmittance＞83%
Wavelength200-2500nm
Cavity Size12.5x7.5x45mm
ProcessOne-piece optical-contact molding
