Quartz Tube Cuvette 10 mm 2-Port Light Path 95 mm Length

Quartz Tube Cuvette 10 mm 2-Port Light Path 95 mm Length

Name: Quartz Tube Cuvette 10 mm 2-Port Light Path 95 mm Length
Brand: scuvette
SKU: qc-tube-cuvette-10mm-2w-95mm
Price: 145.0 USD
Availability: InStock

SKU: qc-tube-cuvette-10mm-2w-95mm Brand: scuvette In Stock

58 sold

$145.0 / pc

Minimum Order Quantity: 1

Path Length: 10mm

Total Length: 95 mm

Tube OD: 8.0 mm

Light Path: 2-way

Volume: 3.5 mL

Material: Japanese JGS1 fused silica

Transmittance: ＞83%

Wavelength: 200-2500nm

Cavity Size: 12.5x12.5x45mm

Process: One-piece optical-contact molding

Inquiry Now

10 mm optical path quartz tube cuvette, 2-way light path, 95 mm total length, 8 mm tube OD, 3.5 mL volume. Japanese JGS1 fused silica, ＞83% transmittance, 200-2500nm. For UV-Vis spectrophotometry.

Factory Direct Custom OEM Available Global Shipping

Description Specifications

10 mm optical path quartz tube cuvette, 2-way light path, 95 mm total length, 8 mm tube OD, 3.5 mL volume. Japanese JGS1 fused silica, ＞83% transmittance, 200-2500nm. For UV-Vis spectrophotometry.

Quartz Tube Cuvette Variants

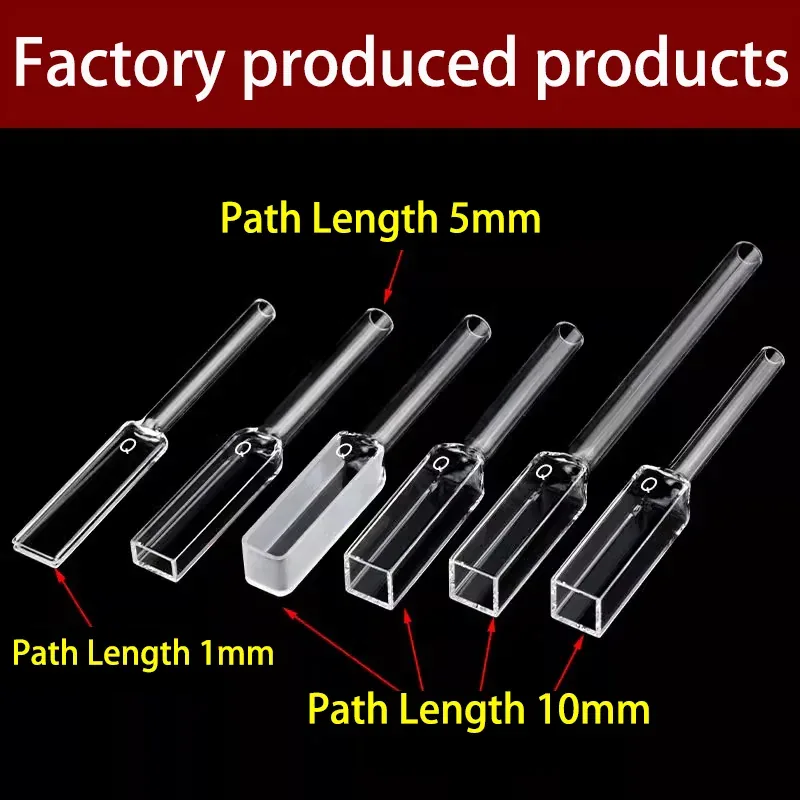

Eleven configurations in the quartz tube cuvette family — path lengths of 1, 5 and 10 mm, two-way or four-way light paths, optional transition tube or screw cap, and total lengths from 95 mm to 135 mm. All share Japanese JGS1 fused silica, >83% transmittance and 200–2500 nm wavelength range.

Variant	Price
10 mm path length, 2-way, 95 mm total length	$145.0	This page
10 mm path length, 4-way, 95 mm total length	$200.0	View →
10 mm path length, 2-way, transition tube, 95 mm total length	$175.0	View →
10 mm path length, 4-way, transition tube, 95 mm total length	$228.0	View →
10 mm path length, 4-way, 120 mm total length	$210.0	View →
10 mm path length, 4-way, transition tube, 125 mm total length	$240.0	View →
10 mm path length, 4-way, 135 mm total length	$210.0	View →
5 mm path length, 4-way, 95 mm total length	$210.0	View →
1 mm path length, 4-way, transition tube, 95 mm total length	$260.0	View →
1 mm path length, 2-way, OD 6.5 mm, 95 mm total length	$228.0	View →
10 mm path length, 4-way, screw cap, 114 mm total length	$210.0	View →

Product Overview

Technical Drawing

Dimensions & Parameters

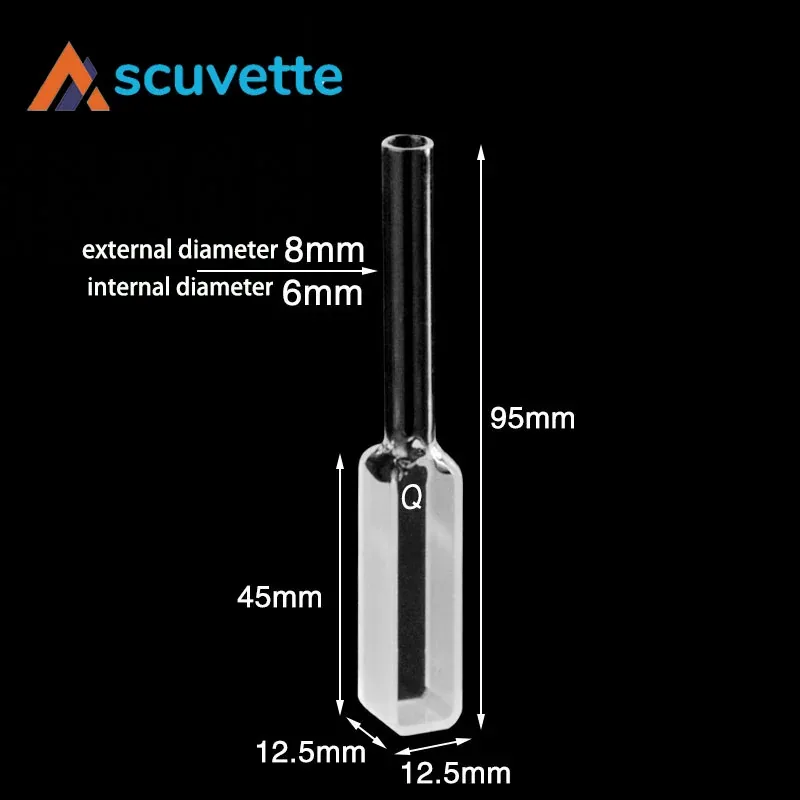

Quartz Tube Cuvette 10 mm 2-Port Light Path 95 mm Length dimensions

Specification	Value
Path Length	10mm
Total Length	95 mm
Tube OD	8.0 mm
Light Path	2-way
Volume	3.5 mL

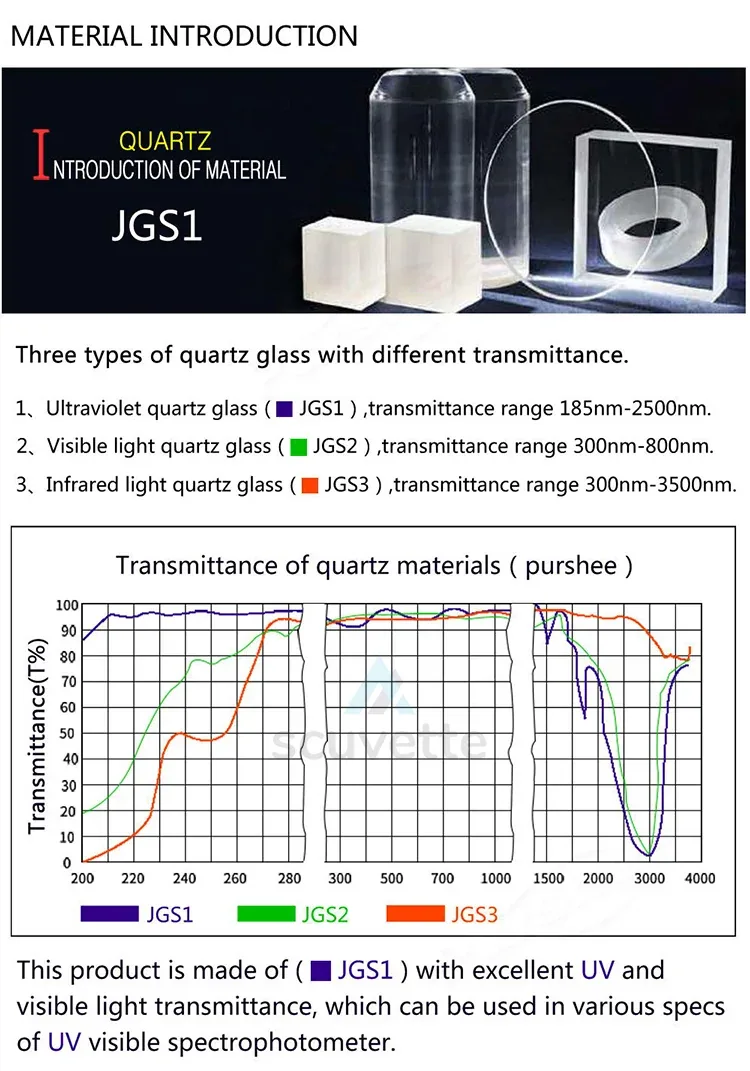

Material	Japanese JGS1 fused silica
Transmittance	＞83%
Wavelength	200-2500nm
Cavity Size	12.5x12.5x45mm
Process	One-piece optical-contact molding

Quartz Tube Cuvette 10 mm 2-Port Light Path 95 mm Length

Quartz Tube Cuvette Variants

Product Overview

Technical Drawing

Dimensions & Parameters
