2mm Quartz Screw Cap Micro Slit Cuvette 4-Port 700µL Fully Sealed M10 Thread
Gallery 1 Gallery 3 Gallery 4 Gallery 5

2mm Quartz Screw Cap Micro Slit Cuvette, 4-Port 700µL, Fully Sealed M10 Thread, Optical Contact One-Piece Molding

SKU: qc-screw-cap-micro-slit-2mm-4w Brand: scuvette In Stock
$370.00 $285.00 / box (1 pc)
Minimum Order Quantity: 1 box (1 pc)
Specification:
Optional Accessories — Spare PTFE Screw Caps (solid lid + silicone septum included; spares $12 each): View All Cuvette Caps →
Path Length: 2mm
Volume: 700µL
Brand: scuvette
Type: High Precision
Thread: M10 (fully sealed)
✓ ISO 9001 Certified✓ Worldwide Shipping✓ 30-Day Returns✓ In Stock · Ships in 24h
Inquiry Now

Brand: scuvette. 2mm quartz screw cap cuvette four-way 700µL fully sealed with M10 PTFE thread cap, suitable for anaerobic and volatile-sample experiments. Japanese imported JGS1 fused silica, optical contact one-piece molding process (premium; comparable to German original imports), >83% transmittance, 200nm-2500nm wavelength, max operating temp ≤1200°C. Overall height with cap 56mm, outline 12.5 × 12.5 × 56mm. Ships with PTFE solid lid + silicone septum; spare PTFE-septum and injectable caps sold separately ($12 each).

Factory Direct Custom OEM Available Global Shipping
Description Specifications

Brand: scuvette. 2mm quartz screw cap cuvette four-way 700µL fully sealed with M10 PTFE thread cap, suitable for anaerobic and volatile-sample experiments. Japanese imported JGS1 fused silica, optical contact one-piece molding process (premium; comparable to German original imports), >83% transmittance, 200nm-2500nm wavelength, max operating temp ≤1200°C. Overall height with cap 56mm, outline 12.5 × 12.5 × 56mm. Ships with PTFE solid lid + silicone septum; spare PTFE-septum and injectable caps sold separately ($12 each).

01

ISO Quality Certificates

CAS certified Chinese Academy of Sciences quality certificates and 99.99% SiO2 test report
02

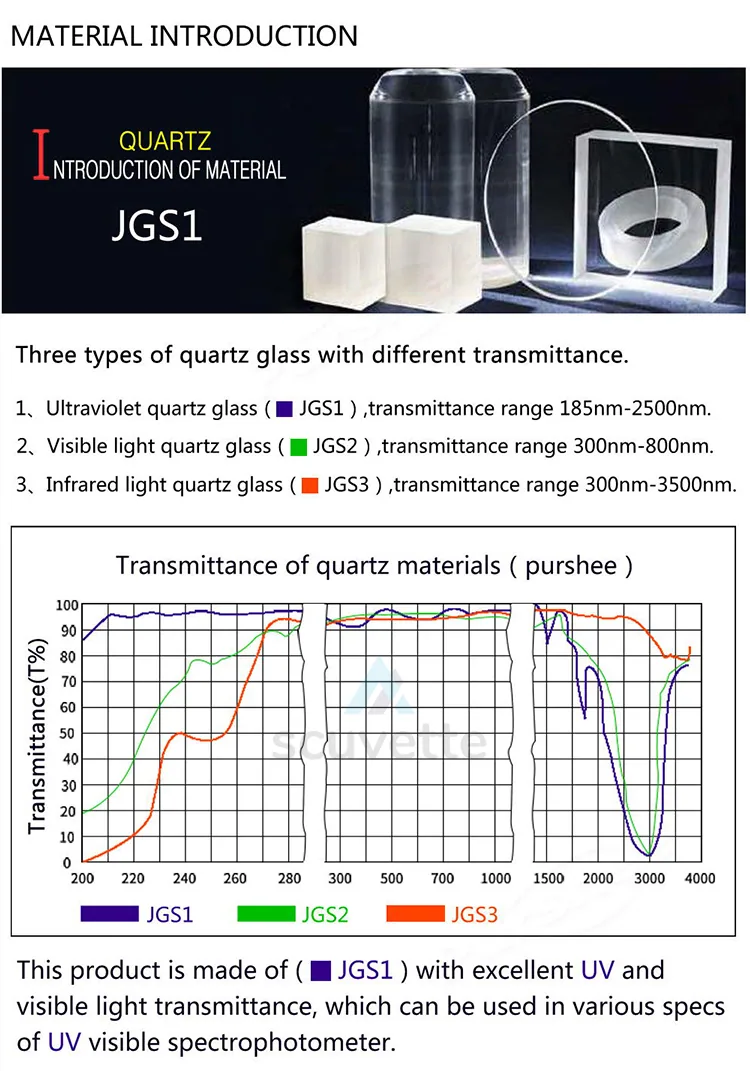

Japanese Fused JGS1 Quartz

2mm quartz screw cap cuvette detail
03

One-Piece Fused Molding — Fully Sealed

2mm quartz screw cap cuvette detail
04

M10 Screw Thread & PTFE Cap

2mm quartz screw cap cuvette detail
05

Precision Ground Optical Windows

2mm quartz screw cap cuvette detail
Brandscuvette
Name2 mm quartz screw cap cuvette, four-way sealed
Path Length2 mm
Volume700 µL
Slit Width2 mm
MaterialJapanese imported JGS1 fused silica
Chemical ResistanceAcid / alkali / organic solvent resistant
TechnologyOptical contact one-piece molding (premium; comparable to German original imports)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
Window ConfigurationFour-sided clear (four-way cuvette)
Thread / SealM10 screw cap, fully sealed — suitable for anaerobic / long-duration experiments
Overall Height with Cap56 mm
Outline Dimension12.5 × 12.5 × 56 mm (with cap)
Cell Body Dimension12.5 × 12.5 × 40 mm
Wall Thickness1.25 mm
Cap MaterialPolytetrafluoroethylene (PTFE) — solid lid + silicone septum included; spare solid / injectable lids sold separately
Max Operating Temp≤1200 °C
Type / GradeHigh Precision
Suitable ForUV / visible spectrophotometer; anaerobic / volatile-sample / long-duration sealed experiments
PackagingPlastic box (1 pc per box), outer carton (paper box)

Optional PTFE Screw Caps (sold separately)

OptionLid TypeSeptumChemical ResistanceUse CaseSKUPrice
Solid Lid + PTFE Septum Solid PTFE (Polytetrafluoroethylene) Acid / alkali / organic solvent / UV resistant Aggressive chemistry qc-cap-solid-ptfe $12.00 / piece
Solid Lid + Silicone Septum Solid Silicone ⚠ neutral samples only Limited (corrosive chemicals NOT resistant) Soft sealing with neutral samples qc-cap-solid-silicone $12.00 / piece
Injectable Lid + Silicone Septum Injectable (syringe access) Silicone ⚠ neutral samples only Limited (corrosive chemicals NOT resistant) Add / withdraw sample via syringe without opening cap qc-cap-injectable-silicone $12.00 / piece
Social Proof

Customer Reviews

4.9
★★★★★
Based on 26 verified reviews
RP
Raj P.
India · Verified Buyer
★★★★☆
Good product, the finish is clean and the windows are clear. Shipping took a bit longer than expected but the cuvettes themselves are worth the wait.
Reviewed on Jul 22, 2026
CW
Chen W.
Singapore · Verified Buyer
★★★★★
Excellent product. The optical contact process ones are comparable to German brands at a fraction of the cost. Our UV-Vis results are clean and reproducible.
Reviewed on Jul 2, 2026
SJ
Sarah J.
United States · Verified Buyer
★★★★★
Perfect for our UV-Vis applications. The quartz is clear, no bubbles or inclusions visible. Paired testing transmittance was within spec. Very satisfied.
Reviewed on Jul 5, 2026
JH
James H.
United Kingdom · Verified Buyer
★★★★☆
Good value cuvettes for routine lab work. The finish on the windows is clean and the dimensional accuracy is within tolerance. Would recommend for budget-conscious labs.
Reviewed on Jul 8, 2026
SM
Sophie M.
Germany · Verified Buyer
★★★★★
Sehr gute Verarbeitung und schnelle Lieferung. Die Küvetten passen genau in unsere Halterung und die Transmissionswerte stimmen. Sehr empfehlenswert.
Reviewed on Jun 18, 2026
You May Also Like

Related Products

Quartz Micro Slit Screw Cap Cuvette - Frequently Asked Questions

What is a micro slit screw cap cuvette used for?

A micro slit cuvette has a narrow slit-shaped chamber that confines the light beam to a thin sample layer, keeping the required sample volume low while maintaining sensitivity. This 2mm slit cell is ideal for concentrated or limited samples in UV-Vis spectroscopy.

How does a 2mm slit cell change my absorbance reading?

Because absorbance follows A = εcl, a short 2mm path length reduces absorbance by several times compared with a standard 10 mm cell - letting you measure high-concentration samples without dilution while avoiding detector saturation.

Why four-way windows with a screw cap on a slit cell?

Four polished windows allow fluorescence or multi-angle measurements, and the M10 PTFE solid cap keeps the narrow chamber airtight so volatile samples do not evaporate during long scans. See the complete micro cuvette range.
