10mm Quartz Screw Cap Cuvette Flat Bottom 4-Port 3.5mL Fully Sealed M10 Thread

10mm Quartz Screw Cap Cuvette Flat Bottom 4-Port (3.5mL)

Name: 10mm Quartz Screw Cap Cuvette Flat Bottom 4-Port (3.5mL)
Brand: scuvette
SKU: qc-screw-cap-10mm-4w-fb-hp
Price: 162.00 USD
Availability: InStock

SKU: qc-screw-cap-10mm-4w-fb-hp Brand: scuvette In Stock

592 sold

$210.00 $162.00 / box (1 pc)

Minimum Order Quantity: 1 box (1 pc)

Specification:

Optional Accessories — PTFE Screw Caps (sold separately, $12 each): View All Cuvette Caps →

Path Length: 10mm

Volume: 3.5mL

Brand: scuvette

Type: High Precision

Window: Four-sided clear (flat bottom)

Thread: M10 (fully sealed)

✓ ISO 9001 Certified✓ Factory Direct✓ Worldwide Shipping✓ 30-Day Returns✓ In Stock · Ships in 24h

Inquiry Now

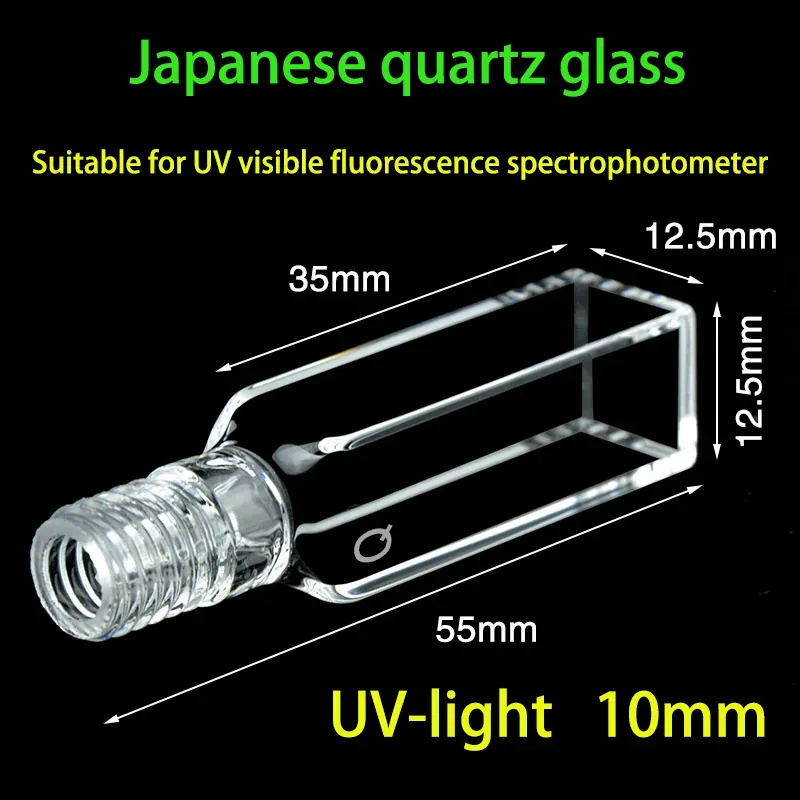

Brand: scuvette. 10mm quartz screw cap cuvette flat bottom four-way 3.5mL fully sealed with M10 PTFE thread cap, suitable for anaerobic, volatile-sample and fluorescence experiments. Japanese imported JGS1 fused silica, optical contact one-piece molding process (premium; comparable to German original imports), >83% transmittance, 200nm-2500nm wavelength, max operating temp ≤1200°C. Overall height with cap 58mm. PTFE solid or injectable cap with PTFE or silicone septum sold separately.

Factory Direct Custom OEM Available Global Shipping

Description Specifications

CAS Certification

CAS-certified Chinese Academy of Sciences quality certificates, SGS, NOA ISO 9001, and 99.99% SiO2 test report

Optical Contact One-Piece Molding (German Tech)

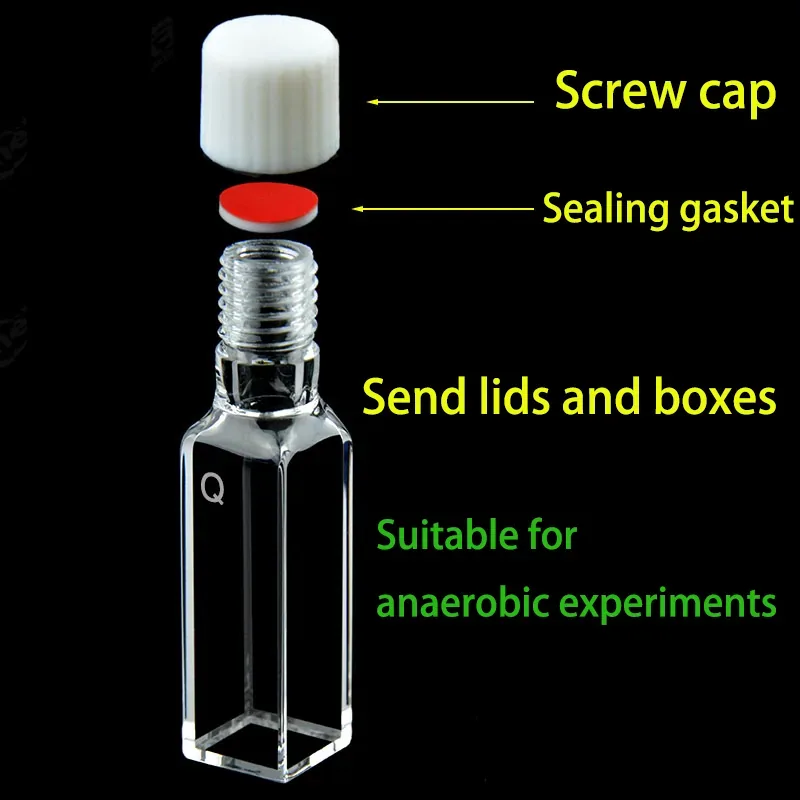

Solid Lid vs Injectable Cap for 4-Port Cell

Solid lid and injectable cap options for four-way cell

JGS1 Fused Silica — UV to NIR Transmission

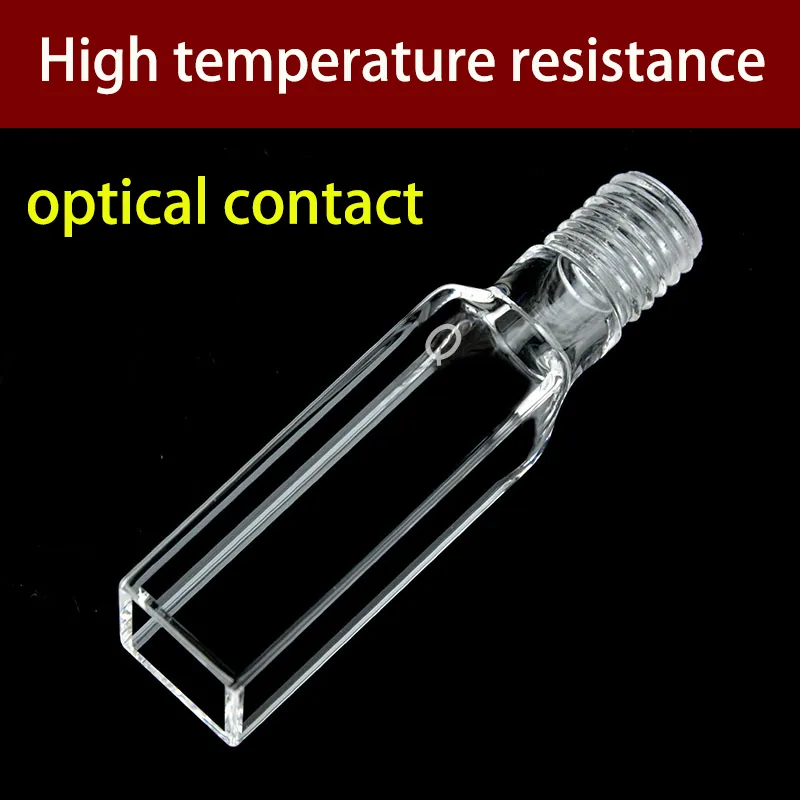

Sealing Structure — Suitable for Anaerobic Experiments

Sealing structure for anaerobic experiments

JGS1 Material Introduction & Transmittance Curve

JGS1 material introduction and transmittance curve

Compatible Caps

Replacement screw caps for this cuvette are sold separately. Choose PTFE solid caps or injectable caps with a silicone septum in the size that matches your cuvette thread (M6, M7.5, M10, or 10 mm).

Shop Compatible Caps

10mm Quartz Screw Cap Cuvette Flat Bottom 4-Port (3.5mL) - Frequently Asked Questions

What is a flat bottom four-way cuvette used for?

A flat bottom four-way cuvette allows light transmission through all four optical windows while the flat base provides stable placement on the spectrophotometer cell holder. This 10mm path length cuvette is ideal for UV-Vis measurements requiring multiple wavelength readings or simultaneous sample/reference comparison.

Why choose four-way instead of two-way optical windows?

Four-way clear windows let you measure absorbance or fluorescence from any side without rotating the cuvette. For multi-beam spectrophotometers and reference-channel setups, four-way design eliminates the need to realign the cuvette between scans. See our complete screw cap cuvette catalog for comparison.

Is the PTFE solid cap resistant to common solvents?

Yes. PTFE is chemically inert to virtually all laboratory solvents including acids (except hydrofluoric acid), bases, alcohols, and most organic solvents at room temperature. The M10 threaded solid cap provides airtight sealing for volatile or oxygen-sensitive samples up to 120C operating temperature.
