10mm Quartz Large Screw Cap Cuvette Round Bottom Two-Way 3.5mL Fully Sealed M12 Thread

10mm Quartz Large Screw Cap Cuvette, EU Version Round Bottom Two-Way 3.5mL, Fully Sealed M12 Thread with PTFE Solid Cap, Optical Contact One-Piece Molding

Name: 10mm Quartz Large Screw Cap Cuvette, EU Version Round Bottom Two-Way 3.5mL, Fully Sealed M12 Thread with PTFE Solid Cap, Optical Contact One-Piece Molding
Brand: scuvette
SKU: qc-screw-cap-10mm-2w-large-rb-eu-hp
Price: 171.00 USD
Availability: InStock

SKU: qc-screw-cap-10mm-2w-large-rb-eu-hp Brand: scuvette In Stock

414 sold

$210.00 $171.00 / box (1 pc)

Minimum Order Quantity: 1 box (1 pc)

Specification:

Optional Accessories — PTFE Screw Caps (sold separately, $12 each): View All Cuvette Caps →

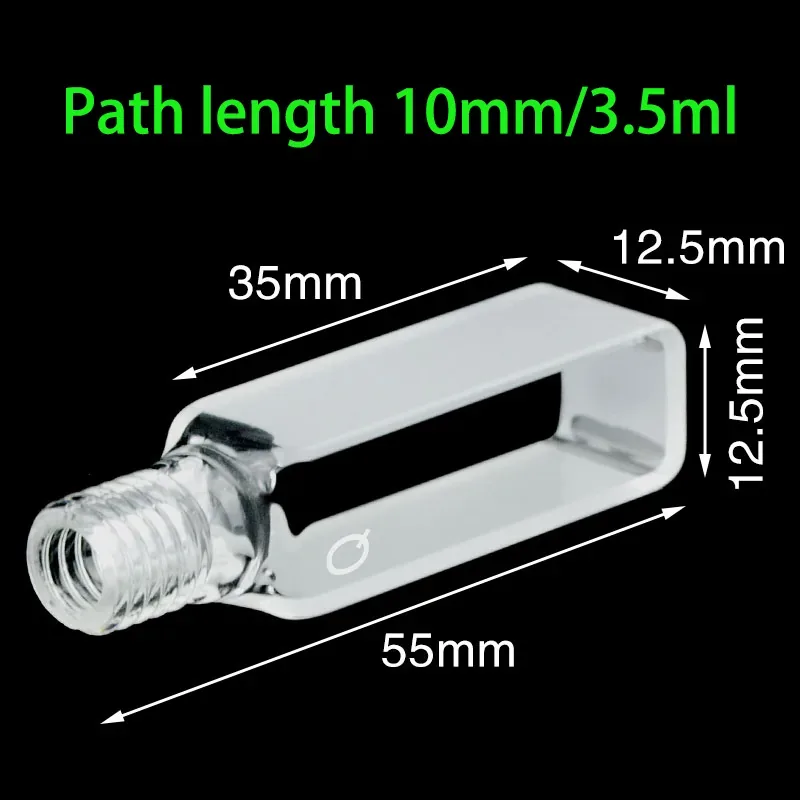

Path Length: 10mm

Volume: 3.5mL

Brand: scuvette

Type: EU Version

Window: Two opposite sides clear (round bottom)

Thread: M12 large (fully sealed)

✓ ISO 9001 Certified✓ Factory Direct✓ Worldwide Shipping✓ 30-Day Returns✓ In Stock · Ships in 24h

Inquiry Now

Brand: scuvette. 10mm quartz large screw cap cuvette EU version two-way (round bottom) 3.5mL fully sealed with M12 PTFE thread cap, suitable for anaerobic, volatile-sample and fluorescence experiments. Japanese imported JGS1 fused silica, optical contact one-piece molding process (premium; comparable to German original imports), >83% transmittance, 200nm-2500nm wavelength, max operating temp ≤1200°C. Overall height with cap 58mm. PTFE solid or injectable cap with PTFE or silicone septum sold separately.

Factory Direct Custom OEM Available Global Shipping

Description Specifications

CAS Certification

CAS-certified Chinese Academy of Sciences quality certificates, SGS, NOA ISO 9001, and 99.99% SiO2 test report

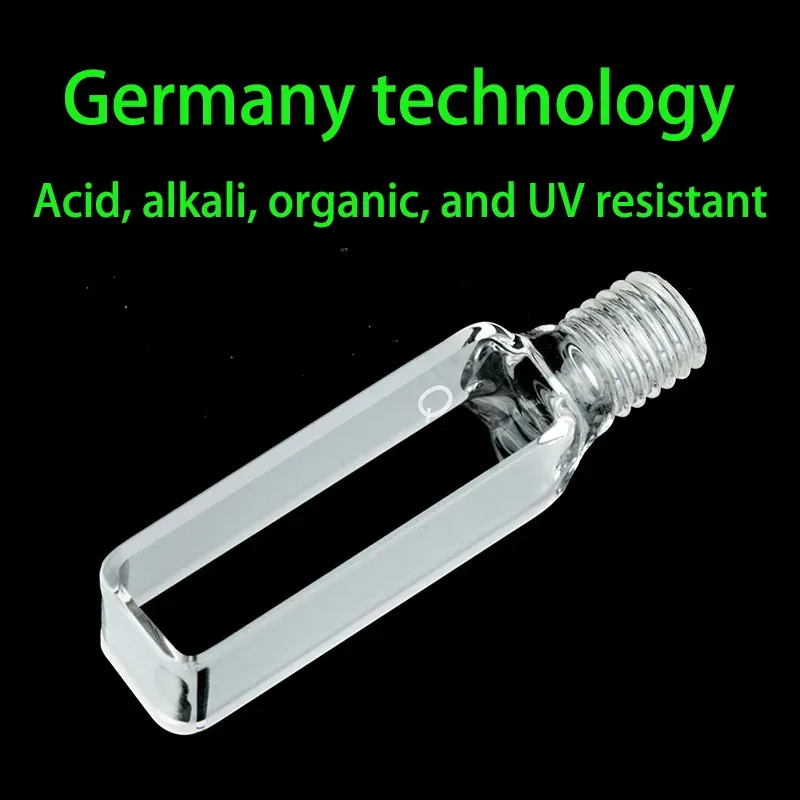

Optical Contact One-Piece Molding (German Tech)

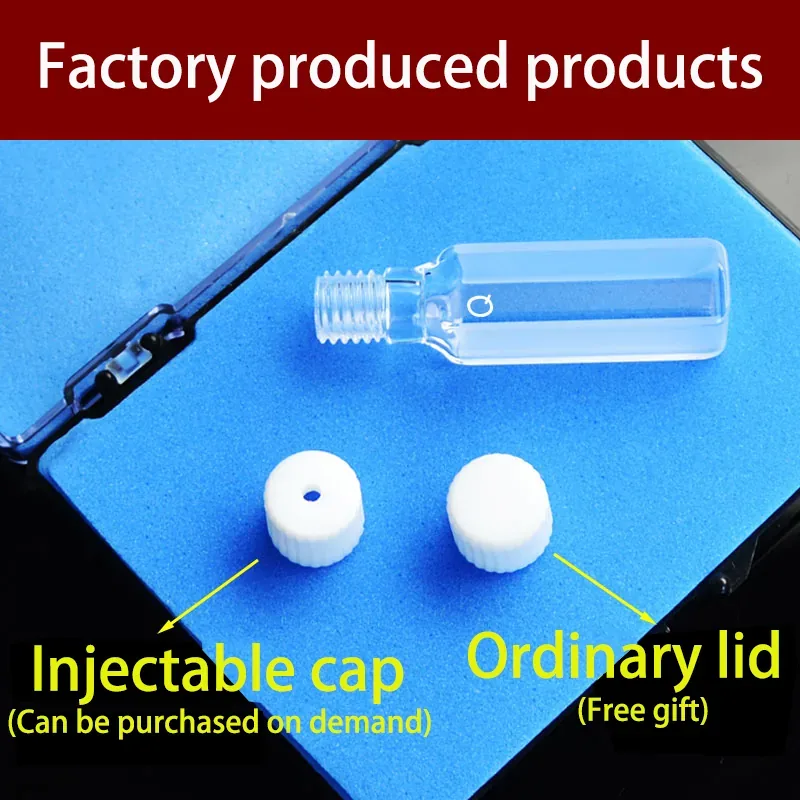

Solid Lid vs Injectable Cap for Two-Way Cell

Solid lid and injectable cap options for two-way cell

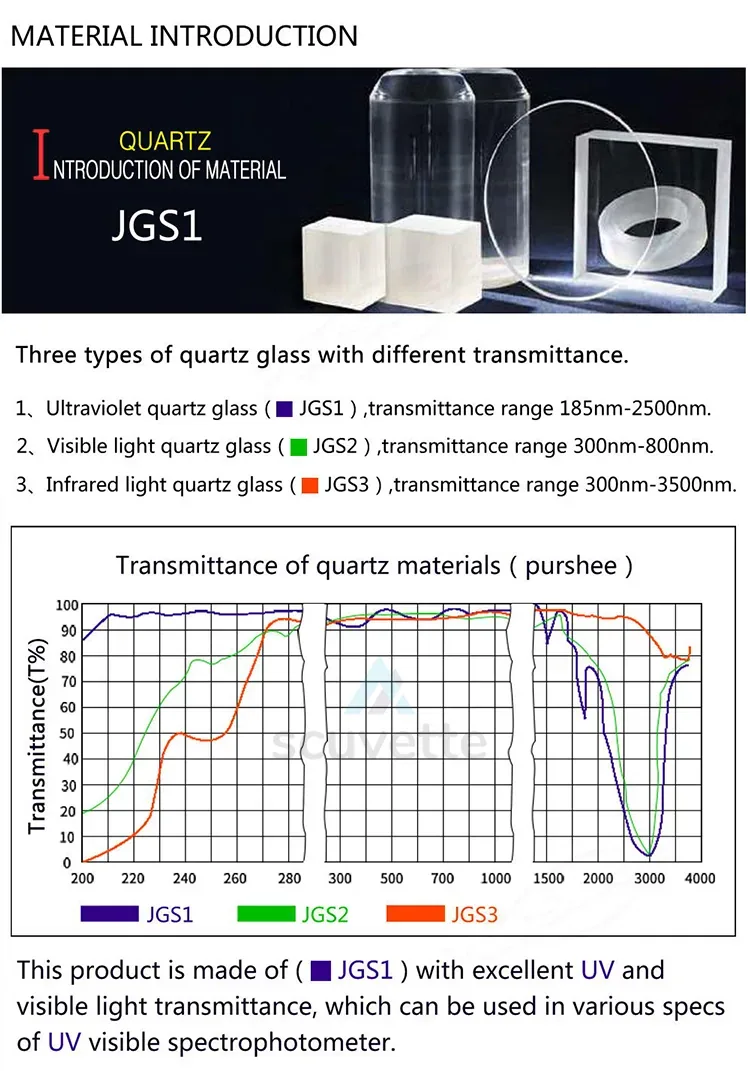

JGS1 Fused Silica — Full Spectrum Transmission

JGS1 Material Introduction & Transmittance Curve

JGS1 material introduction and transmittance curve

Compatible Caps

Replacement screw caps for this cuvette are sold separately. Choose PTFE solid caps or injectable caps with a silicone septum in the size that matches your cuvette thread (M6, M7.5, M10, or 10 mm).

Shop Compatible Caps

10mm Quartz Screw Cap Cuvette - Frequently Asked Questions

Is this screw cap cuvette airtight and leak-proof?

Yes. The threaded PTFE solid cap seals against the quartz body with a precision thread, keeping the 3.5 mL sample airtight for volatile solvents and oxygen- or moisture-sensitive assays. The M10 (or M12 on the EU version) thread is fully reusable - tighten hand-tight only to protect the thread.

Two-way, four-way or five-way windows - which do I need?

Two-way cells suit standard UV-Vis absorbance measurements. Four-way and five-way cells are for fluorescence, multi-angle readings or reference-channel setups where light must enter from several sides without rotating the cell. All variants share the same 10 mm path length and 3.5 mL chamber - compare the full screw cap cuvette range.

How do I clean a quartz screw cap cuvette without scratching it?

Rinse immediately after use, flush with deionized water and a mild detergent (or 1:1 HCl for organic residues), then rinse with isopropanol and air-dry. Never use abrasive wipes, brushes or metal tools inside the optical chamber. See the cuvette care guide for the full protocol.
