40mm Quartz Cubic Cuvette Two-Way with Quartz Lid 51mL 44x44x42mm
40mm Quartz Cubic Cuvette Two-Way with Quartz Lid 51mL 44x44x42mm 1 40mm Quartz Cubic Cuvette Two-Way with Quartz Lid 51mL 44x44x42mm 2 40mm Quartz Cubic Cuvette Two-Way with Quartz Lid 51mL 44x44x42mm 3 40mm Quartz Cubic Cuvette Two-Way with Quartz Lid 51mL 44x44x42mm 4

40mm Quartz Cubic Cuvette Two-Way with Quartz Lid 51mL 44x44x42mm

SKU: qc-cubic-40mm-2w-lid-ht Brand: scuvette In Stock
0 sold
$108.00 / pc
Minimum Order Quantity: 1
Path Length: 40mm
Light Path: 2-way
Lid: Quartz lid
Volume: 51 mL
Outer Dimension: 44x44x42mm
Inner Dimension: 40x40x40mm
Wall Thickness: 2mm
Material: Japanese imported JGS1 fused silica
Process: Fused one-piece molding
Transmittance: ＞83%
Wavelength: 200nm-2500nm
Max Operating Temp: 600℃
Inquiry Now

40mm Quartz Cubic Cuvette Two-Way with Quartz Lid 51mL 44x44x42mm. 40mm optical path cubic quartz cuvette, 2-way light path, 51 mL volume. Japanese imported JGS1 fused silica, ＞83% transmittance, 200nm-2500nm. For UV-Vis spectrophotometry.

Factory Direct Custom OEM Available Global Shipping
Description Specifications

10 mm optical path quartz tube cuvette, 2-way light path, 95 mm total length, 8 mm tube OD, 3.5 mL volume. Japanese JGS1 fused silica, ＞83% transmittance, 200-2500nm. For UV-Vis spectrophotometry.

02

40mm Quartz Cubic Cuvette Configurations

Four configurations in the 40 mm quartz cubic cuvette family: two-way and four-way light paths, with or without quartz lid, in a 42 mm body height. All share a 40 mm path length, Japanese JGS1 fused silica, >83% transmittance and a 200–2500 nm wavelength range.

Configuration Price
20mm 2-Port Open Top 7.4mL $55.00 / $70.00 View →
20mm 2-Port Quartz Lid 7.4mL $70.00 / $85.00 View →
20mm 4-Port Open Top 6.4mL $85.00 View →
20mm 4-Port Quartz Lid 6.4mL $96.00 View →
20mm 4-Port Open Top 12.8mL 42mm Height $95.00 View →
20mm 4-Port Quartz Lid 12.8mL 42mm Height $108.00 View →
20mm 5-Port Open Top 12.8mL 42mm Height $114.00 View →
20mm 5-Port Quartz Lid 12.8mL 42mm Height $128.00 View →
01

Product Overview

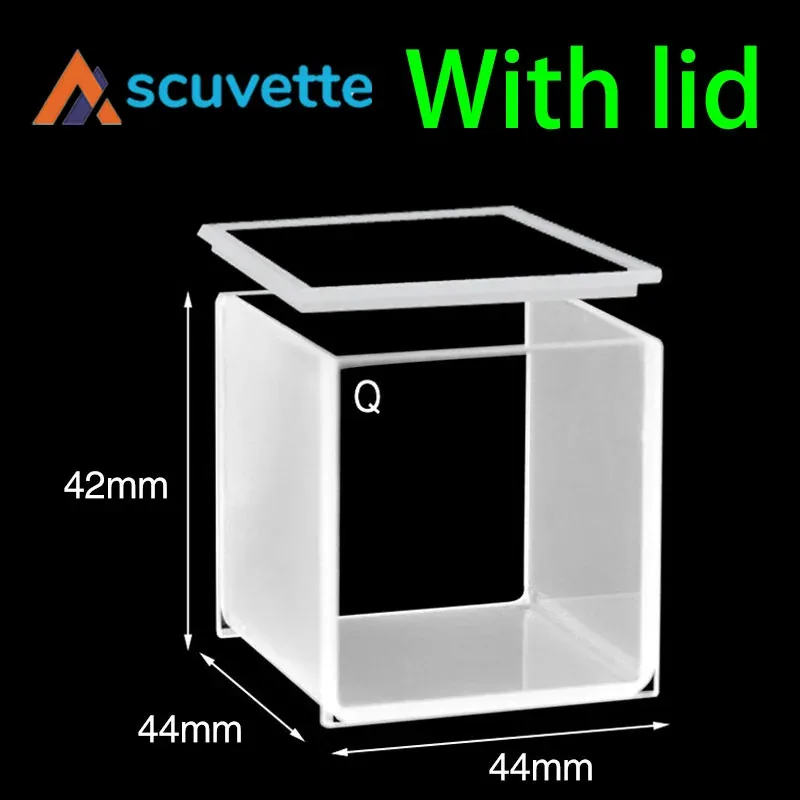

40mm Quartz Cubic Cuvette Two-Way with Quartz Lid 51mL 44x44x42mm
02

Technical Drawing

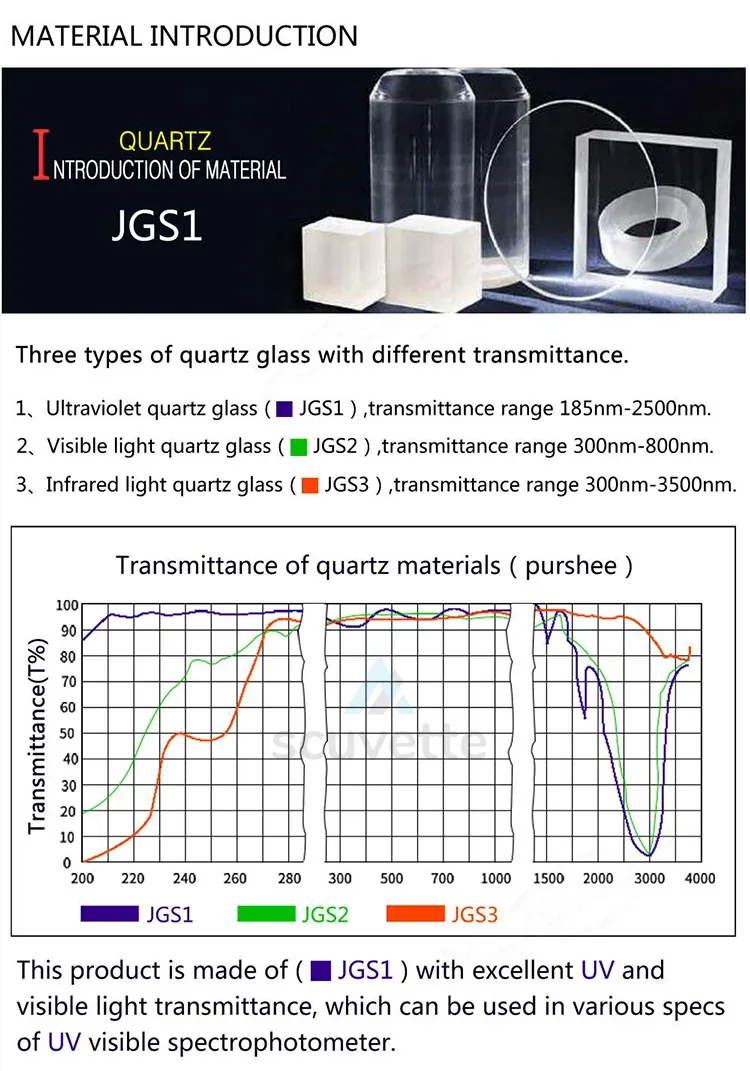

40mm Quartz Cubic Cuvette Two-Way with Quartz Lid 51mL 44x44x42mm technical drawing
03

Dimensions & Parameters

40mm Quartz Cubic Cuvette Two-Way with Quartz Lid 51mL 44x44x42mm dimensions
SpecificationValue
Path Length40mm
Light Path2-way
Lid TypeQuartz lid
Lid MaterialQuartz
Volume51 mL
Outer Dimension44x44x42mm
Inner Dimension40x40x40mm
Wall Thickness2mm
MaterialJapanese imported JGS1 fused silica
ProcessFused one-piece molding
Transmittance＞83%
Wavelength200nm-2500nm
Max Operating Temp600℃
MarkingQ
Brandscuvette
Packing1 pc per box
