20mm Quartz Cubic Cuvette 4-Port Open Top 12.8mL 24x24x42mm
20mm Quartz Cubic Cuvette 4-Port Open Top 12.8mL 24x24x42mm 1 20mm Quartz Cubic Cuvette 4-Port Open Top 12.8mL 24x24x42mm 2 20mm Quartz Cubic Cuvette 4-Port Open Top 12.8mL 24x24x42mm 3 20mm Quartz Cubic Cuvette 4-Port Open Top 12.8mL 24x24x42mm 4

20mm Quartz Cubic Cuvette 4-Port Open Top 12.8mL 24x24x42mm

SKU: qc-cubic-20mm-4w-open-42mm-ht Brand: scuvette In Stock
0 sold
$95.00 / pc
Minimum Order Quantity: 1
Path Length: 20mm
Light Path: 4-way
Lid: No
Volume: 12.8 mL
Outer Dimension: 24x24x42mm
Inner Dimension: 20x20x40mm
Wall Thickness: 2mm
Material: Japanese imported JGS1 fused silica
Process: Fused one-piece molding
Transmittance: ＞83%
Wavelength: 200nm-2500nm
Max Operating Temp: 600℃
Inquiry Now

20mm Quartz Cubic Cuvette 4-Port Open Top 12.8mL 24x24x42mm. 20mm optical path cubic quartz cuvette, 4-way light path, 12.8 mL volume. Japanese imported JGS1 fused silica, ＞83% transmittance, 200nm-2500nm. For UV-Vis spectrophotometry.

Factory Direct Custom OEM Available Global Shipping
Description Specifications

10 mm optical path quartz tube cuvette, 2-way light path, 95 mm total length, 8 mm tube OD, 3.5 mL volume. Japanese JGS1 fused silica, ＞83% transmittance, 200-2500nm. For UV-Vis spectrophotometry.

02

20mm Quartz Cubic Cuvette Configurations

Eight configurations in the 20 mm quartz cubic cuvette family: two-way, four-way and five-way light paths, with or without quartz lid, in 22 mm, 25 mm and 42 mm body heights. All share a 20 mm path length, Japanese JGS1 fused silica, >83% transmittance and a 200–2500 nm wavelength range. Two-way cells are offered in High Transmittance and High Precision grades.

Configuration Price
20mm 2-Port Open Top 7.4mL $55.00 / $70.00 View →
20mm 2-Port Quartz Lid 7.4mL $70.00 / $85.00 View →
20mm 4-Port Open Top 6.4mL $85.00 View →
20mm 4-Port Quartz Lid 6.4mL $96.00 View →
20mm 4-Port Open Top 12.8mL 42mm Height $95.00 This page
20mm 4-Port Quartz Lid 12.8mL 42mm Height $108.00 View →
20mm 5-Port Open Top 12.8mL 42mm Height $114.00 View →
20mm 5-Port Quartz Lid 12.8mL 42mm Height $128.00 View →
01

Product Overview

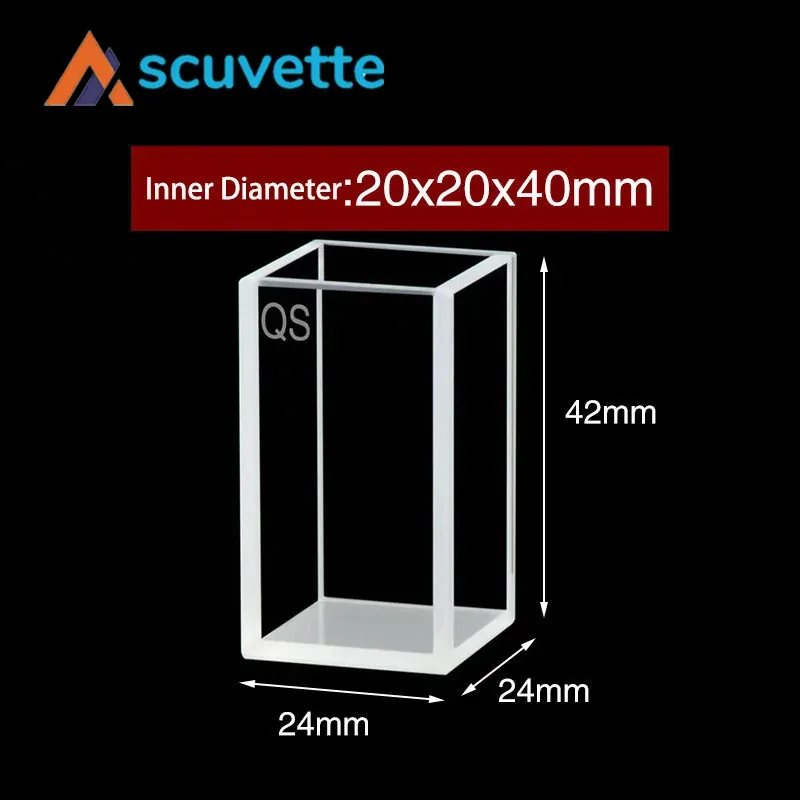

20mm Quartz Cubic Cuvette 4-Port Open Top 12.8mL 24x24x42mm
02

Technical Drawing

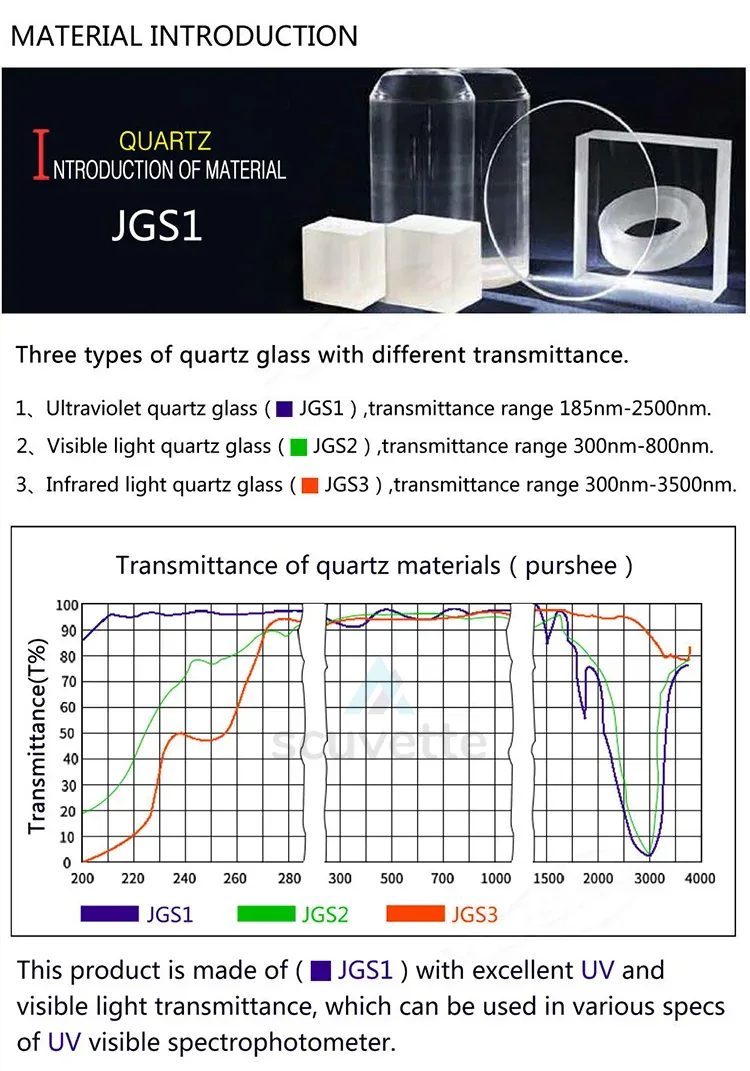

20mm Quartz Cubic Cuvette 4-Port Open Top 12.8mL 24x24x42mm technical drawing
03

Dimensions & Parameters

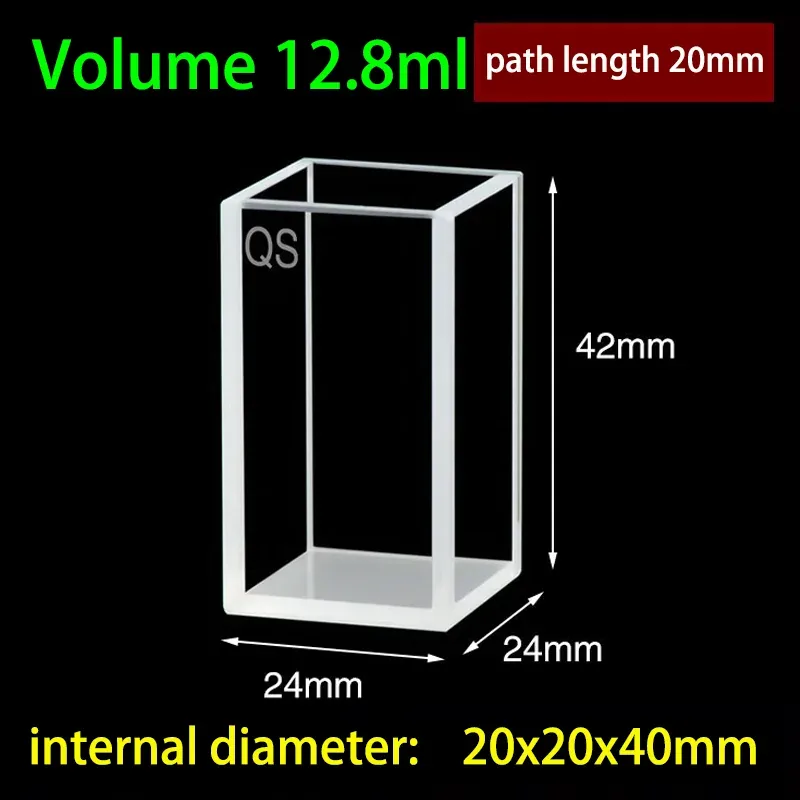

20mm Quartz Cubic Cuvette 4-Port Open Top 12.8mL 24x24x42mm dimensions
SpecificationValue
Path Length20mm
Light Path4-way
Lid TypeNo
Lid Material-
Volume12.8 mL
Outer Dimension24x24x42mm
Inner Dimension20x20x40mm
Wall Thickness2mm
MaterialJapanese imported JGS1 fused silica
ProcessFused one-piece molding
Transmittance＞83%
Wavelength200nm-2500nm
Max Operating Temp600℃
MarkingQS
Brandscuvette
Packing1 pc per box
