30mm Quartz Cubic Cuvette 4-Port with Quartz Lid 32.4mL 34x34x47mm
30mm Quartz Cubic Cuvette 4-Port with Quartz Lid 32.4mL 34x34x47mm 1 30mm Quartz Cubic Cuvette 4-Port with Quartz Lid 32.4mL 34x34x47mm 2 30mm Quartz Cubic Cuvette 4-Port with Quartz Lid 32.4mL 34x34x47mm 3 30mm Quartz Cubic Cuvette 4-Port with Quartz Lid 32.4mL 34x34x47mm 4

30mm Quartz Cubic Cuvette 4-Port with Quartz Lid 32.4mL 34x34x47mm

SKU: qc-cubic-30mm-4w-lid-47mm-ht Brand: scuvette In Stock
0 sold
$150.00 / pc
Minimum Order Quantity: 1
Path Length: 30mm
Light Path: 4-way
Lid: Quartz lid
Volume: 32.4 mL
Outer Dimension: 34x34x47mm
Inner Dimension: 30x30x45mm
Wall Thickness: 2mm
Material: Japanese imported JGS1 fused silica
Process: Fused one-piece molding
Transmittance: ＞83%
Wavelength: 200nm-2500nm
Max Operating Temp: 600℃
Inquiry Now

30mm Quartz Cubic Cuvette 4-Port with Quartz Lid 32.4mL 34x34x47mm. 30mm optical path cubic quartz cuvette, 4-way light path, 32.4 mL volume. Japanese imported JGS1 fused silica, ＞83% transmittance, 200nm-2500nm. For UV-Vis spectrophotometry.

Factory Direct Custom OEM Available Global Shipping
Description Specifications

10 mm optical path quartz tube cuvette, 2-way light path, 95 mm total length, 8 mm tube OD, 3.5 mL volume. Japanese JGS1 fused silica, ＞83% transmittance, 200-2500nm. For UV-Vis spectrophotometry.

02

30mm Quartz Cubic Cuvette Configurations

Six configurations in the 30 mm quartz cubic cuvette family: two-way and four-way light paths, with or without quartz lid, in 35 mm and 47 mm body heights. All share a 30 mm path length, Japanese JGS1 fused silica, >83% transmittance and a 200–2500 nm wavelength range. Two-way cells are offered in High Transmittance and High Precision grades.

Configuration Price
20mm 2-Port Open Top 7.4mL $55.00 / $70.00 View →
20mm 2-Port Quartz Lid 7.4mL $70.00 / $85.00 View →
20mm 4-Port Open Top 6.4mL $85.00 View →
20mm 4-Port Quartz Lid 6.4mL $96.00 View →
20mm 4-Port Open Top 12.8mL 42mm Height $95.00 View →
20mm 4-Port Quartz Lid 12.8mL 42mm Height $108.00 View →
20mm 5-Port Open Top 12.8mL 42mm Height $114.00 View →
20mm 5-Port Quartz Lid 12.8mL 42mm Height $128.00 View →
01

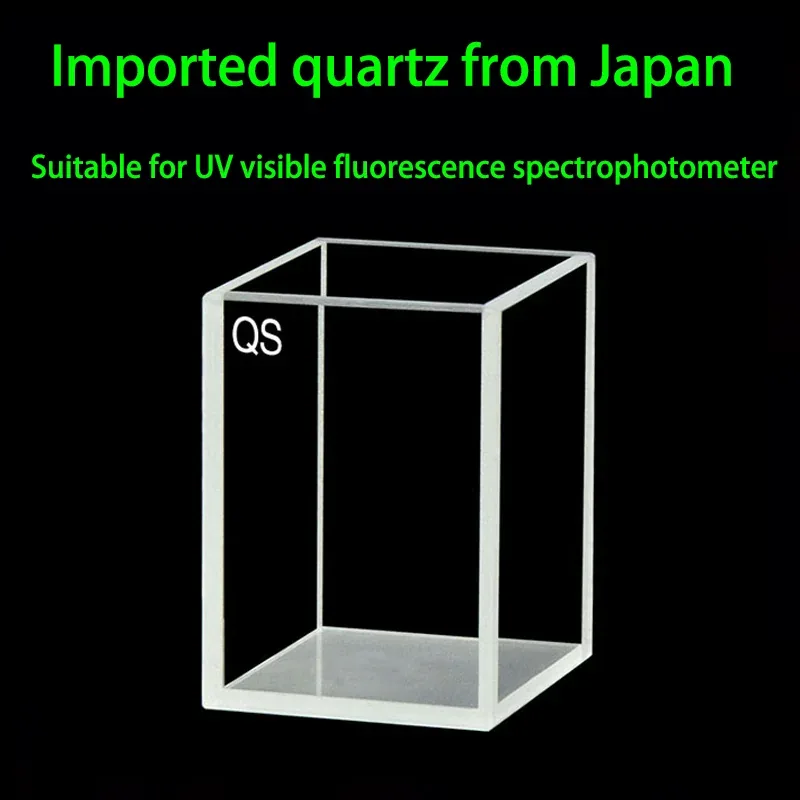

Product Overview

30mm Quartz Cubic Cuvette 4-Port with Quartz Lid 32.4mL 34x34x47mm
02

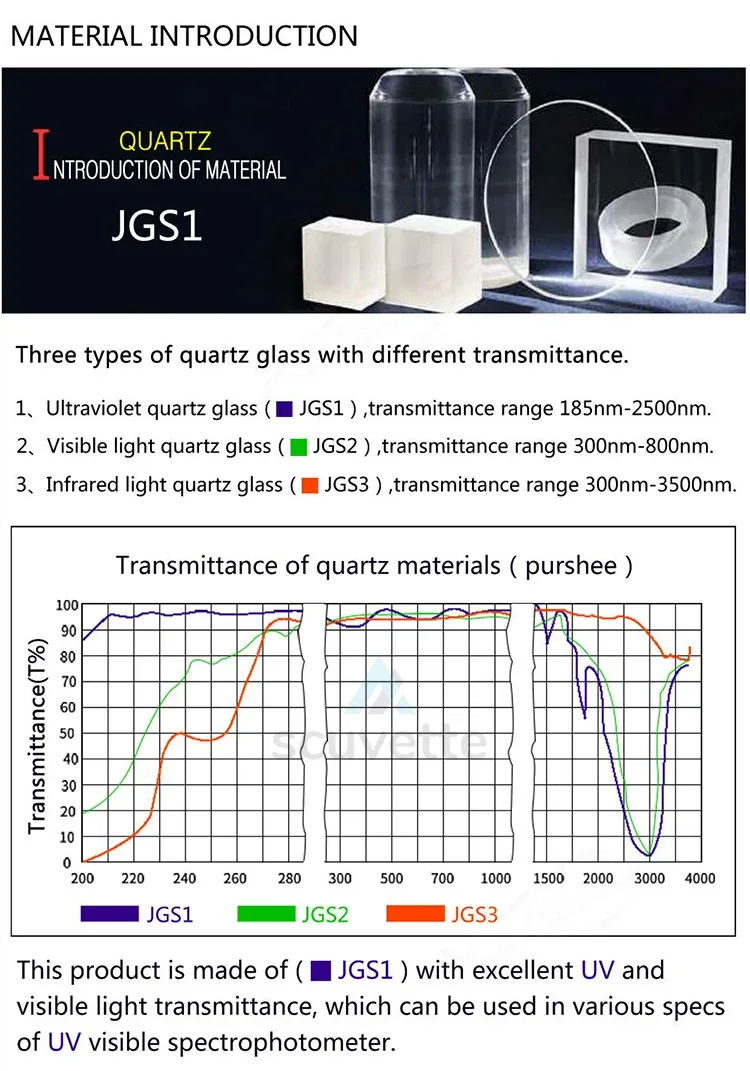

Technical Drawing

30mm Quartz Cubic Cuvette 4-Port with Quartz Lid 32.4mL 34x34x47mm technical drawing
03

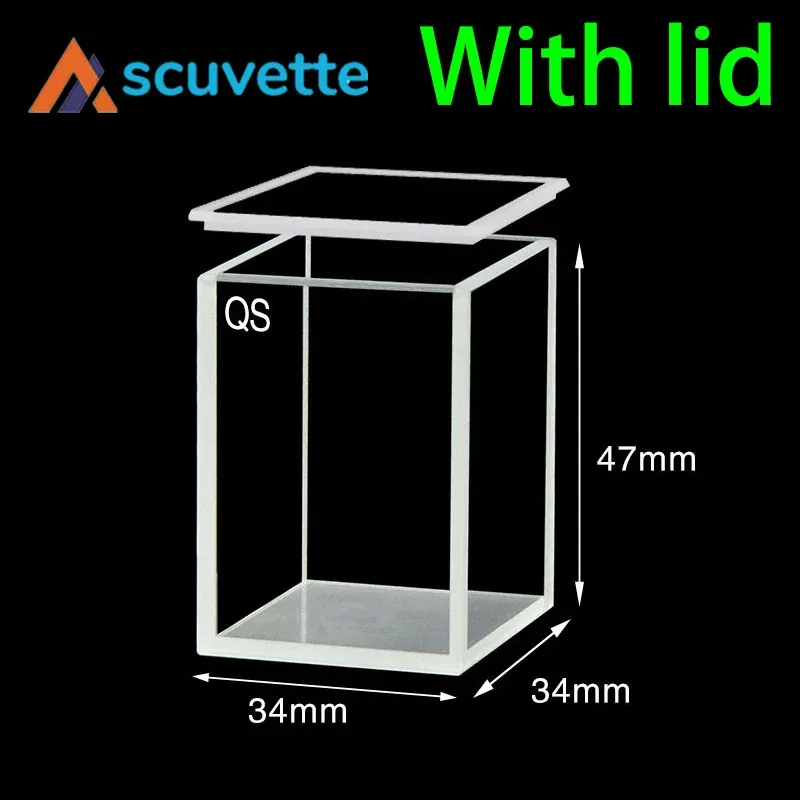

Dimensions & Parameters

30mm Quartz Cubic Cuvette 4-Port with Quartz Lid 32.4mL 34x34x47mm dimensions
SpecificationValue
Path Length30mm
Light Path4-way
Lid TypeQuartz lid
Lid MaterialQuartz
Volume32.4 mL
Outer Dimension34x34x47mm
Inner Dimension30x30x45mm
Wall Thickness2mm
MaterialJapanese imported JGS1 fused silica
ProcessFused one-piece molding
Transmittance＞83%
Wavelength200nm-2500nm
Max Operating Temp600℃
MarkingQS
Brandscuvette
Packing1 pc per box
