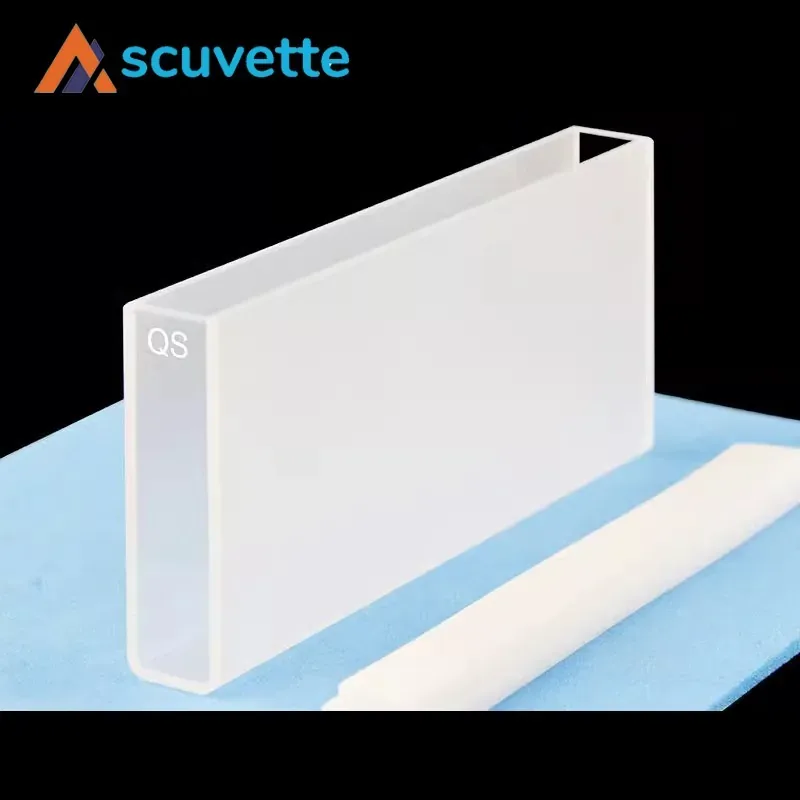

Brand: scuvette. 100 mm quartz long path-length cuvette two-way 35000 μL. Japanese imported JGS1 fused silica, two opposite sides clear for UV spectrophotometer. Outline dimension 12.5 × 102.5 × 45 mm. Available in Ordinary (glue bonding, neutral samples only, <100°C), Standard (fused one-piece molding, <600°C), High Transmittance (fused one-piece molding, <600°C) and High Precision (optical contact one-piece molding, ≤1200°C). Supplied with PTFE lid.
01
ISO 9001 Quality Management System Certificate
02

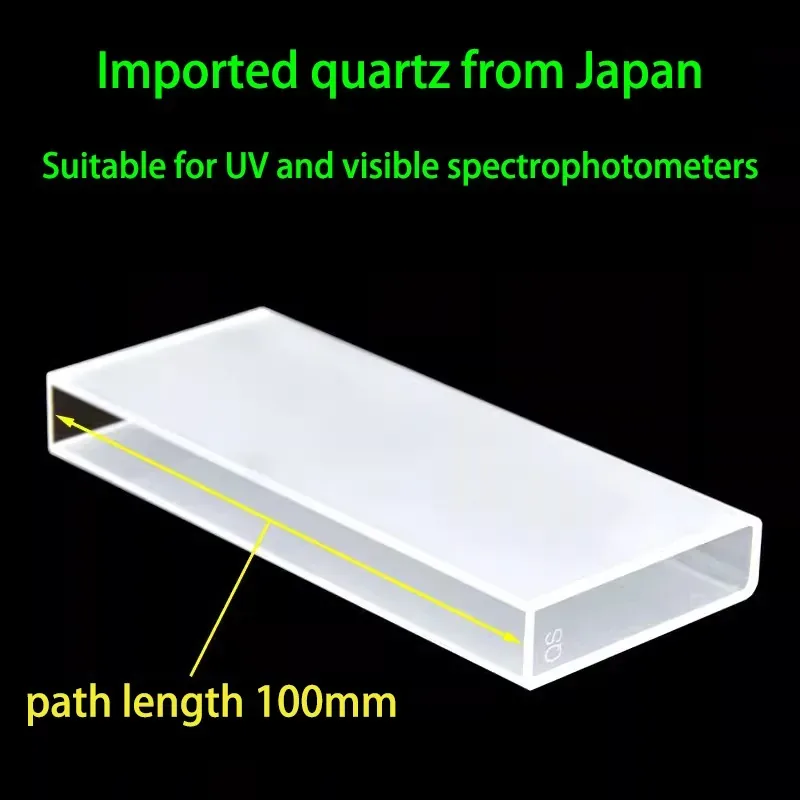

100 mm Path Length / 35000 μL Volume
03
Group Data Pairing <0.005
04

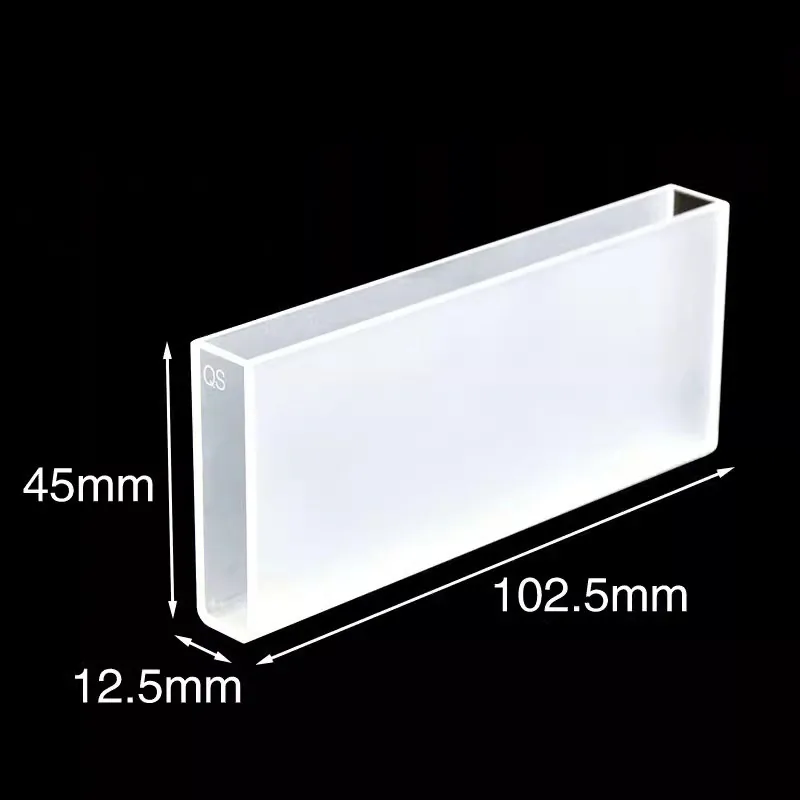

Outline Dimension 12.5 × 102.5 × 45 mm
05
JGS1 Optical Quartz Glass — Full UV-Vis Transmission
| Brand | scuvette |
|---|
| Name | 100 mm quartz long path-length cuvette, two-way |
|---|
| Path Length | 100 mm |
|---|
| Volume | 35000 μL |
|---|
| Material | Japanese imported JGS1 fused silica |
|---|
| Window Configuration | Two opposite sides clear (two-way cuvette) |
|---|
| Outline Dimension | 12.5 × 102.5 × 45 mm |
|---|
| Wavelength Range | 200 nm – 2,500 nm |
|---|
| Cap / Lid | With PTFE lid included |
|---|

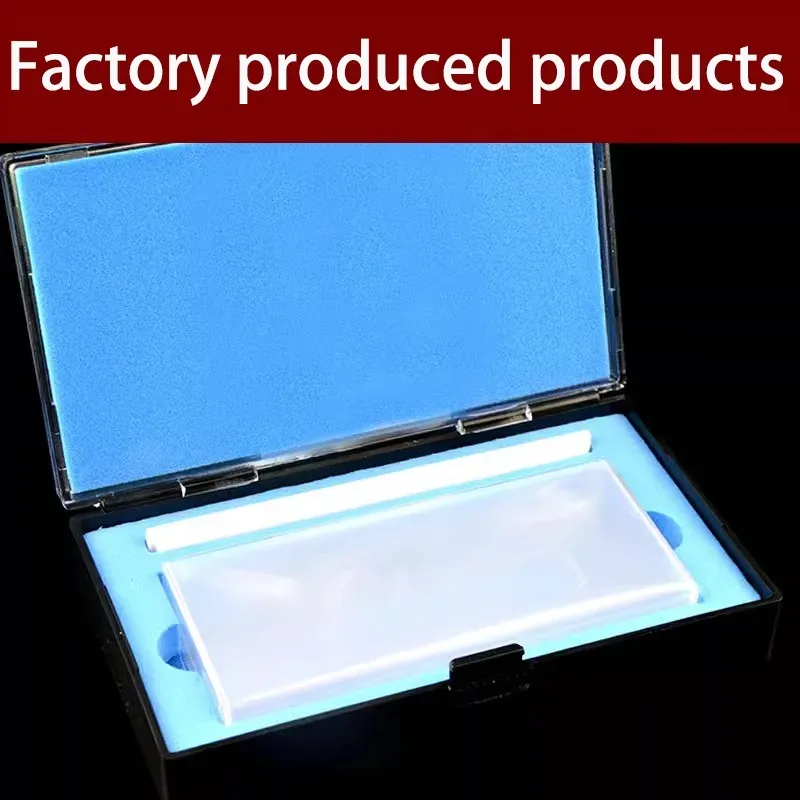

| Packaging | Plastic box (1 pc per box), outer carton (paper box) |
|---|
Grade Options
| Specification | Ordinary | Standard | High Transmittance | High Precision |
|---|
| SKU | qc-long-path-100mm-2w-ord | qc-long-path-100mm-2w-std | qc-long-path-100mm-2w-ht | qc-long-path-100mm-2w-hp |
| Price | $45.00 / box (1 pc) | $72.00 / box (1 pc) | $89.00 / box (1 pc) | $160.00 / box (1 pc) |
| Technology | Glue bonding process | Fused one-piece molding | Fused one-piece molding | Optical contact one-piece molding (premium; comparable to German original imports) |
| Transmittance | >80% (Paired testing) | >80% | >83% | >83% |
| Max Operating Temp | <100°C | <600°C | <600°C | ≤1200°C |
| Chemical Resistance | Neutral samples only | Acid, alkali, organic solvent and high temperature resistant | Acid, alkali, organic solvent and high temperature resistant | Acid, alkali, organic solvent and high temperature resistant |
| Type / Grade | Ordinary | Standard | High Transmittance | High Precision |
| Suitable For | UV / visible spectrophotometer; neutral aqueous samples | UV / visible spectrophotometer; routine analysis | UV / visible spectrophotometer; routine analysis requiring higher transmittance | UV / visible spectrophotometer; precision analysis and aggressive chemistry |
