20mm Large-Aperture Quartz Cuvette, 10mm Path Length Two-Way 7000μL, for UV Spectrophotometer

SKU: qc-large-aperture-20mm-std Brand: scuvette In Stock
128 sold
$97.00 $73.00 / box (2 pcs)
Minimum Order Quantity: 1 box (2 pcs)
Specification:
Path Length: 10mm
Aperture: 20mm
Volume: 7000μL (7 mL)
Brand: scuvette
Type: Standard
Window: Two opposite sides clear
Inquiry Now

Brand: scuvette. 20 mm large-aperture quartz cuvette 10 mm path length two-way 7000 μL Standard. Japanese imported JGS1 fused quartz, fused one-piece molding process, >80% transmittance, max operating temp ≤600°C, 200 nm - 2500 nm wavelength. Outline dimension 12.5 × 22.5 × 45 mm. Two opposite sides clear for UV-Vis spectrophotometer. With PTFE lid. Packed 2 pcs per box.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 20 mm large-aperture quartz cuvette with 10 mm path length and 7 mL (7000 μL) volume. Two clear opposite windows (two-way) for UV-Vis spectrophotometry. Outline dimension 12.5 × 22.5 × 45 mm. Manufactured from Japanese imported JGS1 fused quartz. Available in three grades: Standard (fused one-piece molding, >80% transmittance, ≤600°C), High Transmittance (fused one-piece molding, chemical-resistant formulation, >83% transmittance, ≤600°C) and High Precision (optical-contact one-piece molding, >83% transmittance, ≤1200°C). Supplied with PTFE lid. Packed 2 pcs per plastic box.

01

CAS Certification

CAS-certified Chinese Academy of Sciences quality certificates, SGS, NOA ISO 9001, and 99.99% SiO2 test report
02

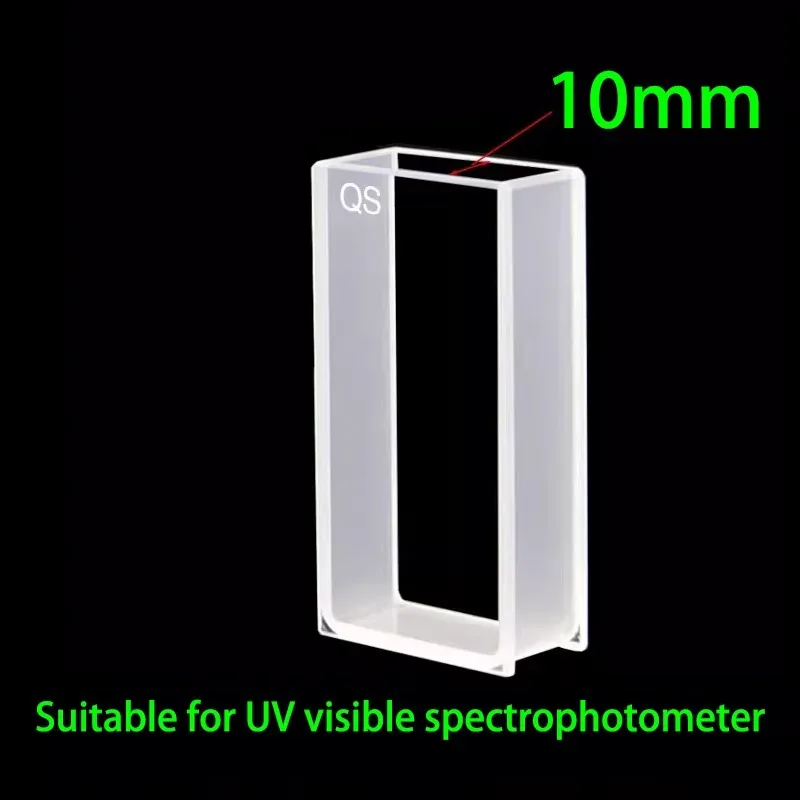

Product View 1

High-precision large-aperture quartz cuvette product photo
03

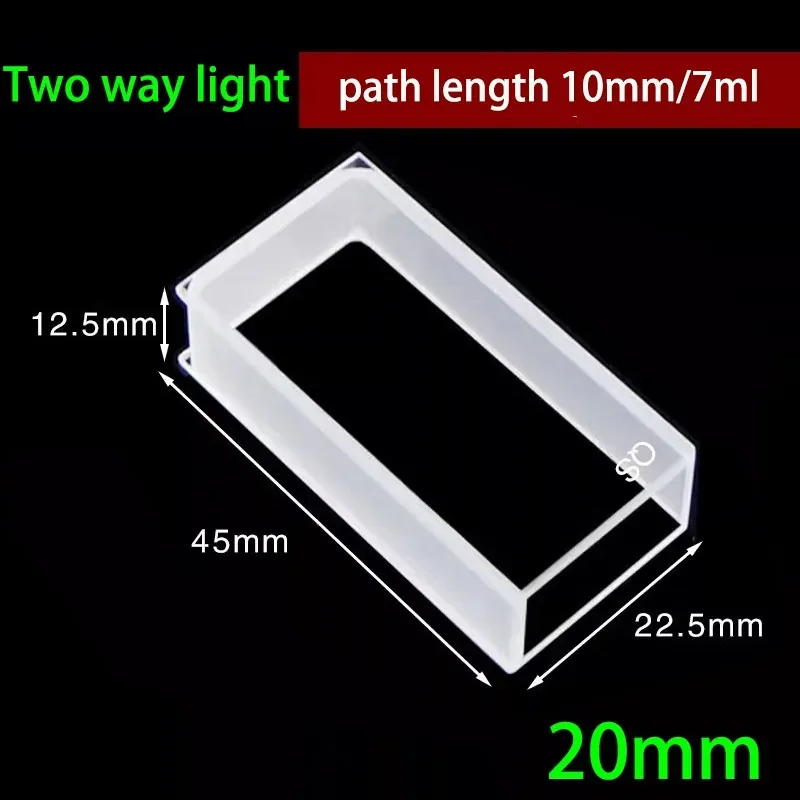

Product View 2

High-precision large-aperture quartz cuvette product photo
04

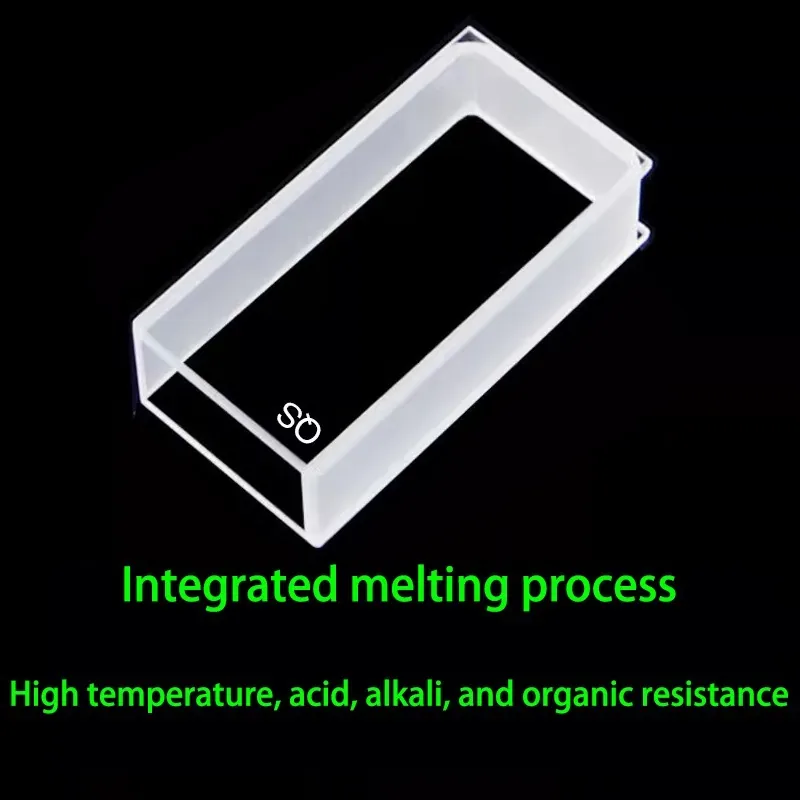

Product View 3

High-precision large-aperture quartz cuvette product photo
05

Material Introduction — JGS1 Spectrum

JGS1 optical quartz material introduction and transmittance curve for UV-Vis spectrophotometer
