2mm IR Quartz Cuvette, 4-Port Light Path, 700uL - JGS3 Fused Silica

SKU: ir-2mm-4w Brand: scuvette In Stock
126 sold
$150.00 $125.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 2mm
Volume: 700uL
Wavelength: 260-3500nm
Configuration: Four-way light path
Max Temp: <600°C
Inquiry Now

Brand: scuvette. 2 mm infrared quartz cuvette, four-way light path, 700 µL volume. Japanese fused JGS3 quartz, one-piece fused molding. Designed for IR / FTIR spectroscopy in the 260 – 3,500 nm range. Fused one-piece construction resists acids, alkalis and organic solvents, and withstands continuous use below 600 °C.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 2 mm infrared quartz cuvette, four-way light path, 700 µL volume. Japanese fused JGS3 quartz, one-piece fused molding. Designed for IR / FTIR spectroscopy in the 260 – 3,500 nm range. Fused one-piece construction resists acids, alkalis and organic solvents, and withstands continuous use below 600 °C.

01

ISO Quality Certificates

ISO quality certificates
02

Japanese Fused JGS3 Quartz

Japanese fused JGS3 quartz material
03

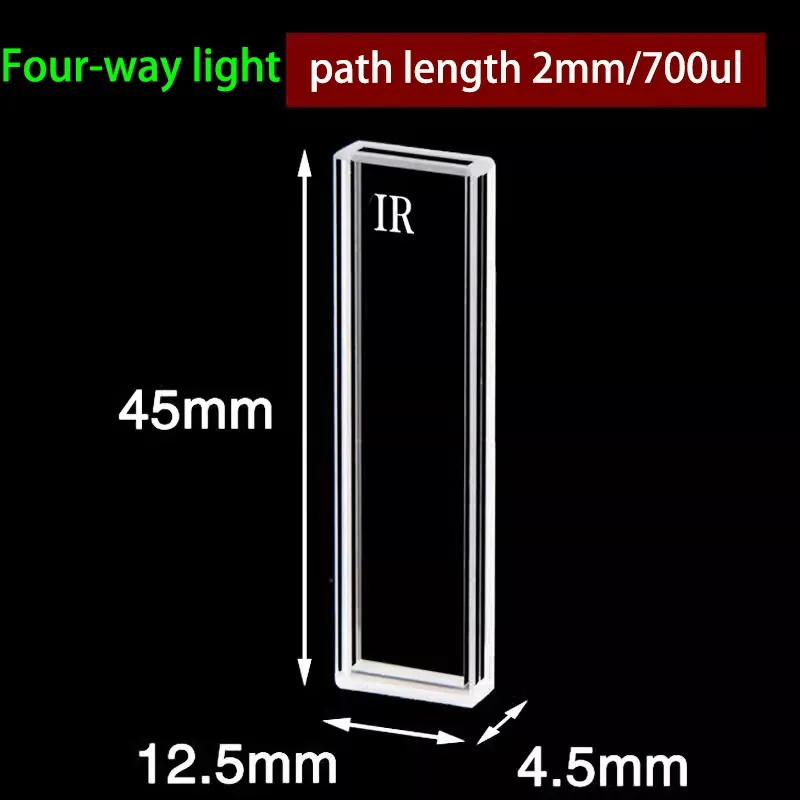

4-Port Light Path — 2mm Path Length

Four-way light path 2mm IR cuvette
04

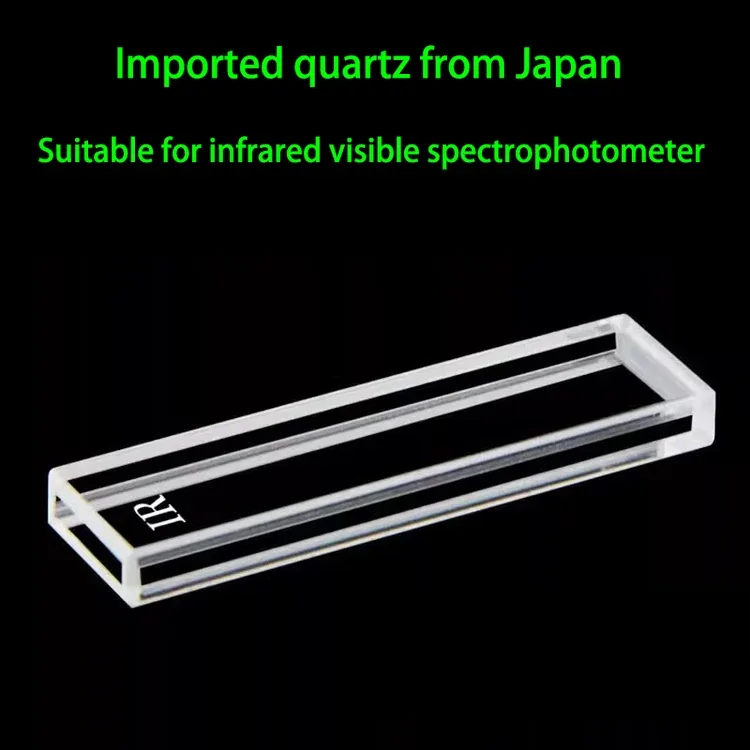

One-Piece Fused Molding — Acid / Alkali Resistant

One-piece fused molding acid alkali resistant IR cuvette
05

Precision Ground Optical Windows & Dimension Marking

Precision ground optical windows and dimension marking
06

Spectrum Transmission Curve (260–3500 nm)

Spectrum transmission curve 260-3500nm
Brandscuvette
Name2 mm IR quartz cuvette, four-way light path
Path Length2 mm
Volume700 µL
MaterialJapanese fused JGS3 quartz
TechnologyOne-piece fused molding
Wavelength Range260 nm – 3,500 nm
Max Operating Temp< 600 °C
Chemical ResistanceAcid, alkali and organic solvent resistant
ConfigurationFour-way light path
