10mm IR Quartz Cuvette, 4-Port Light Path, 3.5mL, High Transmittance, JGS3 Fused Silica

10mm IR Quartz Cuvette, 4-Port Light Path, 3.5mL - High Transmittance JGS3

Name: 10mm IR Quartz Cuvette, 4-Port, 3.5mL, High Transmittance, JGS3 Fused Silica
Brand: scuvette
SKU: ir-10mm-4w
Price: 65.00 USD
Availability: InStock

SKU: ir-10mm-4w Brand: scuvette In Stock

126 sold

$78.00 $65.00 / pc

Minimum Order Quantity: 1 pc

Path Length: 10mm

Volume: 3.5mL

Wavelength: 260-3500nm

Configuration: Four-way light path

Max Temp: <600°C

Type: High Transmittance

Inquiry Now

Brand: scuvette. 10 mm infrared quartz cuvette, four-way light path, 3.5 mL volume. Japanese fused JGS3 quartz, one-piece fused molding. High Transmittance grade ensures zero interference during sample testing. Designed for IR / FTIR spectroscopy in the 260 – 3,500 nm range. Fused one-piece construction resists acids, alkalis and organic solvents, and withstands continuous use below 600 °C.

Factory Direct Custom OEM Available Global Shipping

Description Specifications

Brand: scuvette. 10 mm infrared quartz cuvette, four-way light path, 3.5 mL volume. Japanese fused JGS3 quartz, one-piece fused molding. High Transmittance grade ensures zero interference during sample testing — ideal for quantitative FTIR analysis where high optical throughput matters. Designed for IR / FTIR spectroscopy in the 260 – 3,500 nm range. Fused one-piece construction resists acids, alkalis and organic solvents, and withstands continuous use below 600 °C.

ISO Quality Certificates

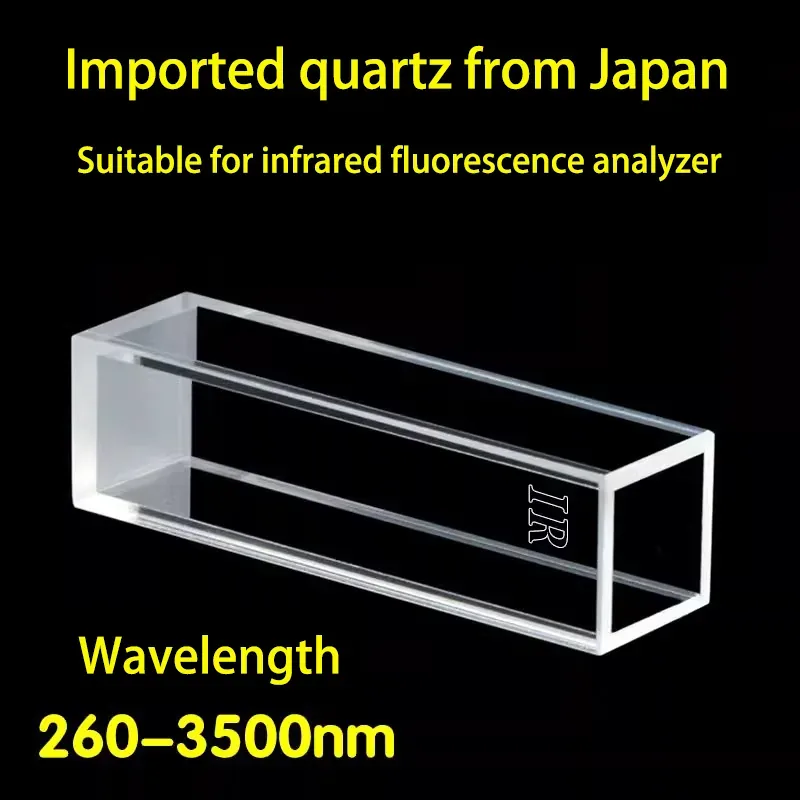

Japanese Fused JGS3 Quartz

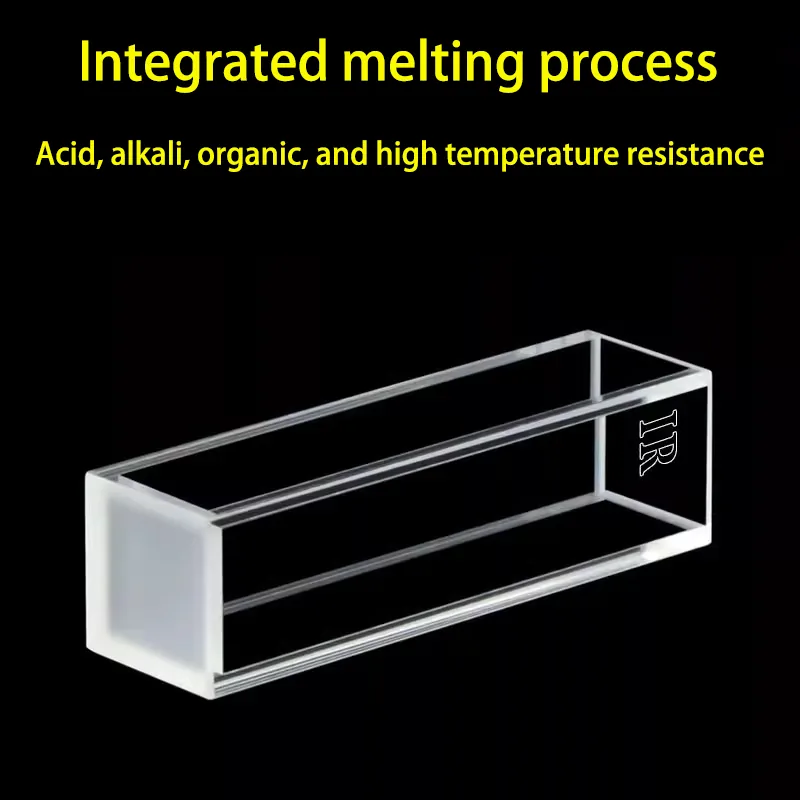

One-Piece Fused Molding — Acid / Alkali Resistant

High Transmittance — Zero Interference Sample Testing

Spectrum Transmission Curve (260–3500 nm)

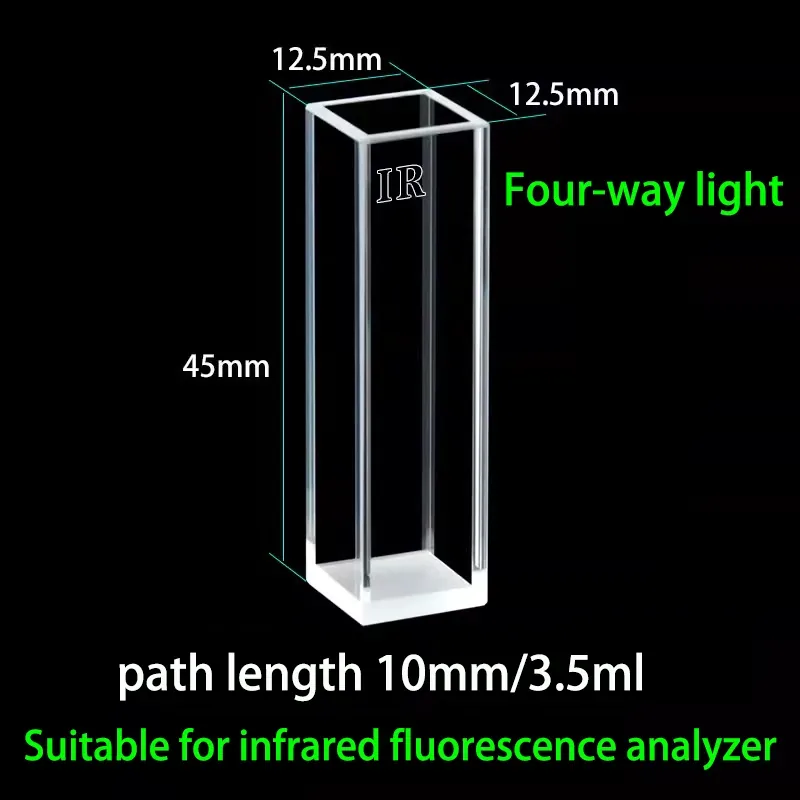

Outline Dimensions (12.5 × 12.5 × 45 mm)

Cuvette outline dimensions 12.5 x 12.5 x 45 mm

Brand	scuvette
Name	10 mm IR quartz cuvette, four-way light path, High Transmittance
Path Length	10 mm
Volume	3.5 mL
Material	Japanese fused JGS3 quartz
Technology	One-piece fused molding
Wavelength Range	260 nm – 3,500 nm
Max Operating Temp	< 600 °C
Chemical Resistance	Acid, alkali and organic solvent resistant
Configuration	Four-way light path
Type	High Transmittance (zero-interference sample testing)
Outline Dimension	12.5 × 12.5 × 45 mm
