0.1mm IR Quartz Cuvette, Two-Way Light Path, 35uL, JGS3 Fused Silica

0.1mm IR Quartz Cuvette, Two-Way Light Path, 35uL - JGS3 Fused Silica

Name: 0.1mm IR Quartz Cuvette, Two-Way, 35uL, JGS3 Fused Silica
Brand: scuvette
SKU: ir-0.1mm-2w
Price: 290.00 USD
Availability: InStock

SKU: ir-0.1mm-2w Brand: scuvette In Stock

50 sold

$377.00 $290.00 / pc

Minimum Order Quantity: 1 pc

Path Length: 0.1mm

Volume: 35uL

Wavelength: 260-3500nm

Configuration: Two-way light path

Max Temp: <1200°C

✓ ISO 9001 Certified✓ Factory Direct✓ Worldwide Shipping✓ 30-Day Returns✓ In Stock · Ships in 24h

Inquiry Now

Brand: scuvette. 0.1 mm infrared quartz cuvette, two-way light path, 35 µL volume. Japanese fused JGS3 quartz, one-piece fused molding. Designed for IR / FTIR spectroscopy in the 260 – 3,500 nm range. Fused one-piece construction resists acids, alkalis and organic solvents, and withstands continuous use below 1200 °C.

Factory Direct Custom OEM Available Global Shipping

Description Specifications

Certified Quality — ISO 9001 · SGS RoHS · SiO₂ 99.99%

Quality certificates ISO 9001 SGS RoHS SiO2 99.99% for 0.1mm IR quartz cuvette

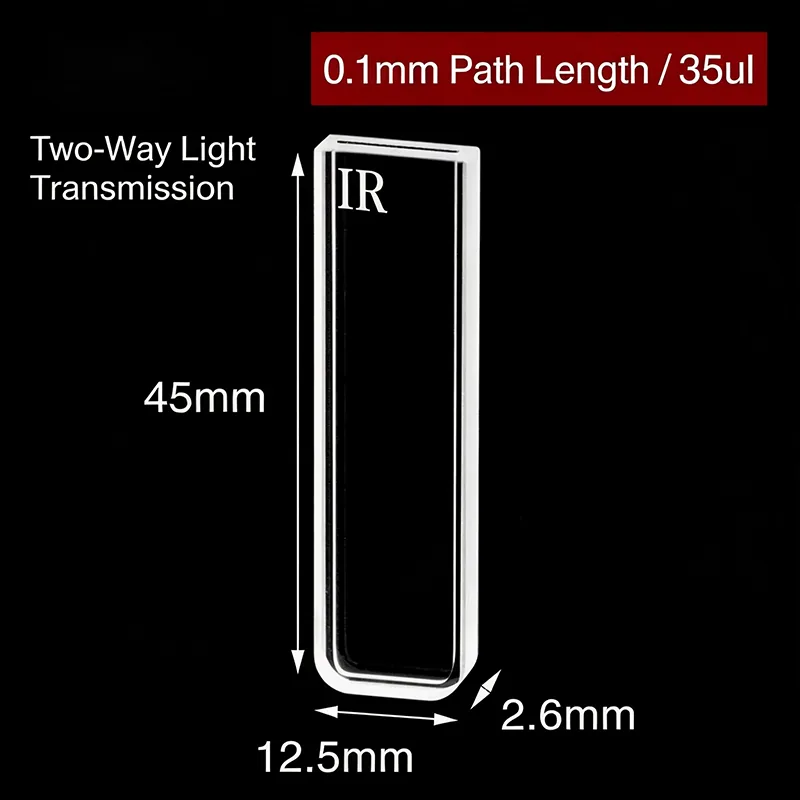

0.1 mm Path / 35 µL / 45 × 12.5 × 2.6 mm

0.1mm IR quartz cuvette dimensions 45 x 12.5 x 2.6mm, 35uL, two-way light path

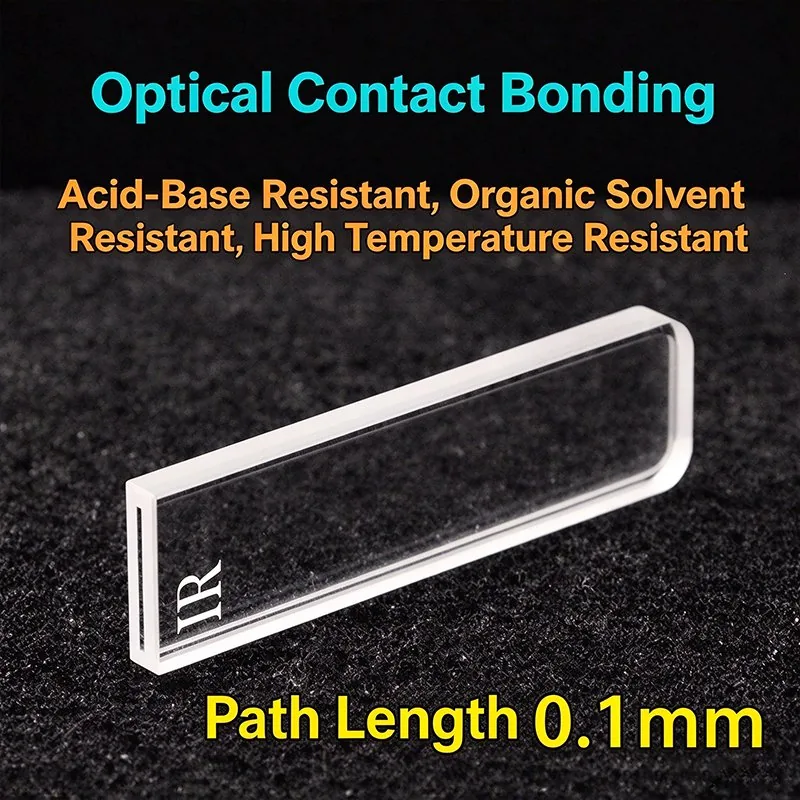

Optical Contact Bonding — Acid / Alkali / Organic Solvent Resistant

Optical contact bonding 0.1mm IR quartz cuvette

0.1 mm Export Model — Box Included, No Cover

0.1mm IR quartz cuvette export model, box included, no cover

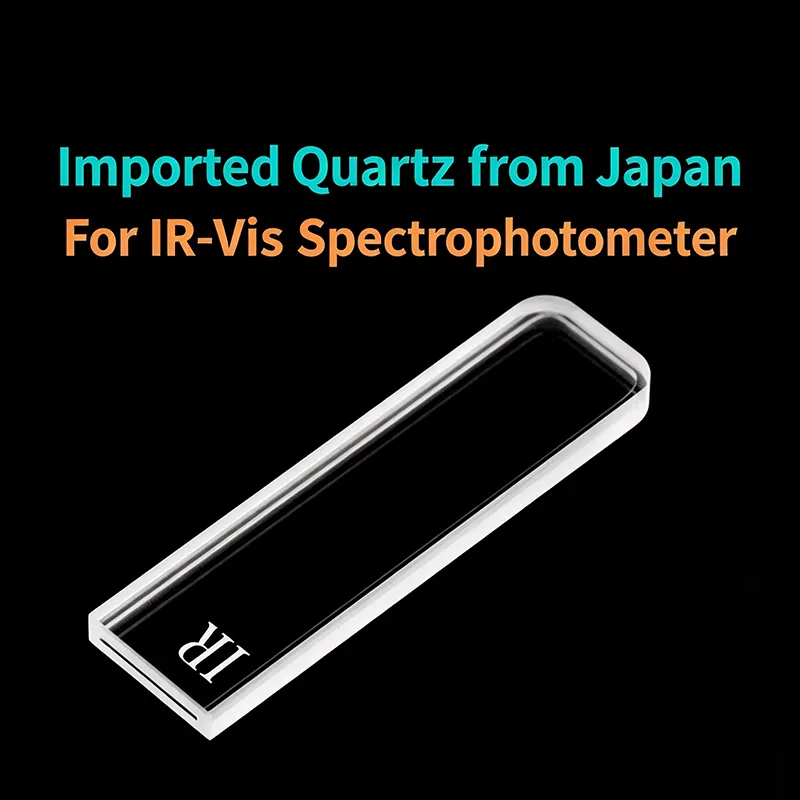

JGS3 Infrared Quartz Material (260–3,500 nm)

JGS3 infrared quartz glass material 260-3500nm

Brand	scuvette
Name	0.1 mm IR quartz cuvette, two-way light path
Path Length	0.1 mm
Outer Dimensions	45 × 12.5 × 2.6 mm
Volume	35 µL
Material	Japanese fused JGS3 quartz
Technology	One-piece fused molding
Wavelength Range	260 nm – 3,500 nm
Max Operating Temp	< 1200 °C
Chemical Resistance	Acid, alkali and organic solvent resistant
Configuration	Two-way light path
