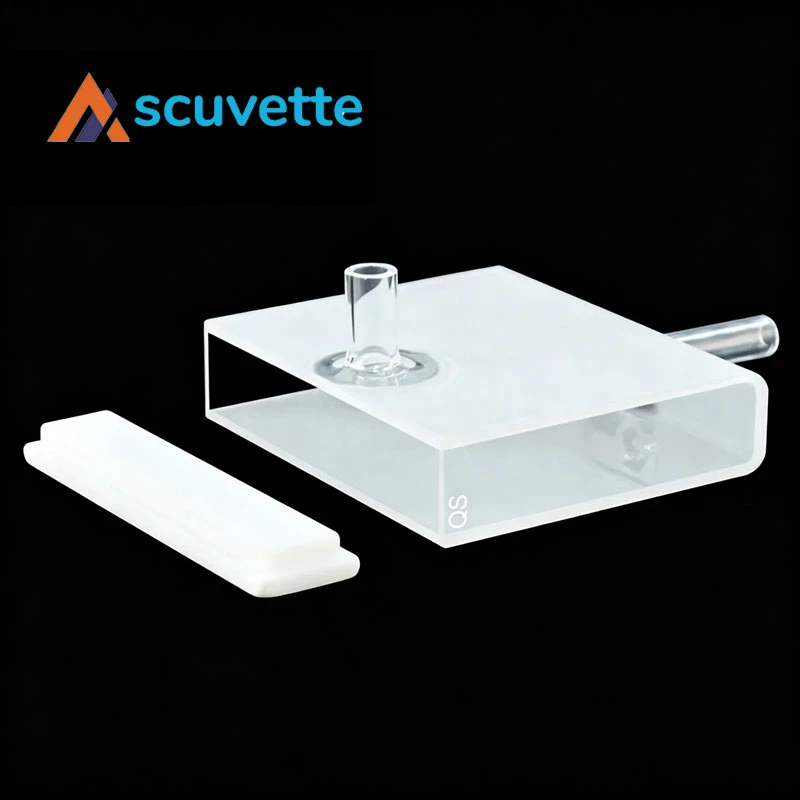

50mm Quartz Flow Cuvette with Tube and PTFE Stopper, Two-Way Light Path, 16mL

SKU: qc-flow-50mm-tube Brand: scuvette In Stock
126 sold
$170.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 50mm
Volume: 16mL
Tube Position: Bottom & side
Overall Dimension: 12.5 × 52.5 × 45mm
Configuration: Two ends open with tube
Inquiry Now

Brand: scuvette. 50 mm quartz flow cuvette with integrated tube and PTFE stopper, two-way light path, 16 mL volume. Japanese imported JGS1 fused silica, optical contact one-piece molding (fused), >83% transmittance, 200 nm – 2,500 nm wavelength range. Overall dimension 12.5×52.5×45mm, wall thickness 1.25mm, tube at bottom and side, resistant to 600°C. Both ends open with tube to connect sample source via tubing — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 50 mm quartz flow cuvette with integrated tube and PTFE stopper, two-way light path, 16 mL volume. Japanese imported JGS1 fused silica, optical contact one-piece molding (fused), >83% transmittance, 200 nm – 2,500 nm wavelength range. Overall dimension 12.5×52.5×45mm, wall thickness 1.25mm, tube at bottom and side, resistant to 600°C. Both ends open with tube to connect sample source via tubing — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

01

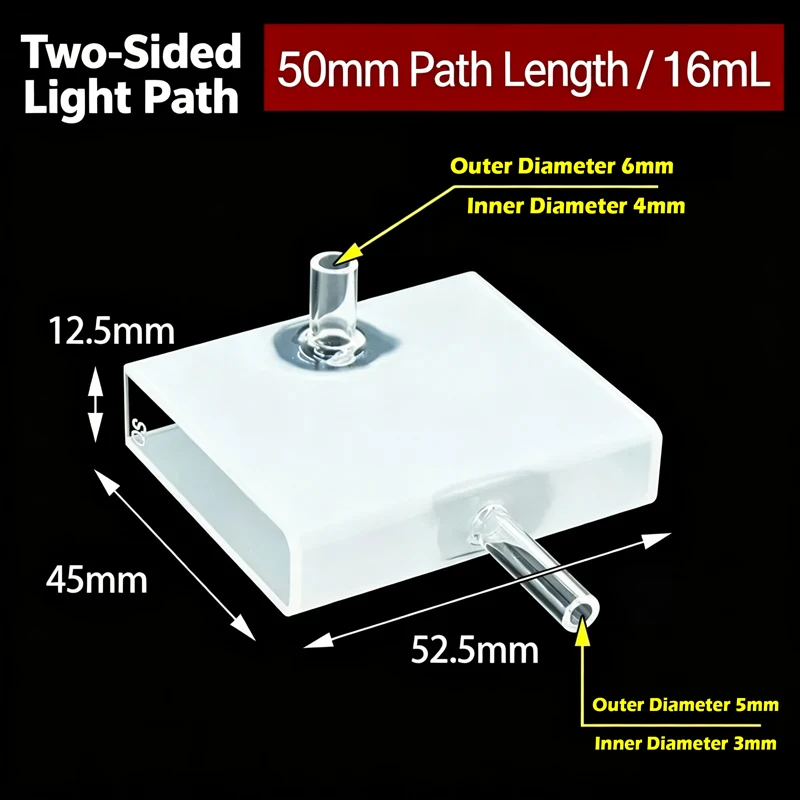

50 mm Long Path / 16 mL / Two Ends Open with Tube

50mm quartz flow cuvette with tube two ends open 16mL
02

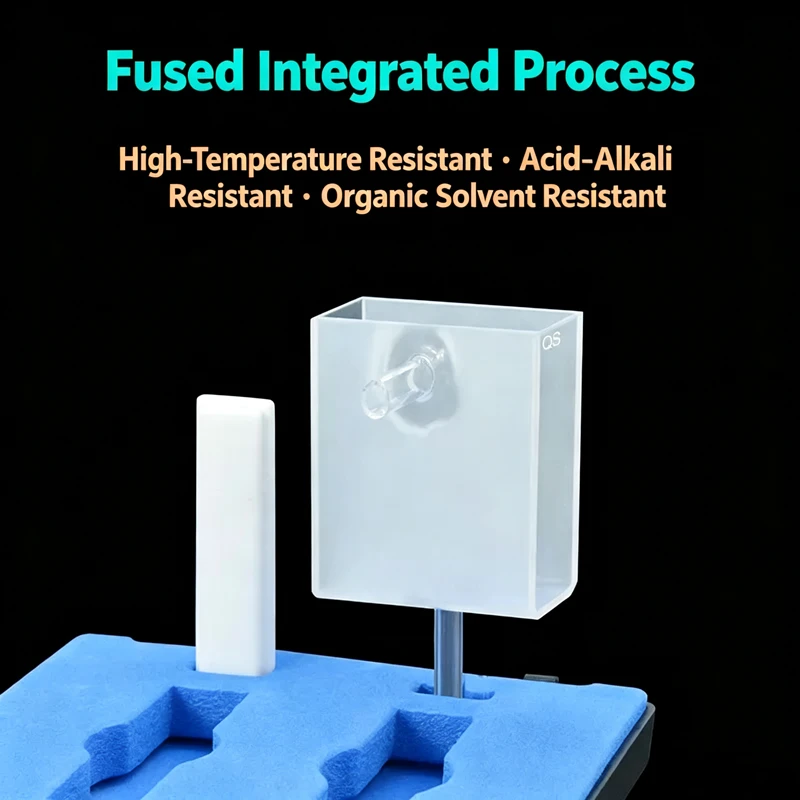

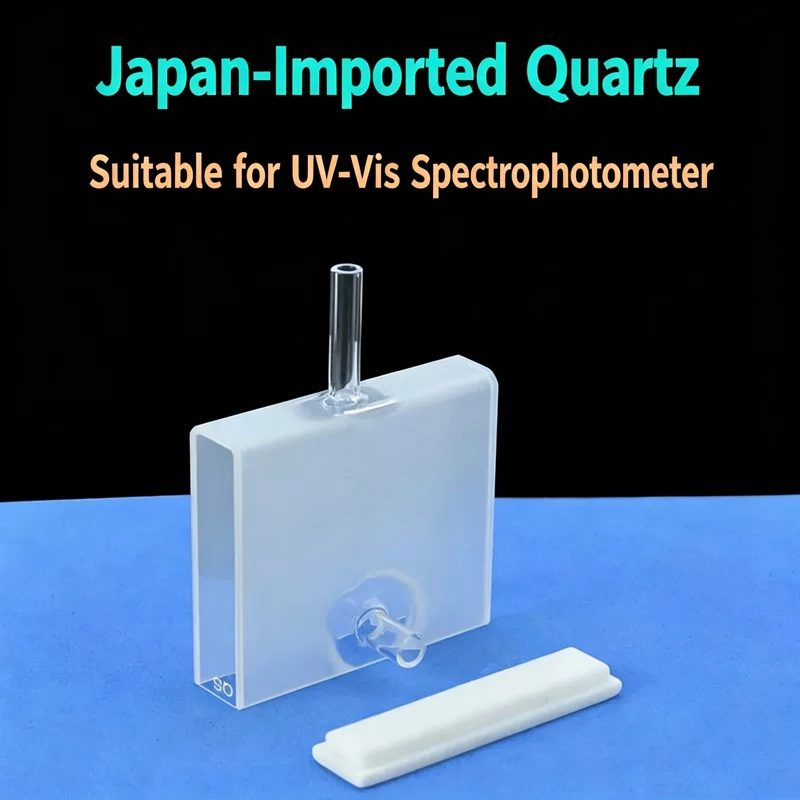

Optical Contact One-Piece Molding — JGS1 Fused Silica

Optical contact one-piece molding JGS1 material
03

PTFE Stopper & Bottom-Side Tube for Continuous Flow

PTFE stopper and bottom-side tube flow cuvette
04

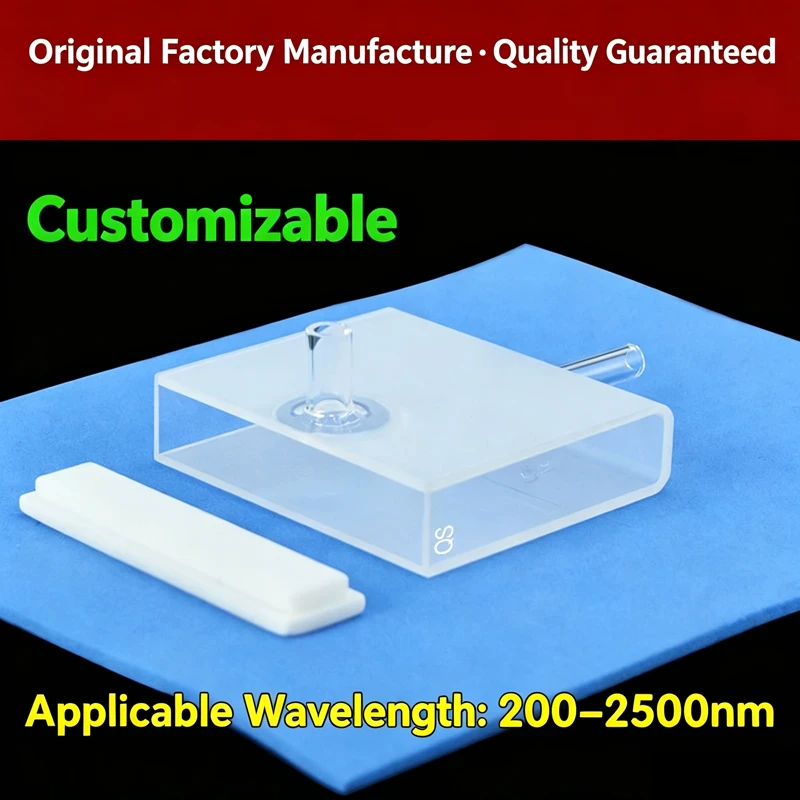

>83% Transmittance, 200–2500 nm

Quartz flow cuvette transmittance 200-2500nm
05

Resists 600°C, Acid / Alkali / Organic Solvent

High temperature acid alkali solvent resistant quartz cuvette
06

Ideal for HPLC / FIA / Online UV-Vis Monitoring

Flow cuvette for HPLC FIA online monitoring
Brandscuvette
Name50mm quartz flow cuvette with tube and PTFE stopper
Path Length50 mm
Volume16 mL
Tube PositionBottom and side
WindowsTwo-way (light-transmitting faces 2.0)
Overall Dimension12.5 × 52.5 × 45 mm
Wall Thickness1.25 mm
MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (fused)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
Max Operating Temp600 °C
CapPTFE stopper
ConfigurationTwo ends open with tube (flow-through)
CompatibleUV-Vis spectrophotometer

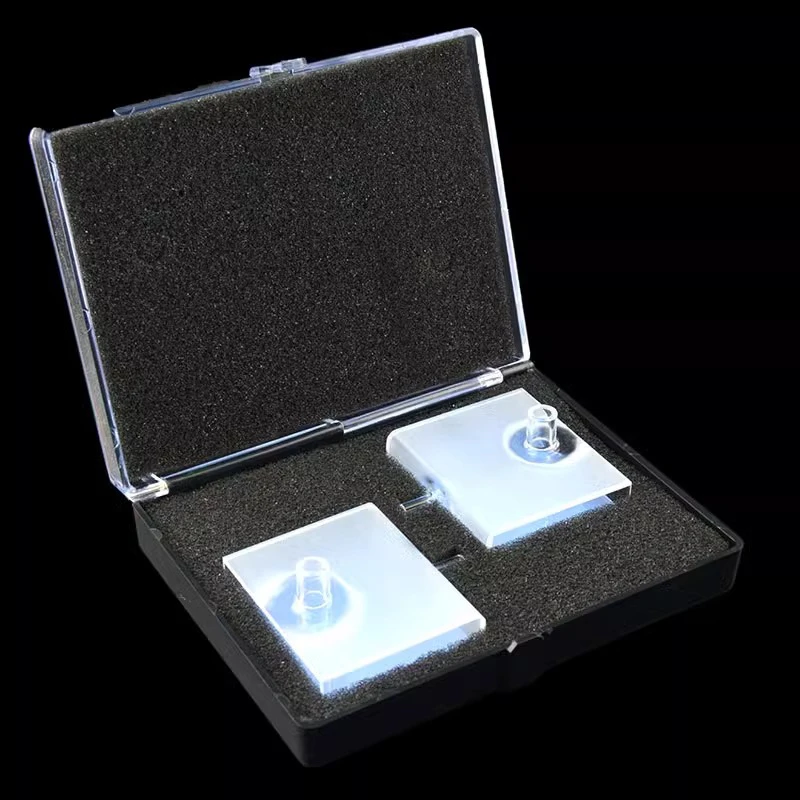

PackagingPlastic box (1 pc per box), outer carton
