10mm Quartz Flow Cuvette, Four Ports, 3.5mL, 7mm Tube, for UV Spectrophotometer

SKU: qc-flow-4w-7mm Brand: scuvette In Stock
126 sold
$140.00 $108.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 10mm
Volume: 3.5ml
Tube Diameter: 7mm
Overall Length: 60mm
Configuration: Four ports (flow-through)
Inquiry Now

Brand: scuvette. 10 mm quartz flow cuvette, four ports, 3.5 mL volume, 7mm tube diameter, 60mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Chamber inner dimension 10x10x35mm. Four Ports to connect to the sample source via tubing — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 10 mm quartz flow cuvette, four ports, 3.5 mL volume, 7mm tube diameter, 60mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Chamber inner dimension 10x10x35mm. Four Ports to connect to the sample source via tubing — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

01

10 mm Path Length / 3.5 mL / Four Ports

10mm flow cuvette two ends open 3.5mL
02

Optical Contact One-Piece Molding — JGS1 Fused Silica

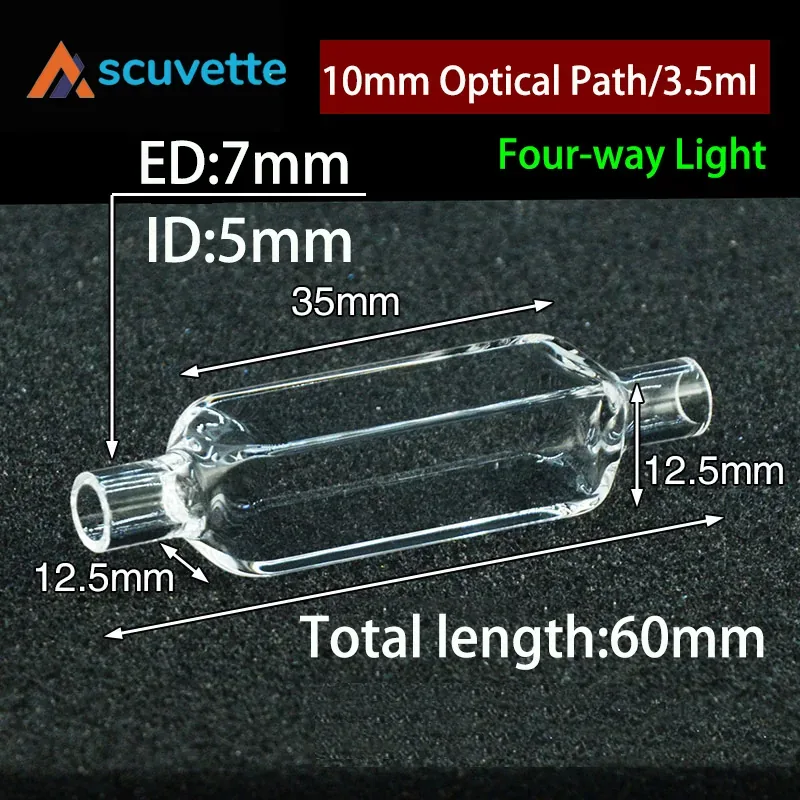

Optical contact one-piece molding JGS1 material
03

Ideal for HPLC / FIA / Online Monitoring

Flow cuvette for HPLC FIA online monitoring
Brandscuvette
Name10 mm quartz flow cuvette, four ports
Path Length10 mm
Volume3.5 mL
Tube Diameter7mm
Overall Length60mm
Chamber Inner Dimension10 × 10 × 35mm
MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (premium)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
ConfigurationFour ports (flow-through)
PackagingPlastic box (1 pc per box), outer carton (paper box)
