5mm Quartz Flow Cuvette, Four-Port, 1.75mL, 4mm Tube, for UV Spectrophotometer HPLC FIA

5mm Quartz Flow Cuvette, Four-Port, 1.75mL, 4mm Tube, for UV Spectrophotometer HPLC FIA

Name: 5mm Quartz Flow Cuvette, Four-Port, 1.75mL, 4mm Tube
Brand: scuvette
SKU: qc-flow-4w-5-4mm-76
Price: 123.00 USD
Availability: InStock

SKU: qc-flow-4w-5-4mm-76 Brand: scuvette In Stock

126 sold

$160.00 $123.00 / pc

Minimum Order Quantity: 1 pc

Path Length: 5mm

Volume: 1.75mL

Tube Diameter: 4mm

Overall Length: 76mm

Configuration: Four ports (flow-through)

Inquiry Now

Brand: scuvette. 5mm quartz flow cuvette, four ports, 1.75mL volume, 4mm tube diameter, 76mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Chamber inner dimension 5x10x35mm. Four ports to connect to the sample source via tubing — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping

Description Specifications

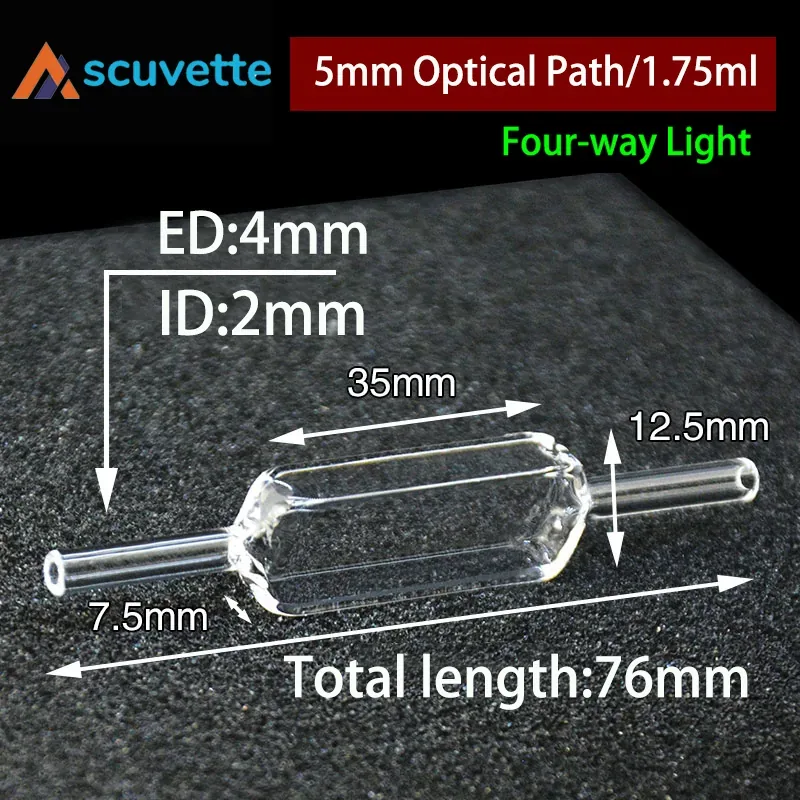

5mm Path Length / 1.75 mL / Four-Port

Optical Contact One-Piece Molding — JGS1 Fused Silica

Optical contact one-piece molding JGS1 material

Ideal for HPLC / FIA / Online Monitoring

Flow cuvette for HPLC FIA online monitoring

Brand	scuvette
Name	5mm quartz flow cuvette, four ports
Path Length	5mm
Volume	1.75 mL
Tube Diameter	4mm
Overall Length	76mm
Chamber Inner Dimension	5 × 10 × 35 mm
Material	Japanese imported JGS1 fused silica
Technology	Optical contact one-piece molding (premium)
Transmittance	>83%
Wavelength Range	200 nm – 2,500 nm
Configuration	Four ports (flow-through)
Packaging	Plastic box (1 pc per box), outer carton (paper box)

5mm Quartz Flow Cuvette, Four-Port, 1.75mL, 4mm Tube, for UV Spectrophotometer HPLC FIA

5mm Path Length / 1.75 mL / Four-Port

Optical Contact One-Piece Molding — JGS1 Fused Silica

Ideal for HPLC / FIA / Online Monitoring
