5mm Quartz Flow Cuvette, Four-Port, 1mL, 4mm Tube, for UV Spectrophotometer HPLC FIA

5mm Quartz Flow Cuvette, Four-Port, 1mL, 4mm Tube, for UV Spectrophotometer HPLC FIA

Name: 5mm Quartz Flow Cuvette, Four-Port, 1mL, 4mm Tube
Brand: scuvette
SKU: qc-flow-4w-5-4mm-60
Price: 123.00 USD
Availability: InStock

SKU: qc-flow-4w-5-4mm-60 Brand: scuvette In Stock

126 sold

$160.00 $123.00 / pc

Minimum Order Quantity: 1 pc

Path Length: 5mm

Volume: 1mL

Tube Diameter: 4mm

Overall Length: 60mm

Configuration: Four ports (flow-through)

Inquiry Now

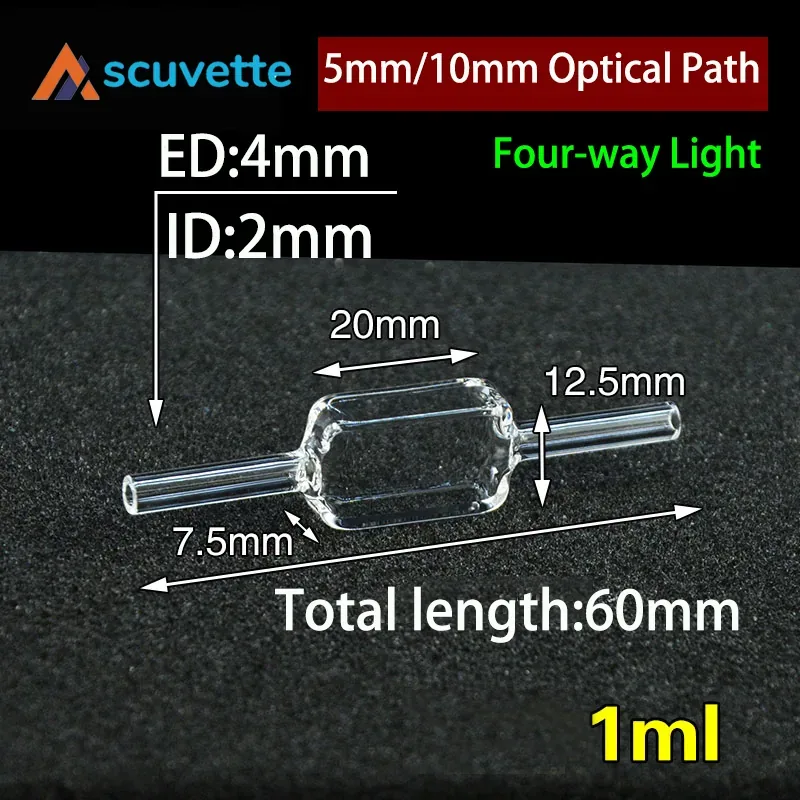

Brand: scuvette. 5mm quartz flow cuvette, four ports, 1mL volume, 4mm tube diameter, 60mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Chamber inner dimension 5x10x20mm. Four ports to connect to the sample source via tubing — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping

Description Specifications

5mm Path Length / 1 mL / Four-Port

Optical Contact One-Piece Molding — JGS1 Fused Silica

Optical contact one-piece molding JGS1 material

Ideal for HPLC / FIA / Online Monitoring

Flow cuvette for HPLC FIA online monitoring

Brand	scuvette
Name	5mm quartz flow cuvette, four ports
Path Length	5mm
Volume	1 mL
Tube Diameter	4mm
Overall Length	60mm
Chamber Inner Dimension	5 × 10 × 20 mm

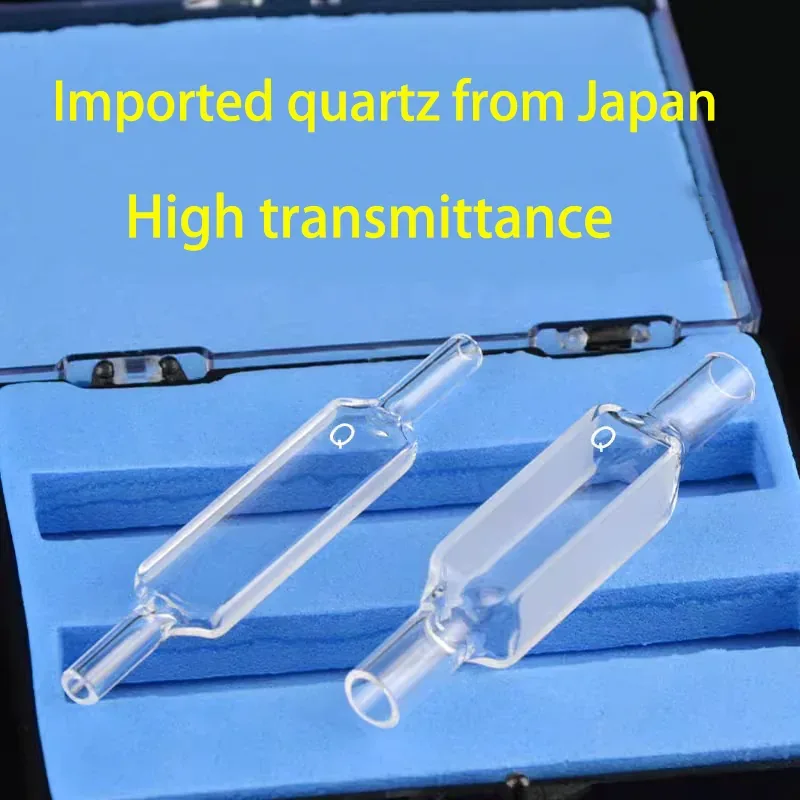

Material	Japanese imported JGS1 fused silica
Technology	Optical contact one-piece molding (premium)
Transmittance	>83%
Wavelength Range	200 nm – 2,500 nm
Configuration	Four ports (flow-through)
Packaging	Plastic box (1 pc per box), outer carton (paper box)

5mm Quartz Flow Cuvette, Four-Port, 1mL, 4mm Tube, for UV Spectrophotometer HPLC FIA

5mm Path Length / 1 mL / Four-Port

Optical Contact One-Piece Molding — JGS1 Fused Silica

Ideal for HPLC / FIA / Online Monitoring
