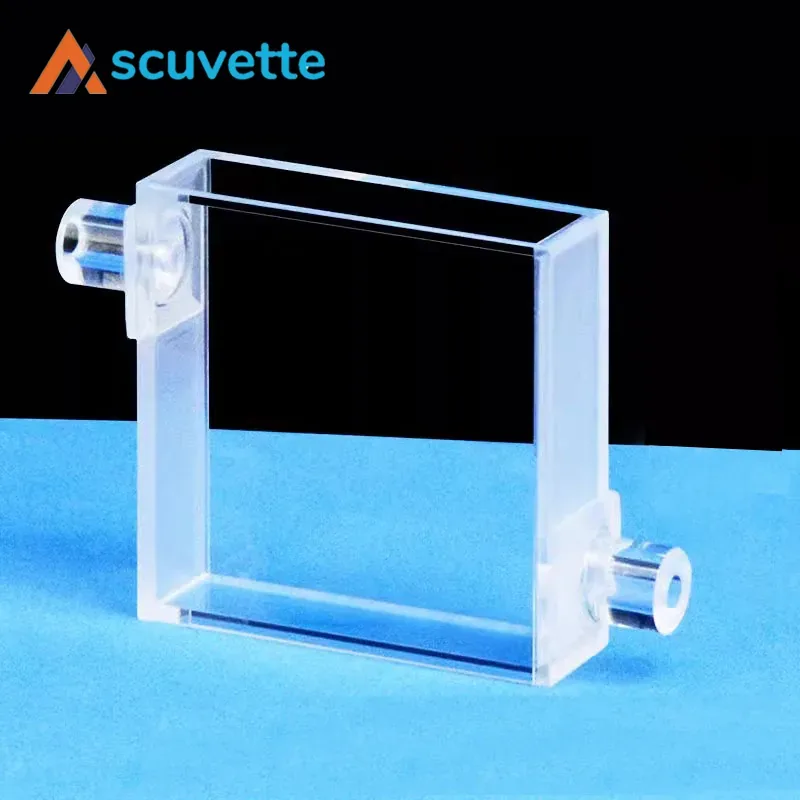

40mm × 10mm Quartz Flow Cuvette, Four-Port, 16mL, 8mm Tube, 1.5mm Wall

40mm × 10mm Quartz Flow Cuvette, Four-Port, 16mL, 8mm Tube, 1.5mm Wall, for UV Spectrophotometer

Name: 40mm × 10mm Quartz Flow Cuvette, Four-Port, 16mL, 8mm Tube
Brand: scuvette
SKU: qc-flow-4w-40x10-8mm
Price: 142.00 USD
Availability: InStock

SKU: qc-flow-4w-40x10-8mm Brand: scuvette In Stock

126 sold

$185.00 $142.00 / pc

Minimum Order Quantity: 1 pc

Path Length: 40mm × 10mm

Volume: 16ml

Configuration: Four ports

Tube Diameter: 8mm

Wall Thickness: 1.5mm

Inquiry Now

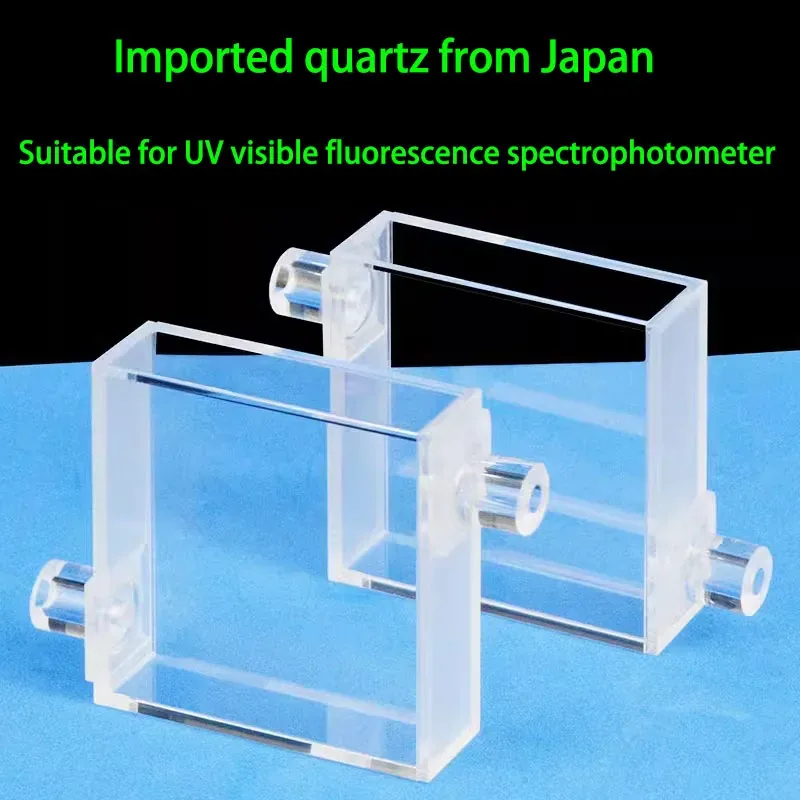

Brand: scuvette. Dual path length 40mm × 10mm quartz flow cuvette with four ports, 16mL volume, 8mm tube diameter, 1.5mm wall thickness. Japanese imported JGS1 fused silica, optical glue bonding, >80% transmittance, 200nm-2500nm wavelength. Dual path length for flexible detection. Suitable for HPLC, FIA and online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping

Description Specifications

Brand: scuvette. Dual path length 40 mm × 10 mm quartz flow cuvette, four ports, 16 mL volume, 8 mm tube diameter, 1.5 mm wall thickness. Japanese imported JGS1 fused silica, optical glue bonding, >80% transmittance, 200 nm – 2,500 nm wavelength range. Dual path length for flexible detection — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

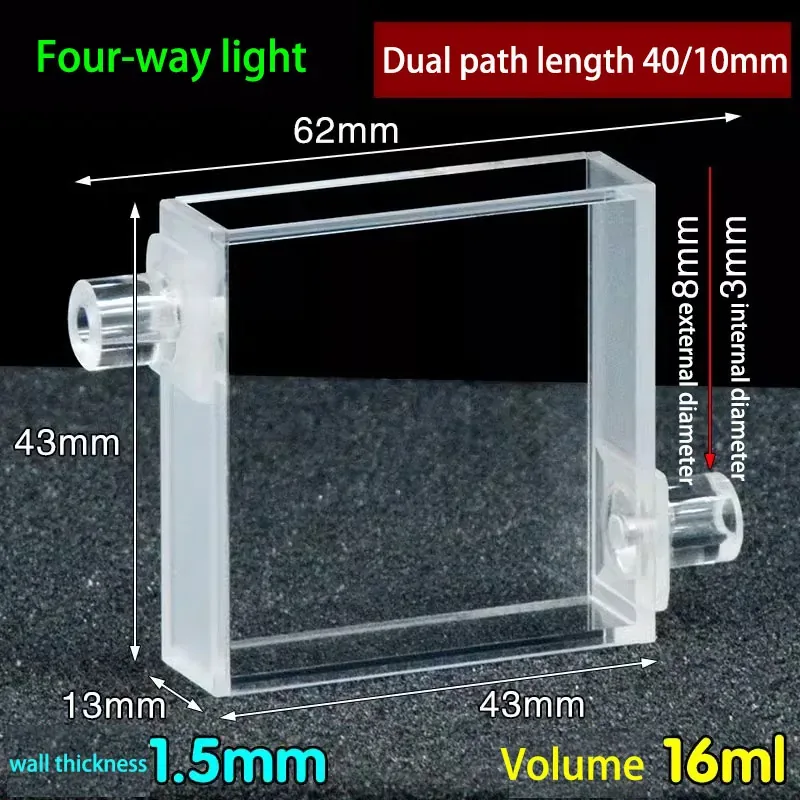

40mm × 10mm Dual Path Length / 16 mL

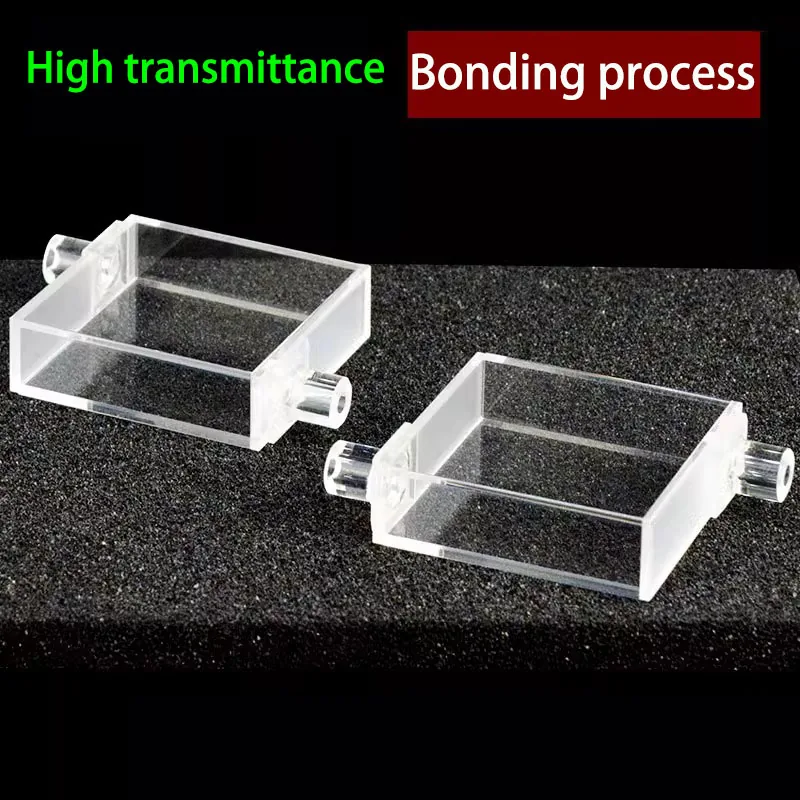

Optical Glue Bonding — JGS1 Fused Silica

Four Ports for Multi-Line Flow

Brand	scuvette
Name	40mm × 10mm quartz flow cuvette, four ports
Path Length	40 mm × 10 mm
Volume	16 mL
Tube Diameter	8 mm
Wall Thickness	1.5 mm
Material	Japanese imported JGS1 fused silica
Technology	Optical glue bonding
Transmittance	>80%
Wavelength Range	200 nm – 2,500 nm
Configuration	Four ports (flow-through)
Packaging	Plastic box (1 pc per box), outer carton (paper box)

40mm × 10mm Quartz Flow Cuvette, Four-Port, 16mL, 8mm Tube, 1.5mm Wall, for UV Spectrophotometer

40mm × 10mm Dual Path Length / 16 mL

Optical Glue Bonding — JGS1 Fused Silica

Four Ports for Multi-Line Flow
