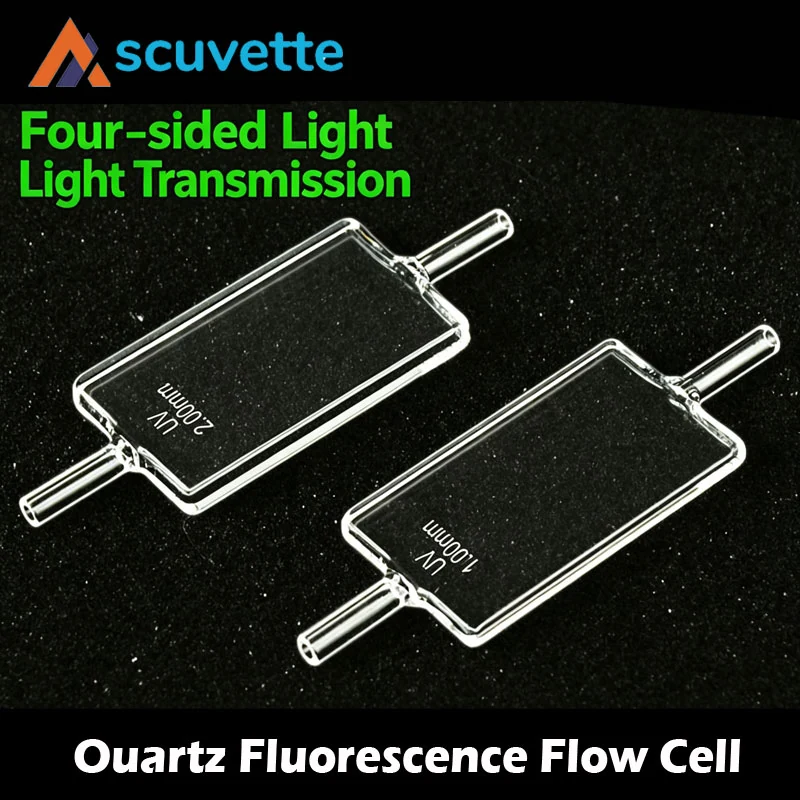

Quartz Fluorescence Flow Cell Cuvette, Four-Port, 1mm/2mm Path, 22mm Chamber, 4mm Tube, for Fluorescence Spectrophotometer
Brand: scuvette. Quartz fluorescence flow cell cuvette, four-port, 1mm path length, 0.86mL volume, 4mm tube diameter. Japanese imported JGS1 fused silica, optical contact one-piece molding, >83% transmittance, 200nm-2500nm wavelength range, max operating temperature 1200°C. Chamber inner dimension 42 × 22 × 1mm, wall thickness 1.5mm. Four clear windows for fluorescence detection, quartz tube ports for flow-through sampling.
Brand: scuvette. Quartz fluorescence flow cell cuvette, four-port, 1mm path length, 0.86mL volume, 4mm tube diameter. Japanese imported JGS1 fused silica, optical contact one-piece molding, >83% transmittance, 200nm-2500nm wavelength range, max operating temperature 1200°C. Chamber inner dimension 42 × 22 × 1mm, wall thickness 1.5mm. Four clear windows for fluorescence detection, quartz tube ports for flow-through sampling.
Four Clear Windows / Four-Port Flow Path

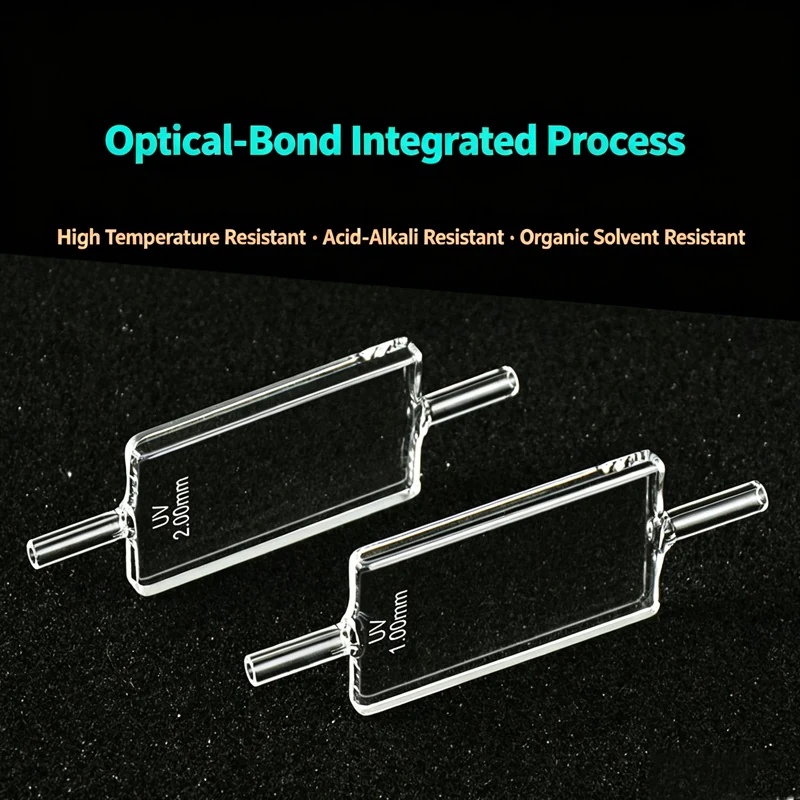

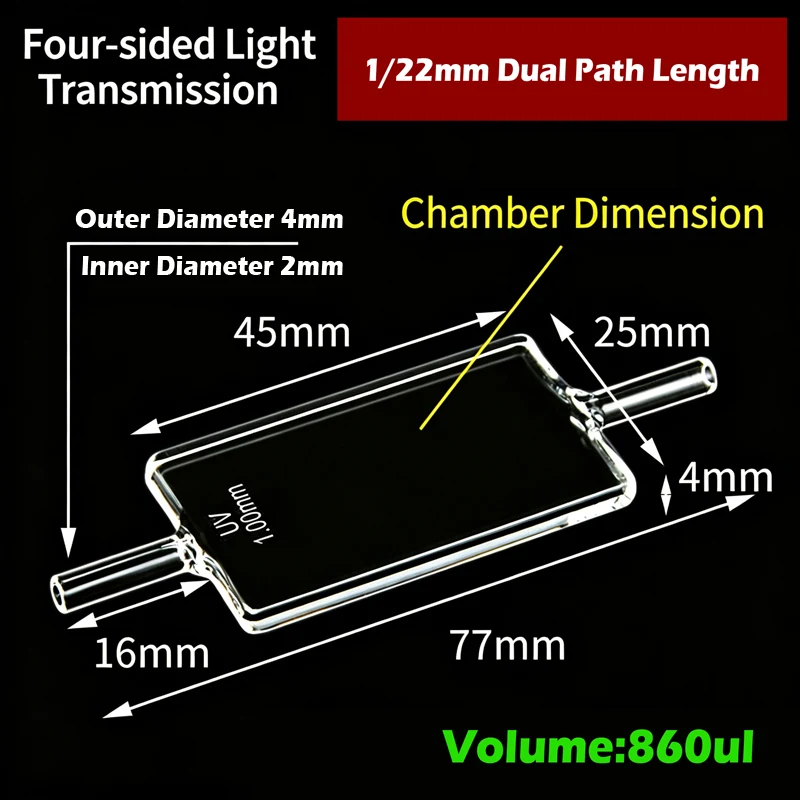

Optical Contact One-Piece Molding — JGS1 Fused Silica

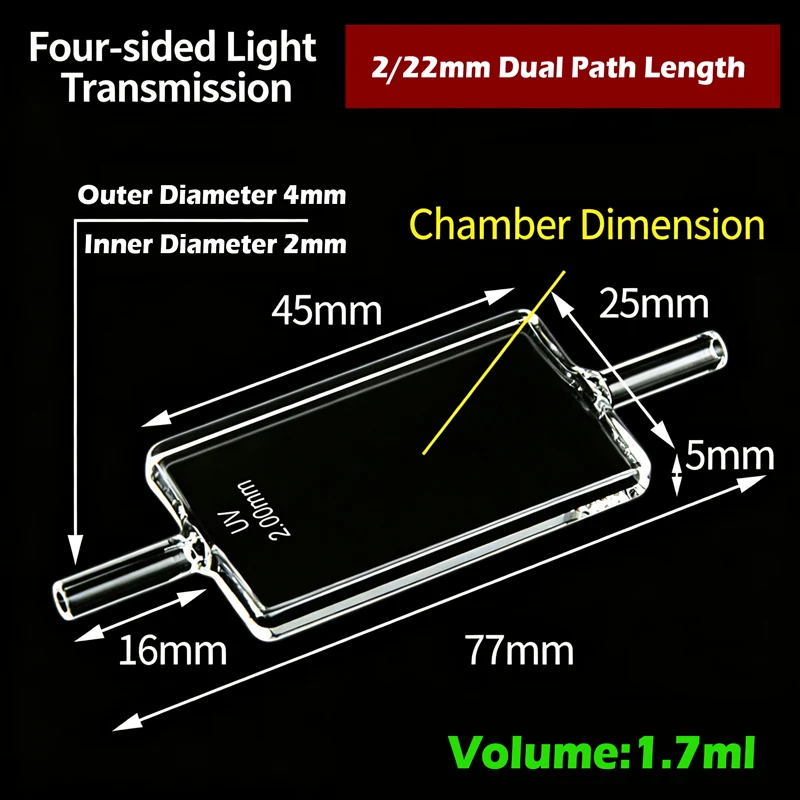

22mm Wide Chamber / 4mm Quartz Tube Connectors
Dimensions & Flow Configuration
| Brand | scuvette |
|---|---|
| Name | Quartz fluorescence flow cell cuvette, four-port (1mm) / Quartz fluorescence flow cell cuvette, four-port (2mm) |
| Path Length | 1mm / 2mm |
| Volume | 0.86 mL / 1.7 mL |
| Clear Window | Four sides clear |
| Chamber Inner Dimension | 42 × 22 × 1 mm / 42 × 22 × 2 mm |
| Tube Diameter | 4mm |
| Wall Thickness | 1.5mm |

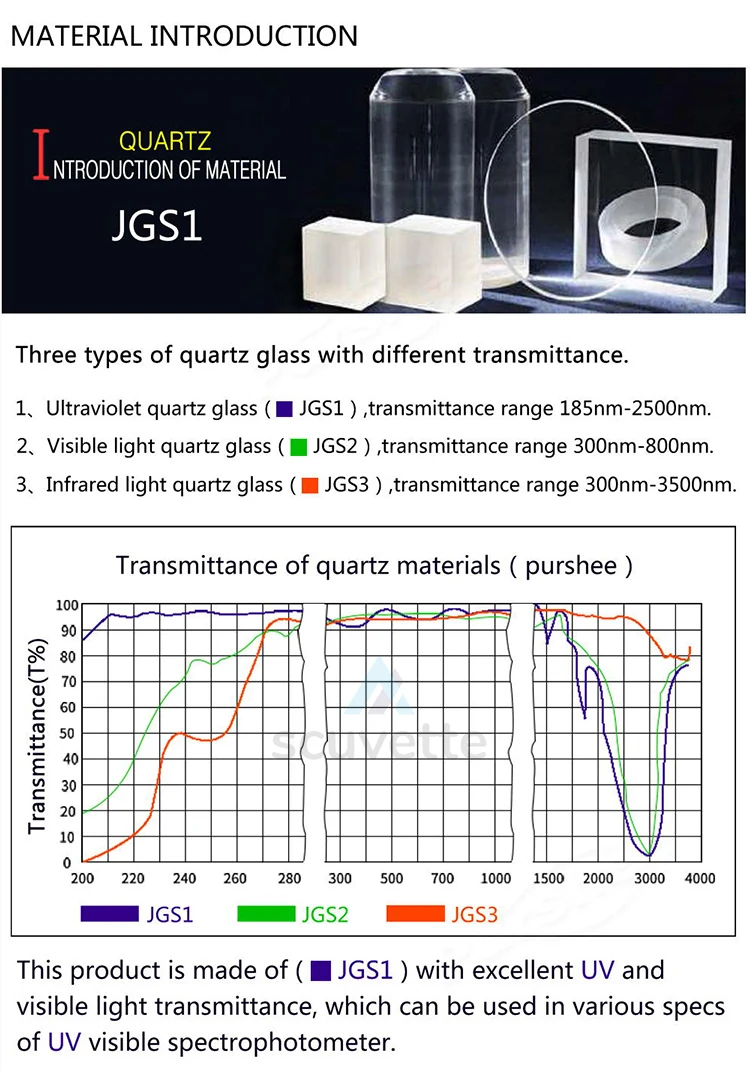

| Material | Japanese imported JGS1 fused silica |
| Technology | Optical contact one-piece molding |
| Transmittance | >83% |
| Wavelength Range | 200 nm – 2,500 nm |
| Max Operating Temp | 1200°C |
| Configuration | Four-port flow-through (quartz tube connectors) |
| Packaging | Plastic box (1 pc per box), outer carton (paper box) |
