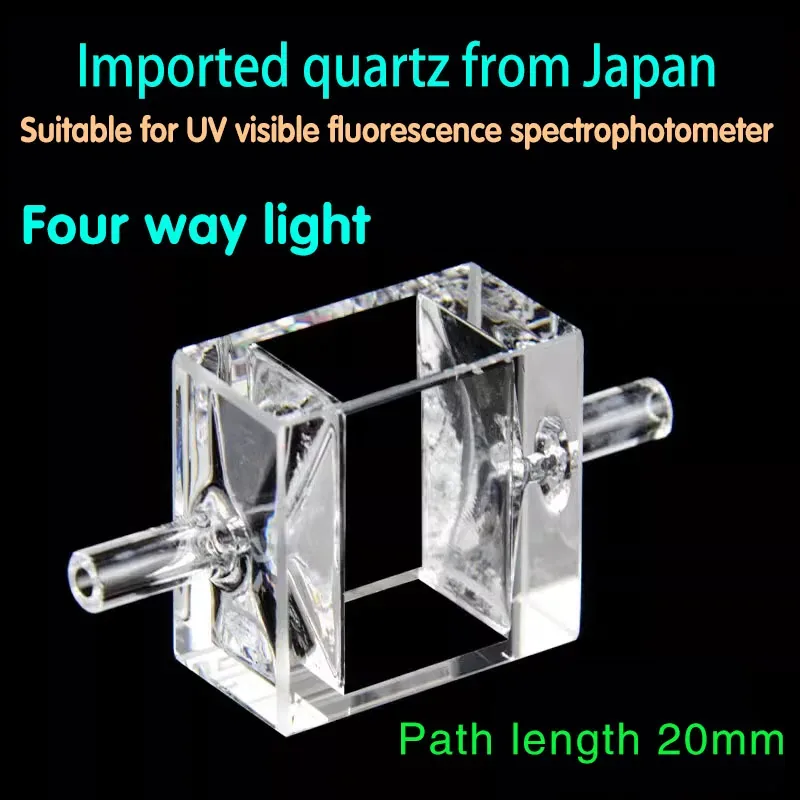

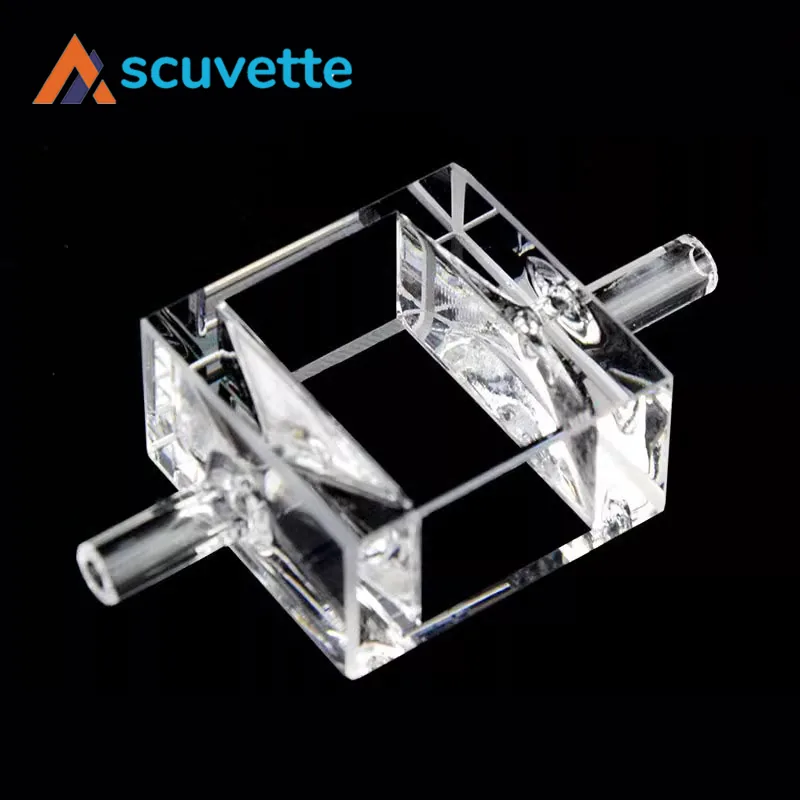

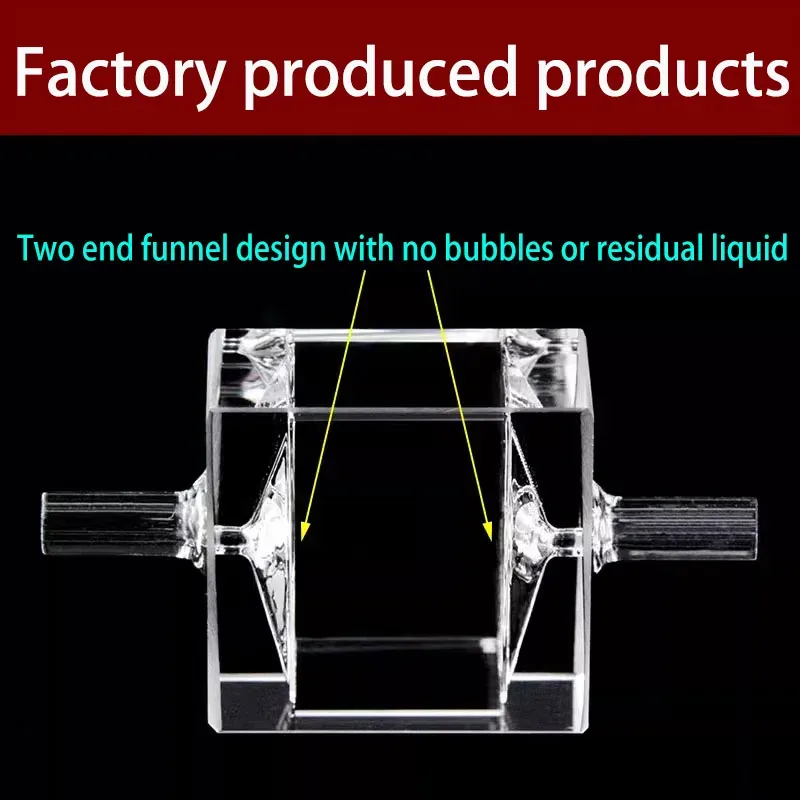

Brand: scuvette. 20mm quartz flow cuvette with integrated funnels, four ports, 2.6mL volume, 4mm tube diameter, 45mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding, >83% transmittance, 200nm-2500nm wavelength. Funnels ease sample filling. Suitable for HPLC, FIA and online UV-Vis monitoring.
Brand: scuvette. 20 mm path length quartz flow cuvette with integrated funnels, four ports, 2.6 mL volume, 4 mm tube diameter, 45 mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Funnels ease sample filling — ideal for HPLC, FIA and continuous online UV-Vis monitoring.
| Brand | scuvette |
|---|---|
| Name | 20mm quartz flow cuvette with funnels, four ports |
| Path Length | 20 mm |

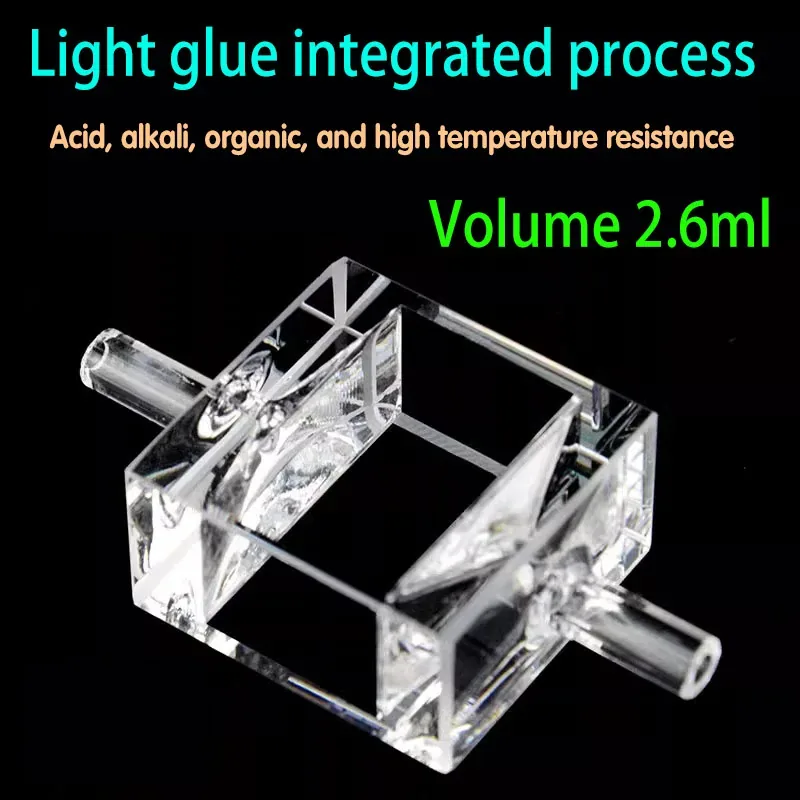

| Volume | 2.6 mL |

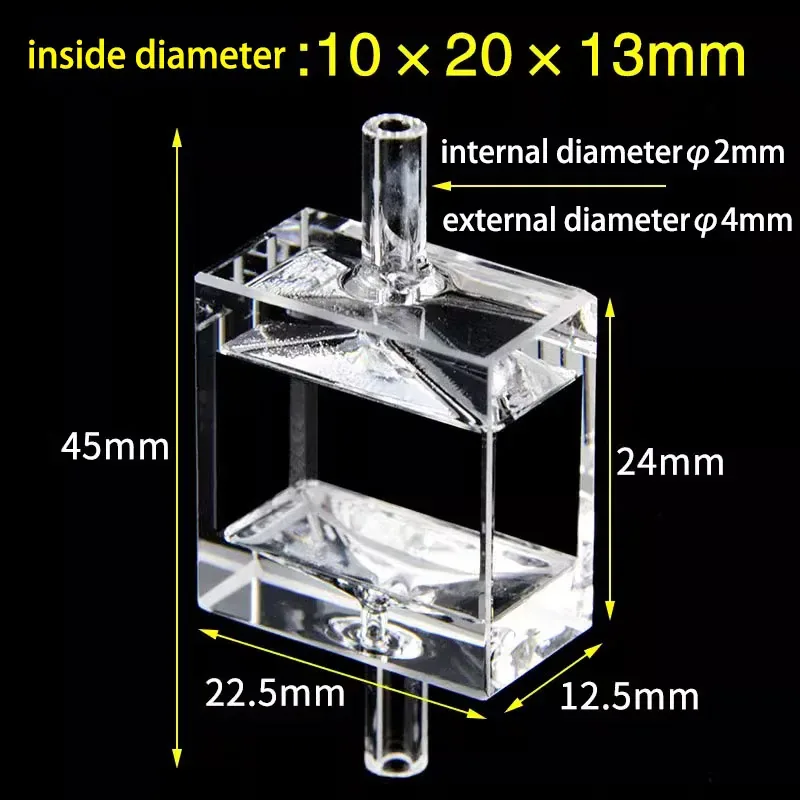

| Tube Diameter | 4 mm |
| Overall Length | 45 mm |
| Material | Japanese imported JGS1 fused silica |
| Technology | Optical contact one-piece molding (premium) |
| Transmittance | >83% |
| Wavelength Range | 200 nm – 2,500 nm |
| Configuration | Four ports with funnels (flow-through) |
| Packaging | Plastic box (1 pc per box), outer carton (paper box) |
