10mm Quartz Flow Cuvette, Detachable PTFE Connectors, Four-Port, 1mL, 54mm
Gallery 1 Gallery 2 Gallery 3 Gallery 4 Gallery 5

10mm Quartz Flow Cuvette, Detachable PTFE Connectors, Four-Port, 1mL, 54mm, for UV Spectrophotometer

SKU: qc-flow-4w-10-ptfe-54 Brand: scuvette In Stock
126 sold
$208.00 $160.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 10mm
Volume: 1ml
Configuration: Four ports (detachable PTFE)
Tube Diameter: 5mm
Overall Length: 54mm
Inquiry Now

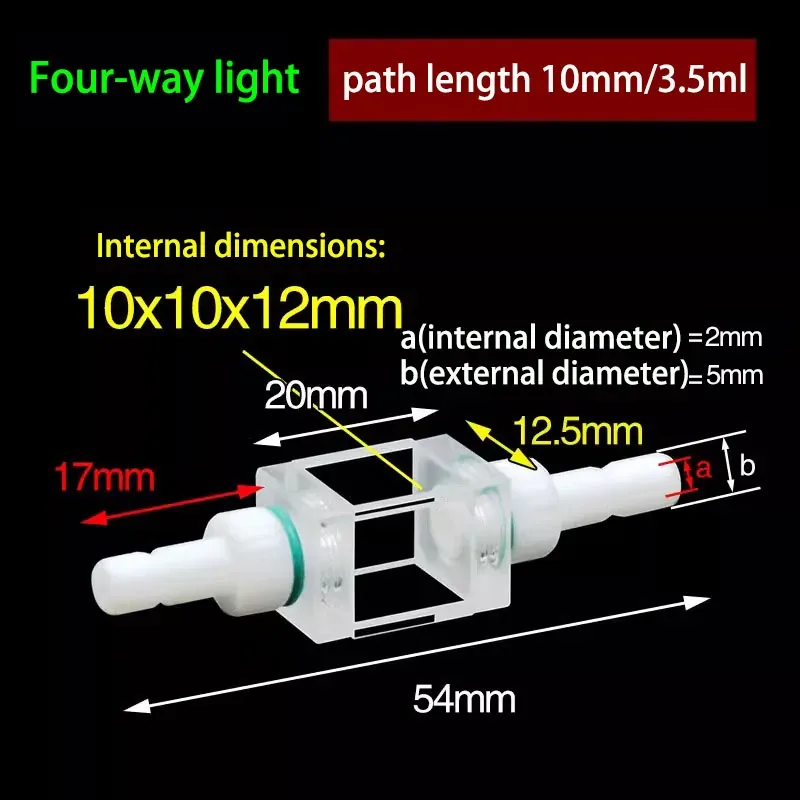

Brand: scuvette. 10mm quartz flow cuvette with detachable PTFE connectors, four ports, 1mL volume, 5mm tube diameter, inner dimension 10x10x12mm, 54mm overall length. Detachable PTFE connectors make cleaning easy. Japanese imported JGS1 fused silica, one-piece molding, >83% transmittance, 200nm-2500nm wavelength. Suitable for HPLC, FIA and online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping
Description Specifications

Brand: scuvette. 10 mm quartz flow cuvette with detachable PTFE connectors, four ports, 1 mL volume, 5 mm tube diameter, inner dimension 10 × 10 × 12 mm, 54 mm overall length. Detachable PTFE connectors make cleaning easy. Japanese imported JGS1 fused silica, one-piece molding, >83% transmittance, 200 nm – 2,500 nm wavelength range — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

01

10mm Path Length / 1 mL / Detachable PTFE

10mm Quartz Flow Cuvette, Detachable PTFE Connectors, Four-Port, 1mL, 54mm
02

One-Piece Molding — JGS1 Fused Silica

10mm Quartz Flow Cuvette, Detachable PTFE Connectors, Four-Port, 1mL, 54mm
03

Detachable Connectors / Easy to Clean

10mm Quartz Flow Cuvette, Detachable PTFE Connectors, Four-Port, 1mL, 54mm
Brandscuvette
Name10mm quartz flow cuvette, detachable PTFE connectors, four ports
Path Length10 mm
Volume1 mL
Tube Diameter5 mm
Overall Length54 mm
Chamber Inner Dimension10 × 10 × 12 mm
MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (premium)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
ConfigurationFour ports, detachable PTFE connectors
PackagingPlastic box (1 pc per box), outer carton (paper box)
