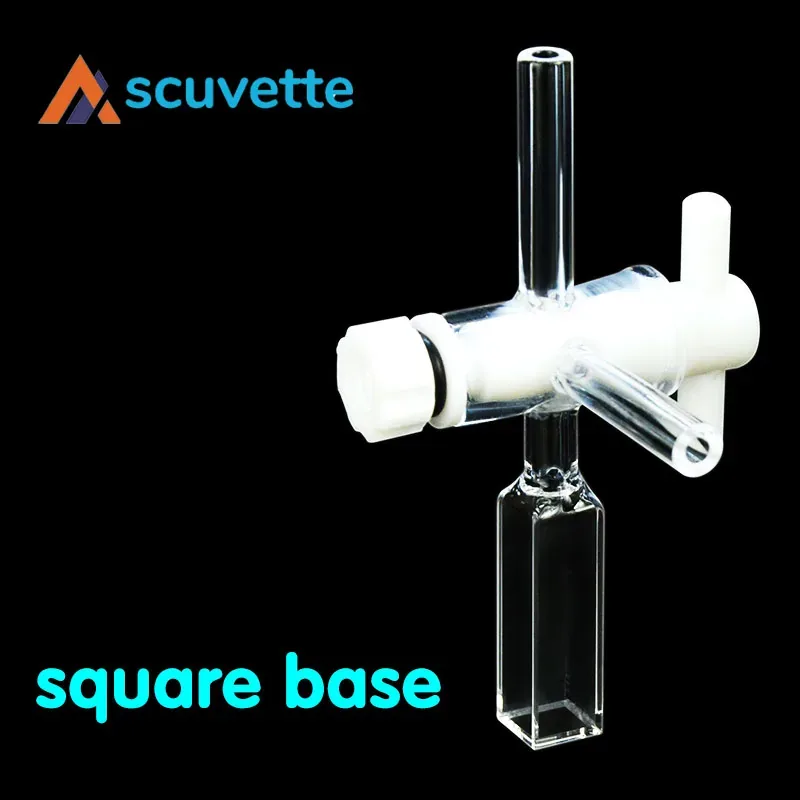

10mm Quartz Flow Cuvette, 3-Port PTFE Valve, 3.5mL Square Base, 5-Port Light, 8mm Tube, M10 Thread, Fully Sealed

SKU: qc-flow-3w-valve-10mm-sb-8mm-m10 Brand: scuvette In Stock
38 sold
$336.00 $280.00 / pc
Minimum Order Quantity: 1 box (1 pc)
Specification:
Path Length: 10mm
Volume: 3.5mL
Tube Diameter: 8mm
Valve: Three-way PTFE
Thread: M10
Sealing: Fully sealed
✓ ISO 9001 Certified✓ Factory Direct✓ Worldwide Shipping✓ 30-Day Returns✓ In Stock · Ships in 24h
Inquiry Now

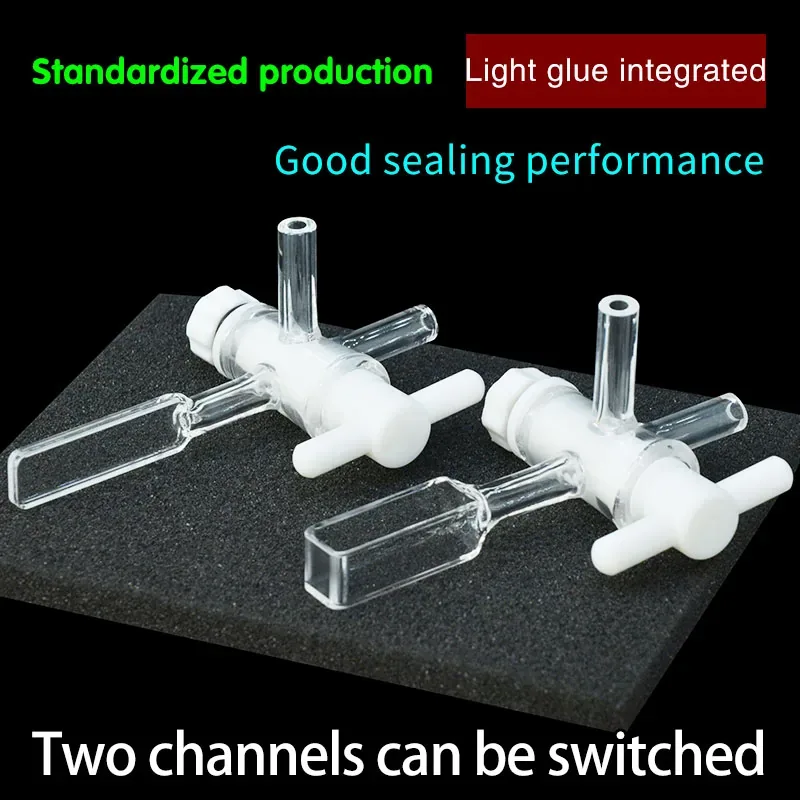

Brand: scuvette. 10mm quartz flow cuvette with PTFE (polytetrafluoroethylene) three-way valve, 3.5mL volume, square base, five-way light, 8mm tube diameter, M10 thread connections. Fully sealed design with optical contact one-piece molding (light-glue integrated) ensures leak-proof operation under continuous flow and anaerobic conditions. The chemical-resistant PTFE valve switches the flow path without disconnecting tubing. Japanese imported JGS1 fused silica, >83% transmittance, 200nm-2500nm wavelength. Ideal for HPLC flow injection analysis, process monitoring and UV spectrophotometry with frequent flow-path switching.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 10mm quartz flow cuvette with PTFE (polytetrafluoroethylene) three-way valve, 3.5mL volume, square base, five-way light, 8mm tube diameter, M10 thread connections. Fully sealed design with optical contact one-piece molding (light-glue integrated) ensures leak-proof operation under continuous flow and anaerobic conditions. The chemical-resistant PTFE valve switches the flow path without disconnecting tubing. Japanese imported JGS1 fused silica, >83% transmittance, 200nm-2500nm wavelength. Ideal for HPLC flow injection analysis, process monitoring and UV spectrophotometry with frequent flow-path switching.

01

ISO Quality Certificates

ISO quality certificates
02

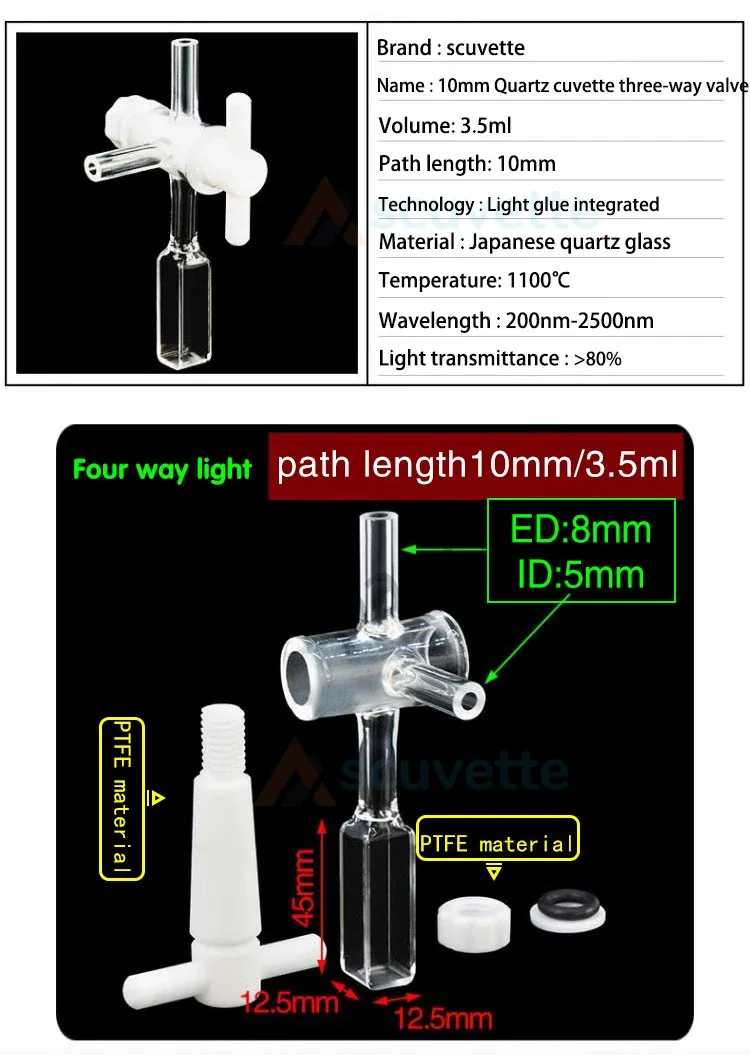

5-Port Light & Square Base PTFE 3-Port Valve

Five-way light square base PTFE three-way valve detail
03

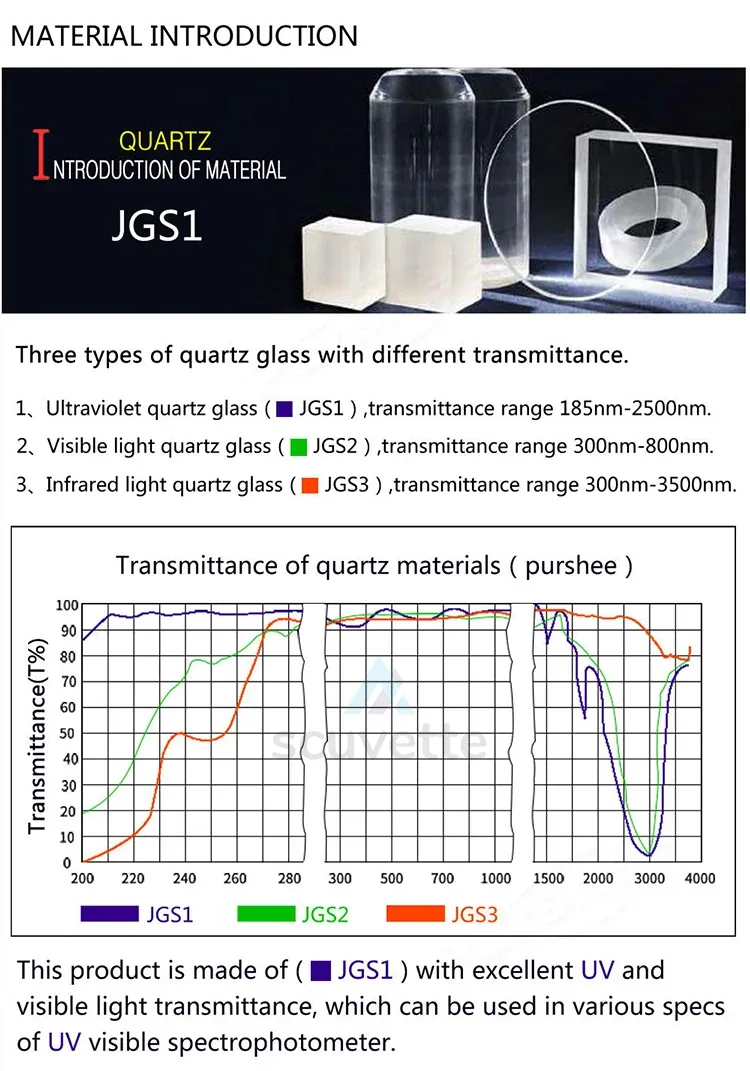

JGS1 Quartz Material & Spectrum Transmission Curve

JGS1 quartz material and spectrum transmission curve
Brandscuvette
Name10mm quartz flow cuvette with three-way PTFE valve, 3.5mL square base, five-way light
Path Length10 mm
Volume3.5 mL
Tube Diameter8 mm

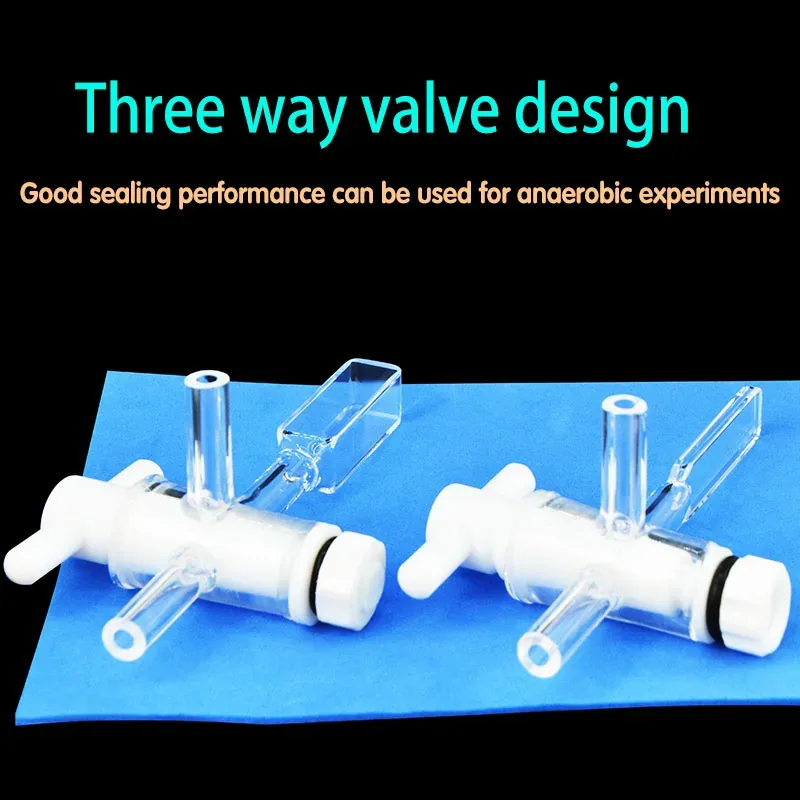

ValveThree-way (3-way) valve, flow-path switching without disconnecting tubing
Valve MaterialPolytetrafluoroethylene (PTFE) — acid / alkali / organic solvent resistant

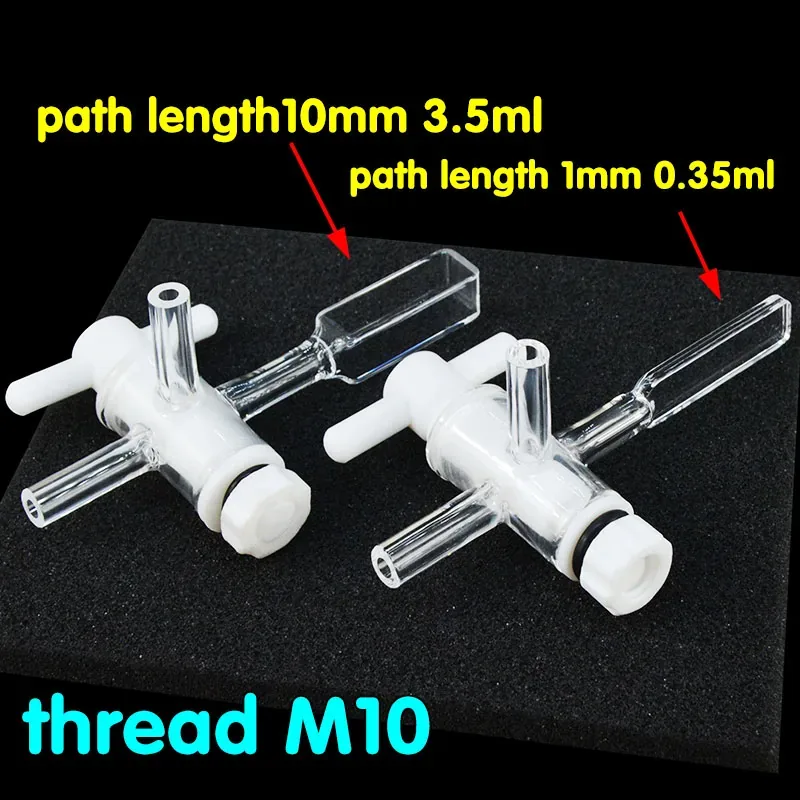

Thread / ConnectionM10 screw thread, leak-proof sealing
Sealing PerformanceFully sealed, thread-sealed joints, leak-proof under continuous flow and anaerobic conditions

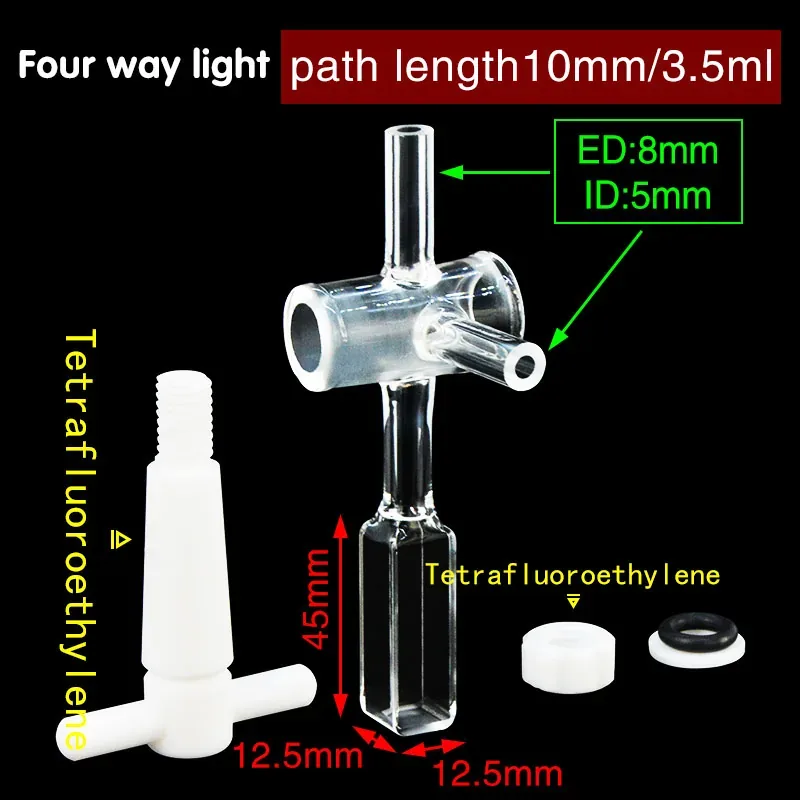

Window ConfigurationFive-sided clear (five-way light)
MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (light-glue integrated); comparable to German original imports
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
Max Operating Temp≤1200 °C (quartz body); PTFE valve ≤200 °C
Type / GradeHigh Precision
Suitable ForUV / visible spectrophotometer; HPLC, FIA, process flow monitoring, anaerobic experiments
PackagingPlastic box (1 pc per box), outer carton (paper box)
>
