10mm Quartz Micro Flow Cuvette, Three-Port, 32uL, Stainless Steel Connectors, for UV Spectrophotometer

SKU: qc-flow-3w-10-32ul-ss Brand: scuvette In Stock
126 sold
$148.00 $114.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 10mm
Volume: 32uL
Configuration: Three ports
Connector: Stainless steel
Center Height: 15mm
Inquiry Now

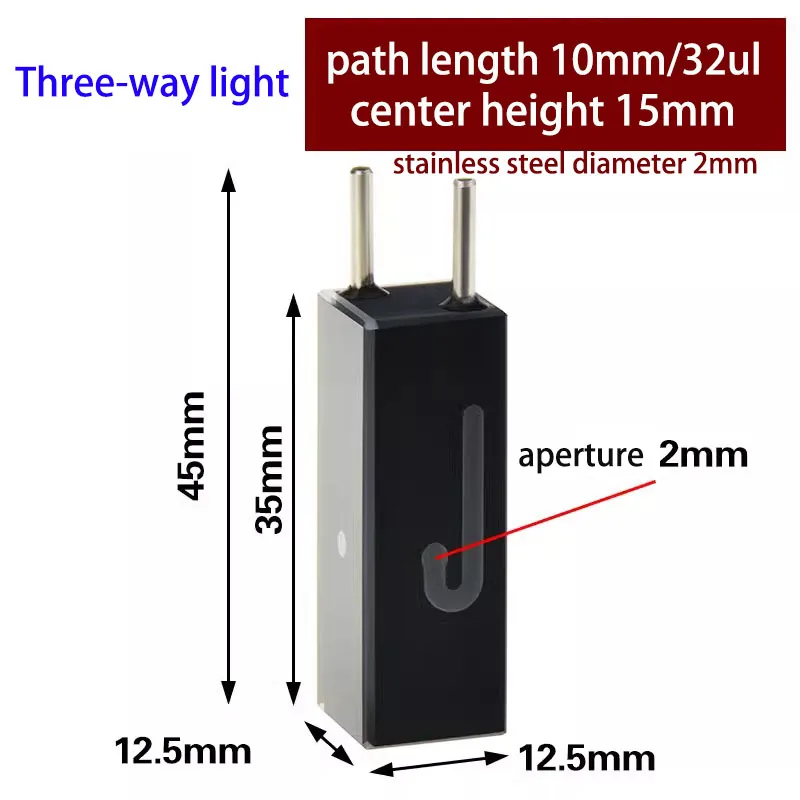

Brand: scuvette. 10mm quartz micro flow cuvette with three ports, 32uL volume, 2mm aperture, 15mm center height, stainless steel connectors (2mm OD, 1.2mm ID). Japanese imported JGS1 fused silica, optical glue bonding, >80% transmittance, 200nm-2500nm wavelength. Suitable for micro-flow HPLC, FIA and online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 10 mm quartz micro flow cuvette, three ports, 32 μL volume, 2 mm aperture, 15 mm center height, stainless steel connectors (2 mm OD, 1.2 mm ID). Japanese imported JGS1 fused silica, optical glue bonding, >80% transmittance, 200 nm – 2,500 nm wavelength range — ideal for micro-flow HPLC, FIA and online UV-Vis monitoring.

01

10mm Path Length / 32 uL / Three Ports

10mm Quartz Micro Flow Cuvette, Three-Port, 32uL, Stainless Steel Connectors
02

Optical Glue Bonding — JGS1 Fused Silica

10mm Quartz Micro Flow Cuvette, Three-Port, 32uL, Stainless Steel Connectors
03

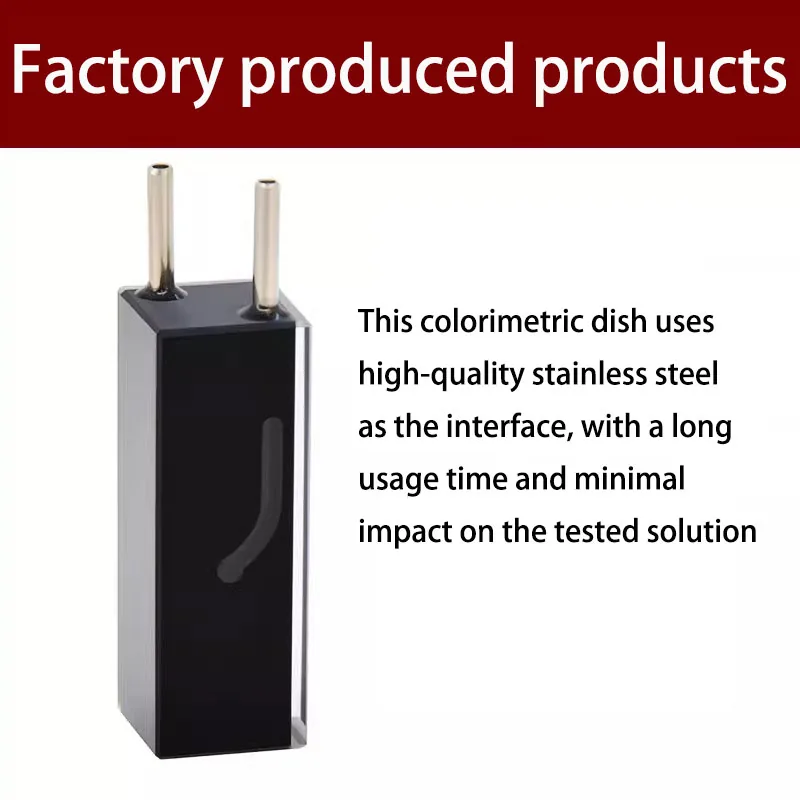

Stainless Steel Connectors

10mm Quartz Micro Flow Cuvette, Three-Port, 32uL, Stainless Steel Connectors
Brandscuvette
Name10mm quartz micro flow cuvette, three ports, stainless steel
Path Length10 mm
Volume32 μL
Aperture2 mm
Center Height15 mm
ConnectorStainless steel (2mm OD, 1.2mm ID)
MaterialJapanese imported JGS1 fused silica
TechnologyOptical glue bonding
Transmittance>80%
Wavelength Range200 nm – 2,500 nm
ConfigurationThree ports (flow-through)
PackagingPlastic box (1 pc per box), outer carton (paper box)
