10mm Quartz Flow Cuvette, Two Ends Open with Funnels, 3.5mL, 4mm Tube, for UV Spectrophotometer

SKU: qc-flow-2w-funnel-4mm Brand: scuvette In Stock
126 sold
$334.00 $257.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 10mm
Volume: 3.5ml
Tube Diameter: 4mm
Overall Length: 75mm
Configuration: Two ends open (flow-through)
Inquiry Now

Brand: scuvette. 10 mm quartz flow cuvette, two ends open with integrated funnels, 3.5 mL volume, 4mm tube diameter, 75mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Chamber inner dimension 10x10x33mm. Both Ends Open to connect to the sample source via tubing — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 10 mm quartz flow cuvette, two ends open with integrated funnels, 3.5 mL volume, 4mm tube diameter, 75mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Chamber inner dimension 10x10x33mm. Both Ends Open to connect to the sample source via tubing — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

01

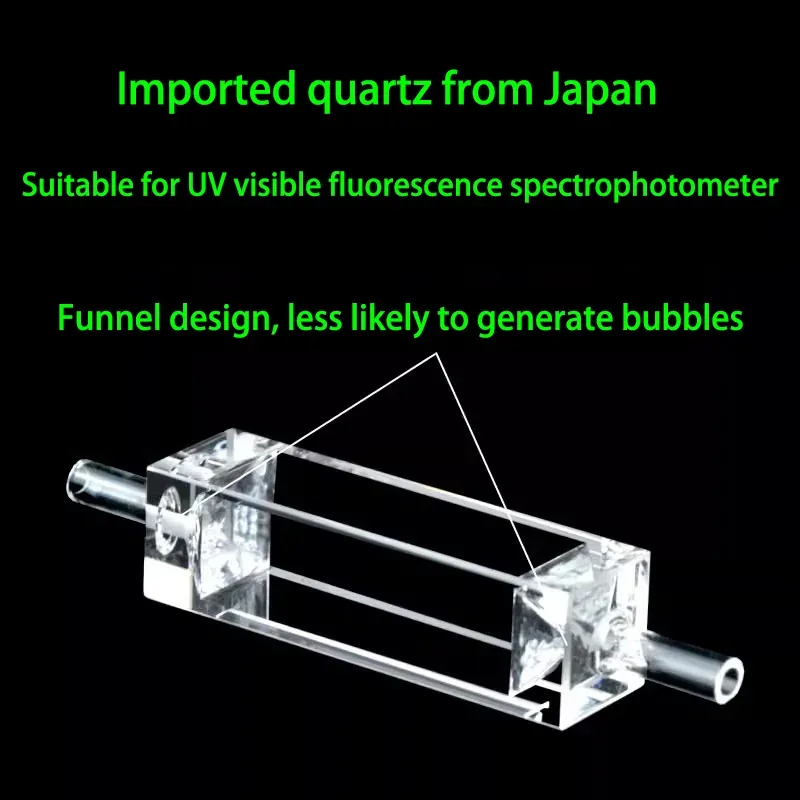

10 mm Path Length / 3.5 mL / Two Ends Open with Funnels

10mm flow cuvette two ends open 3.5mL
02

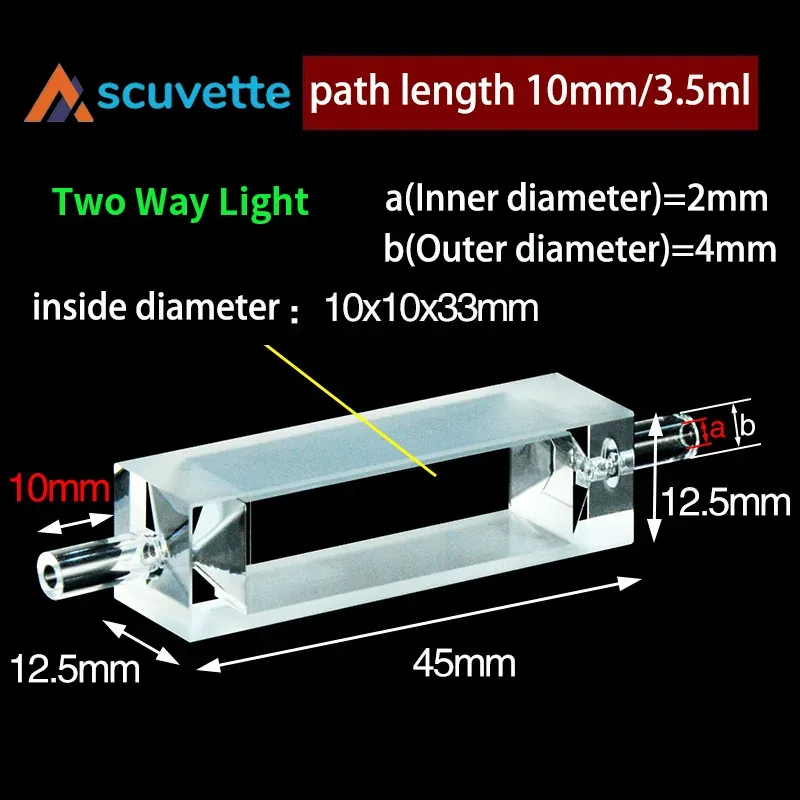

Optical Contact One-Piece Molding — JGS1 Fused Silica

Optical contact one-piece molding JGS1 material
03

Ideal for HPLC / FIA / Online Monitoring

Flow cuvette for HPLC FIA online monitoring
Brandscuvette
Name10 mm quartz flow cuvette, two ends open with funnels
Path Length10 mm
Volume3.5 mL
Tube Diameter4mm
Overall Length75mm
Chamber Inner Dimension10 × 10 × 33mm
MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (premium)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
ConfigurationTwo ends open (flow-through)
PackagingPlastic box (1 pc per box), outer carton (paper box)
