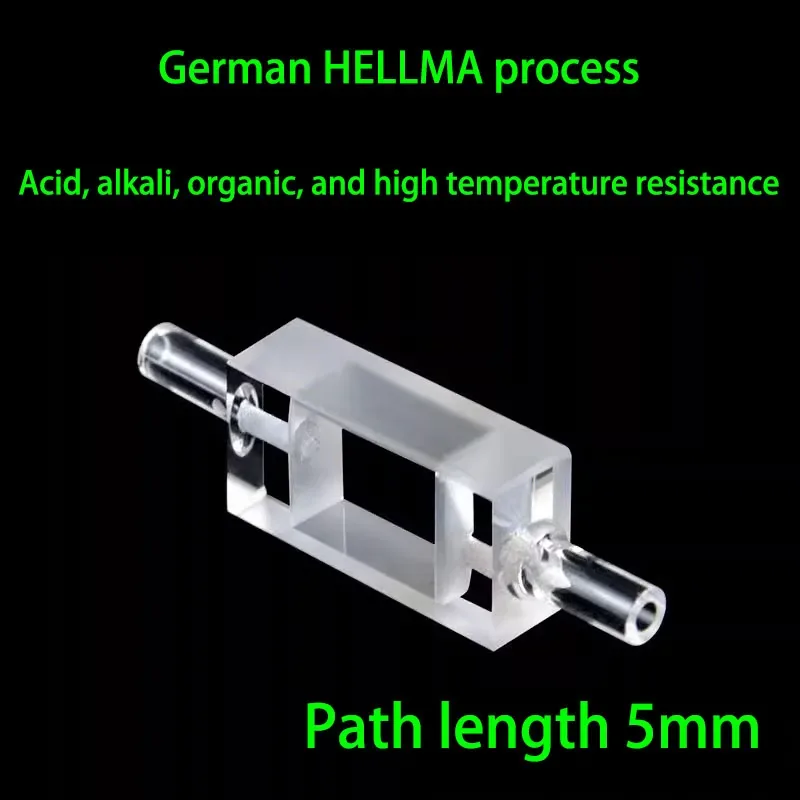

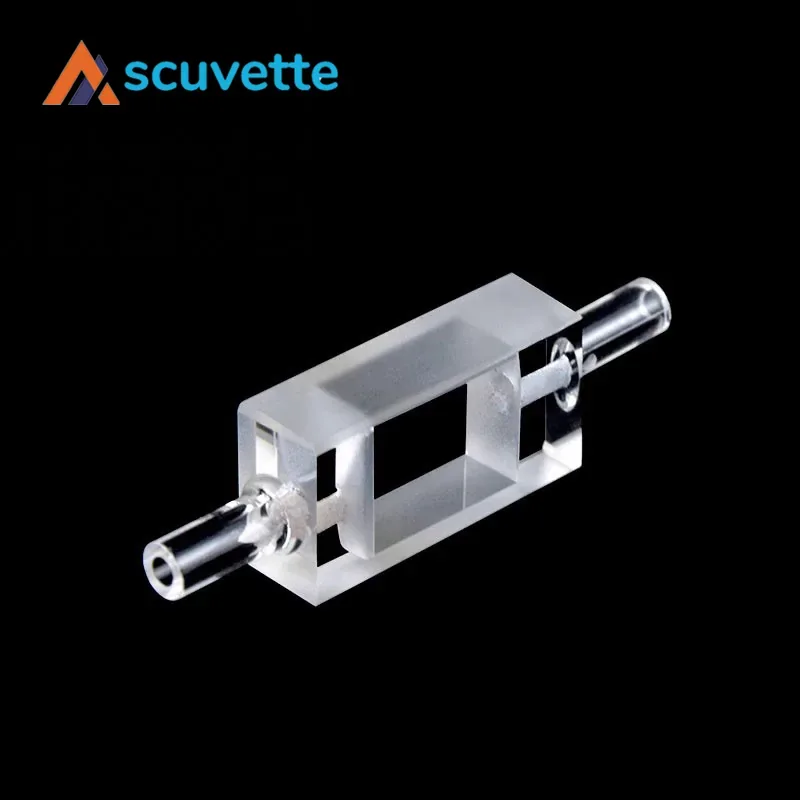

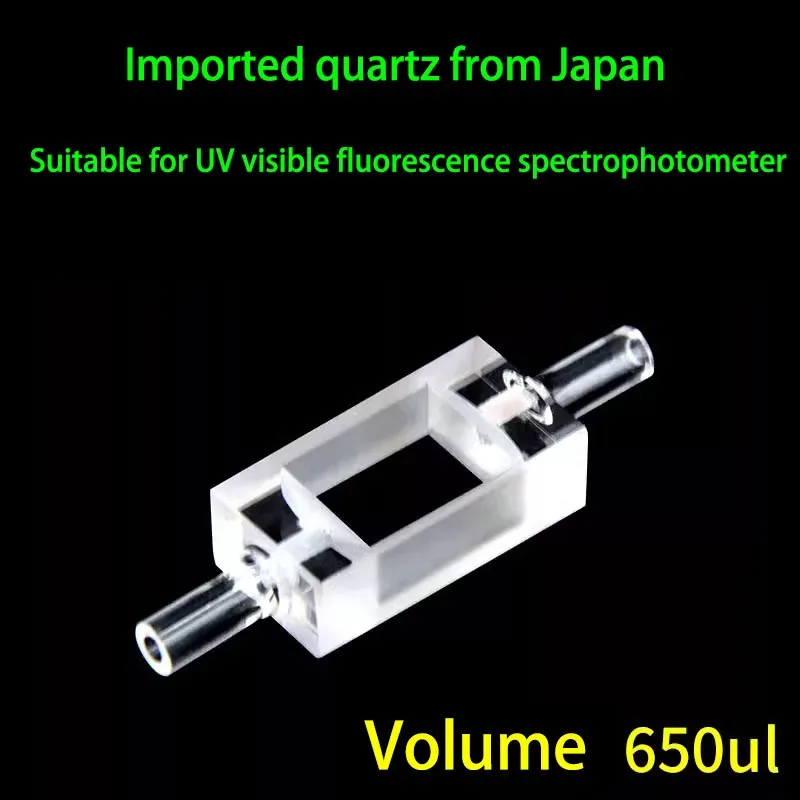

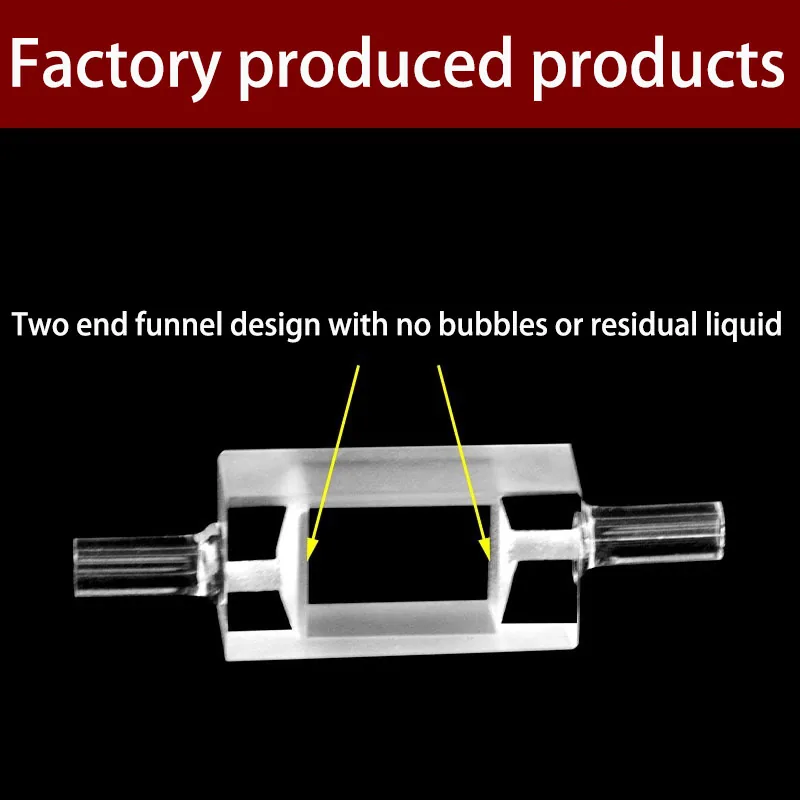

5mm Quartz Flow Cuvette, Two Ends Open, 4mm Tube, 10×5×13mm
Gallery 1 Gallery 2 Gallery 3 Gallery 4 Gallery 5

5mm Quartz Flow Cuvette, Two Ends Open, 4mm Tube, 10×5×13mm, for UV Spectrophotometer

SKU: qc-flow-2w-5-4mm Brand: scuvette In Stock
126 sold
$334.00 $257.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 5mm
Configuration: Two ends open
Tube Diameter: 4mm
Chamber: 10×5×13mm
Technology: Optical contact
Inquiry Now

Brand: scuvette. 5mm quartz flow cuvette with two ends open, 4mm tube diameter, inner dimension 10x5x13mm. Japanese imported JGS1 fused silica, optical contact one-piece molding, >83% transmittance, 200nm-2500nm wavelength. Suitable for HPLC, FIA and online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping
Description Specifications

Brand: scuvette. 5 mm path length quartz flow cuvette, two ends open, 4 mm tube diameter, inner dimension 10 × 5 × 13 mm. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

01

5mm Path Length / Two Ends Open

5mm Quartz Flow Cuvette, Two Ends Open, 4mm Tube, 10×5×13mm
02

Optical Contact One-Piece Molding — JGS1 Fused Silica

5mm Quartz Flow Cuvette, Two Ends Open, 4mm Tube, 10×5×13mm
03

Ideal for HPLC / FIA / Online Monitoring

5mm Quartz Flow Cuvette, Two Ends Open, 4mm Tube, 10×5×13mm
Brandscuvette
Name5mm quartz flow cuvette, two ends open
Path Length5 mm
Tube Diameter4 mm

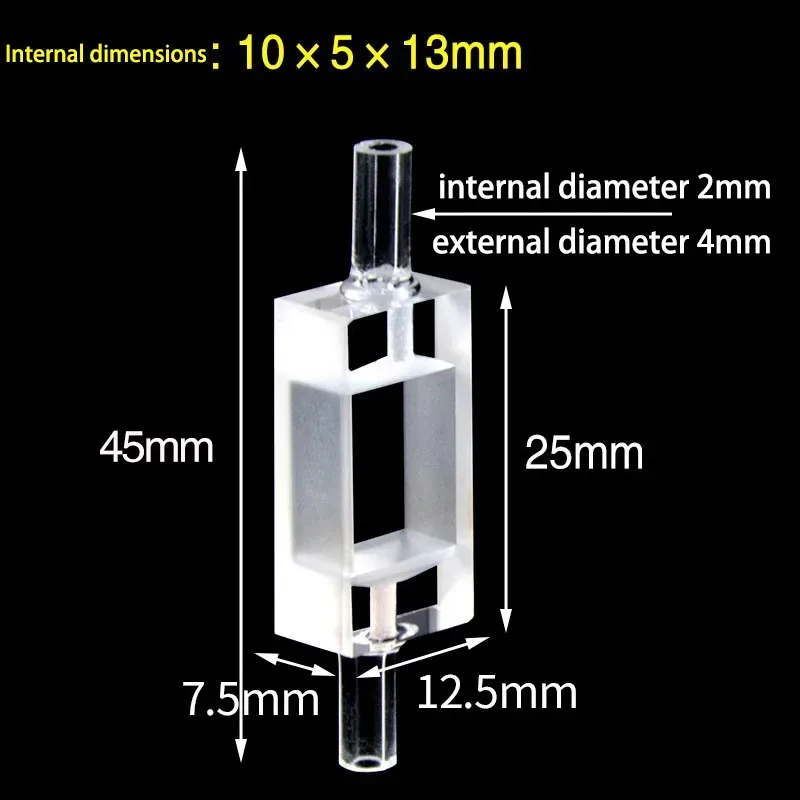

Chamber Inner Dimension10 × 5 × 13 mm
MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (premium)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
ConfigurationTwo ends open (flow-through)
PackagingPlastic box (1 pc per box), outer carton (paper box)
