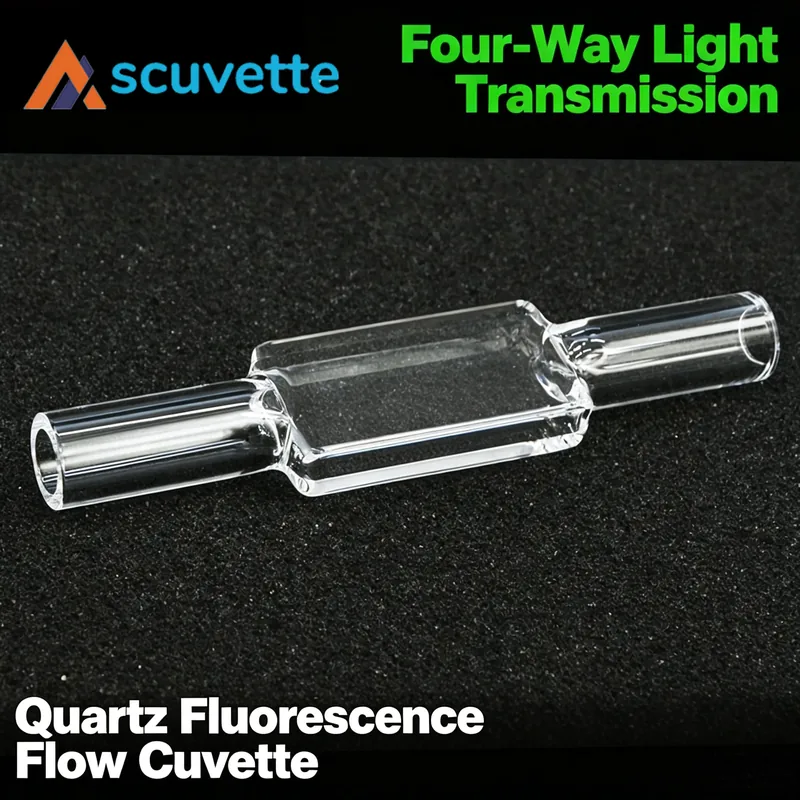

4mm × 16mm Quartz Fluorescence Flow Cuvette, Four Windows, 12mm Tube

4mm × 16mm Quartz Fluorescence Flow Cuvette, Four Windows, 12mm Tube, for Fluorescence Spectroscopy

Name: 4mm × 16mm Quartz Fluorescence Flow Cuvette, Four Windows, 12mm Tube
Brand: scuvette
SKU: qc-flow-2w-4x16-fluor
Price: 200.00 USD
Availability: InStock

SKU: qc-flow-2w-4x16-fluor Brand: scuvette In Stock

126 sold

$260.00 $200.00 / pc

Minimum Order Quantity: 1 pc

Path Length: 4mm × 16mm

Windows: Four polished

Tube Diameter: 12mm

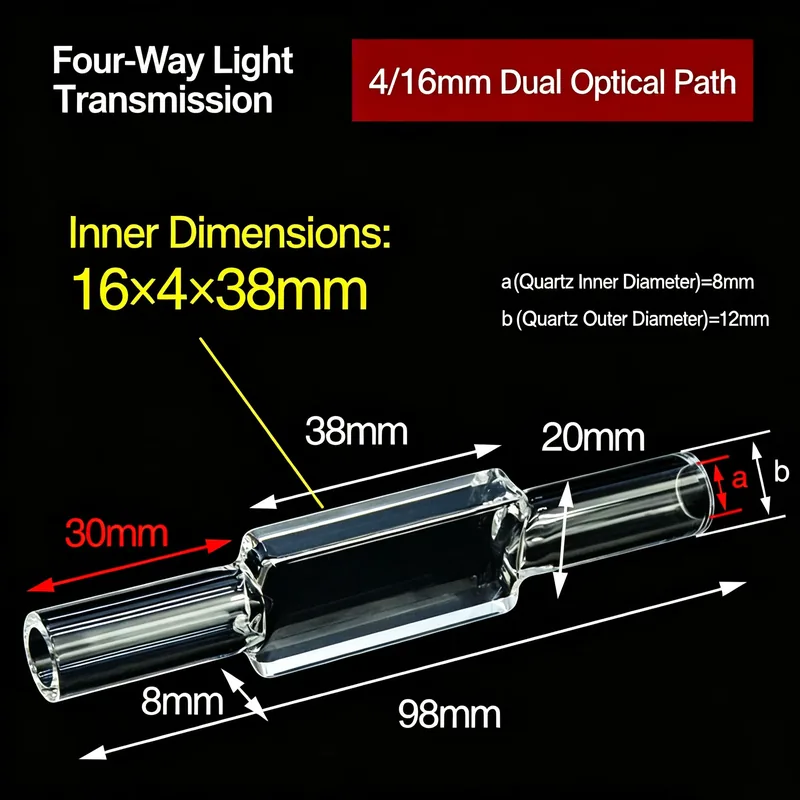

Chamber: 16×4×38mm

Overall Length: 98mm

Inquiry Now

Brand: scuvette. 4mm × 16mm quartz fluorescence flow cuvette with four polished windows, 12mm tube diameter, inner dimension 16x4x38mm, 98mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding, >83% transmittance, 200nm-2500nm wavelength. Four transparent windows for fluorescence excitation and 90° emission collection. Suitable for fluorescence spectroscopy and online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping

Description Specifications

Brand: scuvette. 4 mm × 16 mm quartz fluorescence flow cuvette, four polished windows, 12 mm tube diameter, inner dimension 16 × 4 × 38 mm, 98 mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Four transparent windows allow fluorescence excitation and 90° emission collection — ideal for fluorescence spectroscopy and online UV-Vis monitoring.

4mm × 16mm Path Length / Four Windows

Optical Contact One-Piece Molding — JGS1 Fused Silica

Ideal for Fluorescence / Online Monitoring

Brand	scuvette
Name	4mm × 16mm quartz fluorescence flow cuvette, four windows
Path Length	4 mm × 16 mm
Windows	Four polished (fluorescence)
Tube Diameter	12 mm
Chamber Inner Dimension	16 × 4 × 38 mm
Overall Length	98 mm
Material	Japanese imported JGS1 fused silica
Technology	Optical contact one-piece molding (premium)
Transmittance	>83%
Wavelength Range	200 nm – 2,500 nm
Configuration	Flow-through, four windows
Packaging	Plastic box (1 pc per box), outer carton (paper box)

4mm × 16mm Quartz Fluorescence Flow Cuvette, Four Windows, 12mm Tube, for Fluorescence Spectroscopy

4mm × 16mm Path Length / Four Windows

Optical Contact One-Piece Molding — JGS1 Fused Silica

Ideal for Fluorescence / Online Monitoring
