3mm Quartz Flow Cuvette, Two Ends Open, 1.05mL, 5mm Tube, for UV Spectrophotometer HPLC FIA

SKU: qc-flow-2w-3-5mm Brand: scuvette In Stock
126 sold
$117.00 $90.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 3mm
Volume: 1.05mL
Tube Diameter: 5mm
Overall Length: 76mm
Configuration: Two ends open (flow-through)
Inquiry Now

Brand: scuvette. 3mm quartz flow cuvette, two ends open, 1.05mL volume, 5mm tube diameter, 76mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Chamber inner dimension 3x10x38mm. Both ends open to connect to the sample source via tubing — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 3mm quartz flow cuvette, two ends open, 1.05mL volume, 5mm tube diameter, 76mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Chamber inner dimension 3x10x38mm. Both ends open to connect to the sample source via tubing — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

01

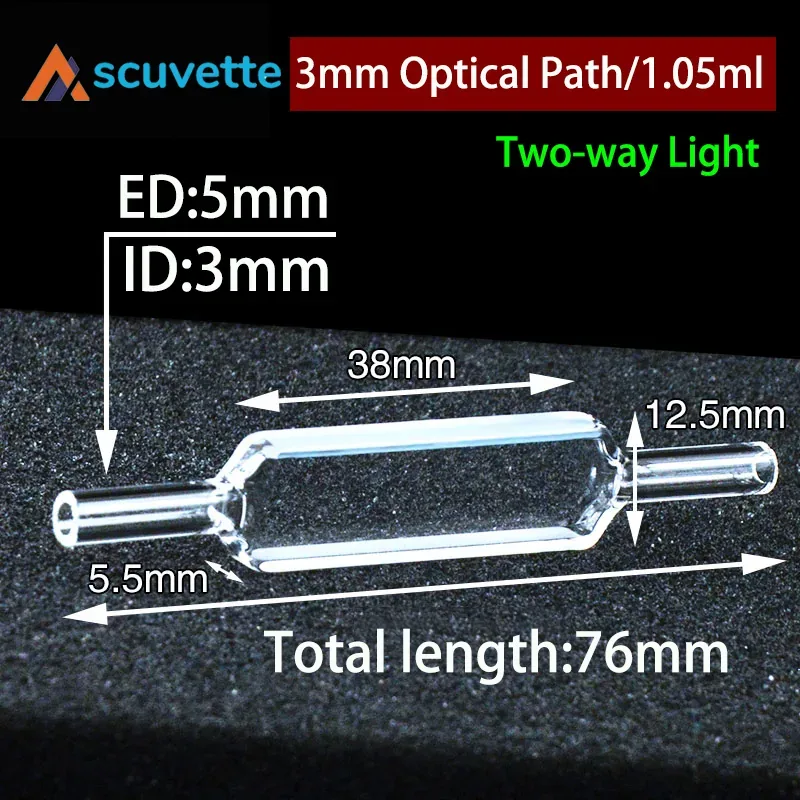

3mm Path Length / 1.05 mL / Two Ends Open

3mm Quartz Flow Cuvette, Two Ends Open, 1.05mL, 5mm Tube, for UV Spectrophotometer HPLC FIA
02

Optical Contact One-Piece Molding — JGS1 Fused Silica

Optical contact one-piece molding JGS1 material
03

Ideal for HPLC / FIA / Online Monitoring

Flow cuvette for HPLC FIA online monitoring
Brandscuvette
Name3mm quartz flow cuvette, two ends open
Path Length3mm
Volume1.05 mL
Tube Diameter5mm
Overall Length76mm
Chamber Inner Dimension3 × 10 × 38 mm
MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (premium)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
ConfigurationTwo ends open (flow-through)
PackagingPlastic box (1 pc per box), outer carton (paper box)
