20mm Quartz Flow Cuvette with Funnels, Two Ends Open, 2.6mL, 4mm Tube, for UV Spectrophotometer

SKU: qc-flow-2w-20-funnel-4mm Brand: scuvette In Stock
126 sold
$403.00 $310.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 20mm
Volume: 2.6ml
Configuration: Two ends open with funnels
Tube Diameter: 4mm
Overall Length: 45mm
Inquiry Now

Brand: scuvette. 20mm quartz flow cuvette with integrated funnels, two ends open, 2.6mL volume, 4mm tube diameter, 45mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding, >83% transmittance, 200nm-2500nm wavelength. Funnels ease sample filling. Suitable for HPLC, FIA and online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 20 mm path length quartz flow cuvette with integrated funnels, two ends open, 2.6 mL volume, 4 mm tube diameter, 45 mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Funnels ease sample filling — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

01

20mm Path Length / 2.6 mL / With Funnels

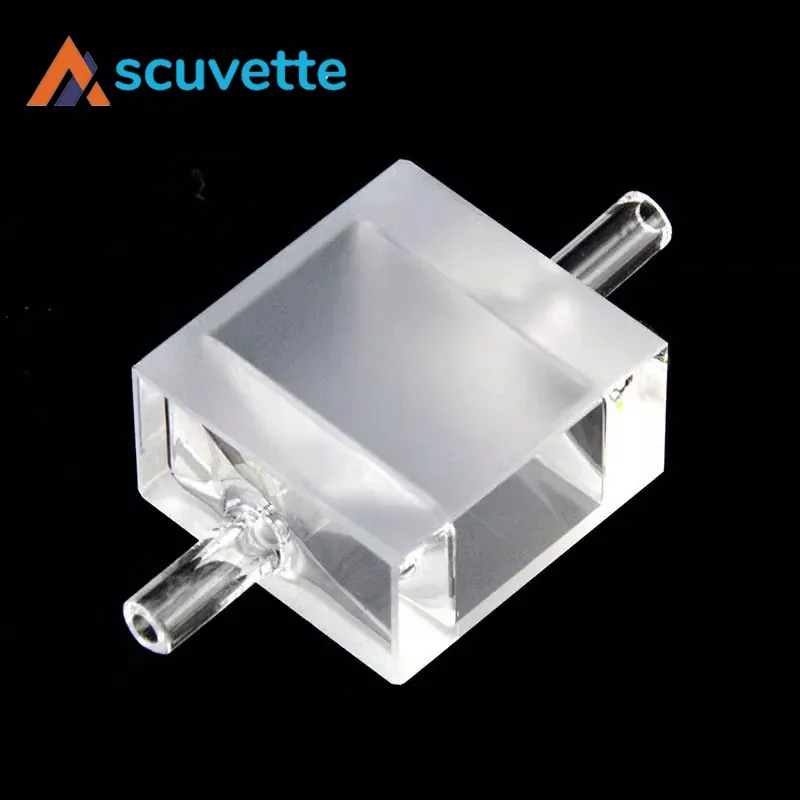

20mm Quartz Flow Cuvette with Funnels, Two Ends Open, 2.6mL, 4mm Tube
02

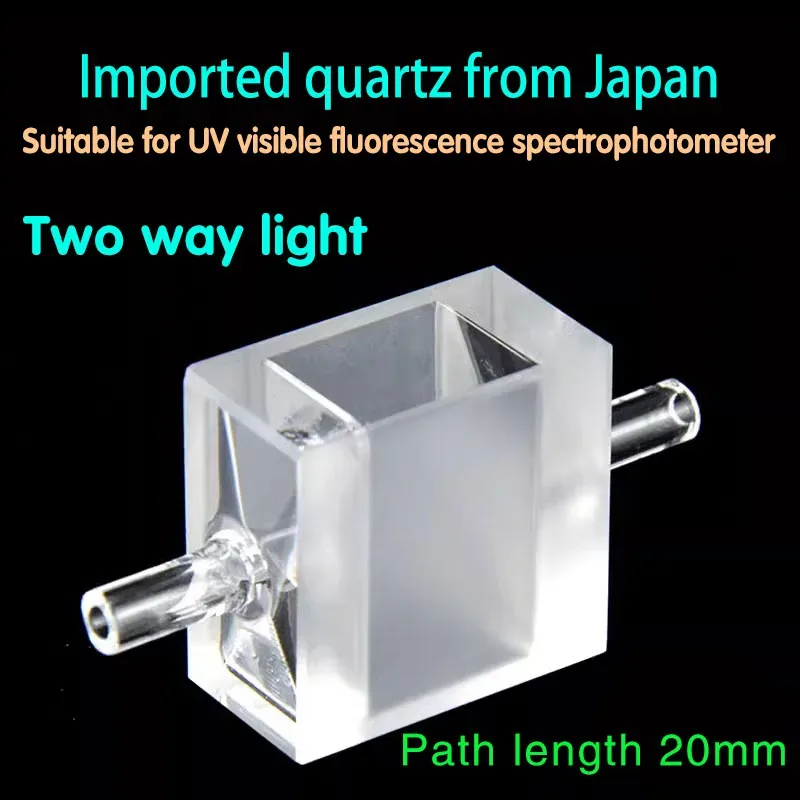

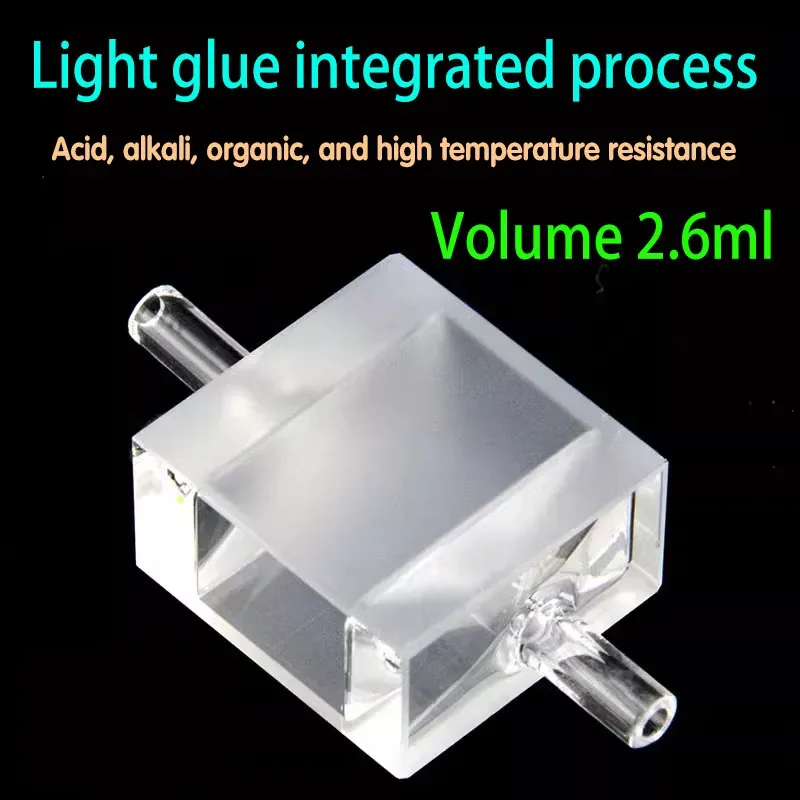

Optical Contact One-Piece Molding — JGS1 Fused Silica

20mm Quartz Flow Cuvette with Funnels, Two Ends Open, 2.6mL, 4mm Tube
03

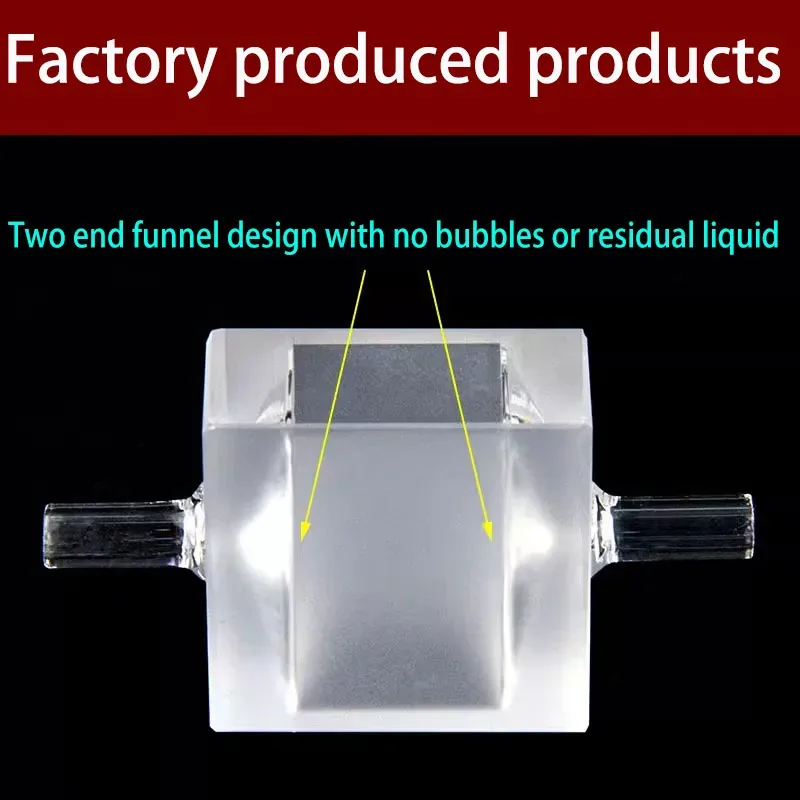

Funnels for Easy Sample Filling

20mm Quartz Flow Cuvette with Funnels, Two Ends Open, 2.6mL, 4mm Tube
Brandscuvette

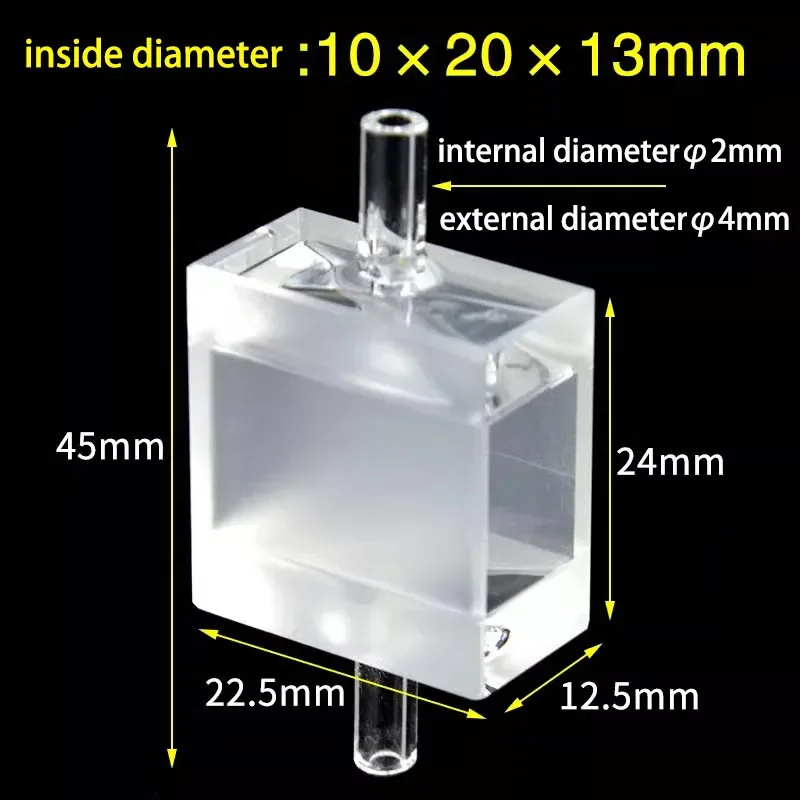

Name20mm quartz flow cuvette with funnels, two ends open
Path Length20 mm
Volume2.6 mL
Tube Diameter4 mm
Overall Length45 mm
MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (premium)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
ConfigurationTwo ends open with funnels (flow-through)
PackagingPlastic box (1 pc per box), outer carton (paper box)
