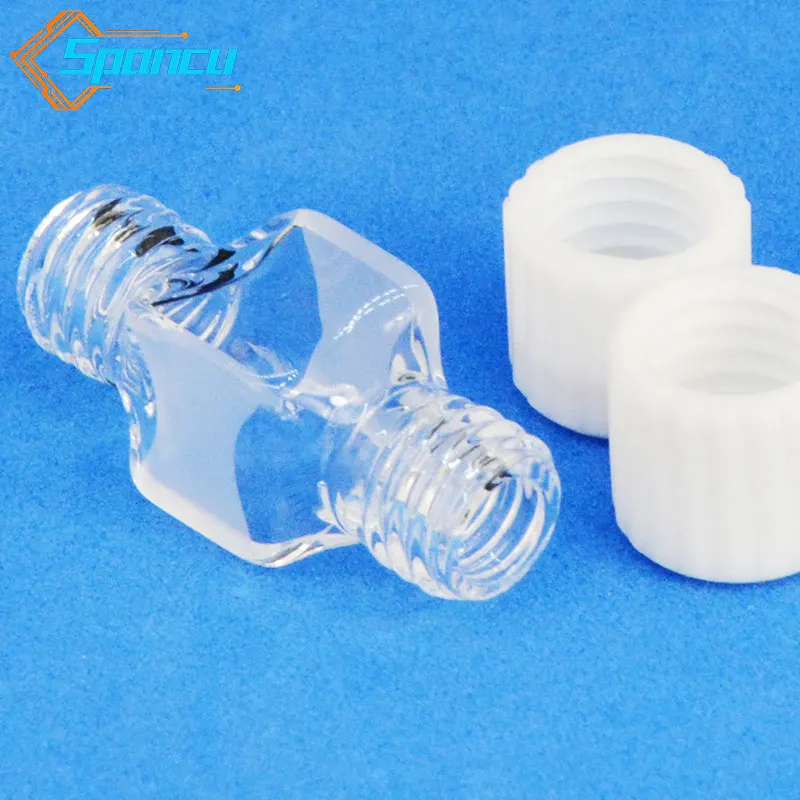

10mm Quartz Flow Cuvette Screw Cap Two Ends, 800µL, M10 Thread

SKU: qc-flow-2w-10mm-screw-m10 Brand: scuvette In Stock
126 sold
$157.00 $121.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 10mm
Volume: 800µL
Thread: M10 (screw)
Chamber: 10×10×10mm
Configuration: Two ends open (flow-through)
Inquiry Now

Brand: scuvette. 10mm quartz flow cuvette with screw cap at both ends, 800µL micro-volume, M10 thread, PTFE cap. Japanese imported JGS1 fused silica, optical-contact one-piece molding, >83% transmittance, 200nm–2500nm wavelength. Compact chamber inner dimension 10×10×10mm, outer 12.5×12.5×38mm, four-side transmission. Ideal for micro-volume continuous flow sampling.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 10mm quartz flow cuvette with screw cap at both ends, 800µL micro-volume, M10 thread, PTFE cap. Japanese imported JGS1 fused silica, optical-contact one-piece molding, >83% transmittance, 200nm–2500nm wavelength. Compact chamber inner dimension 10×10×10mm, outer 12.5×12.5×38mm, four-side transmission. Ideal for micro-volume continuous flow sampling.

01

CAS Certification

CAS-certified Chinese Academy of Sciences quality certificates, SGS, NOA ISO 9001, and 99.99% SiO2 test report
02

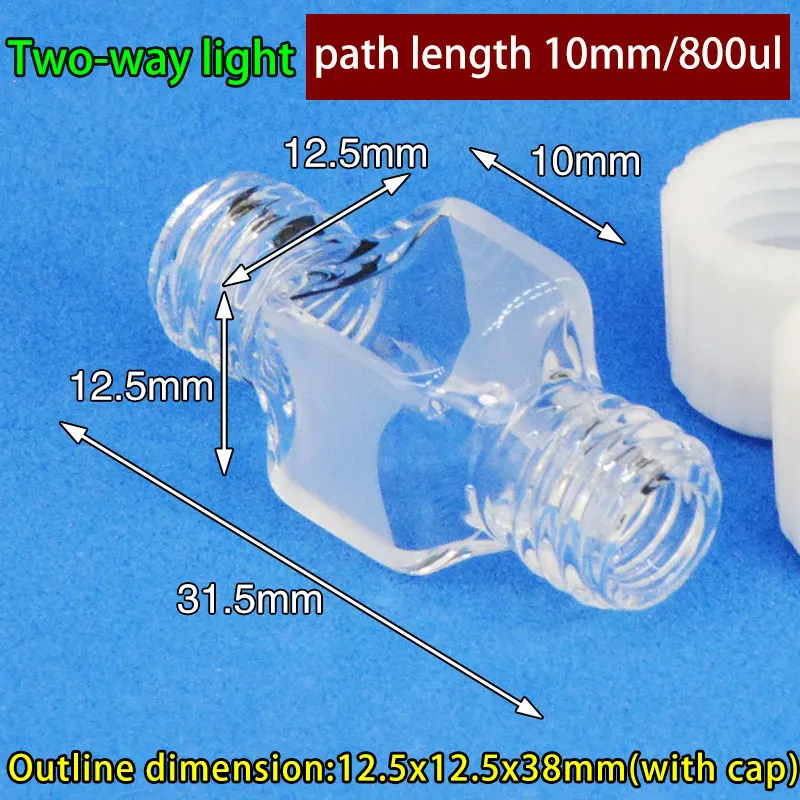

10 mm Path · 800 µL Micro Volume · M10 Screw Cap

10 mm Path · 800 µL Micro Volume · M10 Screw Cap
03

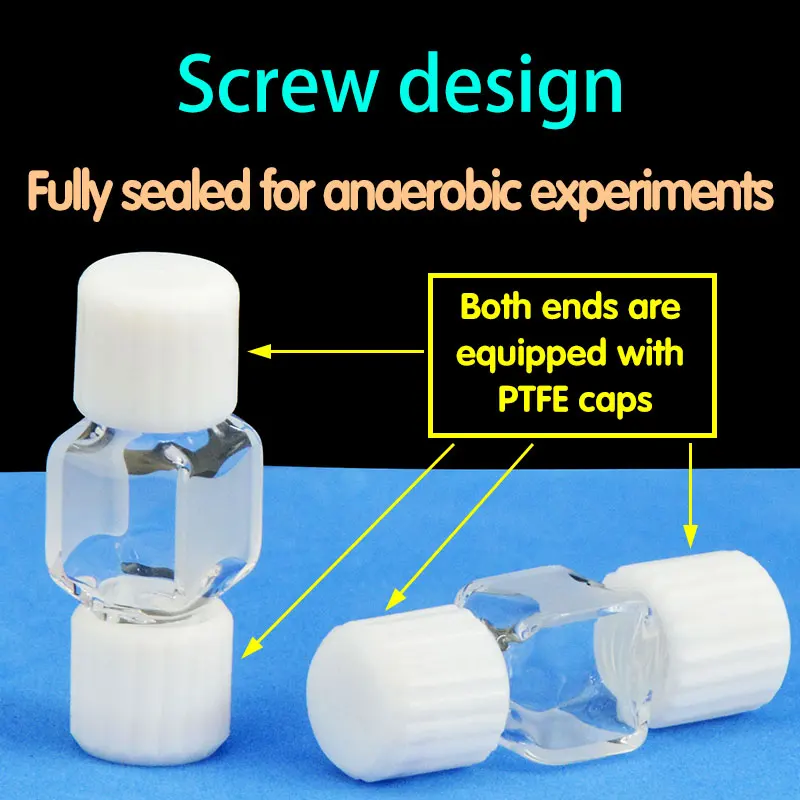

PTFE Screw Cap, M10 Thread — Leak-Free Seal

PTFE Screw Cap, M10 Thread — Leak-Free Seal
04

Four-Side Transmission · JGS1 Fused Silica

Four-Side Transmission · JGS1 Fused Silica
05

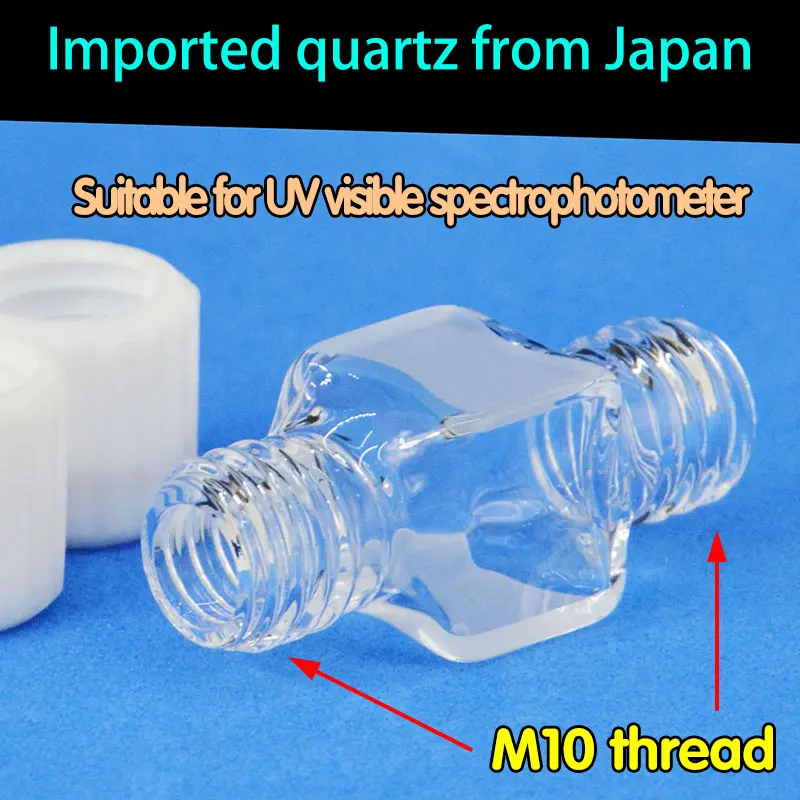

Compact Chamber 10 × 10 × 10 mm for Micro Flow

Compact Chamber 10 × 10 × 10 mm for Micro Flow
06

Material Introduction — JGS1 Spectrum

JGS1 optical quartz material introduction and transmittance curve for UV-Vis spectrophotometer
