10mm Quartz Micro Flow Cuvette, Two-Way, 18uL, M6 Thread, 8.5mm Center, for UV Spectrophotometer

SKU: qc-flow-2w-10-18ul-m6 Brand: scuvette In Stock
126 sold
$182.00 $140.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 10mm
Volume: 18uL
Configuration: Two-way (M6 thread)
Center Height: 8.5mm
Aperture: 1.5mm
Inquiry Now

Brand: scuvette. 10mm quartz micro flow cuvette, two-way, 18uL volume, 1.5mm aperture, 8.5mm center height, dual M6 thread, 1.8mm thread tube. Japanese imported JGS1 fused silica, optical contact one-piece molding, >83% transmittance, 200nm-2500nm wavelength. Low 18uL volume for micro samples. Suitable for micro-flow HPLC, FIA and online UV-Vis monitoring.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 10 mm quartz micro flow cuvette, two-way, 18 μL volume, 1.5 mm aperture, 8.5 mm center height, dual M6 thread, 1.8 mm thread tube. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Low 18 μL volume for micro samples — ideal for micro-flow HPLC, FIA and online UV-Vis monitoring.

01

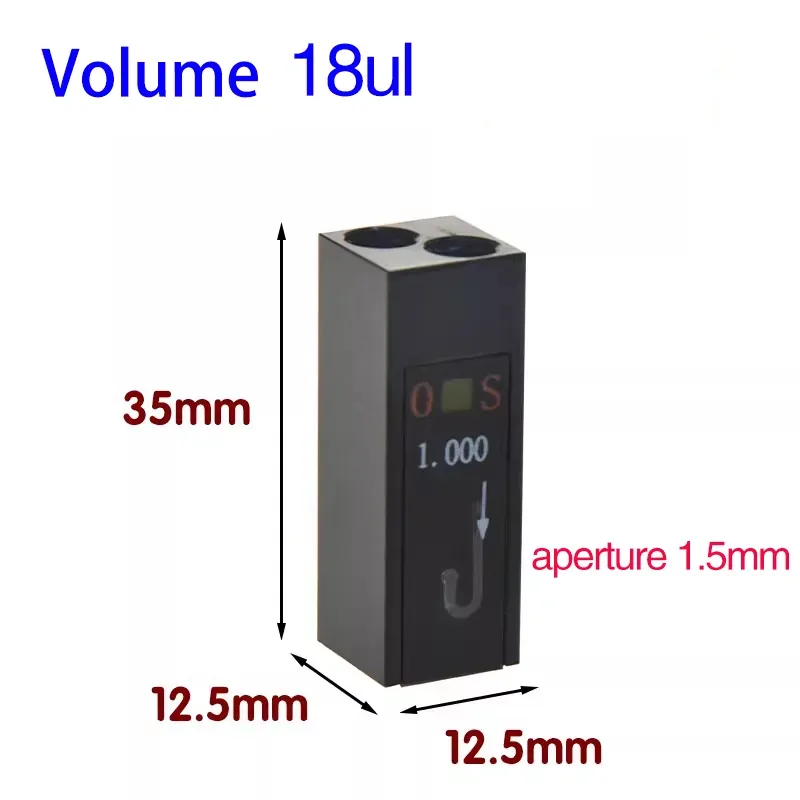

10mm Path Length / 18 uL / Two-Way

10mm Quartz Micro Flow Cuvette, Two-Way, 18uL, M6 Thread, 8.5mm Center
02

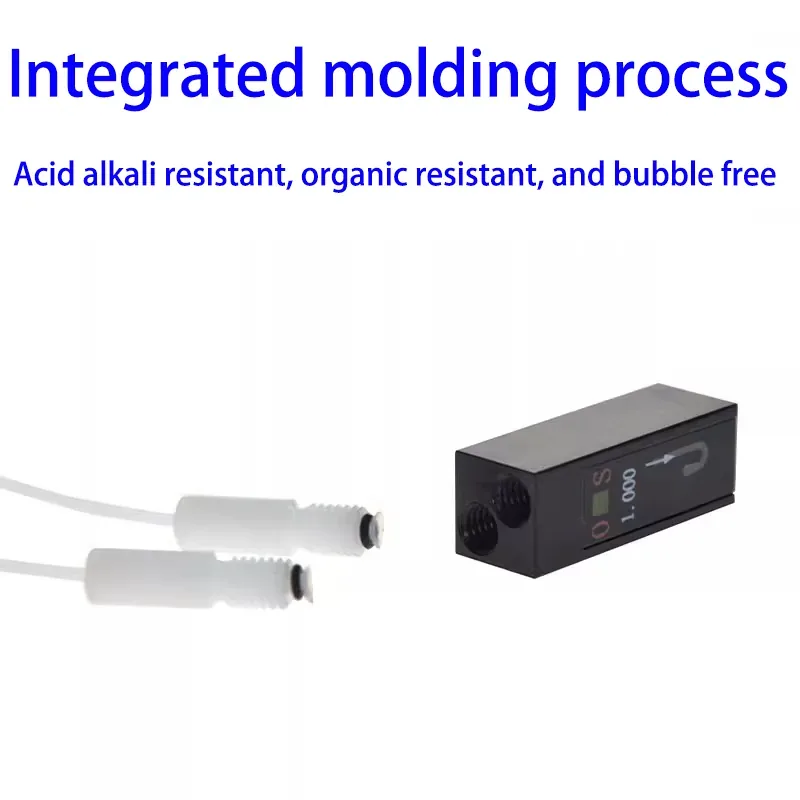

Optical Contact One-Piece Molding — JGS1 Fused Silica

10mm Quartz Micro Flow Cuvette, Two-Way, 18uL, M6 Thread, 8.5mm Center
03

Dual M6 Thread / 8.5mm Center Height

10mm Quartz Micro Flow Cuvette, Two-Way, 18uL, M6 Thread, 8.5mm Center
Brandscuvette
Name10mm quartz micro flow cuvette, two-way, 18uL, M6 thread
Path Length10 mm
Volume18 μL
Aperture1.5 mm
Center Height8.5 mm
ConnectorDual M6 thread, 1.8mm tube
MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (premium)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
ConfigurationTwo-way (flow-through)
PackagingPlastic box (1 pc per box), outer carton (paper box)
