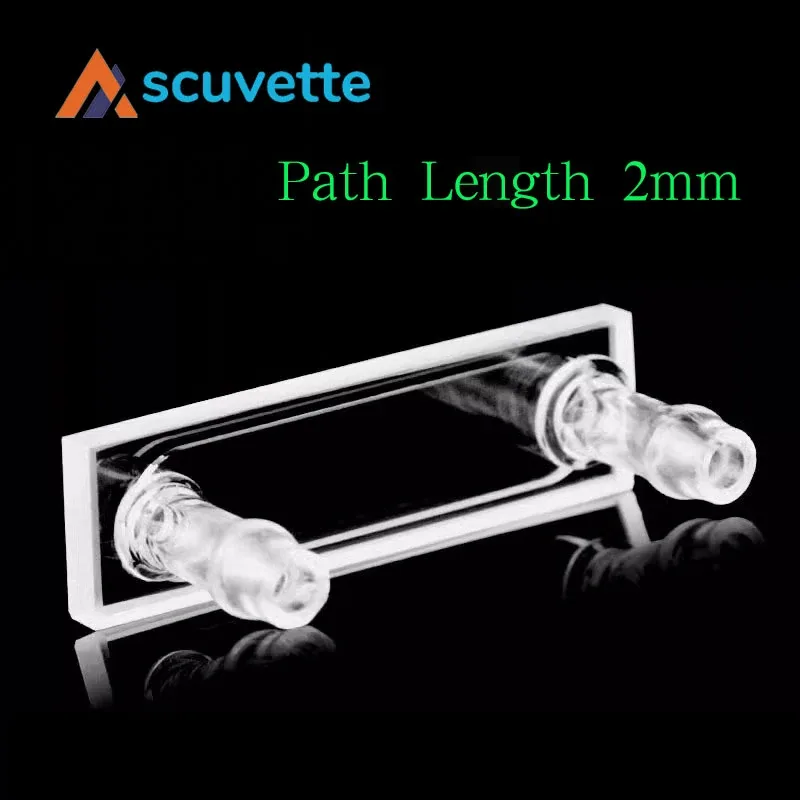

2mm Micro Quartz Flow Cell, Two-Way Light Path, 600µL, Anti-Slip Tube, for UV Spectrophotometer

SKU: qc-flow-2mm-600ul-2w Brand: scuvette In Stock
58 sold
$250.00 / pc
Minimum Order Quantity: 1 pc
Path Length (Channel Depth): 2mm
Volume: 600µL
Tube OD / ID: 5mm / 3mm
Outline Dimension: 45×12.5×4.5mm
Configuration: Two-way light path
Inquiry Now

Brand: scuvette. 2 mm micro quartz flow cell, channel depth 2 mm, two-way light path (two transparent windows), 600µl volume. Japanese imported JGS1 fused silica, optical contact one-piece molding (light-glue integrated), >83% transmittance, 200 nm – 2,500 nm wavelength range, resistant to 1,200°C. Outline dimension 45 × 12.5 × 4.5 mm. Tube outer diameter 5 mm, inner diameter 3 mm, with a 6 mm anti-slip protrusion for secure tubing connections. Ideal for HPLC, FIA and trace UV-Vis analysis of precious samples.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 2 mm micro quartz flow cell, channel depth 2 mm, two-way light path (two transparent windows), 600µl volume. Japanese imported JGS1 fused silica, optical contact one-piece molding (light-glue integrated), >83% transmittance, 200 nm – 2,500 nm wavelength range, resistant to 1,200°C. Outline dimension 45 × 12.5 × 4.5 mm. Tube outer diameter 5 mm, inner diameter 3 mm, with a 6 mm anti-slip protrusion for secure tubing connections. Ideal for HPLC, FIA and trace UV-Vis analysis of precious samples.

01

2 mm Channel Depth / 600µL / Two-Way Light Path

2mm micro flow cell channel depth 600µl two-way light path
02

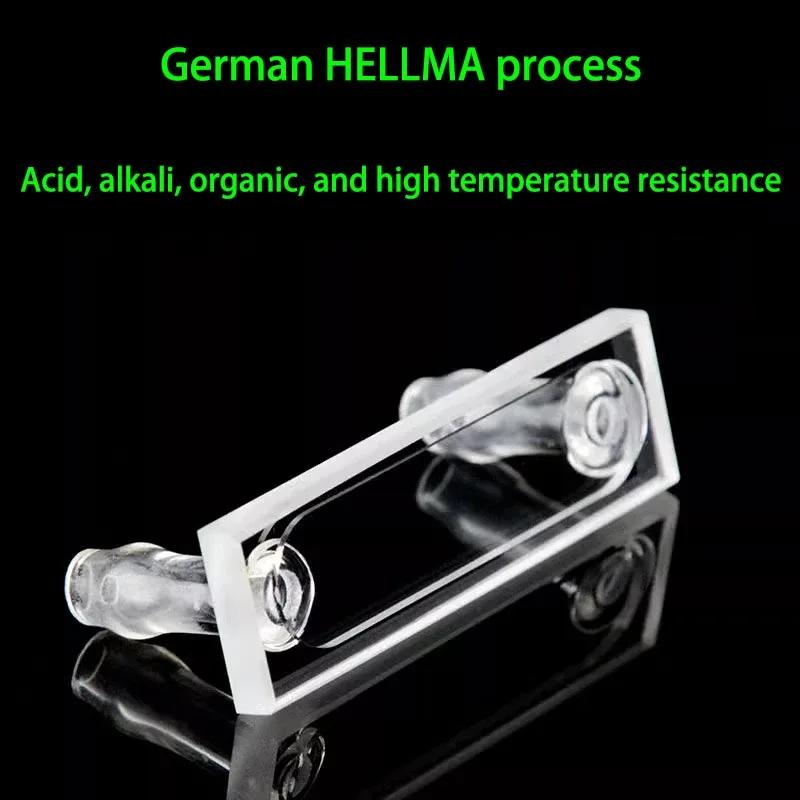

Optical Contact One-Piece Molding (Light-Glue Integrated) — Resistant to 1200°C

Optical contact one-piece molding light-glue integrated 1200C resistant
03

Anti-Slip Tube Design / Ideal for HPLC, FIA & Trace Analysis

Anti-slip tube design flow cell for HPLC FIA trace analysis
Brandscuvette
Name2 mm micro quartz flow cell, two-way light path
Path Length (Channel Depth)2 mm
Volume600 µL
Tube Outer Diameter5 mm
Tube Inner Diameter3 mm
Anti-Slip Protrusion OD6 mm

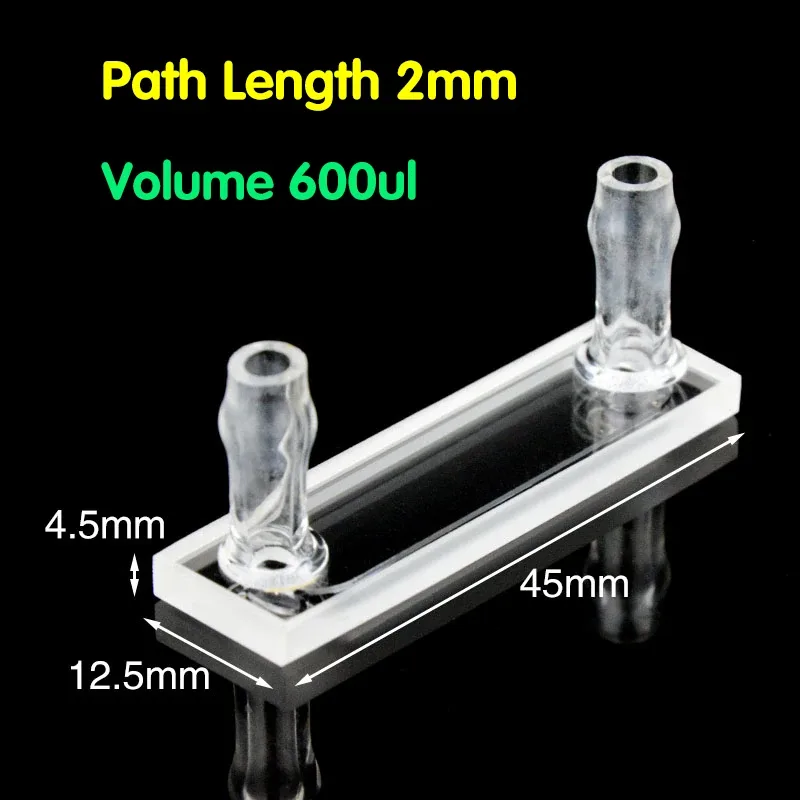

Outline Dimension45 × 12.5 × 4.5 mm

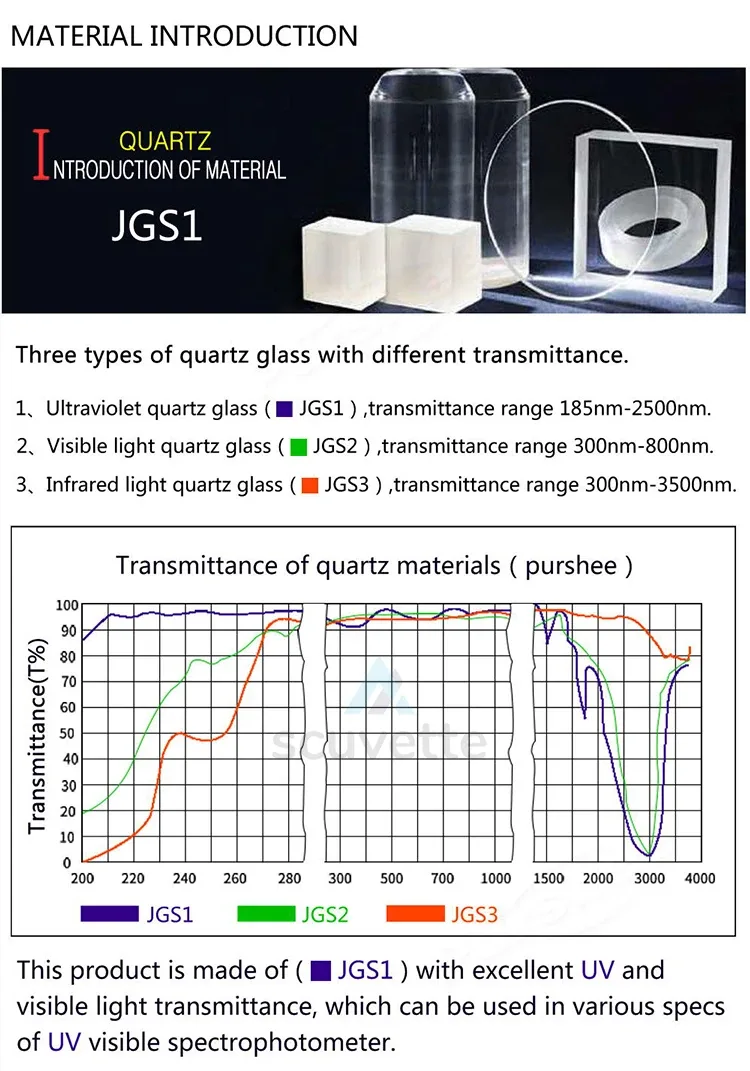

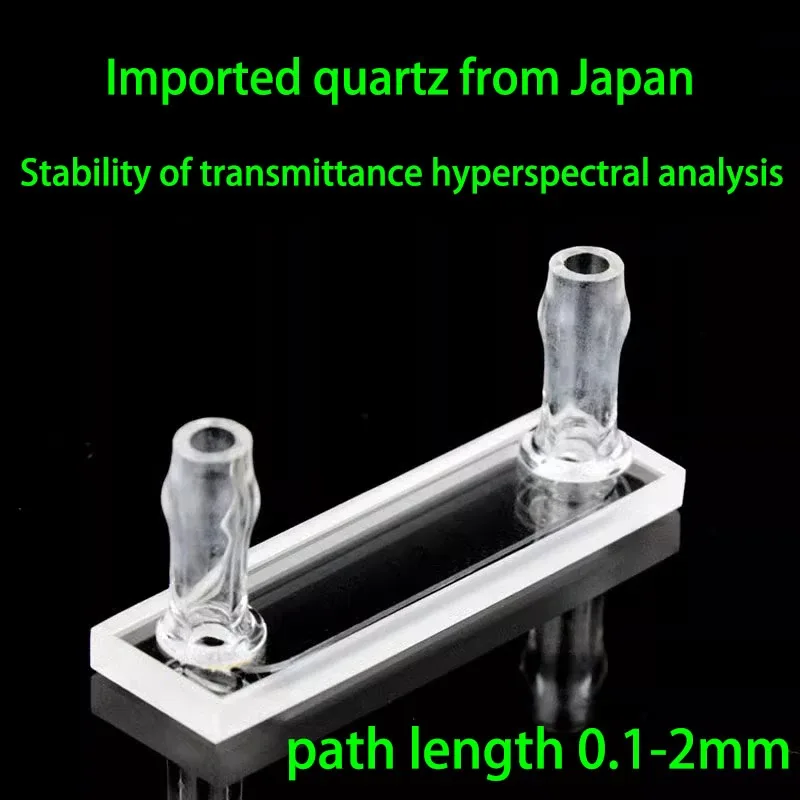

MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (light-glue integrated)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
Max Operating Temp1200 °C
ConfigurationTwo-way light path (two transparent windows)
PackagingPlastic box (1 pc per box), outer carton (paper box)
