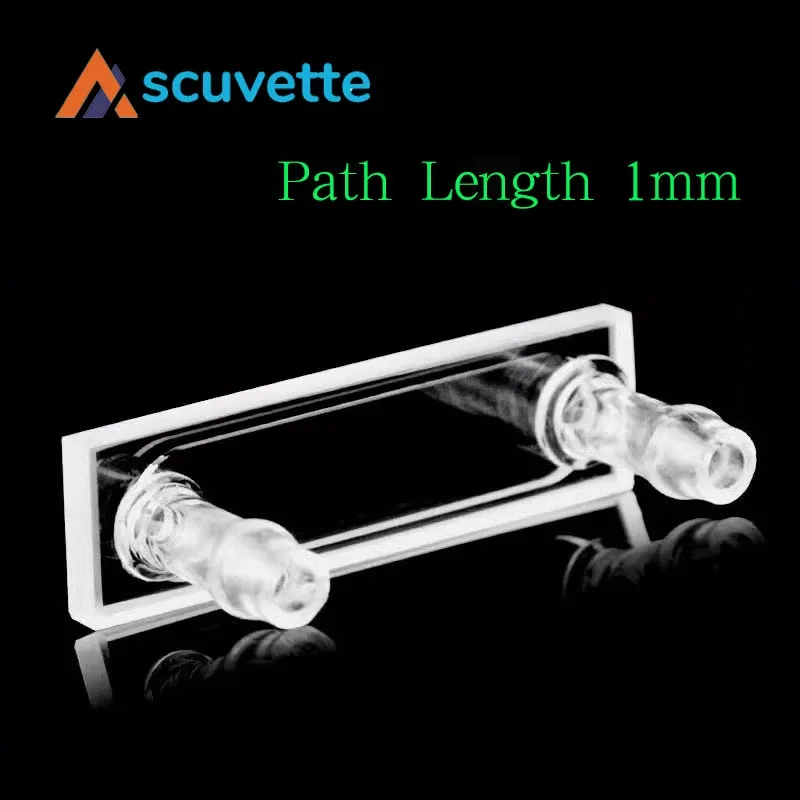

1mm Micro Quartz Flow Cell, Two-Way Light Path, 300µL, Anti-Slip Tube, for UV Spectrophotometer

SKU: qc-flow-1mm-300ul-2w Brand: scuvette In Stock
58 sold
$250.00 / pc
Minimum Order Quantity: 1 pc
Path Length (Channel Depth): 1mm
Volume: 300µL
Tube OD / ID: 5mm / 3mm

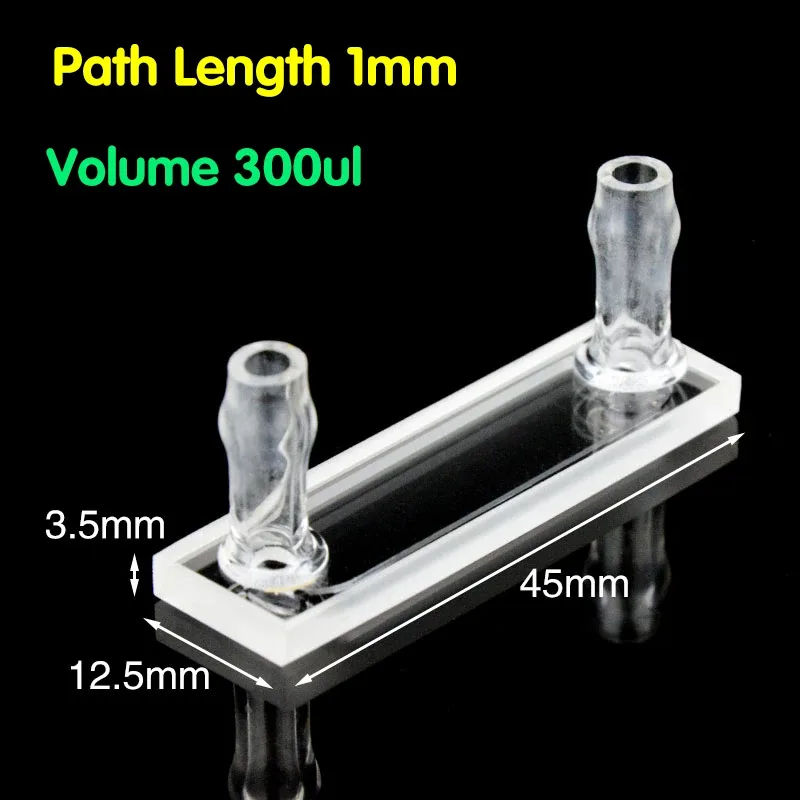

Outline Dimension: 45×12.5×3.5mm
Configuration: Two-way light path
Inquiry Now

Brand: scuvette. 1 mm micro quartz flow cell, channel depth 1 mm, two-way light path (two transparent windows), 300µl volume. Japanese imported JGS1 fused silica, optical contact one-piece molding (light-glue integrated), >83% transmittance, 200 nm – 2,500 nm wavelength range, resistant to 1,200°C. Outline dimension 45 × 12.5 × 3.5 mm. Tube outer diameter 5 mm, inner diameter 3 mm, with a 6 mm anti-slip protrusion for secure tubing connections. Ideal for HPLC, FIA and trace UV-Vis analysis of precious samples.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 1 mm micro quartz flow cell, channel depth 1 mm, two-way light path (two transparent windows), 300µl volume. Japanese imported JGS1 fused silica, optical contact one-piece molding (light-glue integrated), >83% transmittance, 200 nm – 2,500 nm wavelength range, resistant to 1,200°C. Outline dimension 45 × 12.5 × 3.5 mm. Tube outer diameter 5 mm, inner diameter 3 mm, with a 6 mm anti-slip protrusion for secure tubing connections. Ideal for HPLC, FIA and trace UV-Vis analysis of precious samples.

01

1 mm Channel Depth / 300µL / Two-Way Light Path

1mm micro flow cell channel depth 300µl two-way light path
02

Optical Contact One-Piece Molding (Light-Glue Integrated) — Resistant to 1200°C

Optical contact one-piece molding light-glue integrated 1200C resistant
03

Anti-Slip Tube Design / Ideal for HPLC, FIA & Trace Analysis

Anti-slip tube design flow cell for HPLC FIA trace analysis
Brandscuvette
Name1 mm micro quartz flow cell, two-way light path
Path Length (Channel Depth)1 mm
Volume300 µL
Tube Outer Diameter5 mm
Tube Inner Diameter3 mm
Anti-Slip Protrusion OD6 mm
Outline Dimension45 × 12.5 × 3.5 mm

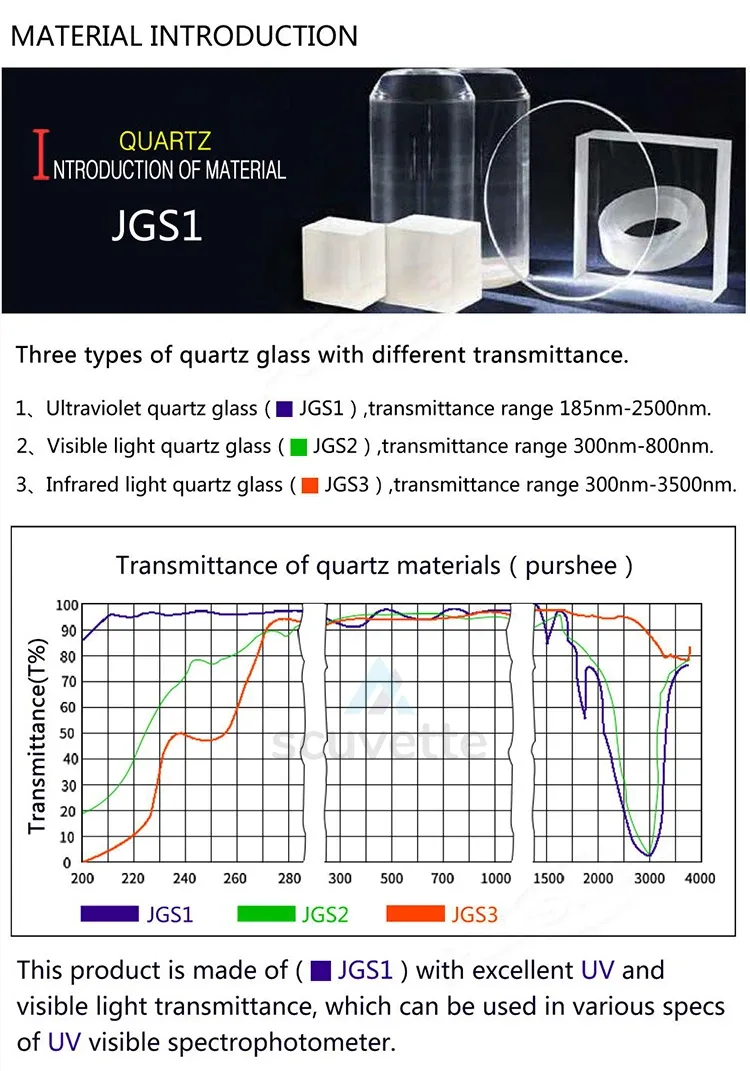

MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (light-glue integrated)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
Max Operating Temp1200 °C
ConfigurationTwo-way light path (two transparent windows)
PackagingPlastic box (1 pc per box), outer carton (paper box)
