Home› Flow cuvette› 10mm Quartz Flow Cuvette, Two Ends Open, 3.5mL, 7mm Tube
10mm Quartz Flow Cuvette Two Ends Open 3.5mL 7mm Tube
Gallery 1 Gallery 2 Gallery 3 Gallery 4 Gallery 5

10mm Quartz Flow Cuvette, Two Ends Open, 3.5mL, 7mm Tube, for UV Spectrophotometer

SKU: qc-flow-10mm-7mm Brand: scuvette In Stock
126 sold
$95.00 $73.00 / pc
Minimum Order Quantity: 1 pc
Path Length: 10mm
Volume: 3.5ml
Tube Diameter: 7mm
Overall Length: 60mm
Configuration: Two ends open (flow-through)
Inquiry Now

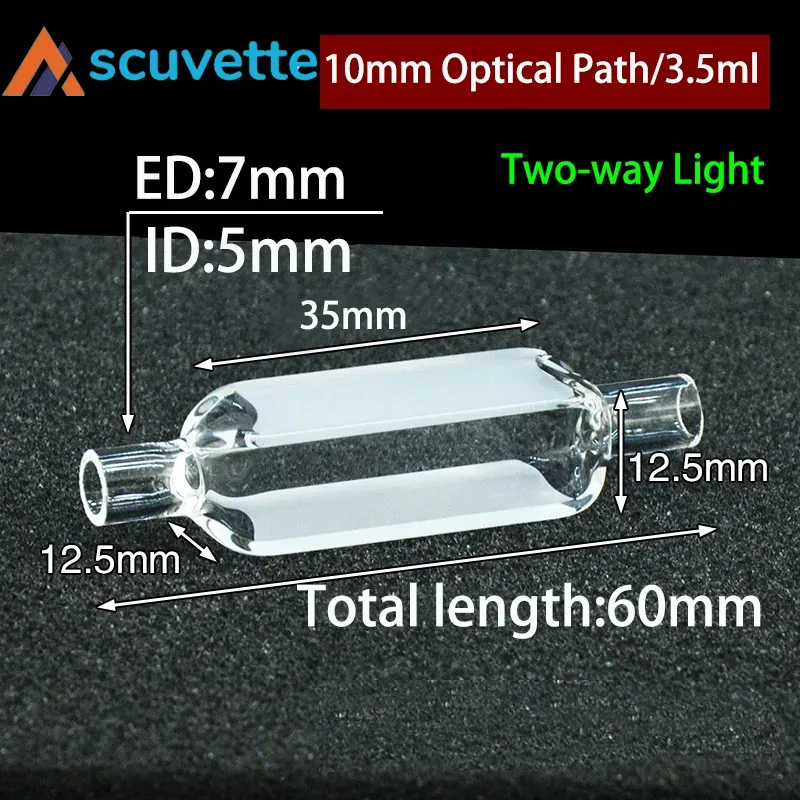

Brand: scuvette. 10mm quartz flow cuvette two ends open 3.5mL 7mm tube. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200nm-2500nm wavelength. Chamber inner dimension 10x10x35mm, overall length 60mm, tube diameter 7mm. Two ends open for continuous flow. Suitable for HPLC, FIA and online UV-Vis monitoring.

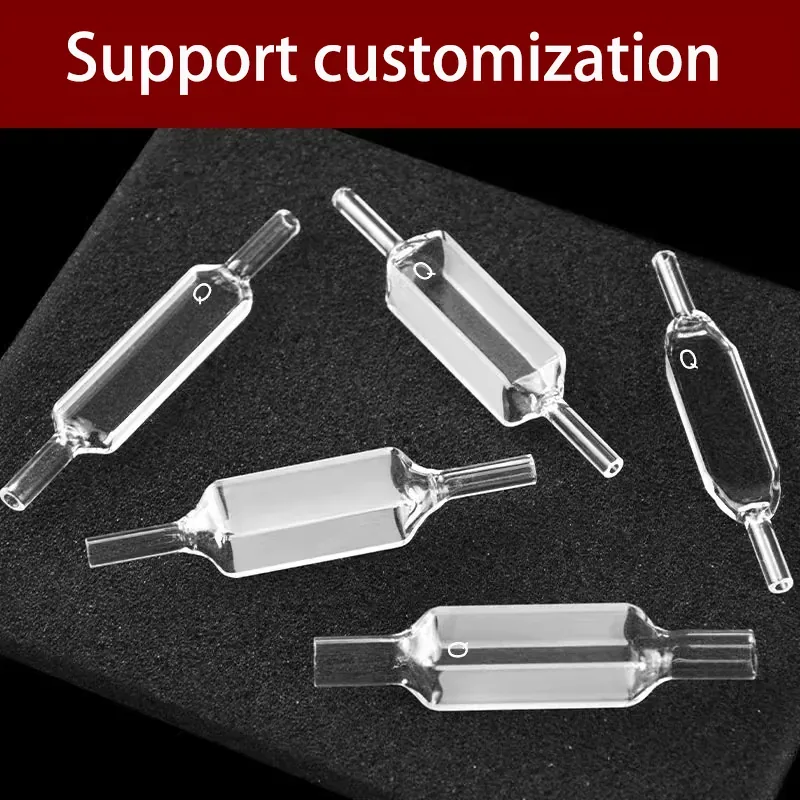

Factory Direct Custom OEM Available Global Shipping
Description Specifications

Brand: scuvette. 10 mm quartz flow cuvette, two ends open (flow-through), 3.5 mL volume, 7 mm tube diameter, 60 mm overall length. Japanese imported JGS1 fused silica, optical contact one-piece molding (premium), >83% transmittance, 200 nm – 2,500 nm wavelength range. Chamber inner dimension 10 × 10 × 35 mm. Both ends open to connect to the sample source via tubing — ideal for HPLC, FIA and continuous online UV-Vis monitoring.

01

10 mm Path Length / 3.5 mL / Two Ends Open

10mm flow cuvette two ends open 3.5mL
02

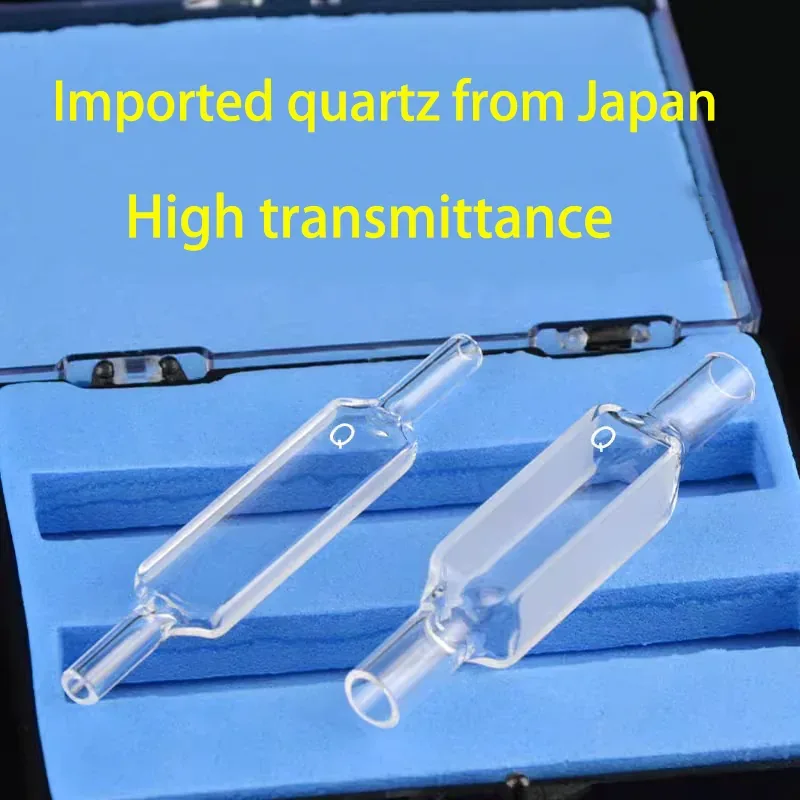

Optical Contact One-Piece Molding — JGS1 Fused Silica

Optical contact one-piece molding JGS1 material
03

Ideal for HPLC / FIA / Online Monitoring

Flow cuvette for HPLC FIA online monitoring
Brandscuvette
Name10 mm quartz flow cuvette, two ends open
Path Length10 mm
Volume3.5 mL
Tube Diameter7 mm
Overall Length60 mm
Chamber Inner Dimension10 × 10 × 35 mm
MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (premium)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
ConfigurationTwo ends open (flow-through)
PackagingPlastic box (1 pc per box), outer carton (paper box)
