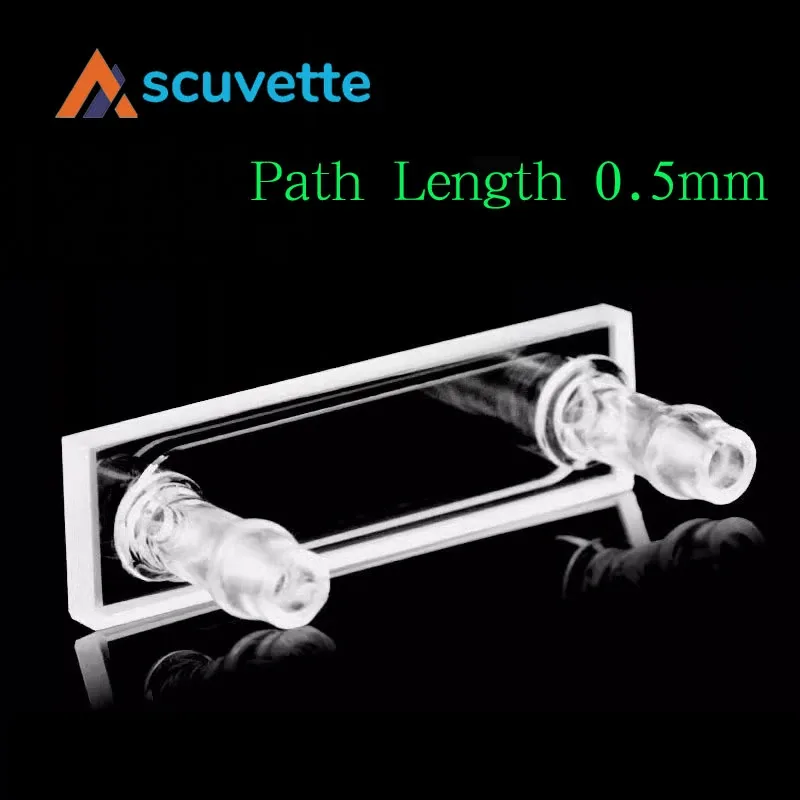

0.5mm Micro Quartz Flow Cell, Two-Way Light Path, 150µL, Anti-Slip Tube, for UV Spectrophotometer

SKU: qc-flow-0p5mm-150ul-2w Brand: scuvette In Stock
58 sold
$280.00 / pc
Minimum Order Quantity: 1 pc
Path Length (Channel Depth): 0.5mm
Volume: 150µL
Tube OD / ID: 5mm / 3mm
Outline Dimension: 45×12.5×3.0mm
Configuration: Two-way light path
Inquiry Now

Brand: scuvette. 0.5 mm micro quartz flow cell, channel depth 0.5 mm, two-way light path (two transparent windows), 150µl volume. Japanese imported JGS1 fused silica, optical contact one-piece molding (light-glue integrated), >83% transmittance, 200 nm – 2,500 nm wavelength range, resistant to 1,200°C. Outline dimension 45 × 12.5 × 3.0 mm. Tube outer diameter 5 mm, inner diameter 3 mm, with a 6 mm anti-slip protrusion for secure tubing connections. Ideal for HPLC, FIA and trace UV-Vis analysis of precious samples.

Factory Direct Custom OEM Available Global Shipping

Brand: scuvette. 0.5 mm micro quartz flow cell, channel depth 0.5 mm, two-way light path (two transparent windows), 150µl volume. Japanese imported JGS1 fused silica, optical contact one-piece molding (light-glue integrated), >83% transmittance, 200 nm – 2,500 nm wavelength range, resistant to 1,200°C. Outline dimension 45 × 12.5 × 3.0 mm. Tube outer diameter 5 mm, inner diameter 3 mm, with a 6 mm anti-slip protrusion for secure tubing connections. Ideal for HPLC, FIA and trace UV-Vis analysis of precious samples.

01

0.5 mm Channel Depth / 150µL / Two-Way Light Path

0.5mm micro flow cell channel depth 150µl two-way light path
02

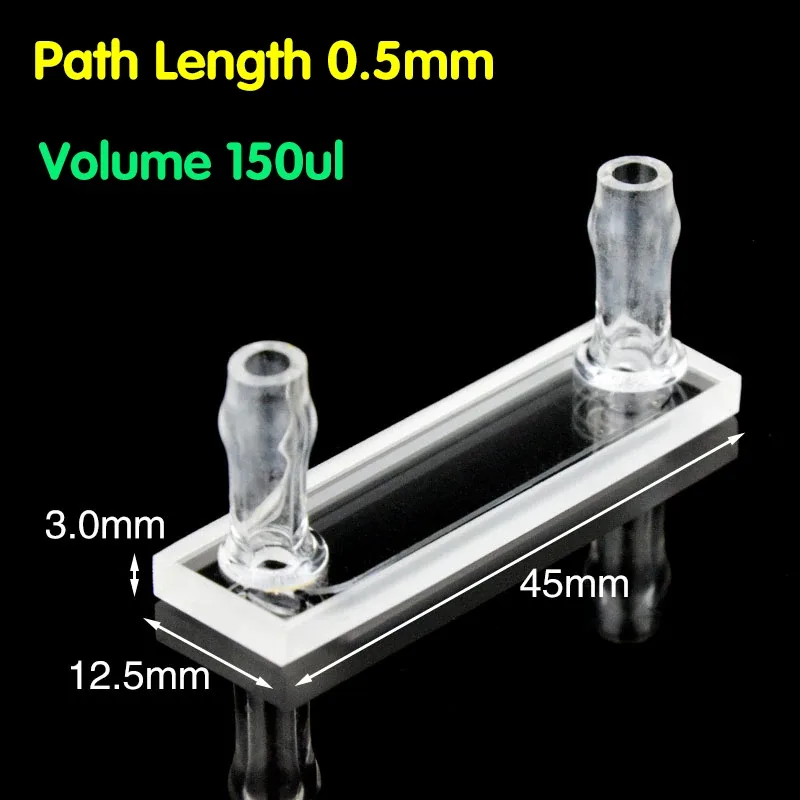

Optical Contact One-Piece Molding (Light-Glue Integrated) — Resistant to 1200°C

Optical contact one-piece molding light-glue integrated 1200C resistant
03

Anti-Slip Tube Design / Ideal for HPLC, FIA & Trace Analysis

Anti-slip tube design flow cell for HPLC FIA trace analysis
Brandscuvette
Name0.5 mm micro quartz flow cell, two-way light path
Path Length (Channel Depth)0.5 mm
Volume150 µL
Tube Outer Diameter5 mm
Tube Inner Diameter3 mm
Anti-Slip Protrusion OD6 mm
Outline Dimension45 × 12.5 × 3.0 mm
MaterialJapanese imported JGS1 fused silica
TechnologyOptical contact one-piece molding (light-glue integrated)
Transmittance>83%
Wavelength Range200 nm – 2,500 nm
Max Operating Temp1200 °C
ConfigurationTwo-way light path (two transparent windows)
PackagingPlastic box (1 pc per box), outer carton (paper box)
