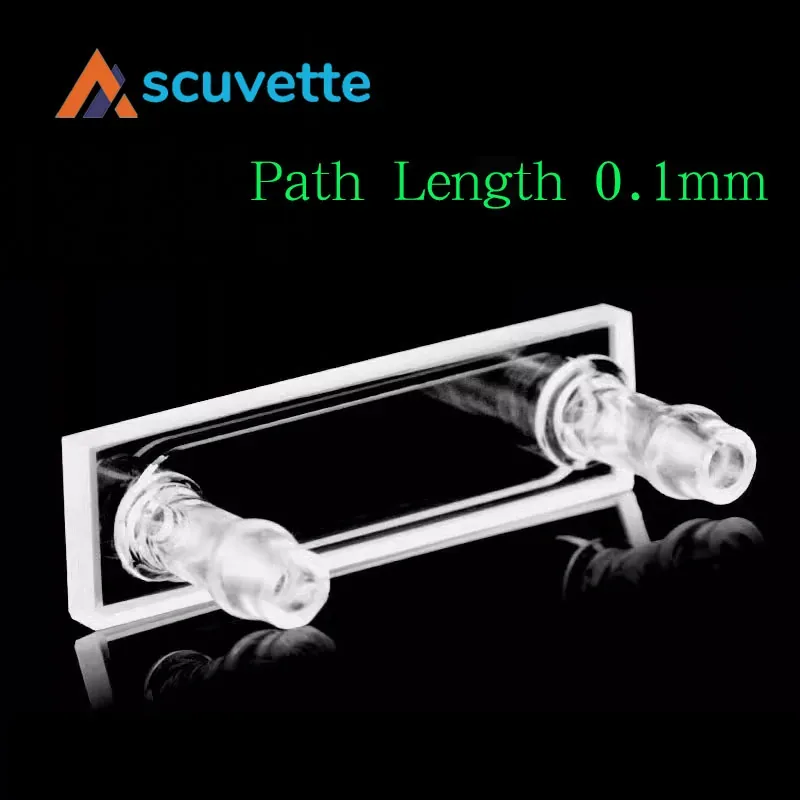

0.1mm Micro Quartz Flow Cell, Two-Way Light Path, 30µL, Anti-Slip Tube, for UV Spectrophotometer

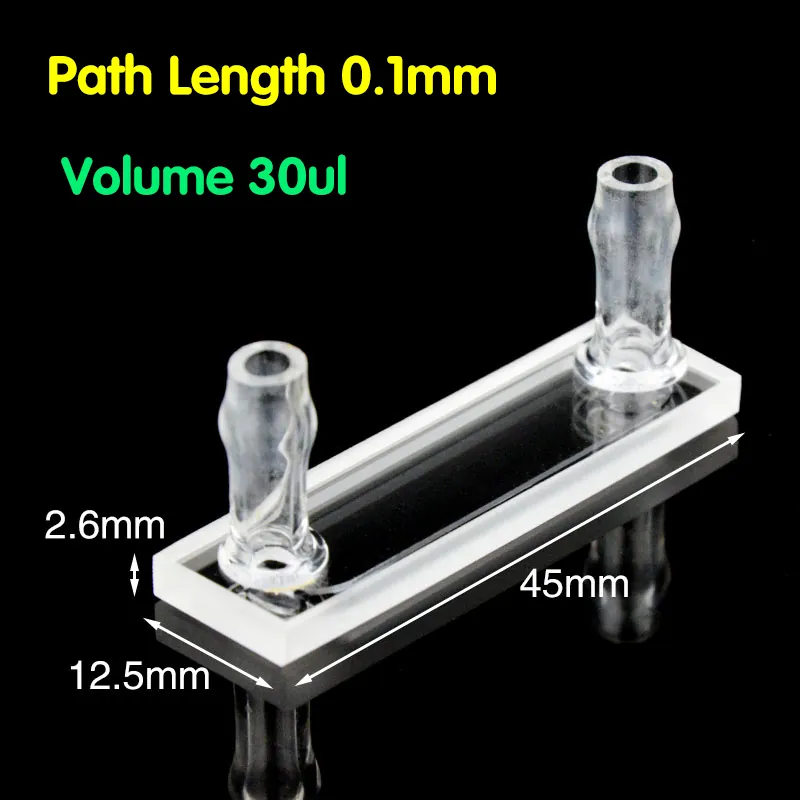

Brand: scuvette. 0.1 mm micro quartz flow cell, channel depth 0.1 mm, two-way light path (two transparent windows), 30 µL volume. Japanese imported JGS1 fused silica, optical contact one-piece molding (light-glue integrated), >83% transmittance, 200 nm – 2,500 nm wavelength range, resistant to 1,200 °C. Outline dimension 45 × 12.5 × 2.6 mm. Tube outer diameter 5 mm, inner diameter 3 mm, with a 6 mm anti-slip protrusion for secure tubing connections. Ideal for HPLC, FIA and trace UV-Vis analysis of precious samples.

01

0.1 mm Channel Depth / 30 µL / Two-Way Light Path

02

Optical Contact One-Piece Molding (Light-Glue Integrated) — Resistant to 1200°C

03

Anti-Slip Tube Design / Ideal for HPLC, FIA & Trace Analysis
