50mm Quartz Cubic Cuvette 4-Port with Quartz Lid 106mL 54x54x55mm
50mm Quartz Cubic Cuvette 4-Port with Quartz Lid 106mL 54x54x55mm 1 50mm Quartz Cubic Cuvette 4-Port with Quartz Lid 106mL 54x54x55mm 2 50mm Quartz Cubic Cuvette 4-Port with Quartz Lid 106mL 54x54x55mm 3 50mm Quartz Cubic Cuvette 4-Port with Quartz Lid 106mL 54x54x55mm 4

50mm Quartz Cubic Cuvette 4-Port with Quartz Lid 106mL 54x54x55mm

SKU: qc-cubic-50mm-4w-lid-ht Brand: scuvette In Stock
0 sold
$180.00 / pc
Minimum Order Quantity: 1
Path Length: 50mm
Light Path: 4-way
Lid: Quartz lid
Volume: 106 mL
Outer Dimension: 54x54x55mm
Inner Dimension: 50x50x53mm
Wall Thickness: 2mm

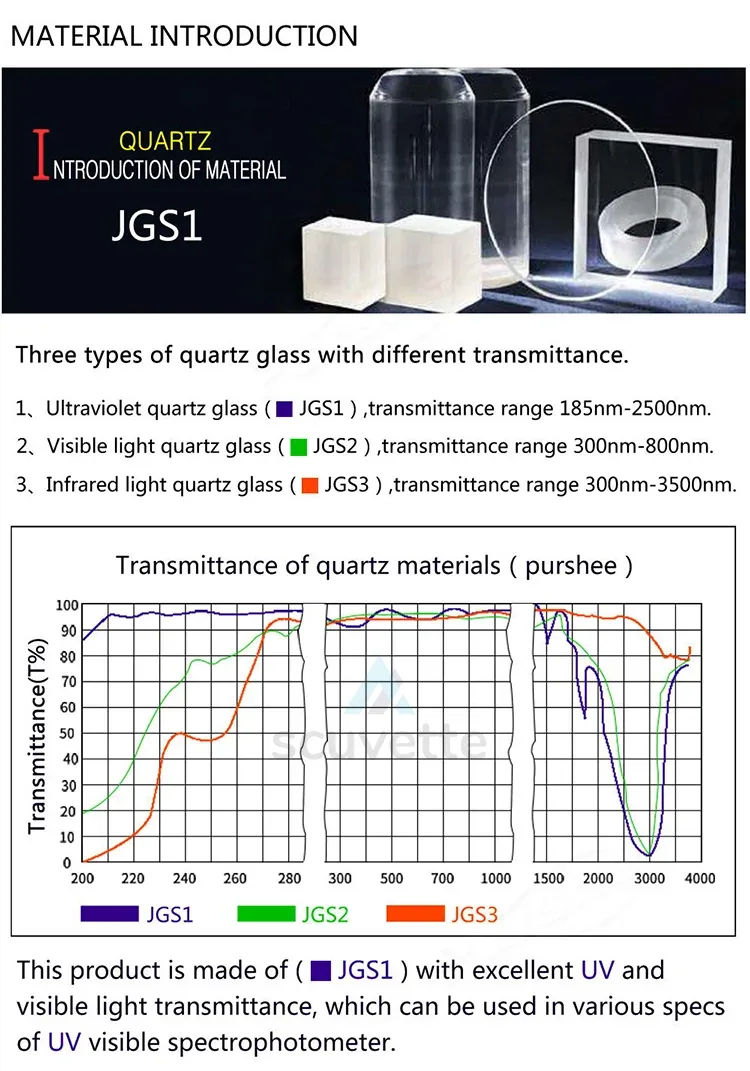

Material: Japanese imported JGS1 fused silica

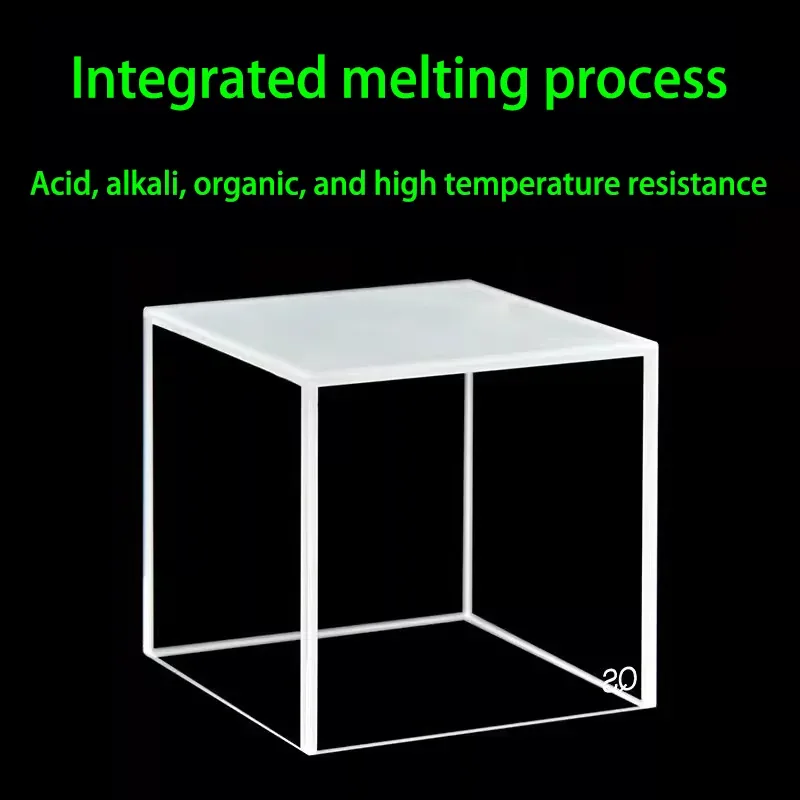

Process: Fused one-piece molding
Transmittance: ＞83%
Wavelength: 200nm-2500nm
Max Operating Temp: 600℃
Inquiry Now

50mm Quartz Cubic Cuvette 4-Port with Quartz Lid 106mL 54x54x55mm. 50mm optical path cubic quartz cuvette, 4-way light path, 106 mL volume. Japanese imported JGS1 fused silica, ＞83% transmittance, 200nm-2500nm. For UV-Vis spectrophotometry.

Factory Direct Custom OEM Available Global Shipping
Description Specifications

10 mm optical path quartz tube cuvette, 2-way light path, 95 mm total length, 8 mm tube OD, 3.5 mL volume. Japanese JGS1 fused silica, ＞83% transmittance, 200-2500nm. For UV-Vis spectrophotometry.

02

50mm Quartz Cubic Cuvette Configurations

Ten configurations in the 50 mm quartz cubic cuvette family: two-way, four-way and five-way light paths, with or without quartz lid, in 25 mm or 55 mm body heights. All share a 50 mm path length, Japanese JGS1 fused silica, >83% transmittance and a 200–2500 nm wavelength range. Two-way cells are offered in High Transmittance and High Precision grades.

Configuration Price
50mm 2-Port Open Top 106mL $90.00 / $125.00 View →
50mm 2-Port Quartz Lid 106mL $118.00 / $151.00 View →
50mm 4-Port Open Top 106mL $150.00 View →
50mm 4-Port Quartz Lid 106mL $180.00 This page
50mm 5-Port Open Top 106mL $180.00 View →
50mm 5-Port Quartz Lid 106mL $208.00 View →
50mm 4-Port Open Top 46mL 25mm Height $143.00 View →
50mm 4-Port Quartz Lid 46mL 25mm Height $168.00 View →
50mm 5-Port Open Top 46mL 25mm Height $172.00 View →
50mm 5-Port Quartz Lid 46mL 25mm Height $200.00 View →
01

Product Overview

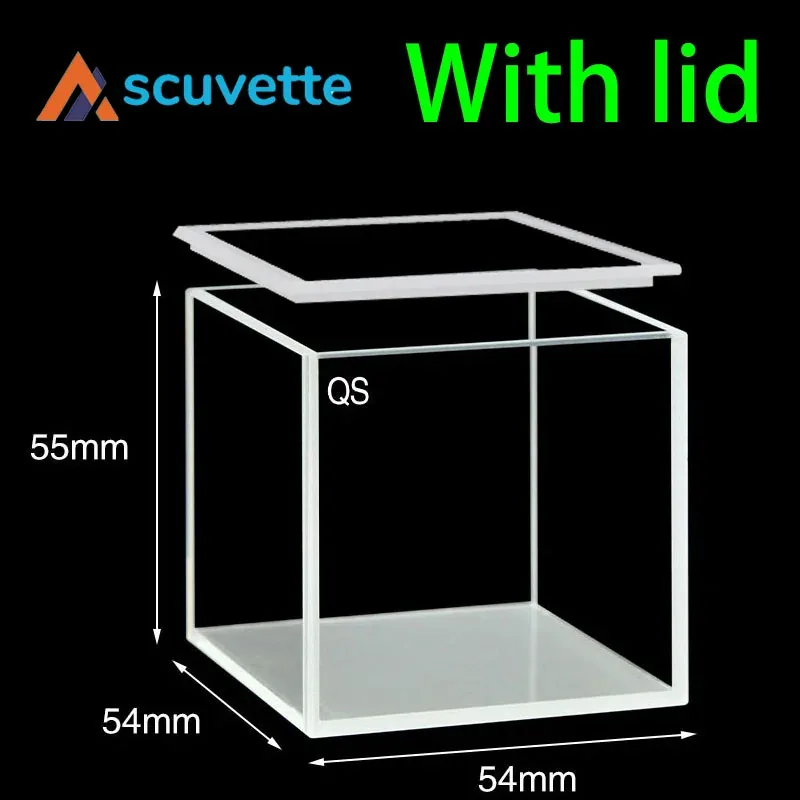

50mm Quartz Cubic Cuvette 4-Port with Quartz Lid 106mL 54x54x55mm
02

Technical Drawing

50mm Quartz Cubic Cuvette 4-Port with Quartz Lid 106mL 54x54x55mm technical drawing
03

Dimensions & Parameters

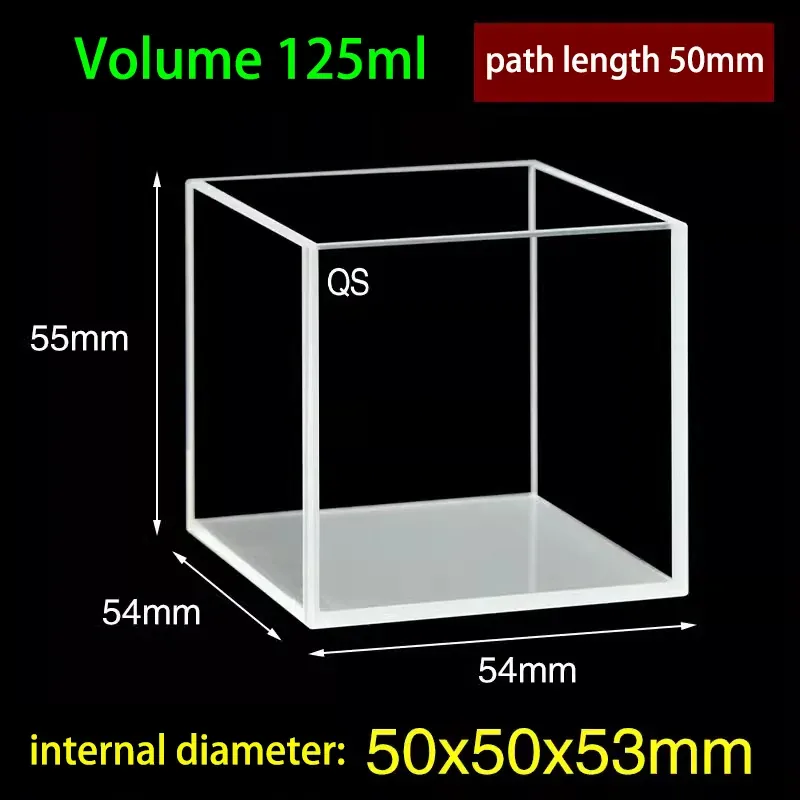

50mm Quartz Cubic Cuvette 4-Port with Quartz Lid 106mL 54x54x55mm dimensions
SpecificationValue
Path Length50mm
Light Path4-way
Lid TypeQuartz lid
Lid MaterialQuartz
Volume106 mL
Outer Dimension54x54x55mm
Inner Dimension50x50x53mm
Wall Thickness2mm
MaterialJapanese imported JGS1 fused silica
ProcessFused one-piece molding
Transmittance＞83%
Wavelength200nm-2500nm
Max Operating Temp600℃
MarkingQS
Brandscuvette
Packing1 pc per box
