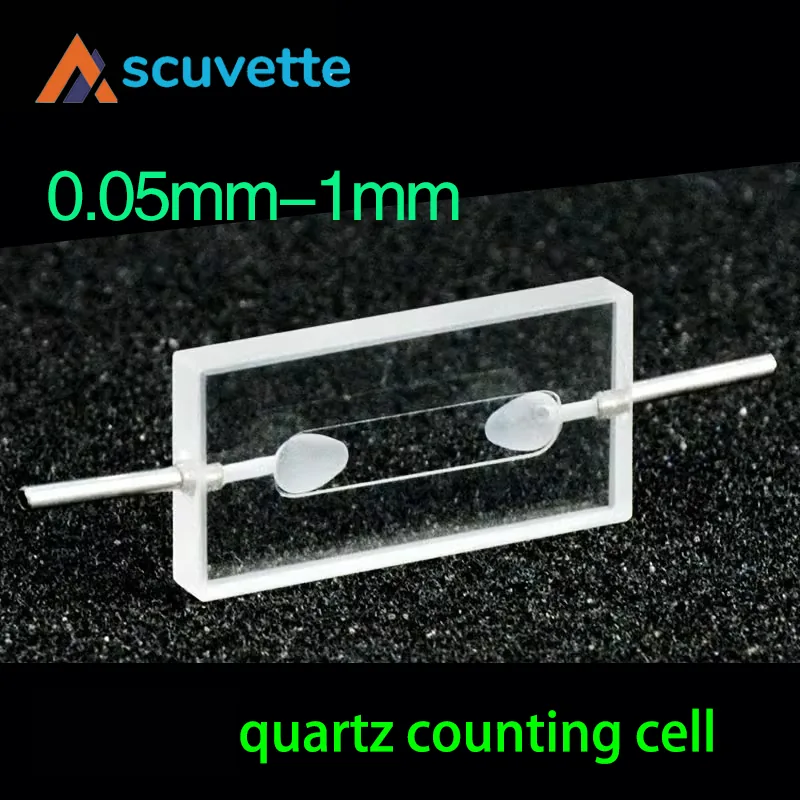

0.05–1mm Quartz Counting Cell, JGS1 Fused Silica, for UV Spectrophotometer

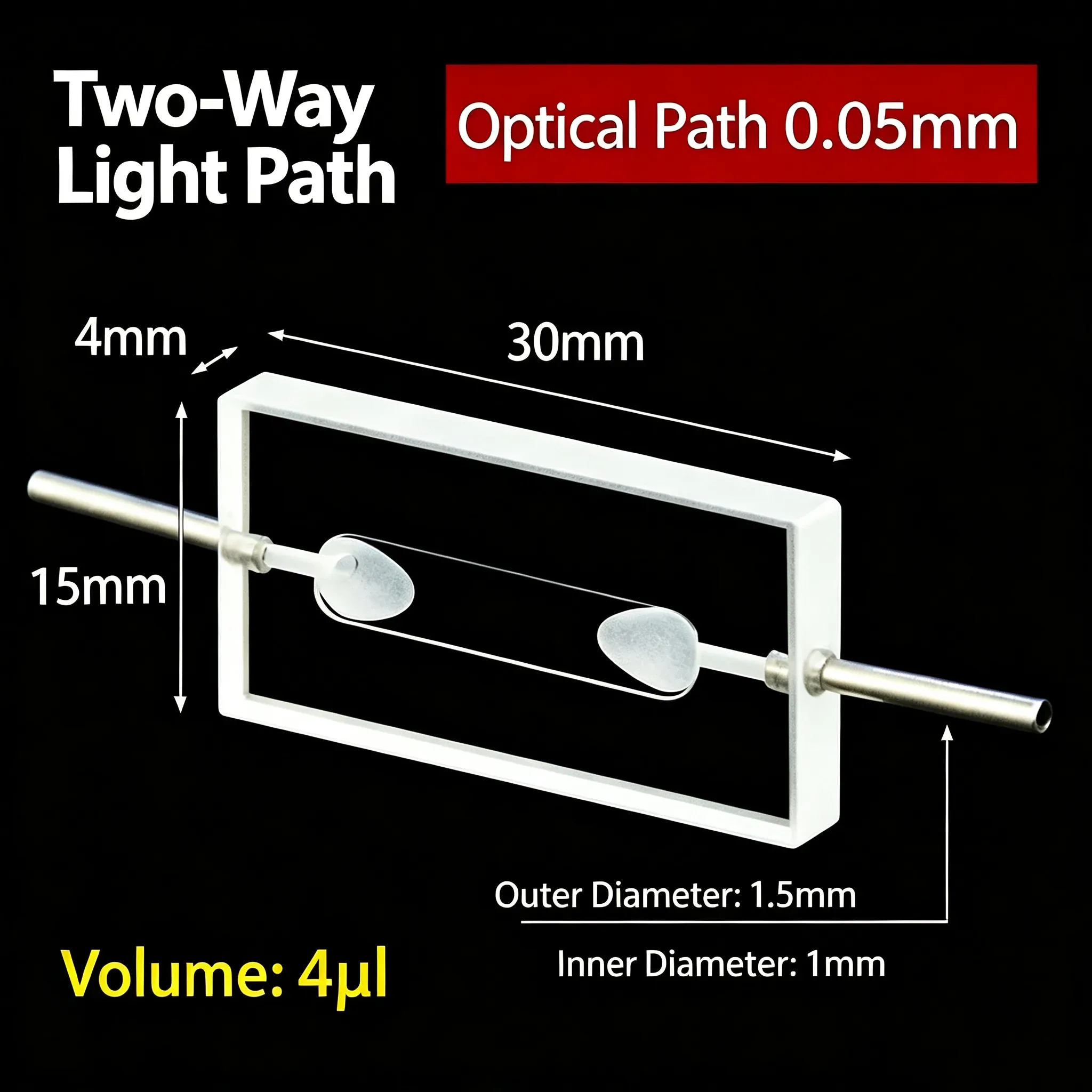

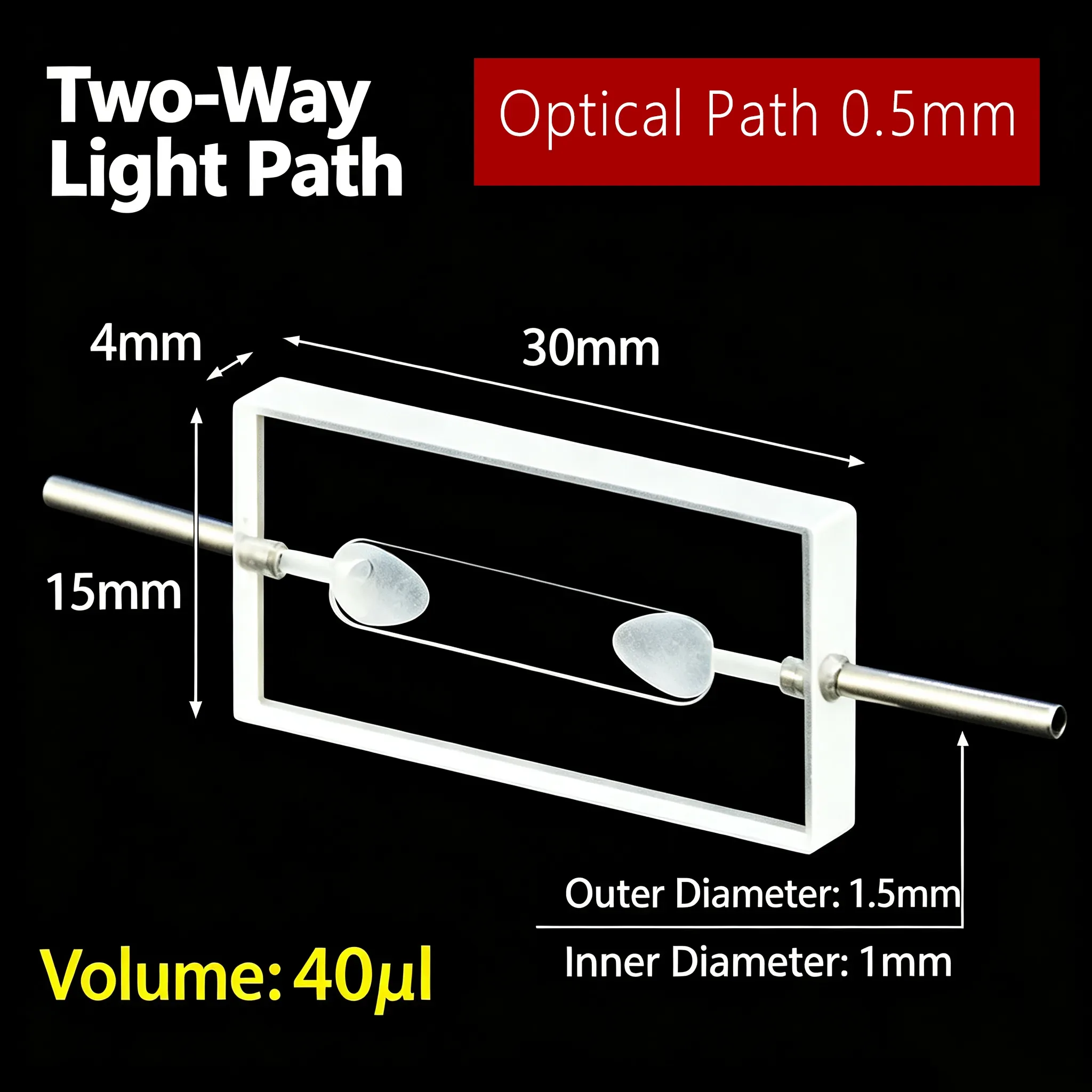

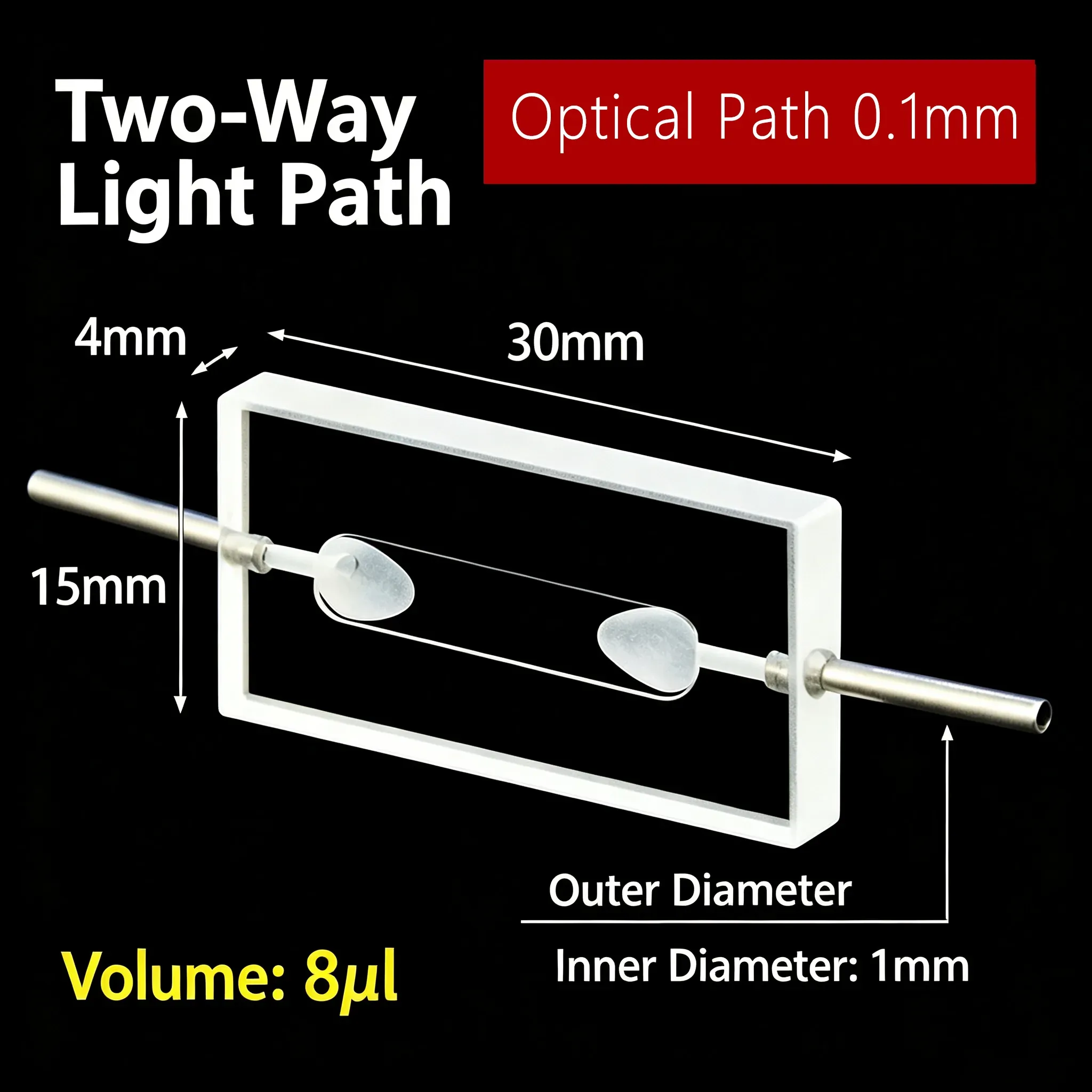

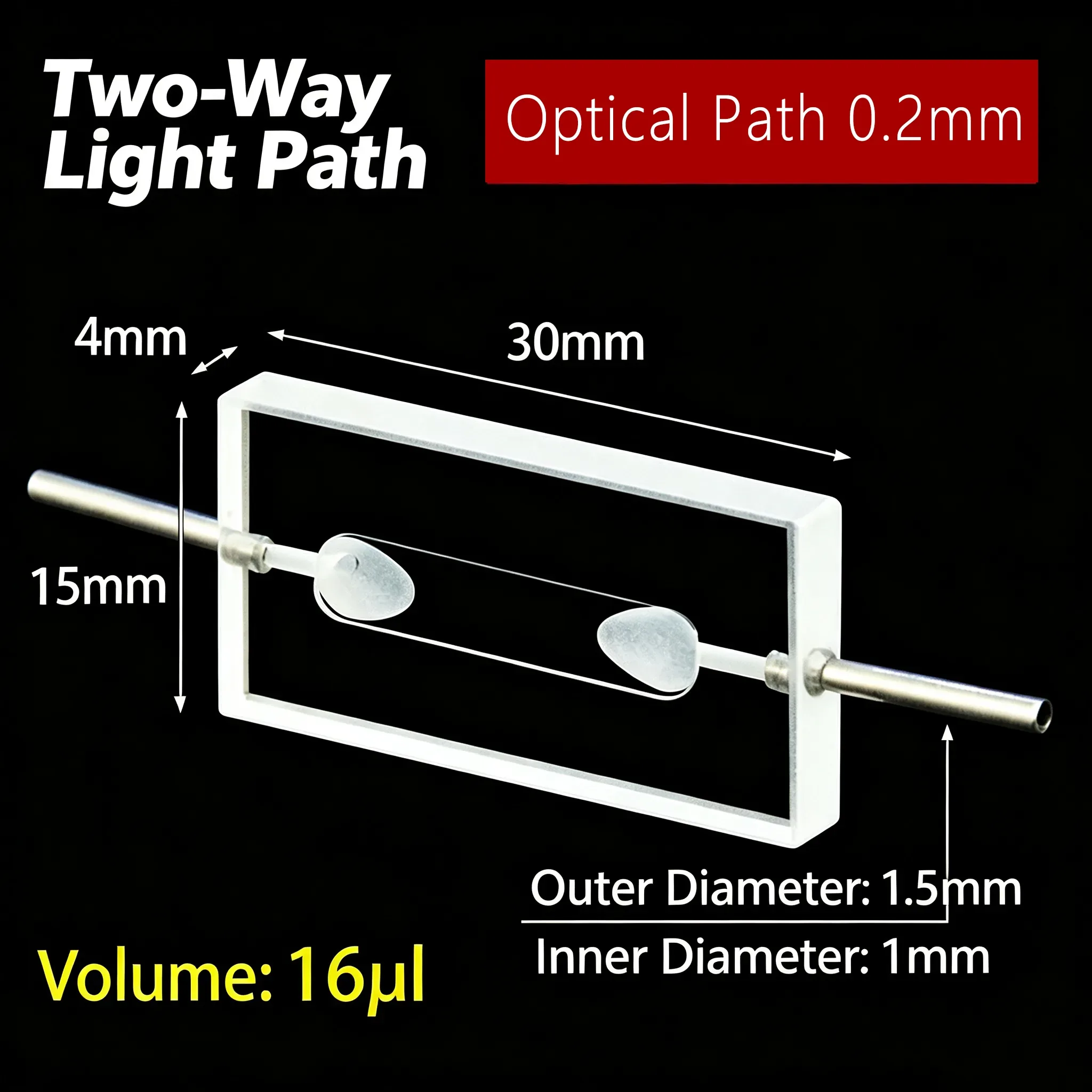

Brand: scuvette. Quartz counting cell with ultra-short path length from 0.05 mm to 1 mm, glue bonding process, 4–80 µL volume. Japanese imported JGS1 fused silica, >83% transmittance, 200nm–2500nm wavelength, two opposite sides clear. Available in six specifications: 0.05 mm (4 µL), 0.1 mm (8 µL), 0.2 mm monolithic (16 µL), 0.2 mm demountable (16 µL, 1 mm cover plate), 0.5 mm (40 µL) and 1 mm (80 µL). Designed for extremely high-concentration samples and micro-volume spectrophotometric measurements where a standard 10 mm cell would saturate.

01

CAS Certification

02

0.05–1 mm Ultra-Short Path · 4–80 µL Micro Volume

03

JGS1 Fused Silica — 200–2500 nm Full UV-Vis Transmission

04

Glue Bonding Process · Monolithic & Demountable Options

05

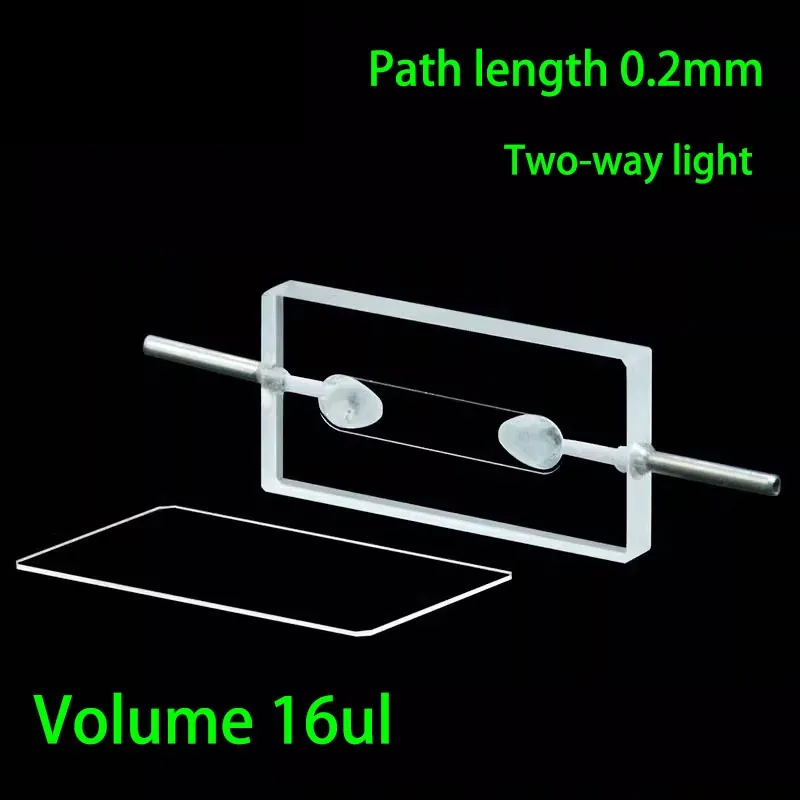

Two Opposite Sides Clear — for UV Spectrophotometer

06

0.2 mm Demountable Design — Easy Chamber Cleaning

07

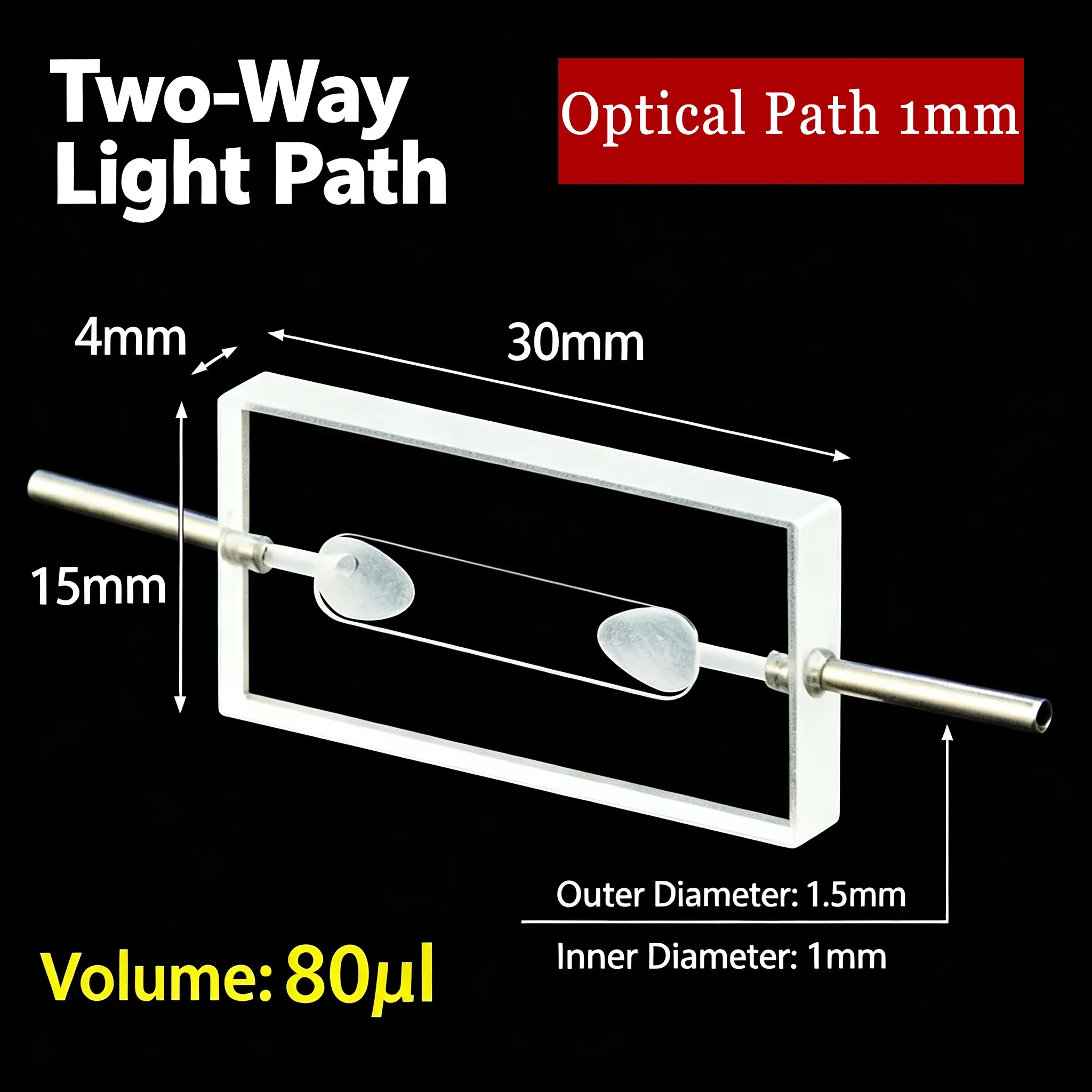

Ideal for High-Concentration / Strongly Absorbing Samples

08

Material Introduction — JGS1 Spectrum
