Home› Cuvettes› Quartz Micro Cuvettes› Demountable Quartz Cuvette — Glue Bonded

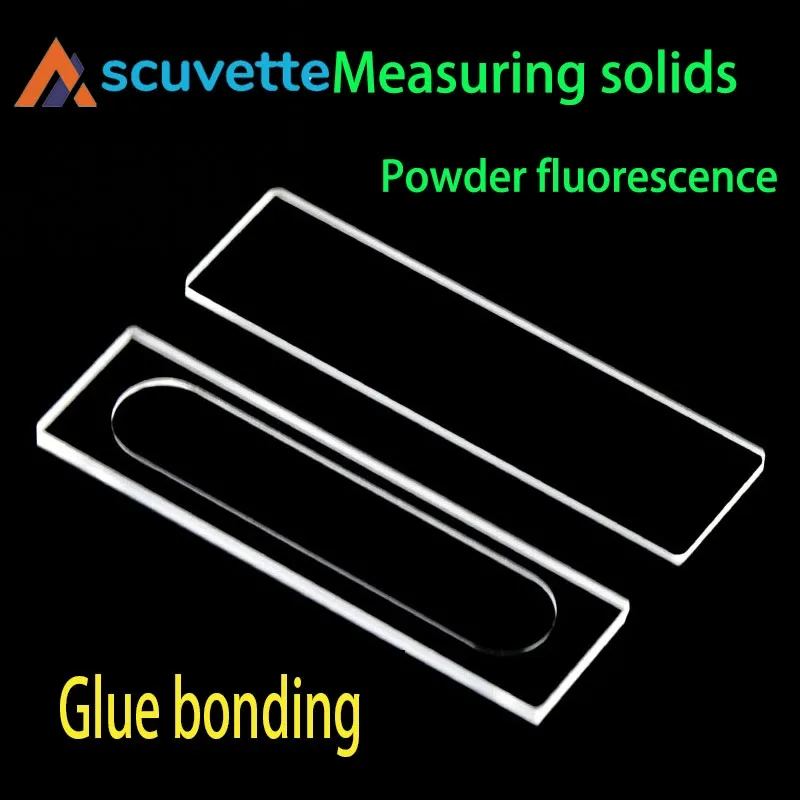

Demountable quartz cuvette glue bonded — Scuvette

Demountable Quartz Cuvette — Glue Bonded

Demountable quartz cuvette with adhesive-bonded construction, 0.1–2 mm optical path, 30–600 µL. Japanese JGS1 fused silica body and cover glass, optional black anodized aluminum holder. Designed for powder fluorescence and solid-sample measurements on Edinburgh / Hitachi fluorescence spectrophotometers. Neutral samples only.

JGS1 fused silica 0.1–2 mm path 30–600 µL 200–2500 nm Powder fluorescence < 100 °C 45 × 12.5 mm footprint
$10.00 – $190.00 / pc

Single-piece price. Volume discounts available — contact us.

Factory Direct RoHS & ISO 9001 99.99% SiO₂ CAS Letter of Thanks Global Shipping

Choose Optical Path & Configuration

Each path length ships as a demountable cell with quartz cover glass. Add the aluminum holder to keep the cell upright in the instrument.

0.1 mm30 µL
0.2 mm60 µL
0.5 mm150 µL
1 mm300 µL
2 mm600 µL
With Cover Glass

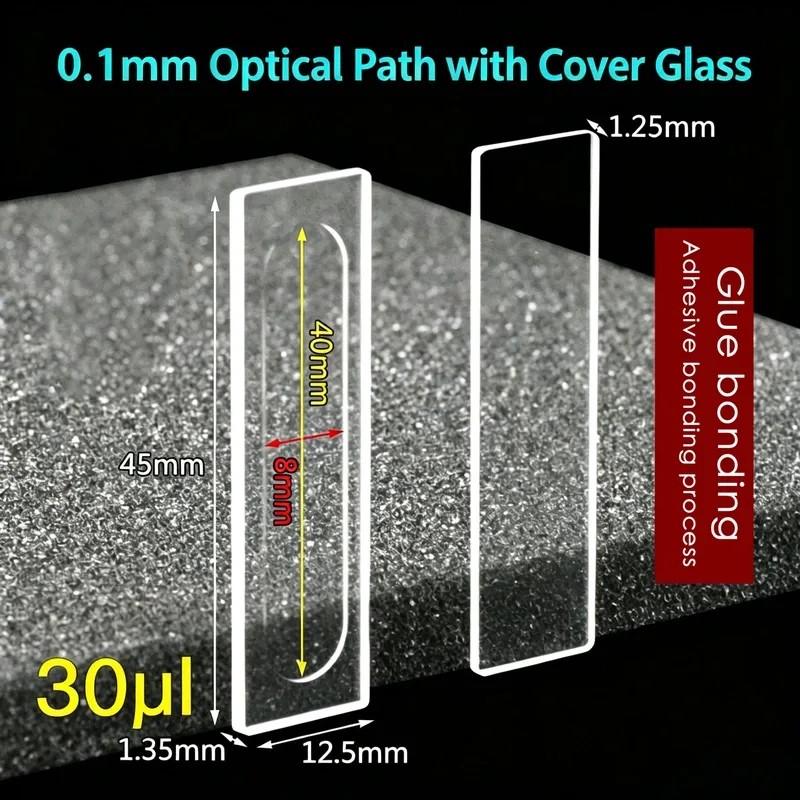

0.1 mm path demountable quartz cuvette With Cover Glass 30 µL — Scuvette
0.1 mm path · 30 µL
With Cover Glass
$125 / pc

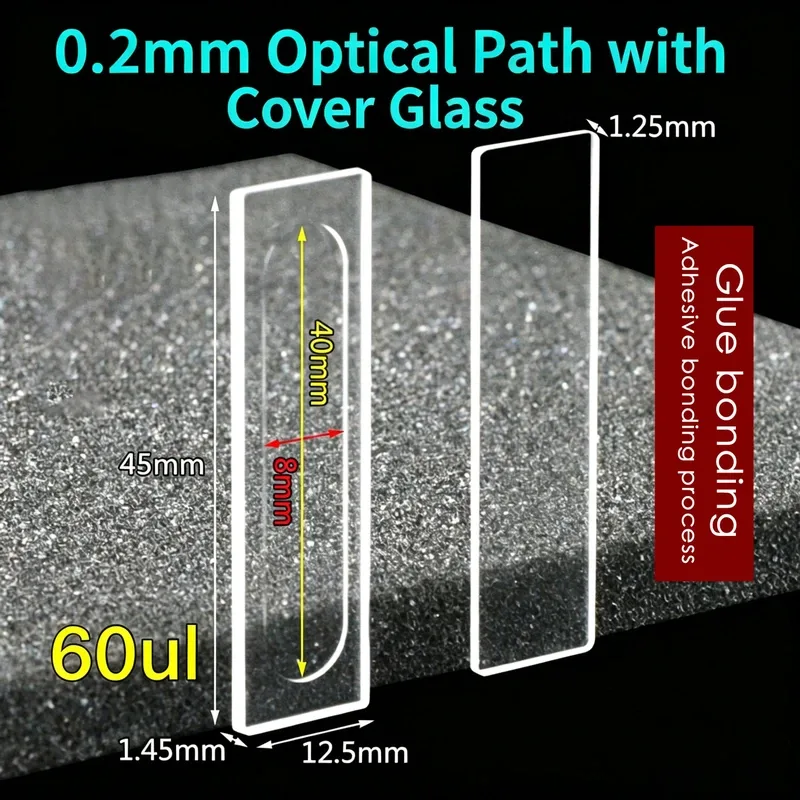

0.2 mm path demountable quartz cuvette With Cover Glass 60 µL — Scuvette
0.2 mm path · 60 µL
With Cover Glass
$115 / pc

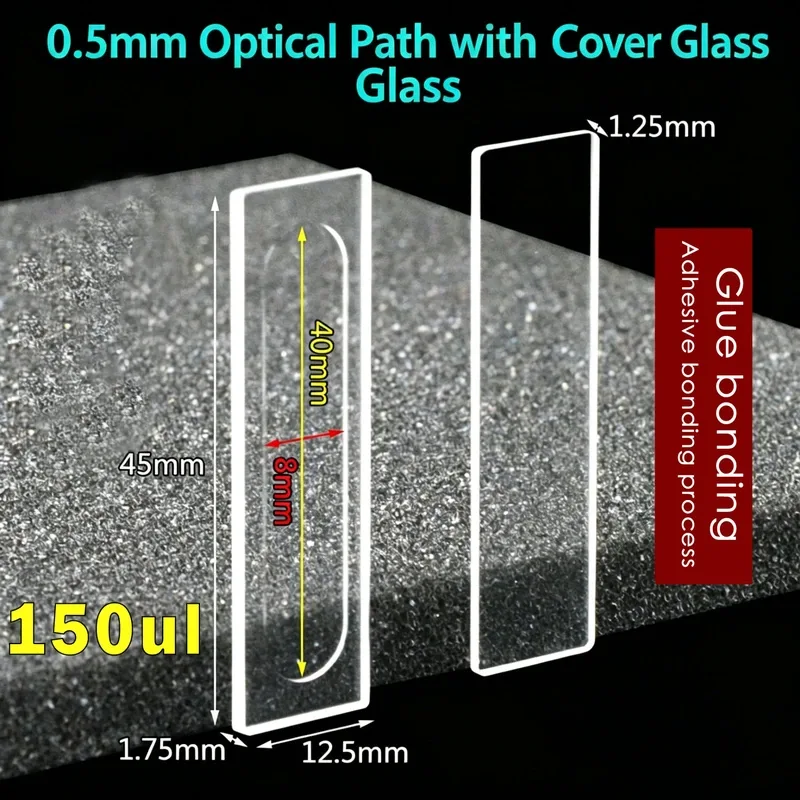

0.5 mm path demountable quartz cuvette With Cover Glass 150 µL — Scuvette
0.5 mm path · 150 µL
With Cover Glass
$115 / pc

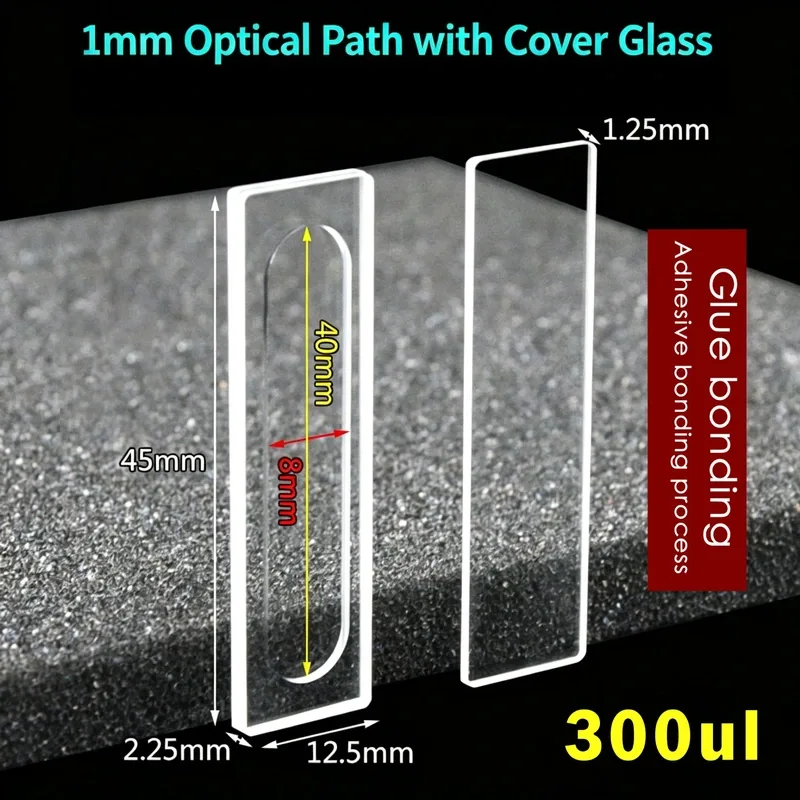

1 mm path demountable quartz cuvette With Cover Glass 300 µL — Scuvette
1 mm path · 300 µL
With Cover Glass
$115 / pc

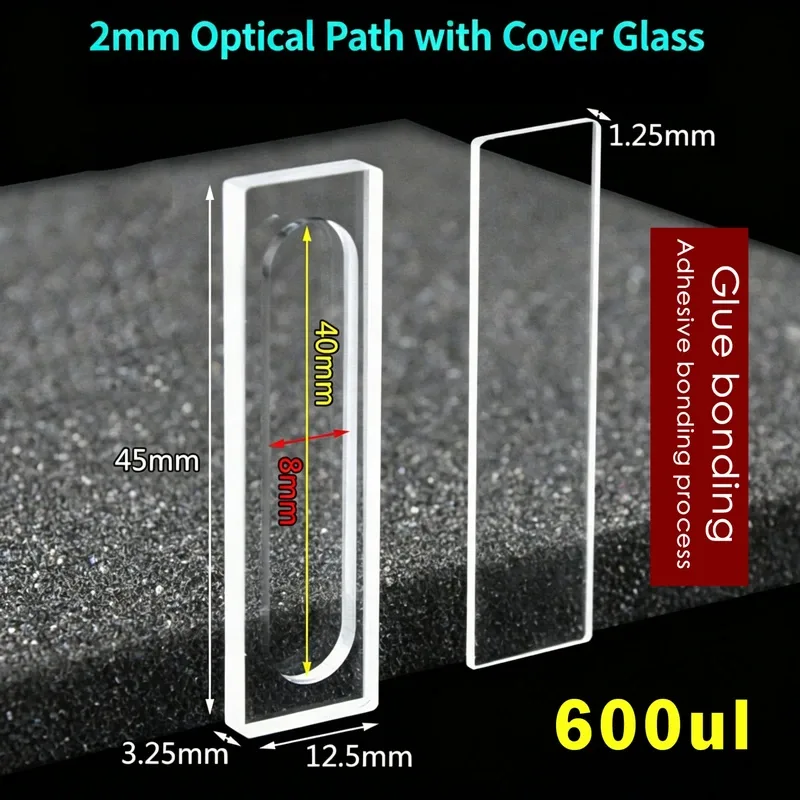

2 mm path demountable quartz cuvette With Cover Glass 600 µL — Scuvette
2 mm path · 600 µL
With Cover Glass
$115 / pc
With Cover Glass & Holder

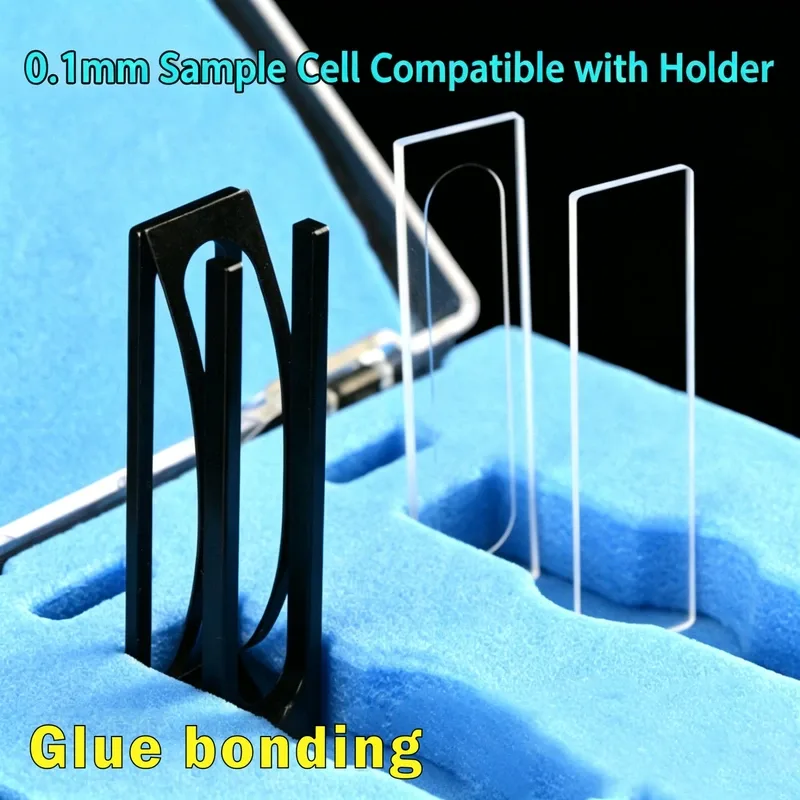

0.1 mm path demountable quartz cuvette With Cover Glass & Holder 30 µL — Scuvette
0.1 mm path · 30 µL
With Cover Glass & Holder
$190 / pc
0.2 mm path demountable quartz cuvette With Cover Glass & Holder 60 µL — Scuvette
0.2 mm path · 60 µL
With Cover Glass & Holder
$185 / pc
0.5 mm path demountable quartz cuvette With Cover Glass & Holder 150 µL — Scuvette
0.5 mm path · 150 µL
With Cover Glass & Holder
$185 / pc

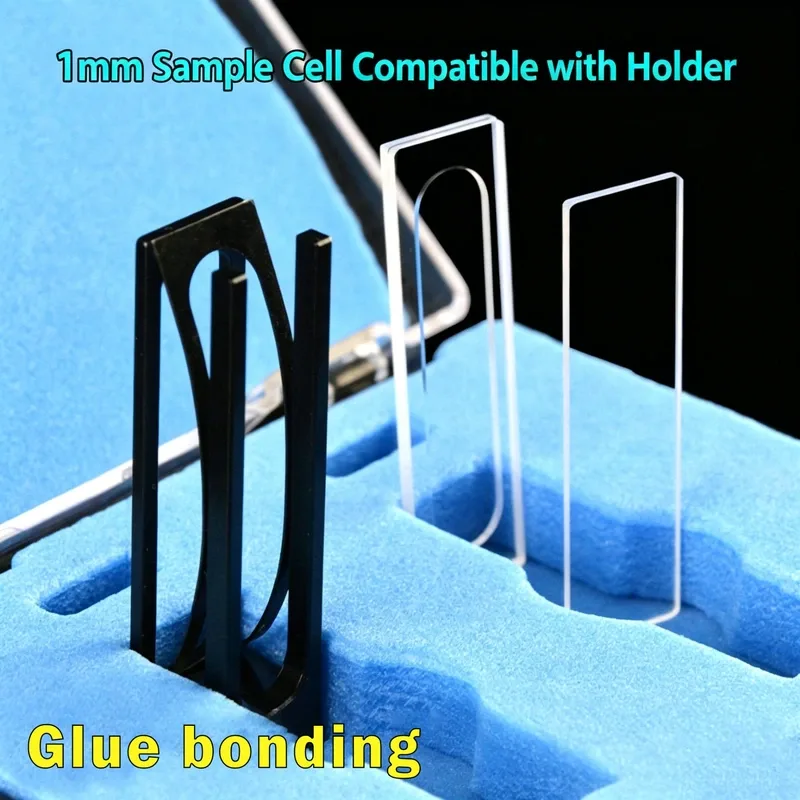

1 mm path demountable quartz cuvette With Cover Glass & Holder 300 µL — Scuvette
1 mm path · 300 µL
With Cover Glass & Holder
$185 / pc

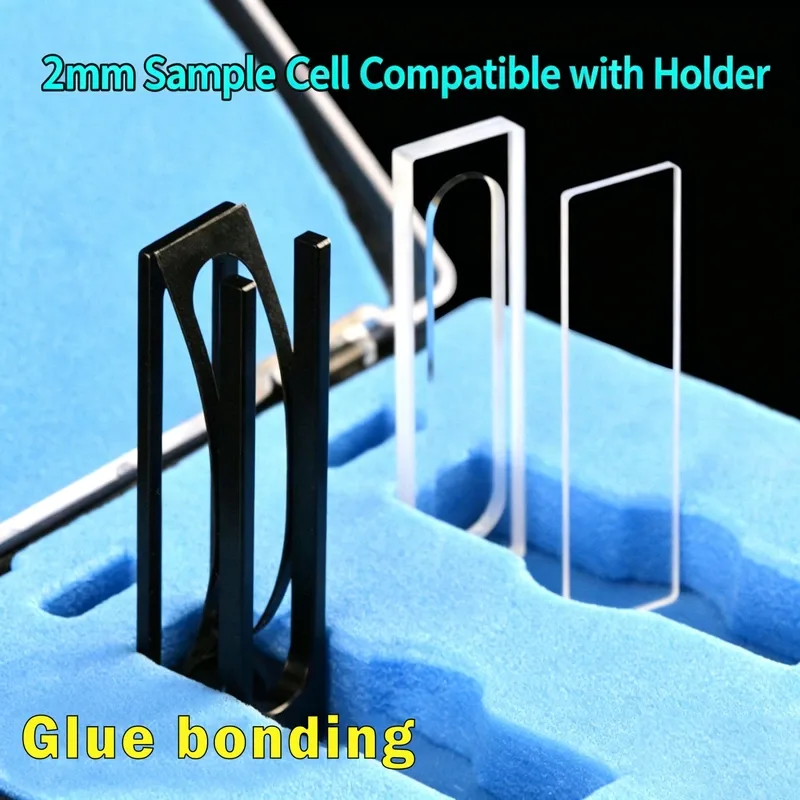

2 mm path demountable quartz cuvette With Cover Glass & Holder 600 µL — Scuvette
2 mm path · 600 µL
With Cover Glass & Holder
$185 / pc
Accessoriesspare parts

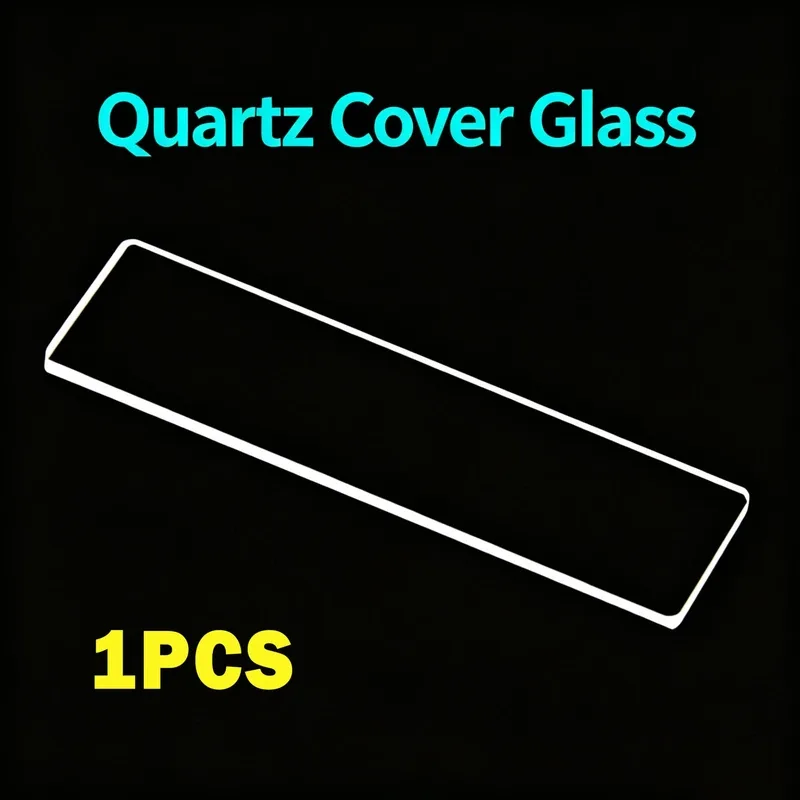

Quartz cover glass for demountable cuvette — Scuvette
Quartz Cover Glass
45 × 12.5 × 1.2 mm
$10 / pc

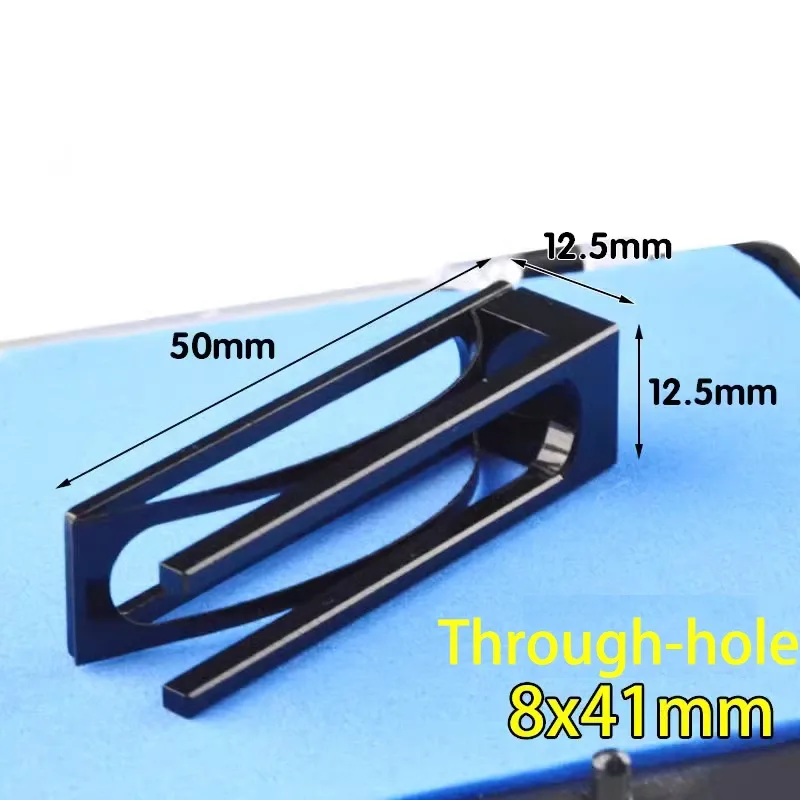

Aluminum holder for demountable cuvette — Scuvette
Aluminum Holder
12.5 × 12.5 × 50 mm
$80 / pc

All 12 SKUs shown. Need a custom path length, cover glass thickness or holder? Ask for a custom quote — OEM/ODM available.

Specifications

Detailed Parameters

Demountable Quartz Cuvette — Glue Bonded (0.1–2 mm path)
MaterialJGS1 fused silica (Japanese imported)
TechnologyAdhesive-bonded (cemented)
Path Length0.1 / 0.2 / 0.5 / 1 / 2 mm
Volume30 / 60 / 150 / 300 / 600 µL
Window ConfigurationDemountable (open cell)
Cover Glass45 × 12.5 × 1.2 mm, JGS1
Wavelength200 nm – 2500 nm
Transmittance> 80%
Max Operating Temp< 100 °C
Chemical ResistanceNeutral samples only (cemented construction)
Footprint45 × 12.5 mm
PackagingPlastic box (1 pc per box)
Brandscuvette
Before You Order

What to Check

Glue-bonded construction — neutral samples only

The quartz body is chemically inert, but the adhesive bond is not. Strong acids, strong alkalis, hydrofluoric acid (HF) and most organic solvents will attack the cement. Use these cells only for neutral powder or solid samples. For aggressive solvents, ask about our powder-fusion bonded cells.

Solid / powder fluorescence, not liquid samples

The open demountable design is intended for powder fluorescence measurements. The sample is placed between the quartz base and the cover glass. It is not sealed and therefore not suitable for liquid measurements.

Holder keeps the cell aligned in the instrument

The optional aluminum holder lets the cell stand vertically in sample compartments designed for standard 12.5 × 12.5 mm cuvettes. If your instrument accepts flat cells directly, the holder is optional.

Spare cover glasses and holders are available

Quartz cover glasses and aluminum holders can be ordered separately as replacement or spare parts.

See also: all demountable cuvettes, fluorescence cuvettes, and our cuvette care guide.
