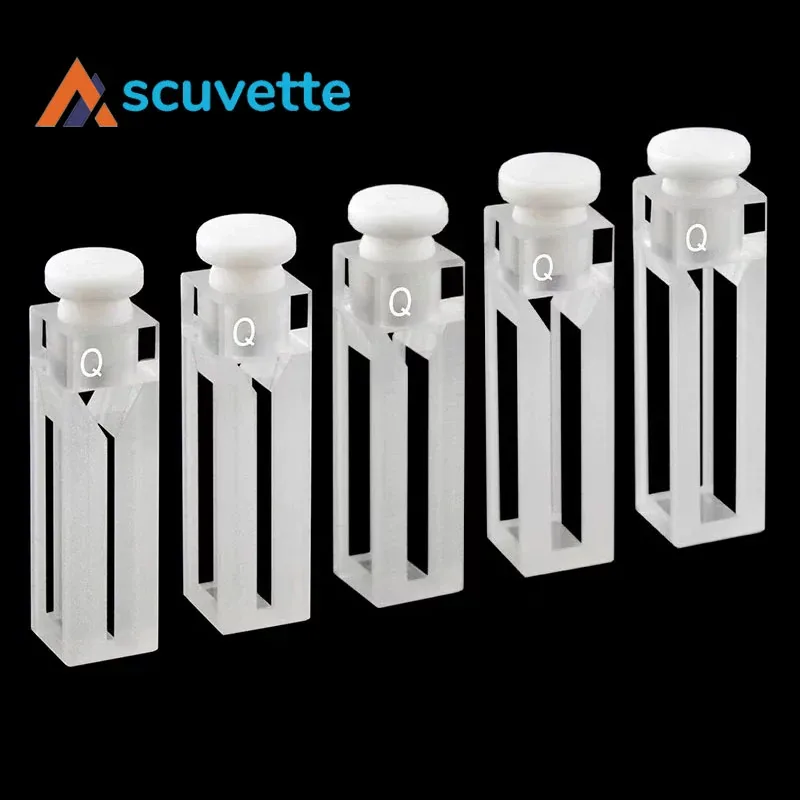

Stoppered Micro Quartz Cuvette — 4-Port — Scuvette

Stoppered Micro Quartz Cuvette — 4-Port

Stoppered micro quartz cuvette, four-way (four polished windows), 10 mm optical path, 350-1750 µL by slit width (350 µL per mm). Japanese JGS1 fused silica, PTFE stopper, adhesive-bonded construction for neutral samples only, >80% / >83% transmittance, 200nm-2500nm, max operating temp <100°C. Ideal for fluorescence measurements.

✓ ISO 9001 Certified✓ Worldwide Shipping✓ 30-Day Returns✓ In Stock · Ships in 24h
JGS1 fused silica PTFE stopper 10 mm path 200–2500 nm < 100 °C 12.5×12.5×45 mm 350–1750 µL
$80.00 – $178.00 / pc

Single-piece price, slit width does not affect price. Volume discounts available — contact us.

Factory Direct RoHS & ISO 9001 99.99% SiO₂ CAS Letter of Thanks Global Shipping

Choose Slit Width & Grade

Capacity scales linearly with slit width: 350 µL per mm. Each variant is a separate SKU and now lives on its own page — click any cell to view its dedicated product page.

1 mm slit350 µL
2 mm slit700 µL
3 mm slit1050 µL
4 mm slit1400 µL
5 mm slit1750 µL
Ordinary>80% transmittance

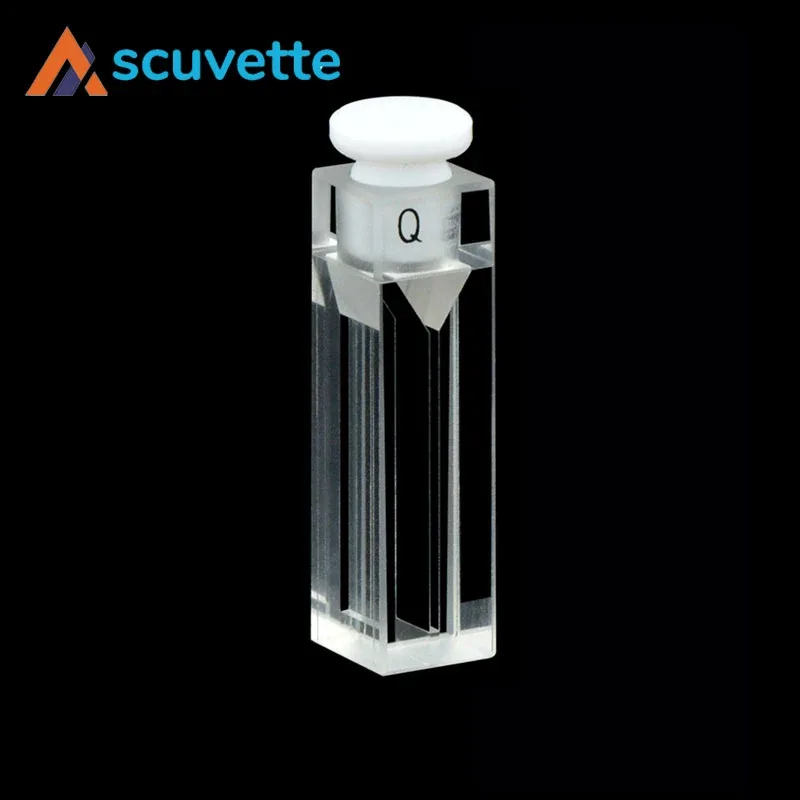

1 mm slit four-way stoppered micro quartz cuvette 350 µL Ordinary — Scuvette
1 mm slit · 350 µL
Ordinary
$80.00 / pc

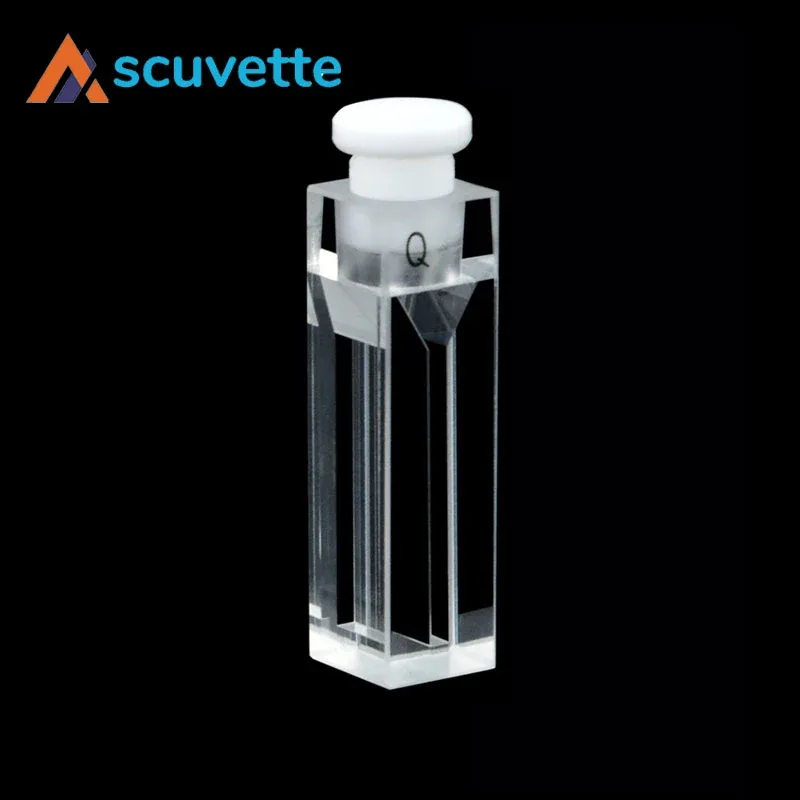

2 mm slit four-way stoppered micro quartz cuvette 700 µL Ordinary — Scuvette
2 mm slit · 700 µL
Ordinary
$80.00 / pc

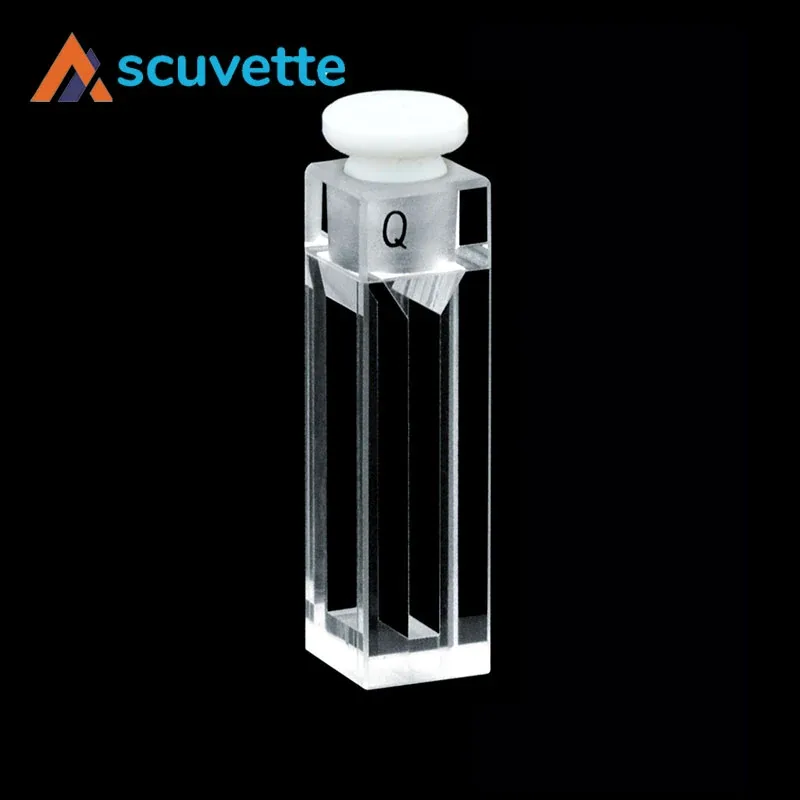

3 mm slit four-way stoppered micro quartz cuvette 1050 µL Ordinary — Scuvette
3 mm slit · 1050 µL
Ordinary
$80.00 / pc

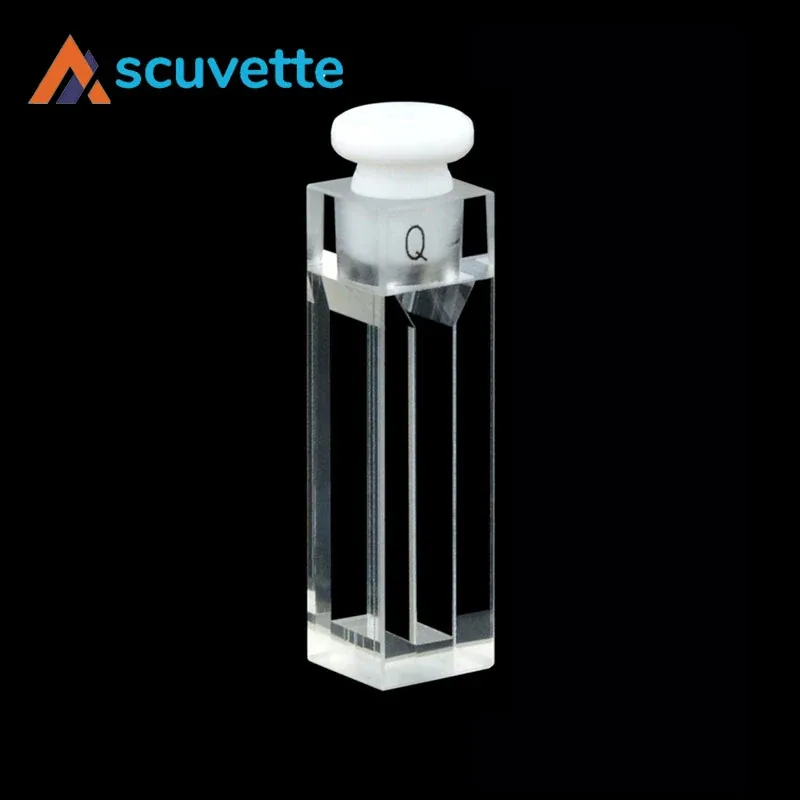

4 mm slit four-way stoppered micro quartz cuvette 1400 µL Ordinary — Scuvette
4 mm slit · 1400 µL
Ordinary
$80.00 / pc
5 mm slit four-way stoppered micro quartz cuvette 1750 µL Ordinary — Scuvette
5 mm slit · 1750 µL
Ordinary
$80.00 / pc
High transmission>83% transmittance

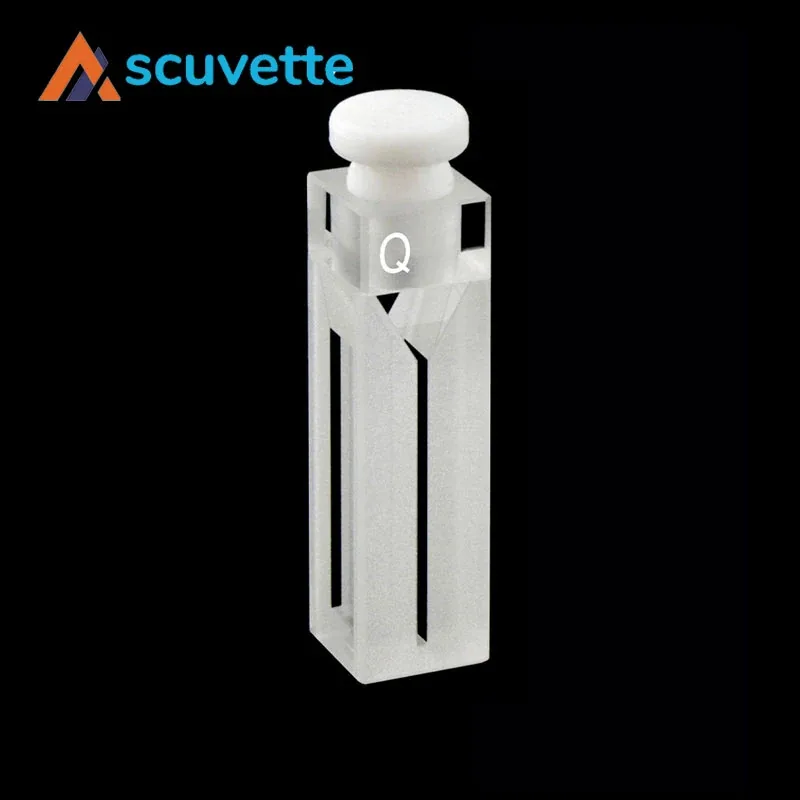

1 mm slit four-way stoppered micro quartz cuvette 350 µL High transmission — Scuvette
1 mm slit · 350 µL
High transmission
$178.00 / pc
2 mm slit four-way stoppered micro quartz cuvette 700 µL High transmission — Scuvette
2 mm slit · 700 µL
High transmission
$178.00 / pc
3 mm slit four-way stoppered micro quartz cuvette 1050 µL High transmission — Scuvette
3 mm slit · 1050 µL
High transmission
$178.00 / pc
4 mm slit four-way stoppered micro quartz cuvette 1400 µL High transmission — Scuvette
4 mm slit · 1400 µL
High transmission
$178.00 / pc
5 mm slit four-way stoppered micro quartz cuvette 1750 µL High transmission — Scuvette
5 mm slit · 1750 µL
High transmission
$178.00 / pc

All 10 SKUs shown. Need a custom slit, path length or volume? Ask for a custom quote — OEM/ODM available.

Specifications

Detailed Parameters

Stoppered Micro Quartz Cuvette — Four-way (four clear windows)
MaterialJapanese JGS1 fused silica
TechnologyAdhesive-bonded (cemented)
Path Length10 mm
StopperPTFE (polytetrafluoroethylene)
Window ConfigurationFour-way (four clear windows)
Wavelength200 nm - 2500 nm
Max Operating Temp< 100 °C
Outer Dimensions12.5 x 12.5 x 45 mm
Wall Thickness1.25 mm
Chemical ResistanceNeutral samples only (cemented construction)
PackagingPlastic box (1 pc per box)
Brandscuvette
Before You Order

What to Check

Glued (cemented) construction — neutral samples only

The quartz body is inert, but the cement is not: strong acids, strong alkalis, HF and most organic solvents will attack the bond. For aggressive solvents, ask about our powder-fusion bonded cells.

Volume = slit width × 350 µL/mm

1 mm slit = 350 µL, 2 mm = 700 µL, 3 mm = 1050 µL, 4 mm = 1400 µL, 5 mm = 1750 µL. The wider the slit, the larger the sample volume needed to fill the light path.

Stopper (PTFE) included

Each cuvette ships with a PTFE stopper and a plastic storage box (1 pc per box). The stopper prevents evaporation of volatile samples during measurement.

See also: all quartz micro cuvettes, fluorescence cuvettes, and our cuvette care guide.

Stoppered Micro Quartz Cuvette – 4-Port – Frequently Asked Questions

Which slit width should I choose for my sample volume?

Volume scales at about 350 µL per mm of slit width: 1 mm ≈ 350 µL through 5 mm ≈ 1750 µL. Pick the narrowest slit that still fills the light path, so scarce samples use a 1 mm slit and dilute, weakly absorbing samples benefit from a wider slit.

Should I choose a two-way or a four-way cell?

This is the four-way version (four polished windows). Two-way cells suit straight-through absorbance readings in a standard spectrophotometer. Four-way cells add clear faces for 90° fluorescence detection and for instruments that read from the side. If you only run absorbance, the two-way version does the same job.

Will this cuvette fit my spectrophotometer?

Yes for any instrument with a standard 10 mm cuvette holder: the body is 12.5 × 12.5 × 45 mm with a 10 mm optical path, the same footprint as a conventional macro cell. The JGS1 windows transmit from 200 nm to 2500 nm, covering UV-Vis and most fluorescence bands.

How do I clean and store the cell without damaging it?

Rinse with deionized water right after use, flush with dilute laboratory detergent, then rinse with isopropanol and let it air-dry inverted. Fill only with soft-tipped pipettes or gel-loading tips – never forceps. Store it in the supplied box with the PTFE stopper loose. Full protocol in our cuvette care guide.
